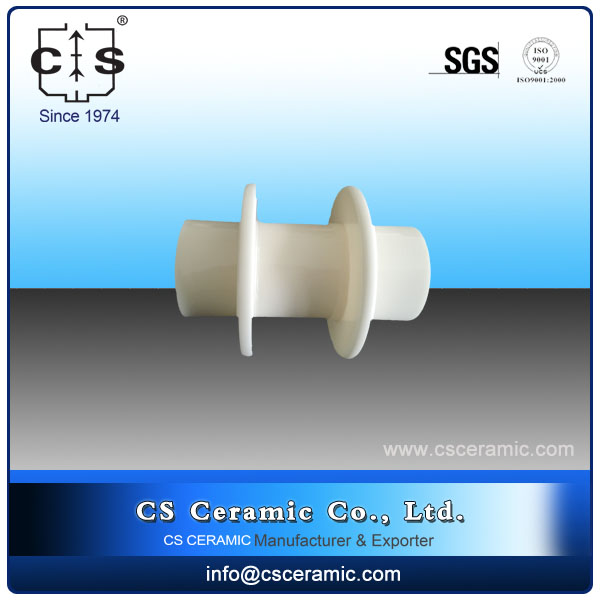

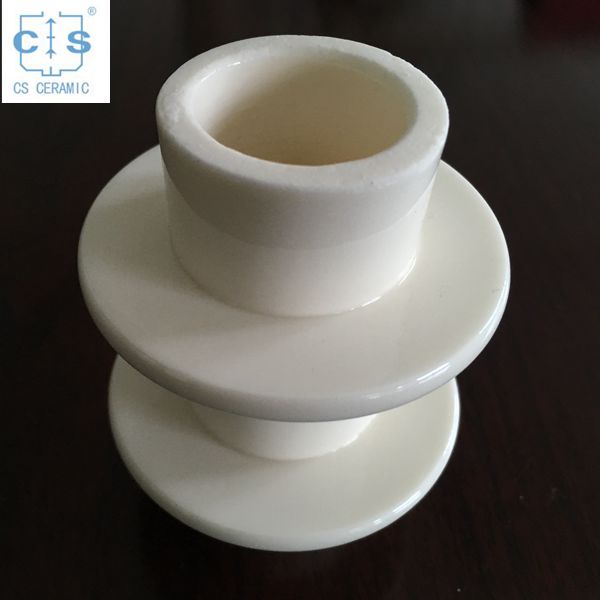

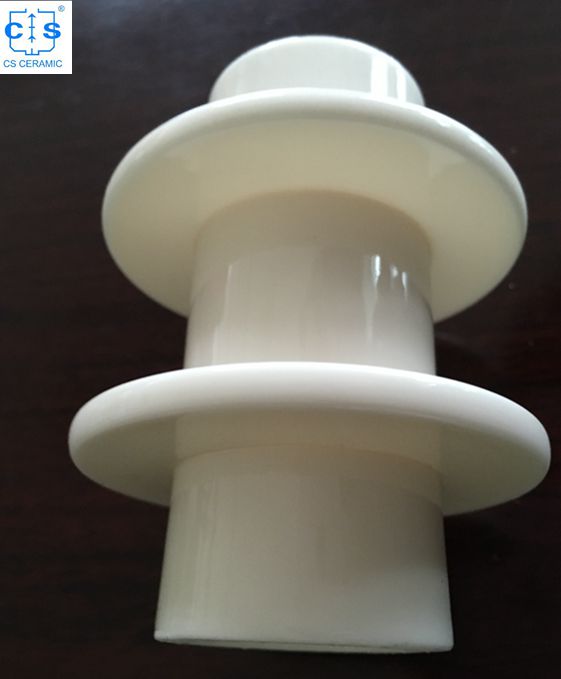

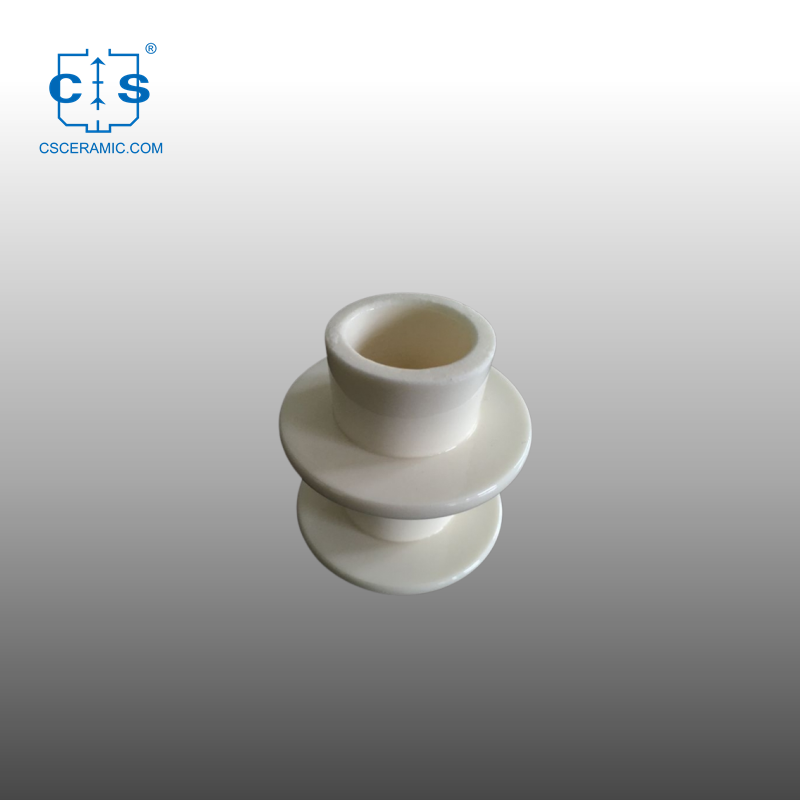

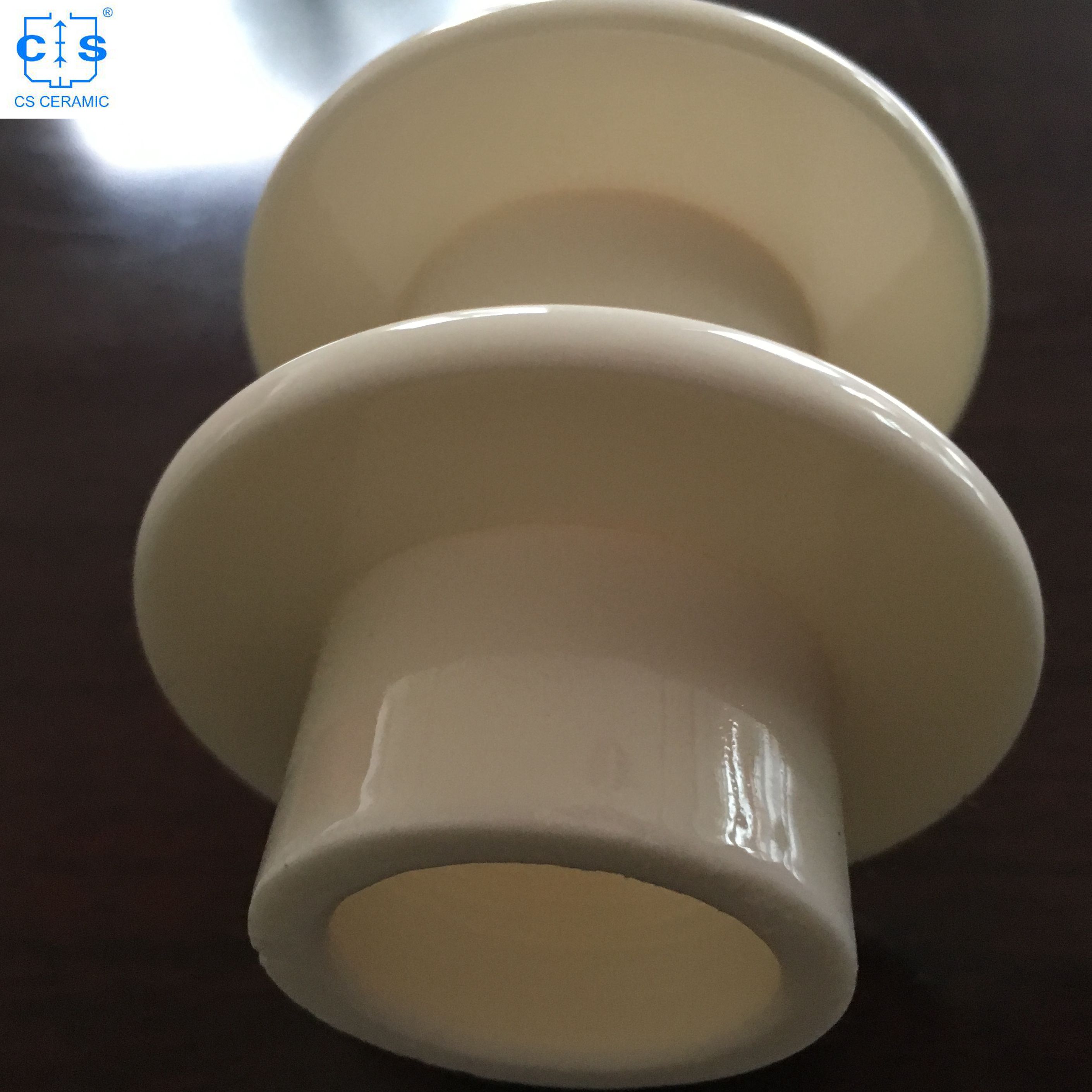

Alumina pipes ceramic tubes can be tailored to meet specific requirements. They provide a low-maintenance and cost-effective solution for various industrial and commercial requirements.
item no. :
CS-A-42-12Color :
White
1. Alumina pipes ceramic tubes have excellent insulation properties, and can provide excellent thermal insulation in extreme temperatures.
2. Very sturdy and wear-resistant, ideal for various industrial applications.
3. Strong resistance to various chemical substances
4. Light weight, easy to transport and install.
5. Resistant to corrosion, making them a great choice for applications in harsh, corrosive environments.
6. Alumina pipes ceramic tubes are a cost effective alternative to metals, and can be used in a variety of applications.
1. Alumina pipes ceramic tubes are cylindrical pieces of ceramic material, usually fired clay or porcelain, that are used for a variety of industrial and commercial applications.
2. They are highly heat resistant, durable, and corrosion-resistant, making them ideal for use in piping systems and other industrial equipment.
3. Alumina pipes ceramic tubes provide a low-maintenance and cost-effective solution for various industrial and commercial requirements.
4. They can be tailored to meet specific requirements.
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.
Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
Moisture absorption | % | 0 | 0 | 0 | ||
Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
Dielectric constant (100MHz) | (E) | 9.5 |
1. Alumina pipes ceramic tubes can be used as an efficient and cost-effective method for transferring heat in industrial processes, such as in power plants and chemical plants.
2. Used in automotive exhaust systems to reduce emissions and increase fuel efficiency.
3. Used to manufacture medical devices, such as MRI machines, to provide insulation and reduce noise.
4. Used in the construction of buildings to provide insulation and prevent unwanted heat loss.
5. For aerospace and defense applications, providing lightweight heat resistant materials for components and assemblies.
6. Used in the production of electronic components and equipment, such as microprocessors and transistors.
Q1. What information should we supply to get a quote?
Please offer the specification of ceramic tube, such as shape, dimension, quantity, application etc.
Q2. What are the different types of alumina pipes and ceramic tubes?
The types of alumina pipes and ceramic tubes vary depending on the material used. Common materials include alumina oxide, zirconia, and silicon carbide. Each type of material offers different levels of performance and durability.
Q3. Are alumina pipes ceramic tubes easy to install?
Yes, alumina pipes ceramic tubes are relatively easy to install. They can be cut to size and secured with adhesives or mechanical fasteners.
Q4. Are alumina pipes ceramic tubes available in a variety of sizes and shapes?
Yes, alumina pipes ceramic tubes are available in a wide range of sizes and shapes, including round, rectangular, and oval. They can also be customized to meet specific requirements.
1. Begin by vacuuming the outside of the tube to remove any debris or dust.
2. Use a mild detergent and scrub the tube with a soft cloth or brush.
3. Use a mild abrasive or a toothbrush to scrub the inside of the tube.
4. Rinse the inside and outside of the tube with warm water and a soft cloth.
5. Use a clean, lint-free cloth to dry it.
1. Visual inspection of the tube for any signs of damage or irregularities.
2. Measurement of the length, diameter, and thickness of the tube to check for accuracy.
3. Checking for any leaks or pinhole defects in the tube.
4. Testing for proper adhesion of the end cap to the tube.
5. Verification of the material and chemical composition of the tube.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
