Platinum/PT Crucibles
99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover 99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover 99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover 99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover 99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover

99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover

1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles  .CS CERMAIC CO.,LTD

  • item no. :

    CS-PT-1
  • hits :

    11608
  • Color :

    natural color
  • Capacity : 5 ml

  • description

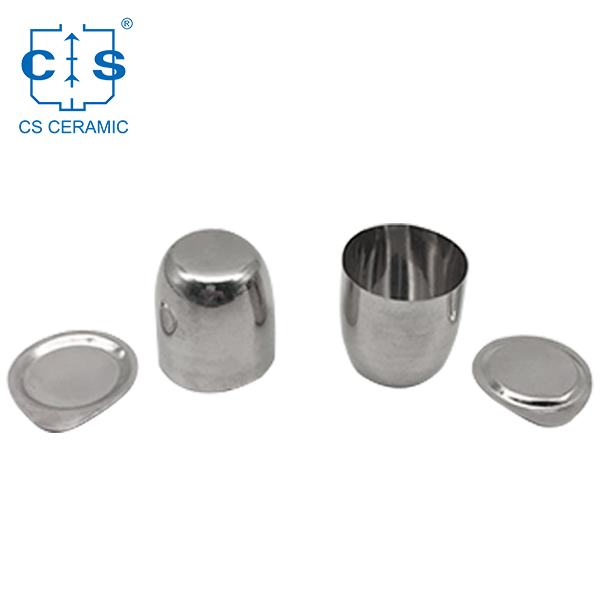

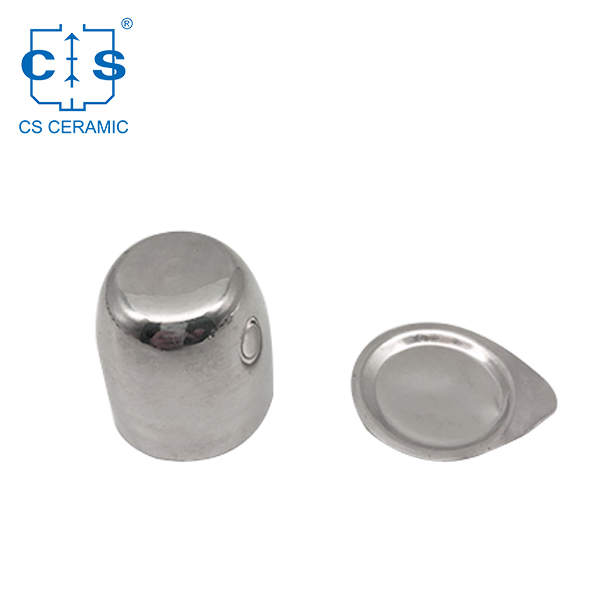

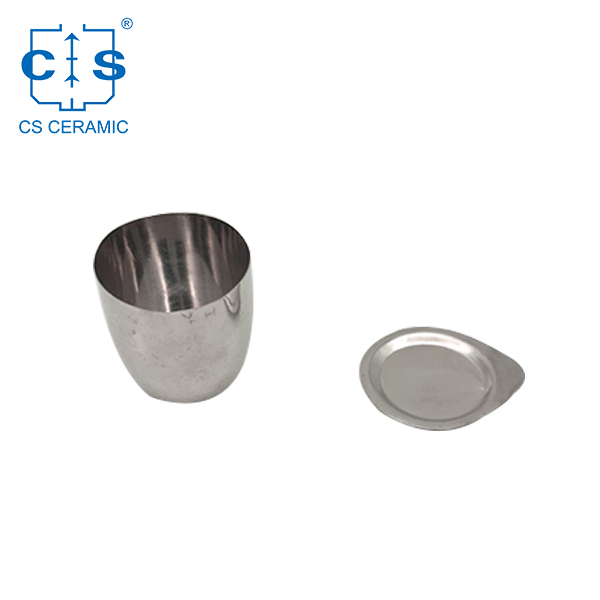

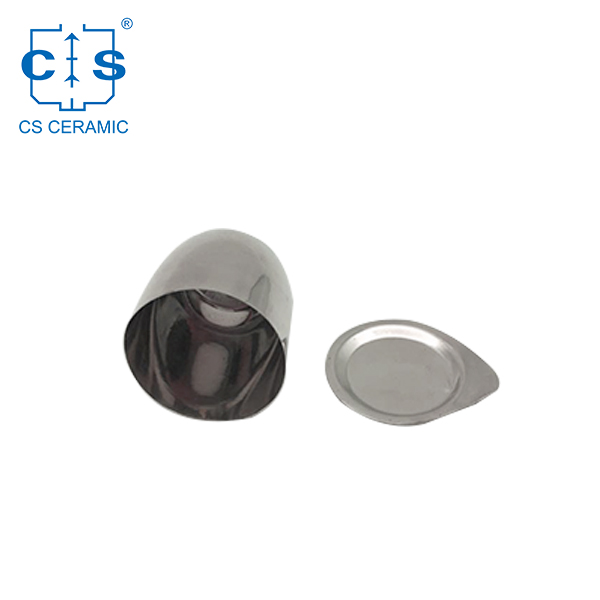

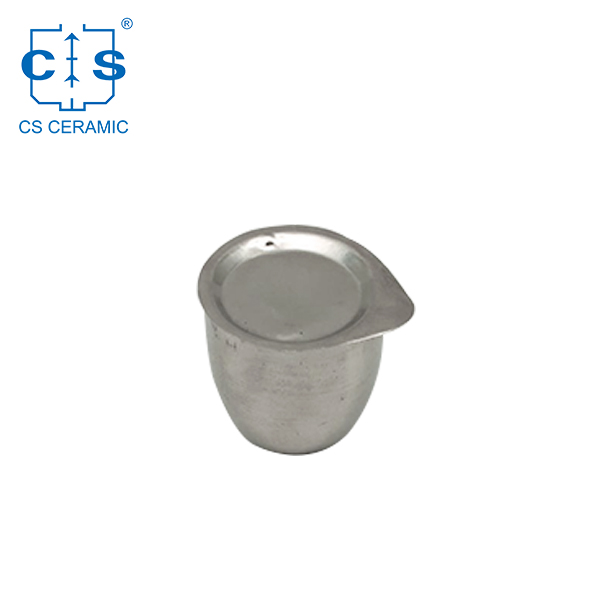

Product Item: 99.95% Platinum/PT Crucibles Capacity 5ml/20ml/30ml/ 50ml/100ml Standard with Cover


Advantage

Platinum labware has excellent resistance to acids such as acetic, hydrochloric, hydrofluoric, hydroiodic, nitric, selenic, and sulfuric, and to oxidation at high temperatures. Dishes of platinum can be cleaned by boiling in a suitable solvent. For the removal of substances which have alloyed with the surface,



Size of other Pt Crucibles(5-300ml ) (other sizes made as per customers' request)

Item NO.   Platinum % Capacity
(ml)
Top
D(mm)
Bottom
D(mm)
Height(mm) Thickness(mm) Crucible with lid Weight(g) Lid weight(g)
CS-PT-1 ≥99.95% 5 20 17 15 0.22 6 2
CS-PT-2 ≥99.95% 10 25 15 27 0.26 12 2.5
CS-PT-3 ≥99.95% 15 32 19 34 0.26 23 3
CS-PT-4 ≥99.95% 20 32 29 34 23 20 3.5
CS-PT-5 ≥99.95% 25 34 20 38 0.27 25 4
CS-PT-6 ≥99.95% 30 36 22 40 0.29 30 4.5
CS-PT-7 ≥99.95% 35 40 26 40 0.29 35 5
CS-PT-8 ≥99.95% 40 41 25 45 0.29 40 5
CS-PT-9 ≥99.95% 50 44 27 47 0.31 50 5.5
CS-PT-10 ≥99.95% 60 49 29 49 0.33 60 7
CS-PT-11 ≥99.95% 80 50 32 55 0.35 80 8
CS-PT-12 ≥99.95% 100 55 38 60 0.37 100 10
CS-PT-13 ≥99.95% 150 70 41 70 0.38 156 12
CS-PT-14 ≥99.95% 200 68 50 82 0.38 200 15
CS-PT-15 ≥99.95% 250 75 52 90 0.39 250 30
CS-PT-16 ≥99.95% 300 86 57 83 0.4 300 36


Note of platinum crucible:

1.Melting point of platinum crucible is 1773.5℃, maximum permissible temperature is 1200℃, and not allowed to heat directly on open fires. For platinum vessel, the maximum permissible temperature is 1300℃. There will be no deformation under 1400℃ for 30 minutes, but long-time use under that is not allowed, otherwise deformation may be caused.


2.Mind the strength when take out the crucible to avoid deformation, glass bar cusp is not allowed to use to take out testing matter from the crucible.


3.To avoid corrosion due to chemical reaction between testing matter and the crucible, none of the material below is available to be heated or melted inside: nitrate, nitrite, chloride, oxide, cyanide of alkali melt, hydroxide, barium oxide, sodium thiosulfate, material contains phosphorus or sulphur.


4.To avoid embrittlement of platinum vessel, carbon is not allowed to contact when use it. Any sample or compound that contains heavy mettle like plumbum, bismuth, stannum, arsenic, argentum, mercury, copper, is not allowed to be heated or melted in platinum crucible.


5.When heat the platinum crucible, please do not let it contact directly with any other mettle, like iron plate, electric furnace, or thermocouple when put it into high temperature furnace.


6.Halogen material is not allowed to be tested in platinum crucible, like bromine water, hydrochloric acid, or oxidizing agent (chlorate, nitrate, permanganate, manganese oxide chromate, nitrite). To avoid corrossion, please do not let it contact with ferric trichloride.


7.Please do not heat or melt anything with unknown composition in platinum crucible.


8.Please keep the platinum crucible clean and lustrous of both sides. After long-time use, the external surface may become lackluster, and the impurity may permeate into the crucible and cause embrittlement or fracture, so impurity on surface should be cleaned in time.


9.Note: please equip stainless steel crucible tongs with platinum tip for platinum vessel.

Instruction for platinum crucible clean:


A.Boil in diluted hydrochloric acid or dilute nitric acid (diluted hydrochloric acid is recommended, concentration 1.5~2 mol/L), and no oxidizing agent like nitrate, nitrite or Halogen material contained.
B.If the platinum crucible still not cleaned after step A, then use melted potassium pyrosulfate,  sodium carbonate or borax to wash it.
If still stain or darkness in the surface after step B, then wet it with water, use 100-mesh fine sand that without shape edge to grind it lightly to regain luster.


Special offer: Most of our goods are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
