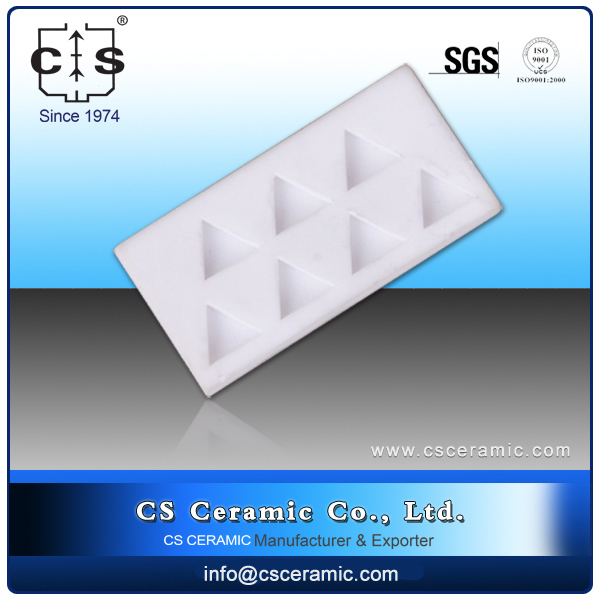

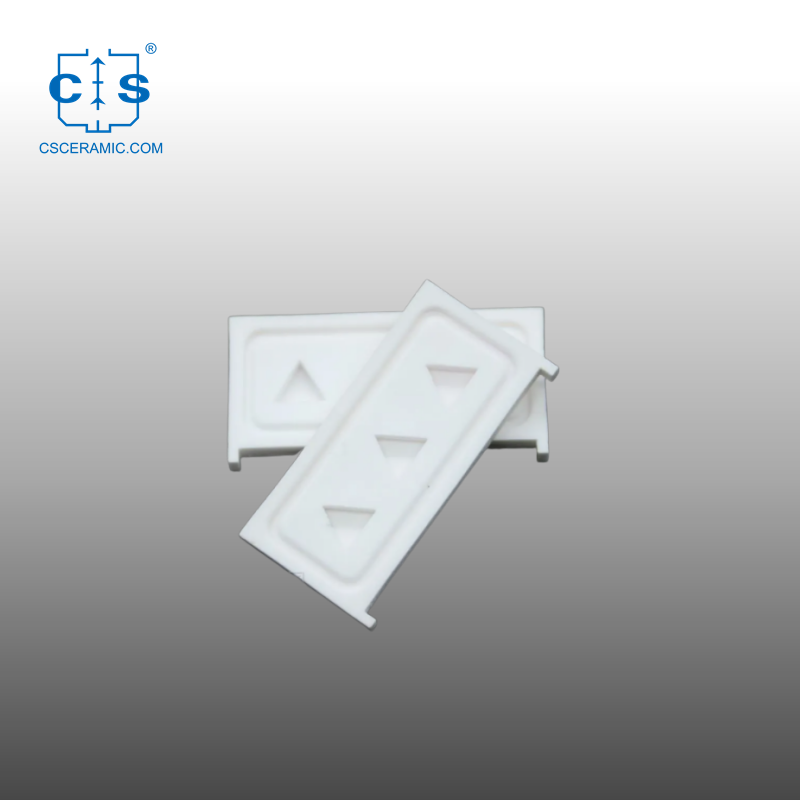

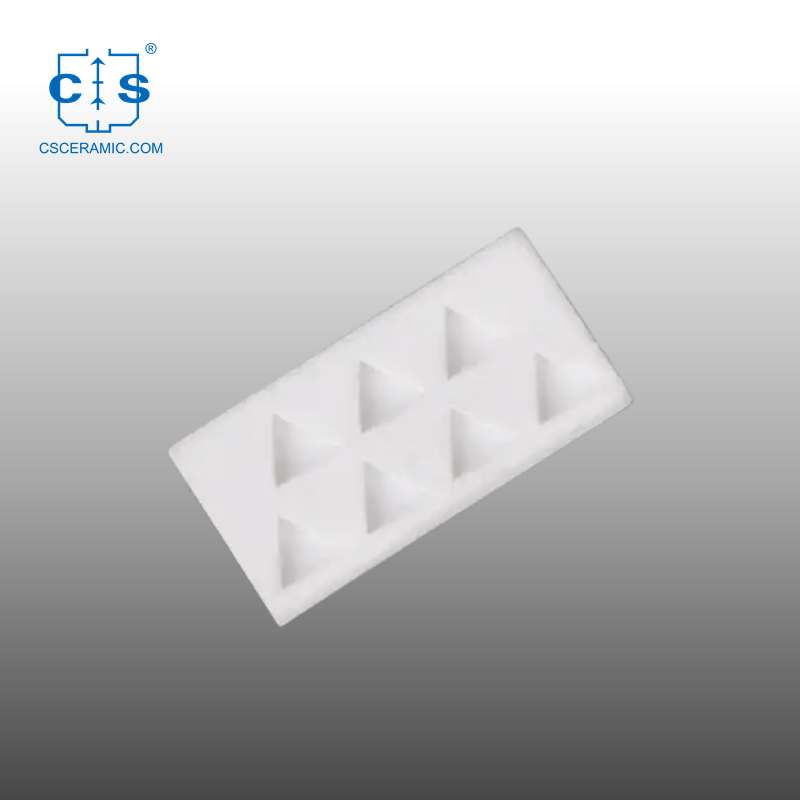

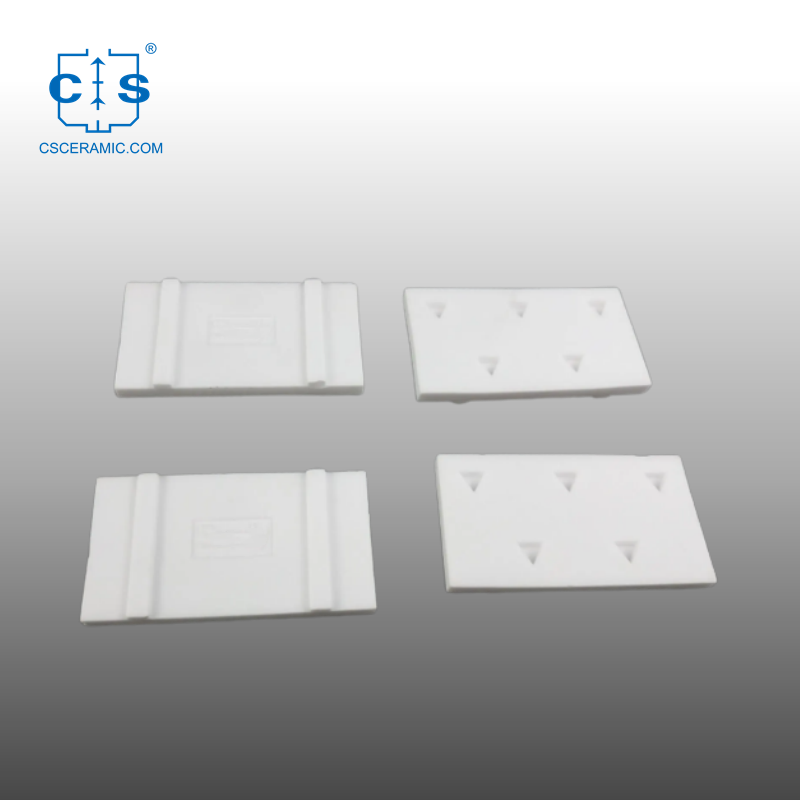

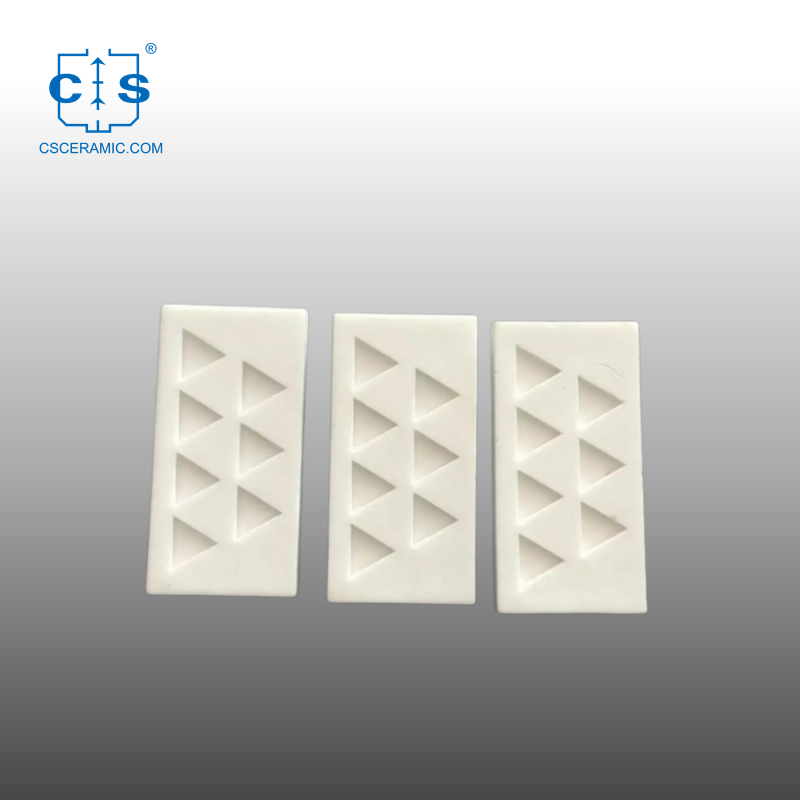

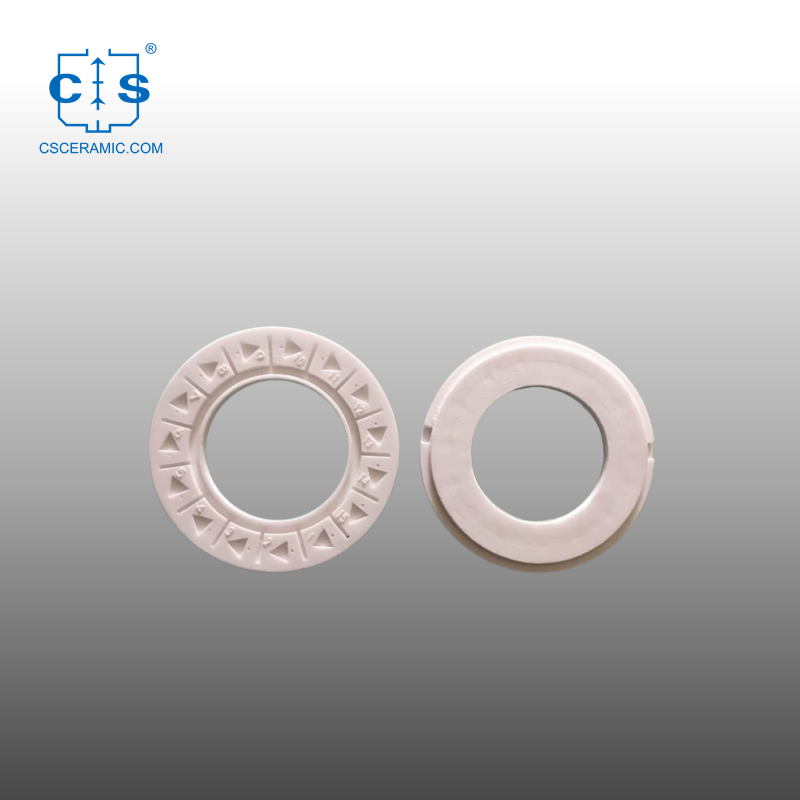

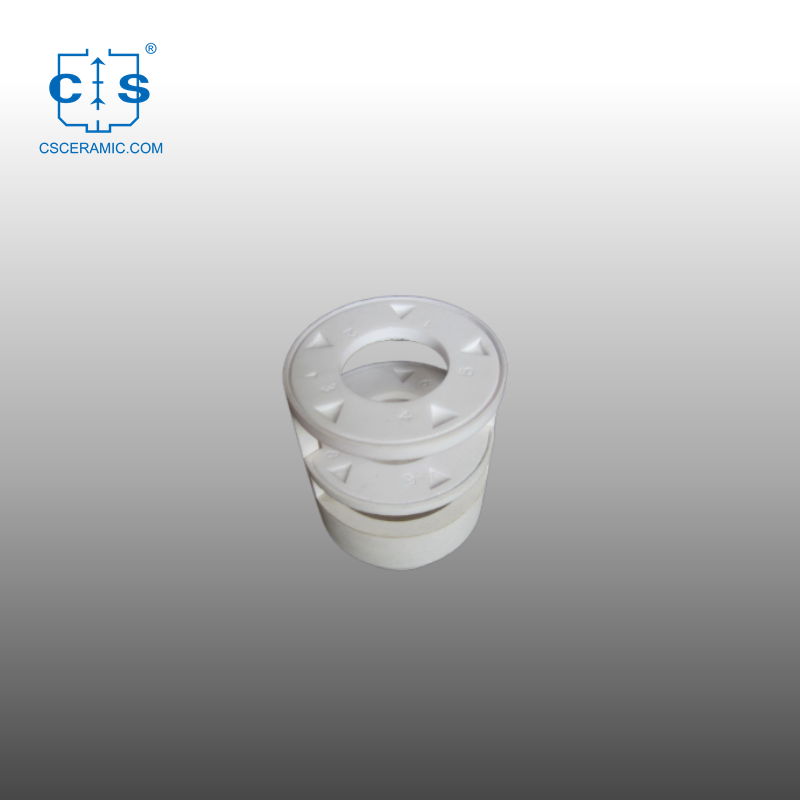

Pyramid Alumina Ceramic Tray Ash Cone Bracket for Ash Melting Point Measuring Instrument

Alumina ceramic tray ash cone bracket is a high-quality accessory used for holding ash cones on top of alumina trays.It is available in different sizes and shapes and can be used with a variety of ash cone types.

  • item no. :

    CS-A-56
  • Color :

    White
    • Purity Available

      90% 92% 95% 99.5% 99.7% 99%

    • Material : Alumina ceramic

    • Shape : Rectangular

  • description

Pyramid Alumina Ceramic Tray Ash Cone Bracket for Ash Melting Point Measuring Instrument




Advantages

1. Alumina ceramic tray is high temperature resistance,1600℃ in long use,1800℃ in short use (Al2O3≥99%).

2. It has strong resistance to chemical substances.

3. Low thermal conductivity.

4. Compared to metal trays, alumina ceramic tray is lightweight. This feature makes it easy to handle and install, reducing the risk of accidents and injuries.

5. Non magnetic, suitable for applications that should avoid magnetic interference, such as aerospace and defense industries.

6. Compared to other materials, alumina ceramic trays are cost-effective.



Descriptions

1. Alumina ceramic tray ash cone bracket is a high-quality accessory used for holding ash cones on top of alumina trays.

2. It is made of premium grade alumina ceramic material known for its excellent thermal and chemical resistance.

3. The bracket has a glossy finish that adds elegance to the tray and makes it resistant to scratches, stains, and wear.

4. It is an ideal choice for those who want to ensure that their ash cones burn evenly, safely, and without causing any mess or damage to the tray.

5. The ash cone bracket is durable, easy to clean, and can withstand high temperatures without cracking or chipping.

6. The bracket can also be easily removed and replaced, making it convenient for users to switch between different cones or clean the tray as needed.



Usage information

1. A triangular coal ash cone with certain size is placed on the ash cone tray of ash fusion determinator for ash melting point measurement.
2. Place the ash cone tray on the corundum boat crucible of ash fusion determinator. (Covered with a layer of graphite or anthracite.)
3. Put the corundum boat crucible in the center of furnace chamber.

4. Turn on the computor, and click on start with software of ash melting point measuring.





Size details



Item NO.
Hole
(pcs)
Length
(mm)
Width
(mm)
Thickness
(mm)
CS-A-56-1 2 / / /
CS-A-56-2 3 44 21 4
CS-A-56-3 3 44 22 4
CS-A-56-4 4 55 30 4
CS-A-56-5 5 55 30 4
CS-A-56-6 5 47 20 4
CS-A-56-7 7 40 20 2
CS-A-56-8 7 55 30 4
CS-A-56-9 7 55.5 30 6
CS-A-56-10 10 53 24 6



Parameters of Alumina Ceramic


Item Test Condition 95% Al2O3 99% Al2O3 99.5% Al2O3
Physical properties Density g/cm3 >3.6 3.89 3.96
Moisture absorption % 0 0 0
Mechanical properties ROHS Hardness ≥85 ≥89 ≥89
Flexural strength psiX103 20℃ 358 550 550
Compressive strength psiX103 20℃ 2068(300) 2600(377) 2600(377)
Fracture toughness Mpa.m3/2 K(l c) 4.3 5.6 6
Thermal properties Maximum use temperature 1450 1600 1650
Thermal expansion coefficient 1X10-6/℃ (25-1000℃) 7.6 7.9 8.2
Thermal shock resistance Tc 250 200 200
Thermal conductivity w/mok 20℃ 16 30 30.4
Electrical properties Volume resistivity Ohm/cm2 100℃ >1013 >1014 >1014
Dielectric breakdown strength KV/mm 8.7(220) 8.7(220) 8.7(220)
Dielectric constant (E) 1MHz25℃ 9 9.7 9.7
Dielectric constant (100MHz) (E) 9.5



Applications

1. The alumina ceramic tray ash cone bracket can be used as a highly durable and temperature-resistant holder for ash cones in industrial furnaces. The bracket's high thermal stability means the holder won't deform or break down even when exposed to extreme temperatures.

2. It is an excellent support for ash cones in laboratory furnaces.

3. Used in the food processing industry to hold ash cones in ovens and kilns. The bracket's non-reactive nature ensures that the final product remains free from any harmful substances or contaminants.

4. Used in the medical industry to hold ash cones in high-temperature ovens and kilns during the production of medical devices. The bracket's high purity and chemical resistance make it ideal for use in a medical setting.

5. It is perfect for use in the aerospace industry, where it can be used as a support for ash cones during testing of high-temperature materials in jet engines and rocket thrusters. Its ability to withstand extreme temperatures makes it the perfect choice for this kind of application.



FAQs


Q1. What information should we supply to get a quote?

Please offer the specification of alumina ceramic tray ash cone bracket, such as shape, dimension, quantity, application etc.


Q2. Can an alumina ceramic tray ash cone bracket be reused?

Yes, an alumina ceramic tray ash cone bracket can be reused multiple times. It is designed for long-term durability and can withstand multiple firing cycles.


Q3. How are alumina ceramic tray ash cone brackets installed?

The tray is typically placed in the desired location and secured in place using mounting brackets. Then place the ash cone bracket and secure it.


Q4. How do I maintain alumina ceramic tray ash cone bracket?

Alumina ceramic tray ash cone bracket requires minimal maintenance, but it is essential to ensure that they are kept clean and free of debris. Regular inspections should also be conducted to check for any signs of wear or damage.



How to clean alumina ceramic tray ash cone bracket

1. First, wipe the alumina ceramic tray with a damp cloth to remove dust and dirt.

2. Use a soft bristle brush and a mild detergent solution to scrub the alumina ceramic tray.

3. Wash the alumina ceramic tray with clean water, and then dry it with a soft cloth.

4. Ensure that the alumina ceramic tray is dry when used next time.



Quality testing standards

1. Visual inspection of the alumina ceramic tray for any signs of damage or irregularities.

2. Measurement the dimensions of the alumina ceramic tray to check for accuracy.

3. Checking for any pinhole defects in the alumina ceramic tray.

4. Verification of the material and chemical composition of the alumina ceramic tray.
