item no. :
CS-YHL-FS00199%
Material : Alumina ceramic

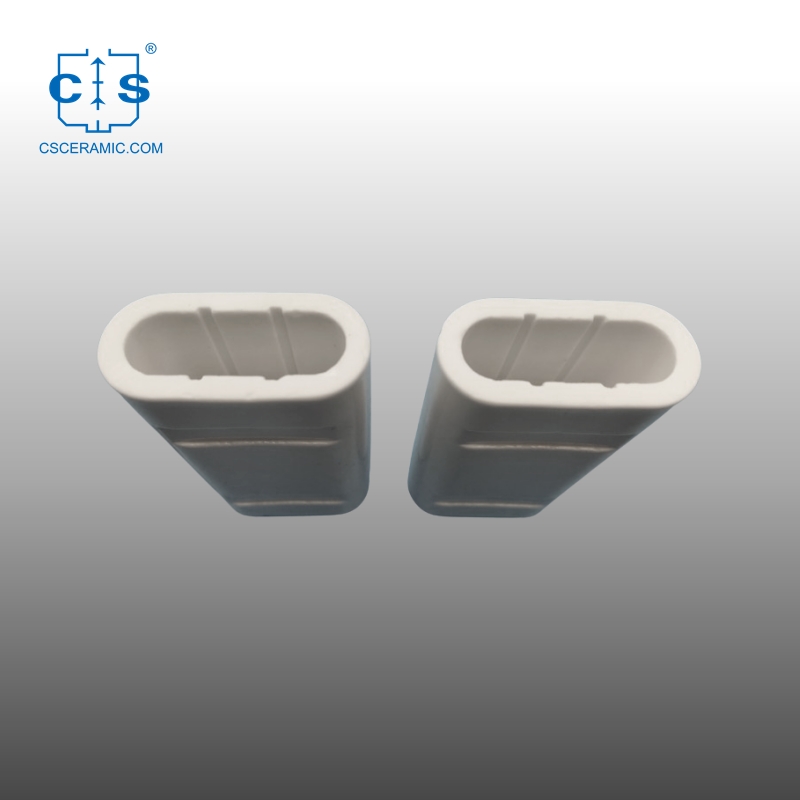

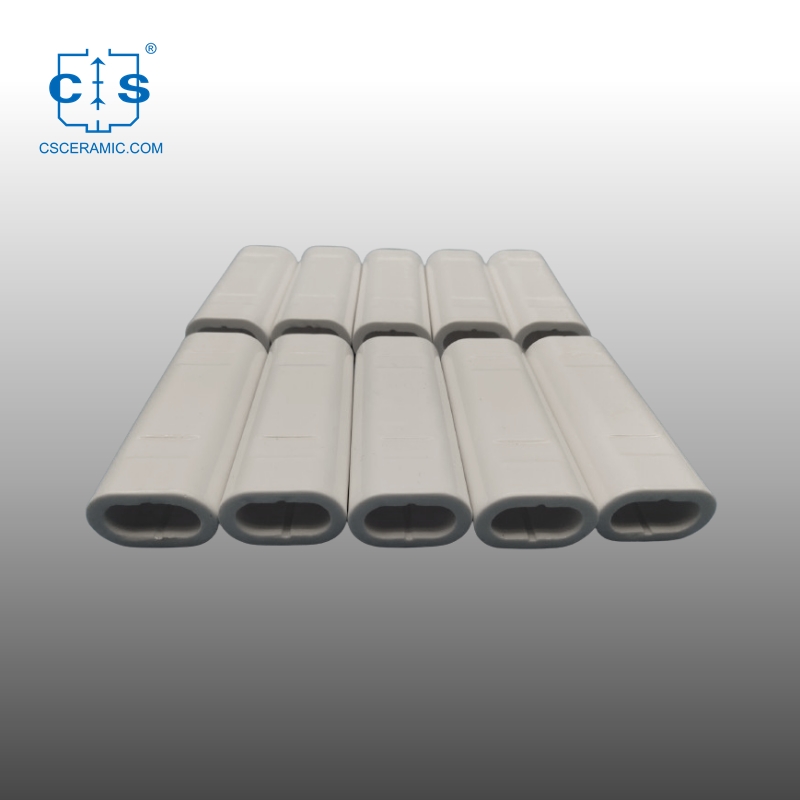

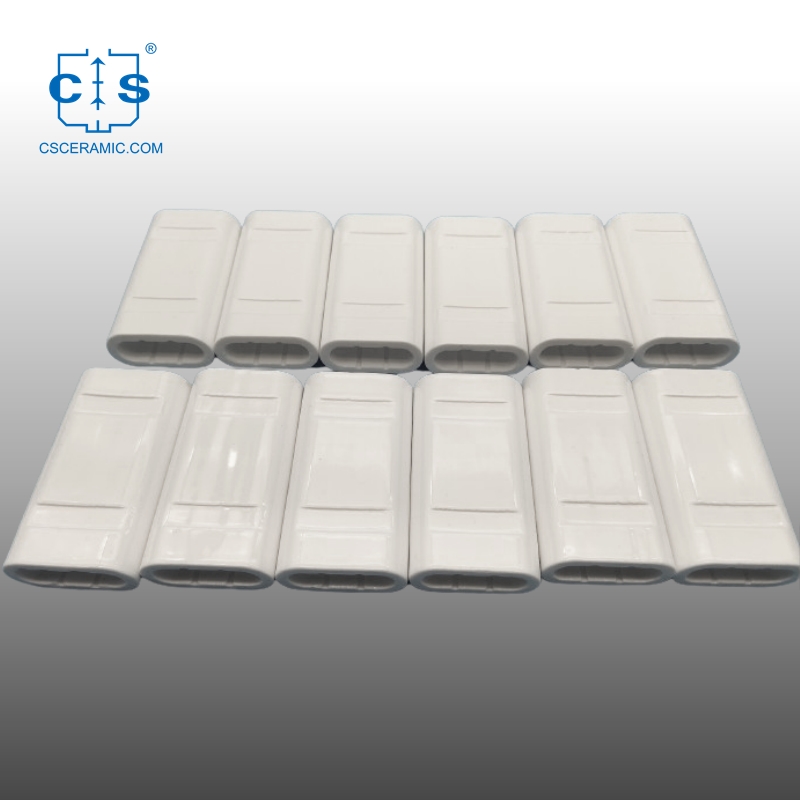

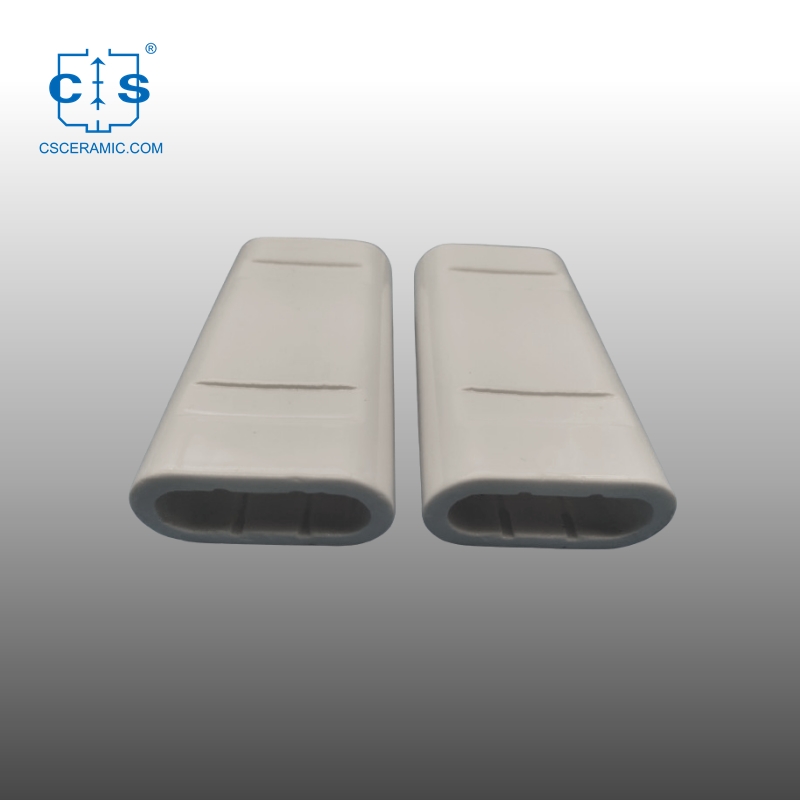

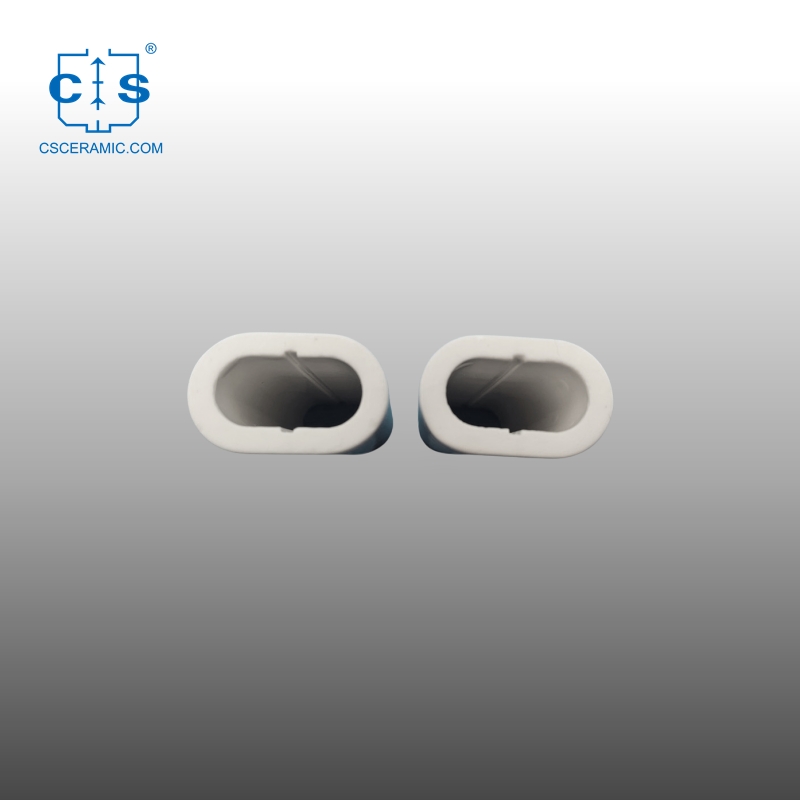

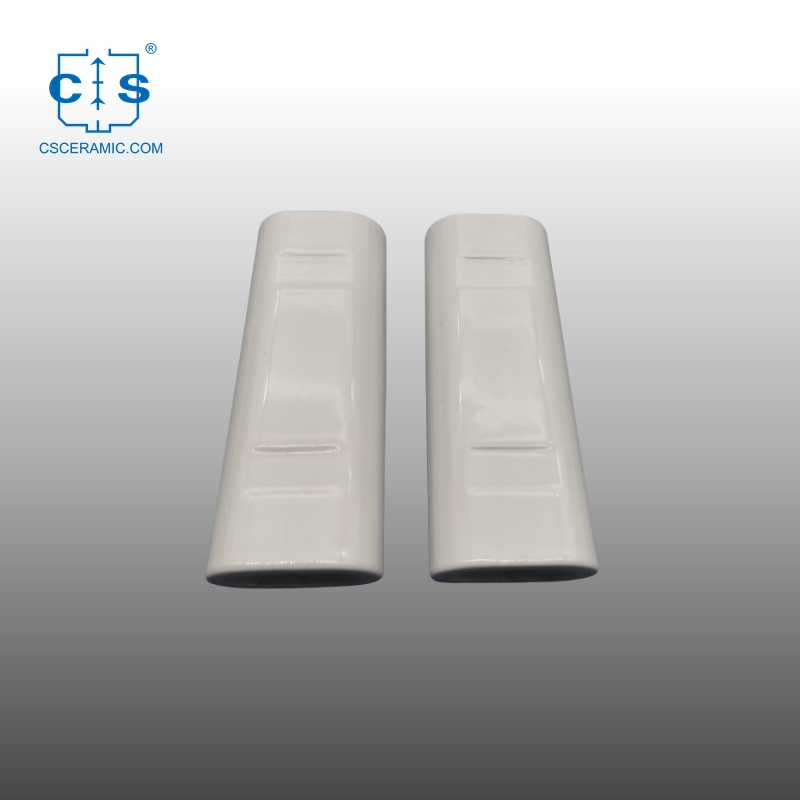

Alumina Ceramic Laser Reflector
Reflector is an important part of the laser, used to bounce the laser beam back to the medium for many times, so that the laser has an amplification effect, to generate laser beam with high energy and high monochromaticity and then emits out. The reflector can achieve a higher reflectivity to a specified wavelenght beam by coating technology.
1. High Reflectivity: Alumina ceramic reflectors exhibit excellent reflectivity across a wide range of wavelengths, including visible light, infrared, and ultraviolet.
2. Thermal Stability: One of the most significant advantages of alumina ceramic reflectors is their exceptional thermal stability.
3. Mechanical Strength: Alumina ceramic is renowned for its high mechanical strength and hardness.
4. Chemical Inertness: Alumina ceramic is chemically inert and resistant to corrosion, making ceramic reflectors suitable for use in harsh chemical environments or when exposed to corrosive substances. This resistance ensures the reflectors' longevity and stability in challenging operating conditions.
5. Abrasion Resistance: Due to their hardness and abrasion resistance, alumina ceramic reflectors maintain their optical performance even when subjected to abrasive materials or harsh environmental conditions.
6. Uniformity and Precision: Alumina ceramic reflectors can be manufactured with precise geometries and surface finishes, ensuring uniform light reflection and predictable optical performance.
7. Customizability: Alumina ceramic reflectors can be customized to meet specific application requirements, including various shapes, sizes, and surface coatings. This flexibility allows for tailored solutions to optimize light reflection and enhance overall system performance.
8. Cost-Effectiveness: Despite their advanced properties, alumina ceramic reflectors can offer cost-effective solutions compared to alternative materials over the long term.
Item No.
Item length (mm)
Hole height (mm)
Hole width (mm)
CS-YHL-FS001
71.5
/
/
CS-YHL-FS002
92
/
/
CS-YHL-FS003
101
14.5
30
CS-YHL-FS004
100
17
45
CS-YHL-FS005
130
17
45
CS-YHL-FS006
150
17
45
CS-YHL-FS007
160
17
45
CS-YHL-FS008
170
17
45
CS-YHL-FS009
100
16
28
CS-YHL-FS010
100
14
42
CS-YHL-FS050
64
8
16.5
CS-YHL-FS051
89
9.3
19.3
CS-YHL-FS052
97
12
22
CS-YHL-FS053
97
15
27.7
CS-YHL-FS054
97
12
22
CS-YHL-FS055
100
14.4
28.4
CS-YHL-FS056
100
17
32
CS-YHL-FS057
100
18
34
CS-YHL-FS058
115
12
22
CS-YHL-FS059
117
12
22
CS-YHL-FS060
120
14.4
28.4
CS-YHL-FS061
120
16
43
Requirements for Custom Design
1. The type of pump chamber, single lamp single rod pump chamber or double lamp single rod pump chamber
2. Size of reflector (drawing shall be provided) and specification requirements.
1. Optical Systems: Alumina ceramic reflectors are used in optical systems such as telescopes, microscopes, spectrometers, and cameras to efficiently reflect and redirect light.
2. Laser Technologies: In laser systems, alumina ceramic reflectors are employed as mirrors and beam splitters to control and manipulate laser beams.
3. Solar Concentrators: In solar energy applications, alumina ceramic reflectors are used in solar concentrators to redirect sunlight onto photovoltaic cells or thermal receivers.
4. Medical Devices: Alumina ceramic reflectors are employed in medical devices such as surgical lasers, diagnostic instruments, and biomedical imaging systems.
5. Industrial Processes: In industrial applications, alumina ceramic reflectors are utilized in equipment such as infrared heaters, furnace systems, and thermal processing chambers.
6. Communication Systems: Alumina ceramic reflectors are used in communication systems, including optical fibers, laser-based communication networks, and satellite communications.
| Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
| Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
| Moisture absorption | % | 0 | 0 | 0 | ||
| Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
| Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
| Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
| Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
| Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
| Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
| Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
| Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
| Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
| Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
| Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
| Dielectric constant (100MHz) | (E) | 9.5 | ||||
Q1. What are alumina ceramic reflectors?
Alumina ceramic reflectors are precision-engineered components made from alumina ceramic material.
Q2. How do alumina ceramic reflectors compare to other reflective materials?
Compared to other reflective materials, alumina ceramic reflectors offer superior optical properties, thermal stability, and durability.
Q3. How durable are alumina ceramic reflectors?
Alumina ceramic reflectors are highly durable due to their high mechanical strength, hardness, and resistance to abrasion.
Q4. Can alumina ceramic reflectors be customized?
Yes, alumina ceramic reflectors can be customized to meet specific application requirements, including various shapes, sizes, and surface coatings.
1. Visual Inspection: Start by visually inspecting the ceramic reflector for any visible defects, such as cracks, chips, scratches, or surface irregularities. Use proper lighting and magnification tools if necessary to identify any imperfections.
2. Dimensional Inspection: Measure the dimensions of the ceramic reflector using precision calipers or other suitable measuring instruments.
3. Surface Finish Inspection: Evaluate the surface finish of the ceramic reflector for smoothness and uniformity.
4. Optical Reflectivity Measurement: Use an optical reflectometer or spectrophotometer to measure the reflectivity of the ceramic surface across the desired wavelength range. Verify that the reflector exhibits the specified reflectivity characteristics for its intended application.
5. Adherence to Specifications: Compare the inspection results to the specified requirements and acceptance criteria for the ceramic reflector. Ensure that the reflector meets all specified performance, dimensional, and quality standards.
