Steatite Ceramic Parts
High Mechanical Strength Alumina Steatite Ceramic Parts High Mechanical Strength Alumina Steatite Ceramic Parts

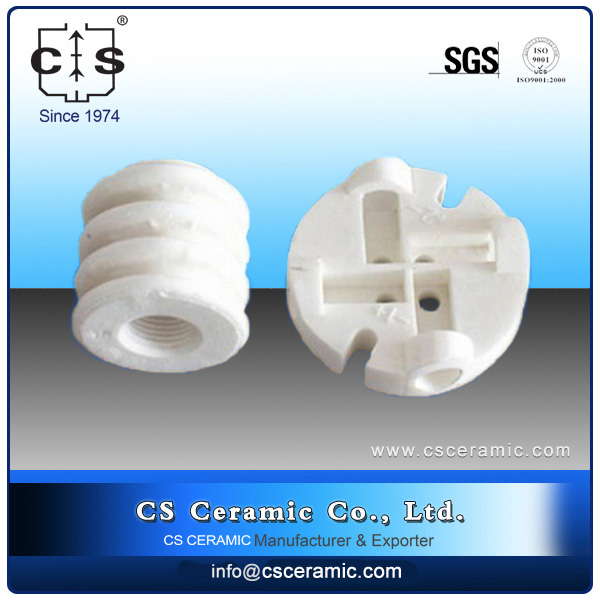

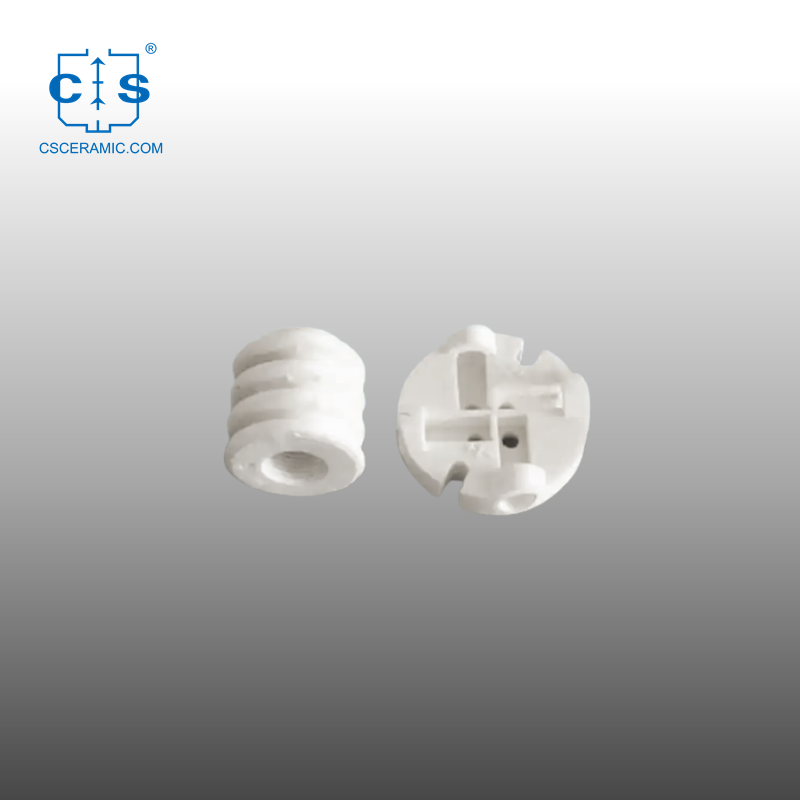

High Mechanical Strength Alumina Steatite Ceramic Parts

Alumina steatite ceramic parts are an ideal choice for components that require minimal maintenance and have a long life,they have excellent electrical insulation and thermal shock resistance.Available in various sizes.

  • item no. :

    CS-A-39
  • Color :

    White
    • Purity Available

      90% 92% 95% 99.5% 99.7% 99%

    • Material : Alumina ceramic

    • Shape : OEM

    • Size : OEM

  • description

High Mechanical Strength Alumina Steatite Ceramic Parts


Alumina steatite ceramic parts advantages:

1. Alumina steatite ceramic parts are highly resistant to corrosion, wear and abrasion.

2. They are non-magnetic, non-conductive, and have low dielectric losses.

3. They are lightweight and strong.

4. Alumina steatite ceramic parts are capable of operating at high temperatures, making them suitable for applications requiring high temperature stability.

5. They are also resistant to thermal shock and have low thermal expansion coefficients.

6. Alumina steatite ceramic parts are easy to machine and can be machined to close tolerances.



Alumina steatite ceramic parts descriptions:

1. Alumina steatite ceramic parts are components that are made from a combination of alumina and steatite ceramic materials for durability and strength.

2. They have high heat resistance, electrical insulation, and chemical stability and are used in various applications.

3. They are processed to precise specifications, they provide excellent performance in extreme environments.

4. Alumina steatite ceramic parts are also highly resistant to wear and tear and can withstand high temperatures.



Alumina steatite ceramic parts Size details:

OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.



Parameters of Alumina Ceramic:


Item Test Condition 95% Al2O3 99% Al2O3 99.5% Al2O3
Physical properties Density g/cm3 >3.6 3.89 3.96
Moisture absorption % 0 0 0
Mechanical properties ROHS Hardness ≥85 ≥89 ≥89
Flexural strength psiX103 20℃ 358 550 550
Compressive strength psiX103 20℃ 2068(300) 2600(377) 2600(377)
Fracture toughness Mpa.m3/2 K(l c) 4.3 5.6 6
Thermal properties Maximum use temperature 1450 1600 1650
Thermal expansion coefficient 1X10-6/℃ (25-1000℃) 7.6 7.9 8.2
Thermal shock resistance Tc 250 200 200
Thermal conductivity w/mok 20℃ 16 30 30.4
Electrical properties Volume resistivity Ohm/cm2 100℃ >1013 >1014 >1014
Dielectric breakdown strength KV/mm 8.7(220) 8.7(220) 8.7(220)
Dielectric constant (E) 1MHz25℃ 9 9.7 9.7
Dielectric constant (100MHz) (E) 9.5




Alumina steatite ceramic parts applications:

1. Alumina steatite ceramic parts can be used in the automotive industry for creating high-precision components that need to withstand extreme temperatures and pressures.

2. For creating electrical insulators, which are essential in the production of electrical components and appliances.

3. Alumina steatite ceramic parts are used in the medical industry, such as in the manufacture of surgical instruments, implants, and prosthetics.

4. For aerospace applications, where they can create components that need to be able to withstand extreme temperatures and pressures.

5. Used in laboratories for creating parts for analytical instruments.

6. Used to create components for high-performance electronics, such as cellphones, computers, and other communication devices.



FAQ


Q1. What information should we supply to get a quote?

Please offer the specification of alumina steatite ceramic parts, such as shape, dimension, quantity, application etc.


Q2. What types of applications can alumina steatite ceramic parts be used for?

Alumina steatite ceramic parts can be used in a variety of applications including: electrical insulation and protection, high temperature components, and wear resistant components.


Q3. Are alumina steatite ceramic parts cost-effective?

Yes, alumina steatite ceramic parts are cost effective due to their high strength and low electrical resistance. They are also easy to fabricate and can be used in a variety of applications.


Q4. What is the lead time for the alumina steatite ceramic parts?

The lead time is dependent on the size and quantity required. Please contact us for more infor.



How to clean alumina steatite ceramic part:

1. First, wipe the alumina steatite ceramic part with a damp cloth to remove dust and dirt.

2. Use a soft bristle brush and a mild detergent solution to scrub the alumina steatite ceramic part.

3. Wash the alumina steatite ceramic part with clean water, and then dry it with a soft cloth.

4. Ensure that the alumina steatite ceramic part is dry when used next time.



Quality testing standards:

1. Visually inspect the industrial alumina steatite ceramic part for any cracks, chips, or other imperfections.

2. Measure the diameter, length, and other critical dimensions of the part to ensure that the dimensions are correct.

3. Use a surface roughness tester to check for any surface imperfections.

4. Use a hardness tester to check for any surface hardness issues.

5. Verification of the material and chemical composition of the alumina steatite ceramic part.



Packing way:





Production Process:





Why Choose us?

1. We supply personalized and customized services to contact your personal needs.

2. We are experienced professionals with a good record of success.

3. We provide superior client service and promptly respond to all inquiries.

4. We provide militant prices and strive to ensure that your funds receive the best value.

5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
