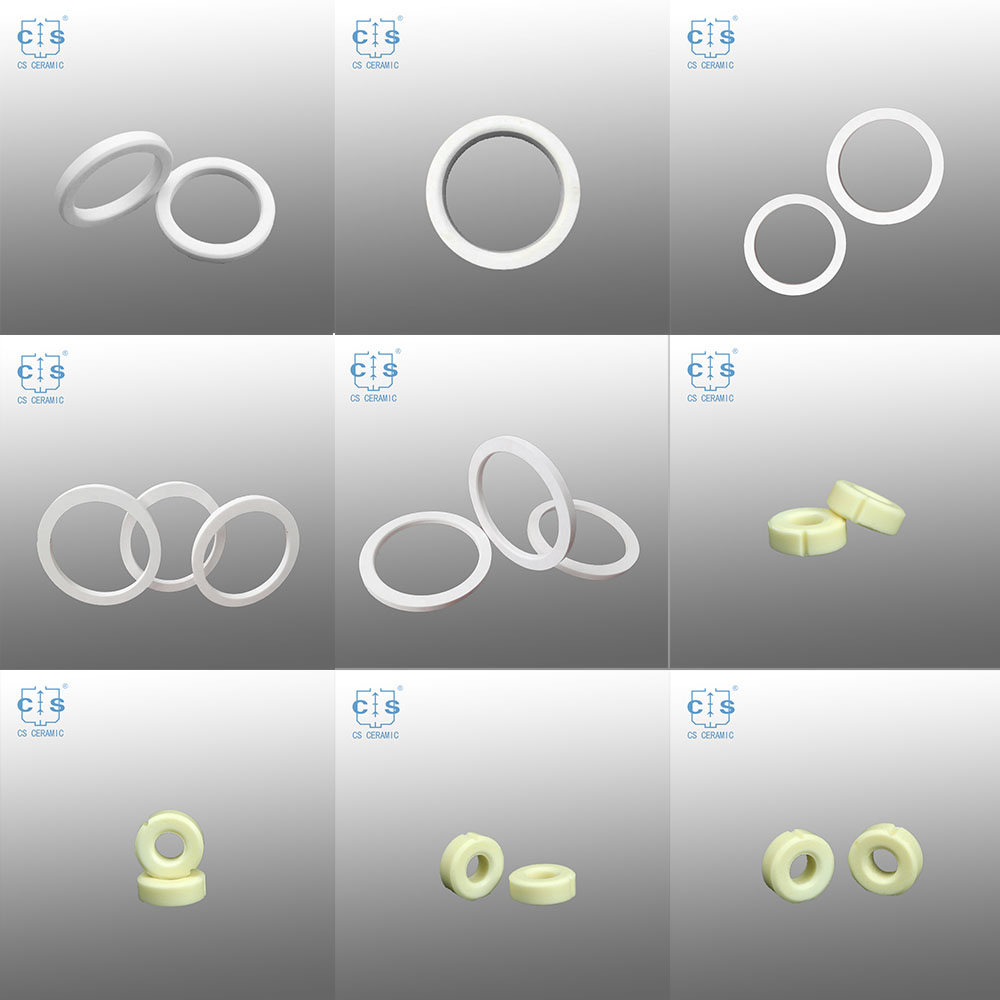

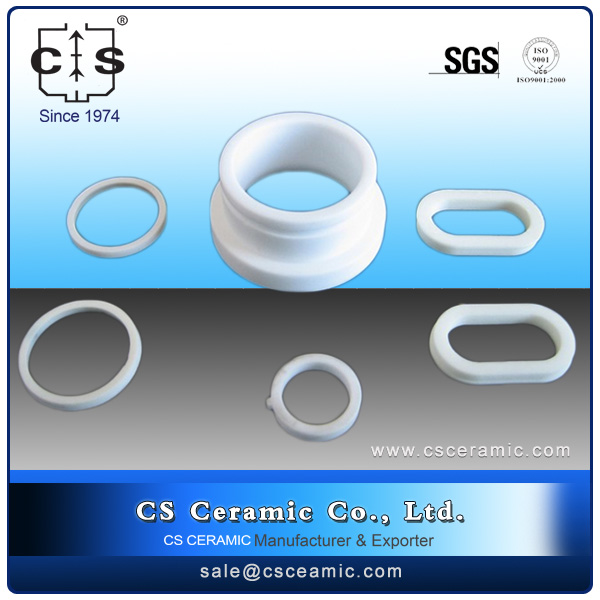

Ceramic washer sealing ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
item no. :
CS-A-26Color :
White90% 92% 95% 99.5% 99.7% 99%
Material : Alumina ceramic
Shape : OEM
Alumina ceramic washer sealing ring advantages:
1. Alumina ceramic washer sealing ring is highly durable and resistant to corrosion, making them ideal for harsh conditions.
2. It is lightweight, making them easy to install and use.
3. High temperature resistance,1600℃ in long use,1800℃ in short use (Al2O3≥99%).
4. Non-toxic and non-flammable, making them safe to use in a variety of applications.
5. Economical and cost-effective.
6. It is also able to withstand a wide range of pressures, making them ideal for use in high-pressure applications.
Alumina ceramic washer sealing ring descriptions:
1. Alumina ceramic washer sealing ring is designed to provide a durable, leak-proof seal for a variety of applications.
2. Made from high-grade alumina ceramic.
3. The sealing ring has a high degree of corrosion resistance and heat resistance, suitable for use in harsh environments.
4. Available in various sizes and shapes.
Alumina ceramic washer sealing ring Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.
Parameters of Alumina Ceramic:
| Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
| Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
| Moisture absorption | % | 0 | 0 | 0 | ||
| Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
| Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
| Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
| Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
| Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
| Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
| Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
| Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
| Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
| Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
| Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
| Dielectric constant (100MHz) | (E) | 9.5 | ||||
Alumina ceramic washer sealing ring applications:
1. Alumina ceramic washer sealing ring can be used in automotive parts, such as engine gaskets, oil seals, and fuel pumps. They provide superior sealing performance and are resistant to extreme temperatures.
2. Used in water treatment systems to ensure a tight seal between pipes and water tanks. The ceramic material is resistant to corrosion and other environmental factors.
3. Used for industrial machinery, such as pumps, valves, and compressors. They provide a reliable solution for sealing components and reducing the risk of leakage.
4. Used in plumbing applications to ensure a secure connection between pipes and fixtures. The ceramic material is resistant to extreme temperatures and highly durable.
5. Used in heating and cooling systems to ensure reliable sealing between pipes. They provide superior performance and are resistant to corrosion and environmental factors.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of alumina ceramic washer sealing ring, such as shape, dimension, quantity, application etc.
Q2: How do I install an alumina ceramic washer sealing ring?
Installing an alumina ceramic washer sealing ring is fairly straightforward and can be done using standard tools. The key is to ensure the ring is properly aligned and evenly compressed.
Q3: What is the lifespan of an alumina ceramic washer sealing ring?
The lifespan of an alumina ceramic washer sealing ring depends on the application and environment it is used in. Generally, it can last for a long time with proper maintenance and care.
Q4. What is the lead time for the alumina ceramic washer sealing ring?
The lead time for the alumina ceramic washer sealing ring is dependent on the size and quantity required. Please contact us for more information.
How to clean alumina ceramic washer sealing ring:
1. First, wipe the alumina ceramic washer sealing ring with a damp cloth to remove dust and dirt.
2. Use a soft bristle brush and a mild detergent solution to scrub the alumina ceramic washer sealing ring.
3. Wash the alumina ceramic washer sealing ring with clean water, and then dry it with a soft cloth.
4. Ensure that the alumina ceramic washer sealing ring is dry when used next time.
Quality testing standards：
1. Visually inspect the industrial alumina ceramic washer sealing ring for any cracks, chips, or other imperfections.
2. Measure the diameter, length, and other critical dimensions of the alumina ceramic washer sealing ring to ensure that the dimensions are correct.
3. Use a surface roughness tester to check for any surface imperfections.
4. Use a hardness tester to check for any surface hardness issues.
5. Verification of the material and chemical composition of the alumina ceramic washer sealing ring.
Packing way:
Production Process:
Why Choose us?
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
