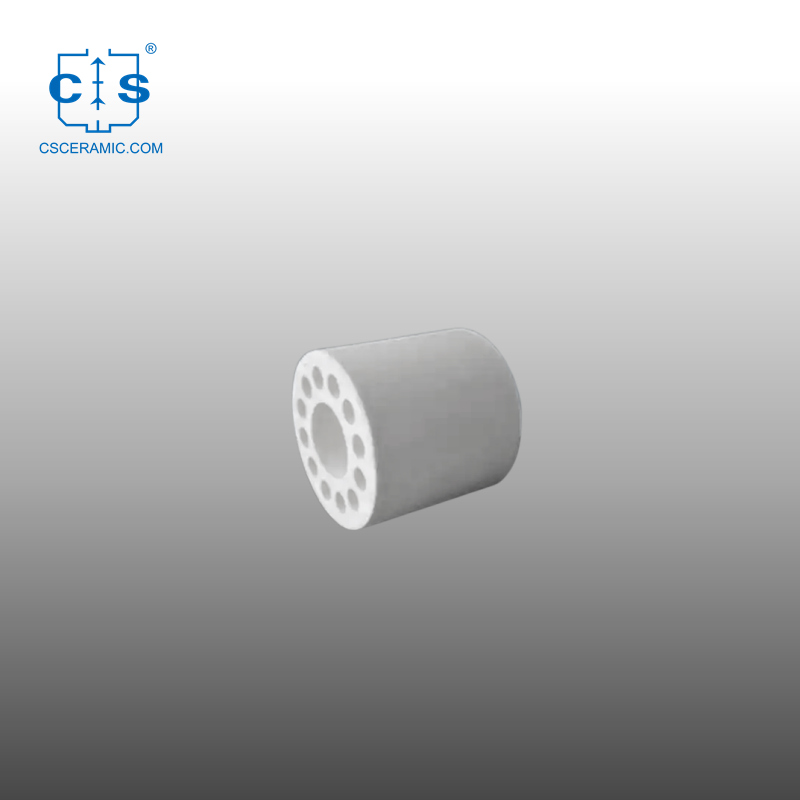

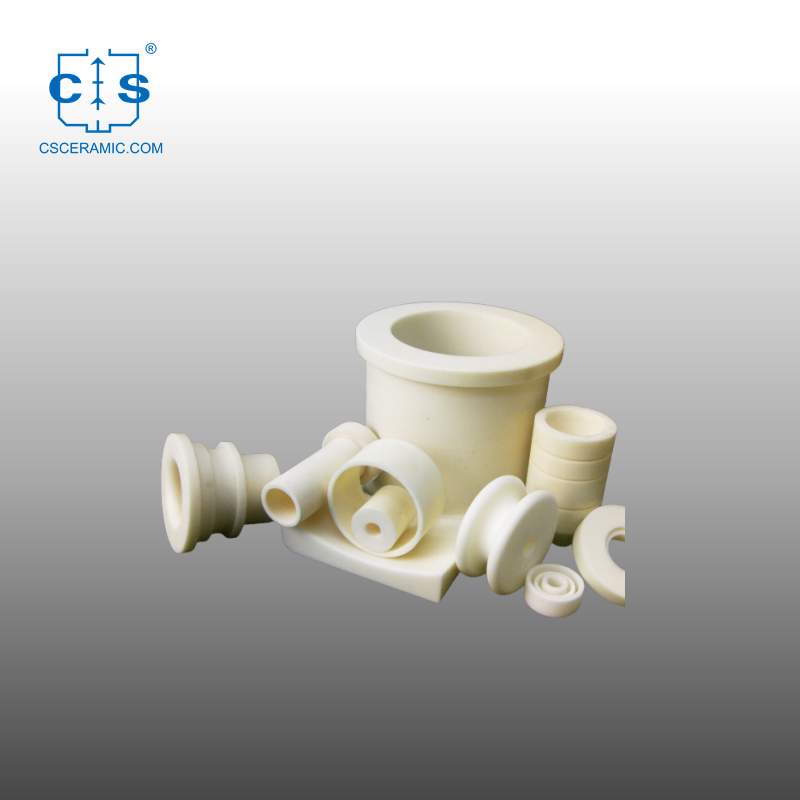

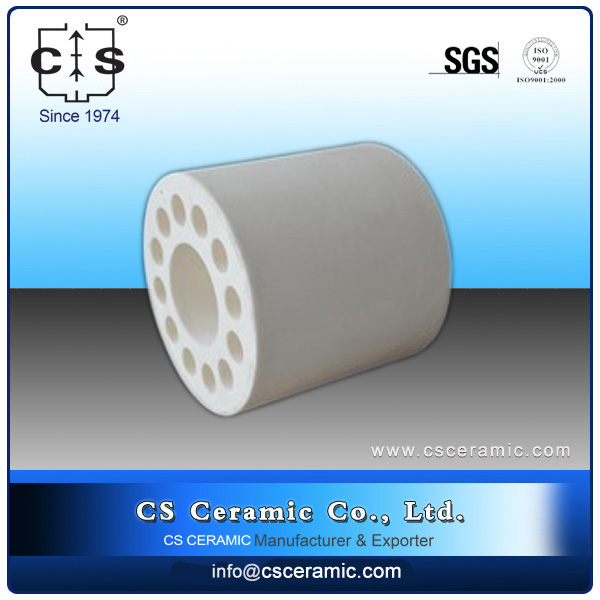

Customized Al2O3 Precision Alumina Ceramic Parts

Customized Al2O3 Precision Alumina Ceramic Parts

All sizes can be customized and can be made into various complex shapes. Alumina ceramic parts include tube, rod, plate, disc, wafer, ring, seal, bearing, valves, pump plunger, beam, roller, shaft, screw, washer, sleeve, hunger, spacer, holder, carrier, insulator, fixture, clamp, chuck, nozzle, guide, frame, lining, grinding media, milling ball, beads etc.

item no. :
CS-A-36
Color :
White

Purity Available
90% 92% 95% 99.5% 99.7% 99%
Material : Alumina ceramic
Shape : OEM
Size : OEM

contact now catalogue

description

Customized Al2O3 Precision Alumina Ceramic Parts

Alumina ceramic parts advantages:

1. Alumina ceramic parts provide excellent wear and corrosion resistance, making them ideal for use in industrial and medical environments.

2. High temperature resistance, 1600℃ in long use,1800℃ in short use (Al2O3≥99%).

3. Alumina ceramic parts can be machined to precise specifications, allowing for precise fitment and tolerances.

4. They are extremely durable and require minimal maintenance.

5. Lightweight and easy to handle, they are an ideal choice for various applications.

6. They can be formed and molded into complex shapes and sizes.

Alumina ceramic parts descriptions:

1. Alumina ceramic parts are engineered components made from a special type of aluminum oxide material.

2. They are extremely hard, resistant to wear and abrasion, and can be used in a variety of applications due to their high temperature and electrical properties.

3. Alumina ceramic parts are a cost-effective material choice for many industrial applications.

4. They offer superior performance in extreme temperatures, are resistant to corrosion and abrasion, and are easily customizable to meet specific design needs.

Alumina ceramic parts size details:

OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.

Parameters of Alumina Ceramic:

Item			Test Condition	95% Al2O3	99% Al2O3	99.5% Al2O3
Physical properties	Density	g/cm3		>3.6	3.89	3.96
Physical properties	Moisture absorption	%		0	0	0
Mechanical properties	ROHS Hardness			≥85	≥89	≥89
	Flexural strength	psiX103	20℃	358	550	550
	Compressive strength	psiX103	20℃	2068(300)	2600(377)	2600(377)
	Fracture toughness	Mpa.m3/2	K(l c)	4.3	5.6	6
Thermal properties	Maximum use temperature	℃		1450	1600	1650
	Thermal expansion coefficient	1X10-6/℃	(25-1000℃)	7.6	7.9	8.2
	Thermal shock resistance	℃	Tc	250	200	200
	Thermal conductivity	w/mok	20℃	16	30	30.4
Electrical properties	Volume resistivity	Ohm/cm2	100℃	>1013	>1014	>1014
	Dielectric breakdown strength	KV/mm		8.7(220)	8.7(220)	8.7(220)
	Dielectric constant	(E)	1MHz25℃	9	9.7	9.7
	Dielectric constant (100MHz)	(E)	9.5

Alumina ceramic parts applications:

1. Alumina ceramic parts can be used as high-performance wear-resistant components in heavy-duty industrial machinery and equipment.

2. They can be used as heat-dissipating components in electronics and electrical components.

3. In industrial furnaces, they can be used as high-temperature resistant components.

4. Used as abrasive surfaces in grinding and polishing applications.

5. Used as insulating components in electrical and electronic equipment.

6. In aerospace and military applications, they can be used as high-temperature insulating components.

7. In medical imaging equipment, used as non-magnetic components.

8. Used as structural components in high-temperature or corrosive environments.

FAQ

Q1. What information should we supply to get a quote?

Please offer the specification of alumina ceramic parts, such as shape, dimension, quantity, application etc.

Q2. What types of alumina ceramic parts are available?

Alumina ceramic parts are available in a variety of shapes and sizes, including rods, tubes, plates, discs, and more. These parts also come in a variety of grades, such as standard, special, and medical grade.

Q3. How do I determine the best alumina ceramic parts for my application?

The best alumina ceramic parts for your application will depend on the specific requirements of your application. It is important to consider factors such as the operating environment, temperature, and load requirements. Consulting with an experienced supplier(CS Ceramic) can help you determine the best alumina ceramic parts for your application.

Q4. What is the lead time for the alumina ceramic parts?

The lead time is dependent on the size and quantity required. Please contact us for more infor.

How to clean alumina ceramic parts:

1. Begin by vacuuming the outside of the alumina ceramic parts to remove any debris or dust.

2. Use a mild detergent and scrub the alumina ceramic parts with a soft cloth or brush.

3. Use a mild abrasive or a toothbrush to scrub the inside of the alumina ceramic parts.

4. Rinse the outside of the alumina ceramic parts with water and a soft cloth.

5. Use a clean, lint-free cloth to dry it.

Quality testing standards：

1. Visual inspection of the alumina ceramic parts for any signs of damage or irregularities.

2. Measurement of the length, diameter, and thickness of the alumina ceramic parts to check for accuracy.
3. Checking for any leaks or pinhole defects in the alumina ceramic parts .
4. Verification of the material and chemical composition of the alumina ceramic parts .
