Al2o3 Alumina Ceramic Guide Pin For Spot Welding
Alumina Ceramic Pins Tapered Locating Pins Alumina Ceramic Pins Tapered Locating Pins Alumina Ceramic Pins Tapered Locating Pins Alumina Ceramic Pins Tapered Locating Pins Alumina Ceramic Pins Tapered Locating Pins

Alumina Ceramic Pins Tapered Locating Pins

Alumina ceramic tapered locating pins with extreme hardness and flexural strength, high electrical insulation can be customized. Supplier of fine ceramic industrial parts. Available in various sizes and shapes.

  • item no. :

    CS-D-01
    • Purity Available

      90% 92% 95% 99.5% 99.7% 99%

    • Material : Alumina ceramic

    • Shape : OEM

    • Size : OEM

  • description

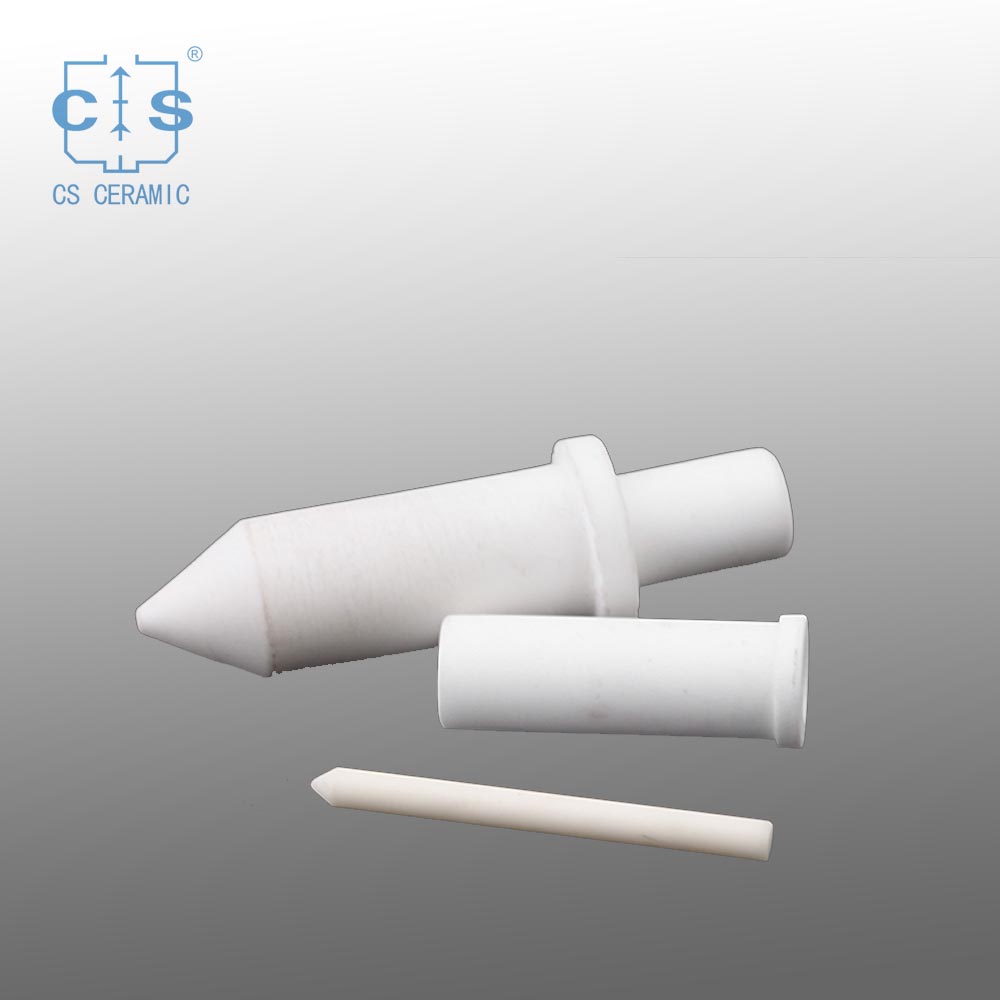

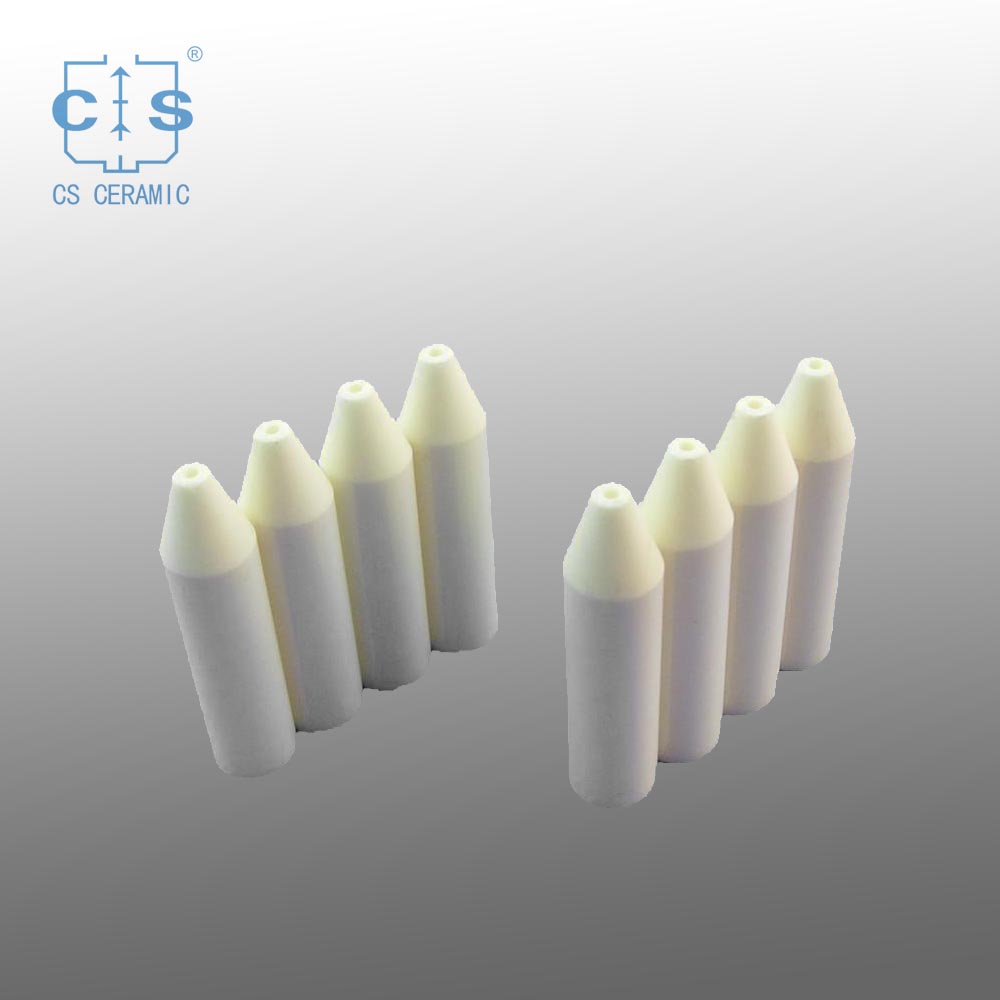

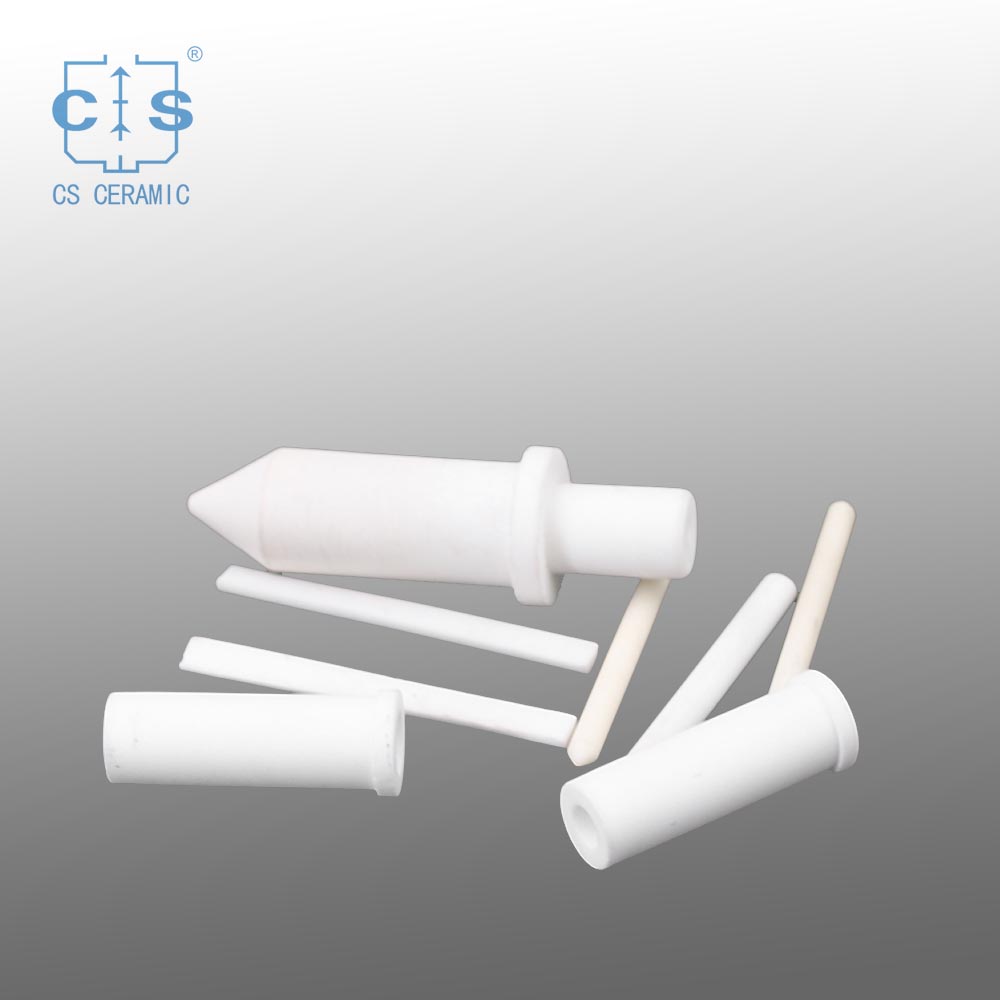

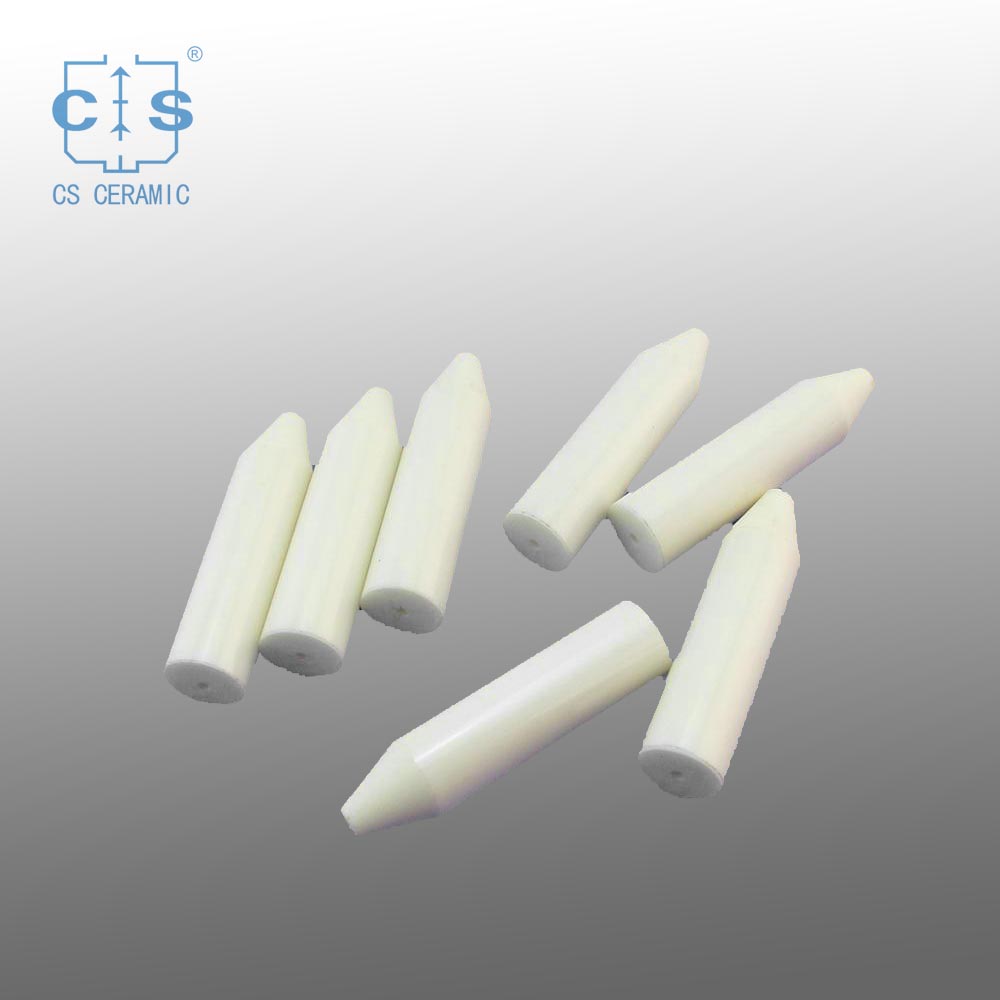

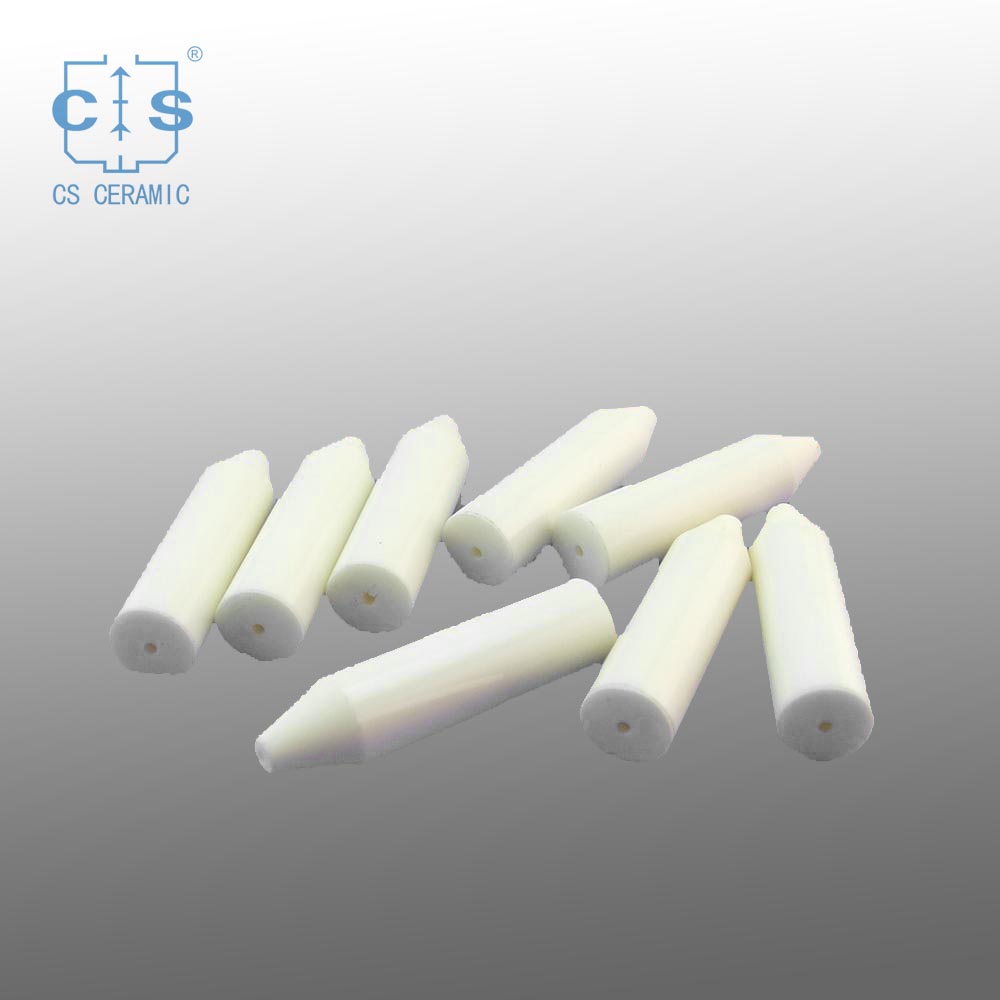

Alumina Ceramic Pins Tapered Locating Pins


Advantages

1. High wear resistance: The alumina ceramic material used in the tapered locating pins offers excellent wear resistance, making it suitable for abrasive machining applications.

2. Dimensional stability: The material has outstanding dimensional stability, which ensures accurate and consistent positioning of parts.

3. Chemical inertness: They are chemically inert and is not affected by most chemicals and acids, making it suitable for use in harsh chemical environments.

4. Corrosion resistance: Highly resistant to corrosive agents and is unlikely to rust or corrode.

5. Minimal maintenance required: As a result of its durability and resistance to wear and tear, they require minimal maintenance.

6. Improved part quality: By ensuring accurate positioning of parts, they can help improve part quality and reduce scrap rates.

7. Longer lifespan: Due to its high wear resistance and durability, they have a longer lifespan than other materials, reducing the need for replacement and lowering overall costs.



Descriptions

1. Alumina ceramic tapered locating pins are precision-engineered components that are designed to provide precise alignment and location in a wide range of industrial applications.

2. These pins are made from high-quality alumina ceramic.

3. The tapered design of these pins ensures a tight and accurate fit, which makes them ideal for use in assemblies and fixtures that require high levels of accuracy and repeatability.

4. They are made from an extremely hard and durable material, these pins can withstand repeated use and maintain their accuracy and precision over time.



Size details & Type of ceramic pins



Customized Alumina Ceramic Pins
CS-P1 Straight Dowel Straight dowel pins are cylindrical pins that join two pieces together to prevent motion or slippage.
CS-P2 Oversize Dowel Oversized dowel pins are manufactured slightly over the nominal size.
CS-P3 Undersize Dowel Undersized dowel pins are manufactured slightly under the nominal size.
CS-P4 Pull Dowel Pin Pull dowel pins have a threaded hole in one end so that a screw can be inserted to help remove the pin from a blind hole.
CS-P5 Groove Pin Grooved pins are cylindrical pins with longitudinal grooves. They are used to join two components. Grooves provide greater surface area for adhesive, and offer improved holding power.
CS-P6 Knurled Pin Knurled pins are straight pins with a knurled surface. They provide a better grip than a smooth dowel pin.
CS-P7 Parallel Pin Parallel pins are cylindrical dowel pins that have the ends machined to two different tolerances.
CS-P8 Spiral Groove Pin Spiral groove pins are cylindrical pins with longitudinal grooves. They are used to join two components. Grooves provide greater surface area for adhesive, and offer improved holding power.
CS-P9 Stepped Dowel Pin Stepped dowel pins have two different body diameters.
CS-P10 Taper Pin, Nonthreaded Nonthreaded taper pins are solid pins with a taper at a rate of 1/4" per foot from the larger end to the smaller.
CS-P11 Taper Pin, Threaded Threaded taper pins have the same dimensions as standard taper pins with the addition of a threaded section, usually at the smaller end. Threaded taper pins are used when removal may be required.
CS-P12 Drive Pin Drive pins have an interference fit and must be driven into place. They are commonly used to assemble components in rotary or other moving applications.
CS-P13 Escutcheon Pin Escutcheon pins are used for light fastening jobs such as attaching nameplates. Escutcheon pins have a semispherical head at one end and a long cone at the other. Usually, these pins are hammered into place by hand.

OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry



Parameters of Alumina Ceramic


Item Test Condition 95% Al2O3 99% Al2O3 99.5% Al2O3
Physical properties Density g/cm3 >3.6 3.89 3.96
Moisture absorption % 0 0 0
Mechanical properties ROHS Hardness ≥85 ≥89 ≥89
Flexural strength psiX103 20℃ 358 550 550
Compressive strength psiX103 20℃ 2068(300) 2600(377) 2600(377)
Fracture toughness Mpa.m3/2 K(l c) 4.3 5.6 6
Thermal properties Maximum use temperature 1450 1600 1650
Thermal expansion coefficient 1X10-6/℃ (25-1000℃) 7.6 7.9 8.2
Thermal shock resistance Tc 250 200 200
Thermal conductivity w/mok 20℃ 16 30 30.4
Electrical properties Volume resistivity Ohm/cm2 100℃ >1013 >1014 >1014
Dielectric breakdown strength KV/mm 8.7(220) 8.7(220) 8.7(220)
Dielectric constant (E) 1MHz25℃ 9 9.7 9.7
Dielectric constant (100MHz) (E) 9.5



Applications

1. Precision assembly: Using alumina ceramic tapered locating pins in precision assembly applications ensures a high level of accuracy and repeatability, resulting in consistently high-quality products.

2. Semiconductor manufacturing: They are ideal for use in semiconductor manufacturing due to their high strength and excellent heat resistance, resulting in improved efficiency and profitability.

3. Electronics manufacturing: They are used in electronics manufacturing due to their high electrical insulation properties and excellent thermal stability. They can be used to ensure accurate and repeatable alignment and positioning of components during the manufacturing process.

4. Aerospace manufacturing: Used in aerospace manufacturing due to their high strength-to-weight ratio, non-reactivity with most chemicals, and excellent thermal stability. They are perfect for use in precision alignment and positioning of aerospace components.

5. Industrial equipment manufacturing: They are suitable for use in industrial equipment manufacturing due to their excellent wear resistance and chemical inertness. They can be used to ensure accurate and repeatable alignment and positioning of components in machinery and equipment.

6. Automotive manufacturing: They are perfect for use in automotive manufacturing due to their high strength and wear resistance, resulting in reduced downtime and improved production efficiency.



FAQs


Q1. What information should we supply to get a quote?

Please offer the specification of alumina ceramic tapered locating pins, such as shape, dimension, quantity, application etc.


Q2. How do these pins work?

These pins are designed with precise tapered angles to provide accurate alignment and secure attachment between two or more parts.


Q3. What are the different sizes of these pins available?

These pins come in a variety of sizes and shapes to meet the specific requirements of different manufacturing processes.


Q4. How do I know which size of alumina ceramic tapered locating pin I need?

Consult with a manufacturing expert or experienced supplier to determine the appropriate size and shape of the pin needed for your specific process.


Q5. Are there any maintenance requirements for these pins?

These pins require little to no maintenance, but regular inspections for wear or damage are recommended to ensure continued accuracy and effectiveness.



How to clean alumina ceramic tapered locating pins

1. First, wipe the alumina ceramic tapered locating pins with a damp cloth to remove dust and dirt.

2. Use a soft bristle brush and a mild detergent solution to scrub the alumina ceramic tapered locating pins.

3. Wash the alumina ceramic tapered locating pins with clean water, and then dry it with a soft cloth.

4. Ensure that the alumina ceramic tapered locating pins are dry when used next time.



Quality testing standards

1. Visual inspection of the alumina ceramic tapered locating pins for any signs of damage or irregularities.

2. Measurement the dimensions of the alumina ceramic tapered locating pins to check for accuracy.

3. Checking for any pinhole defects in the alumina ceramic tapered locating pins.

4. Verification of the material and chemical composition of the alumina ceramic tapered locating pins.



Packing way





Production Process





Why Choose us?

1. We supply personalized and customized services to contact your personal needs.

2. We are experienced professionals with a good record of success.

3. We provide superior client service and promptly respond to all inquiries.

4. We provide militant prices and strive to ensure that your funds receive the best value.

5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.


REQUEST A FREE QUOTE

If you have questions or suggestions,please leave us a message,

related products
