Al2o3 Alumina Ceramic Flange
Alumina Ceramic Flange for Precision Machining Alumina Ceramic Flange for Precision Machining Alumina Ceramic Flange for Precision Machining Alumina Ceramic Flange for Precision Machining Alumina Ceramic Flange for Precision Machining Alumina Ceramic Flange for Precision Machining

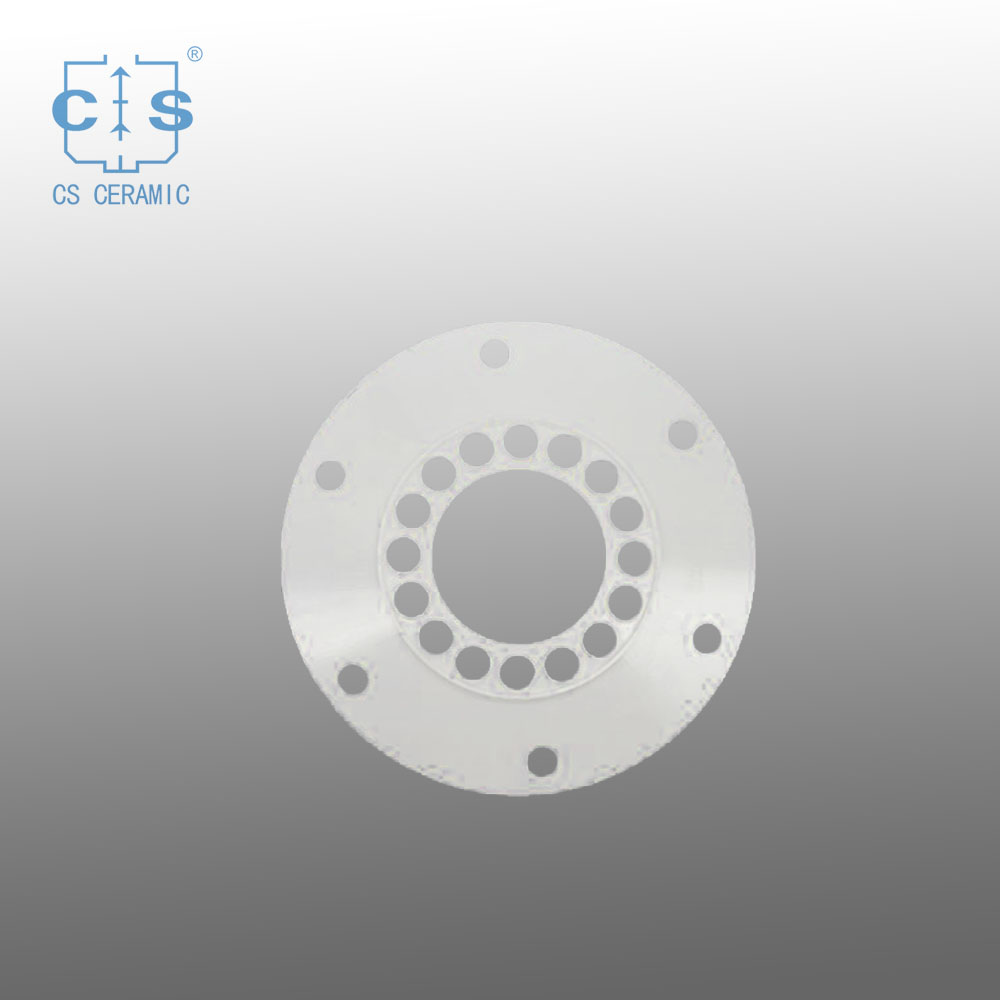

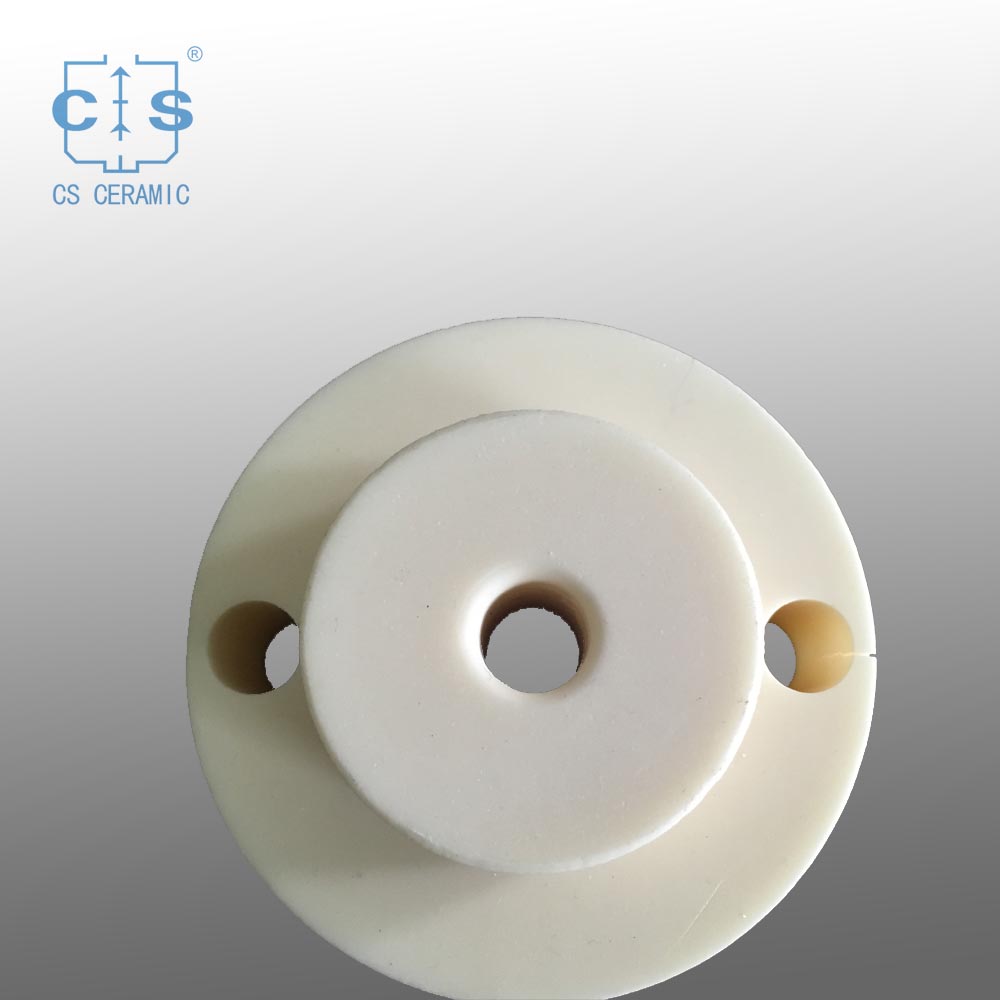

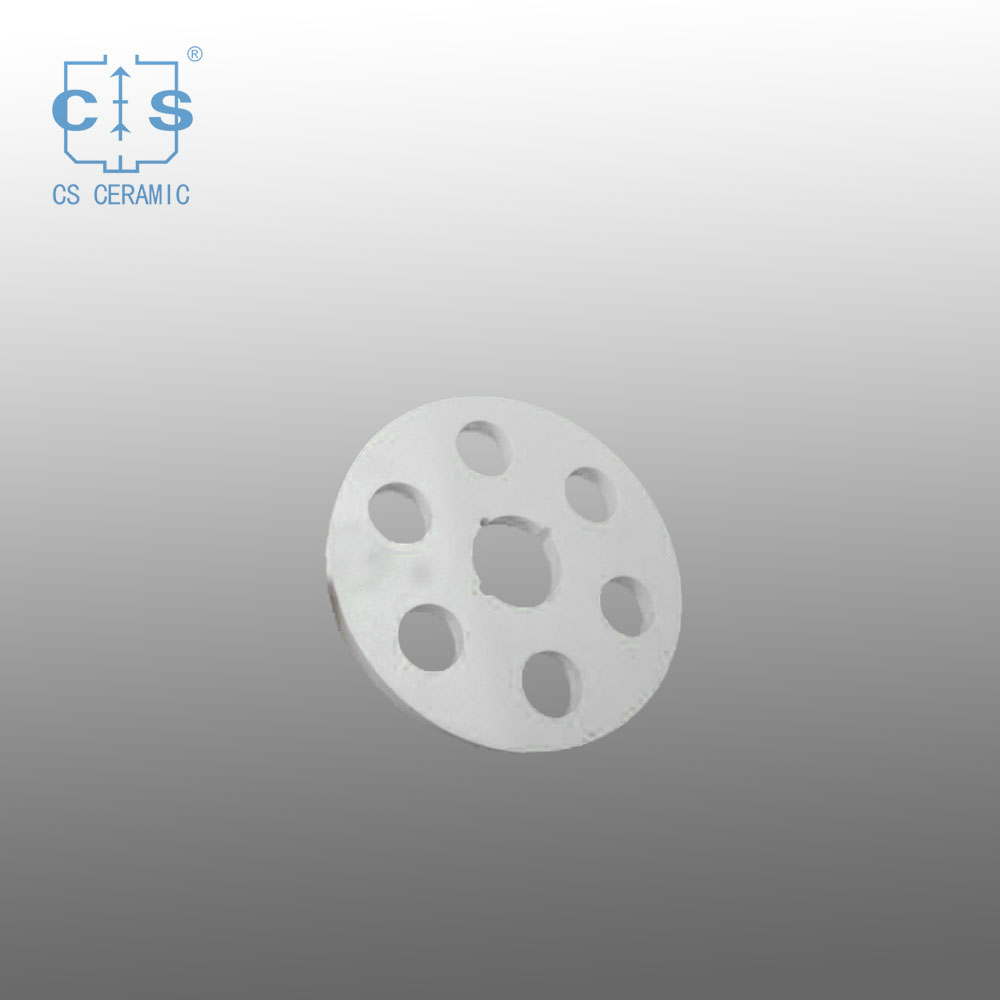

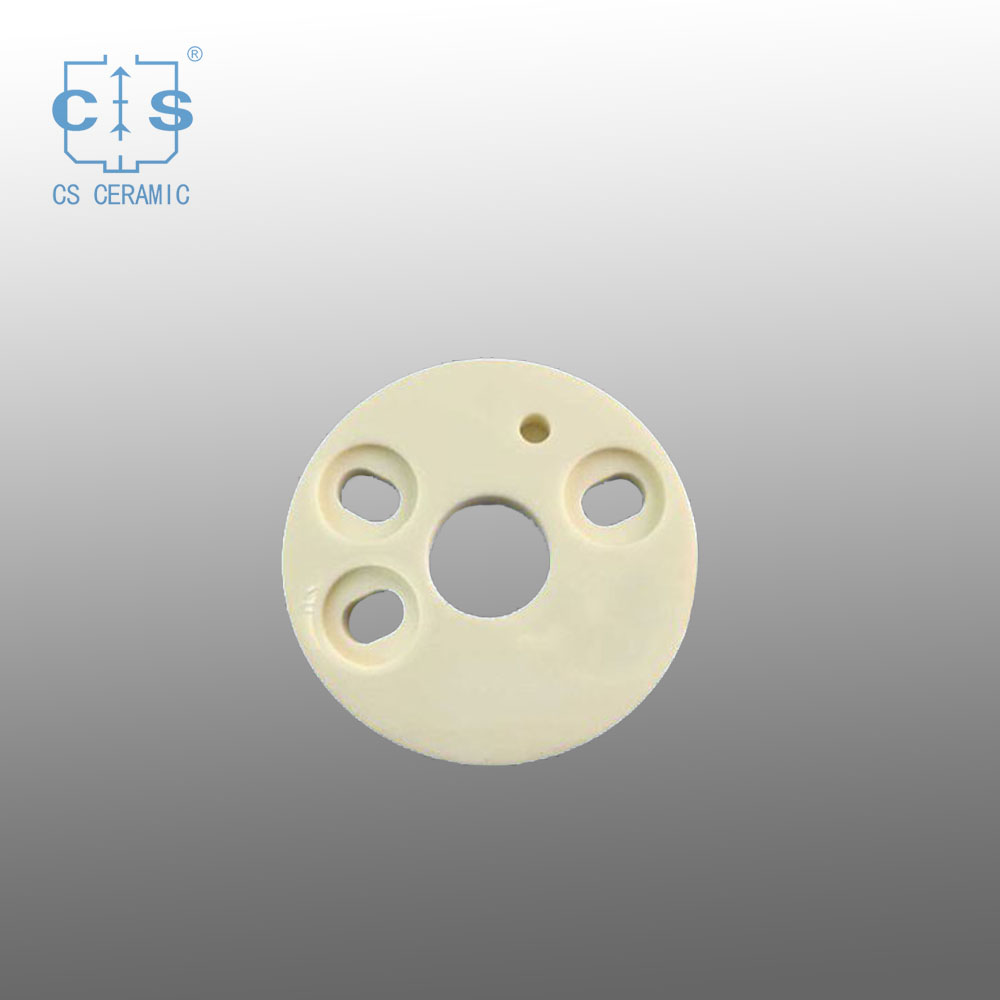

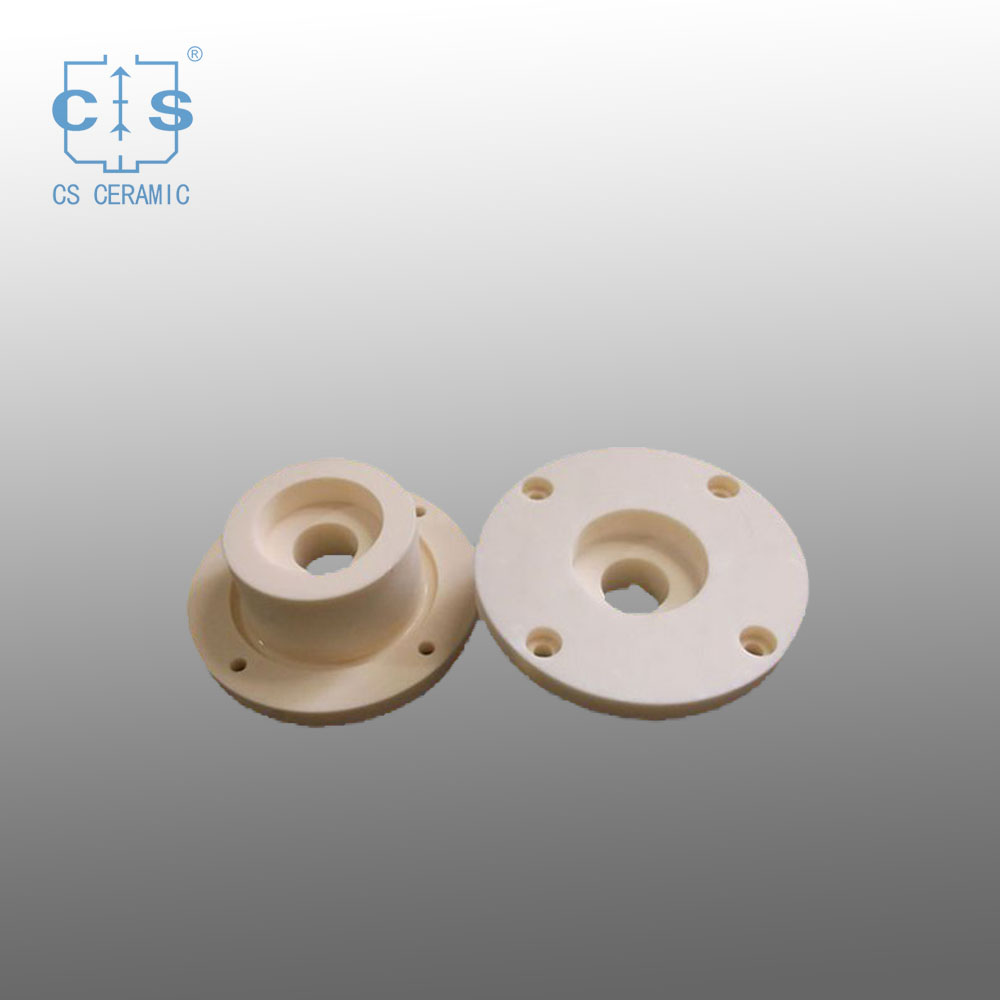

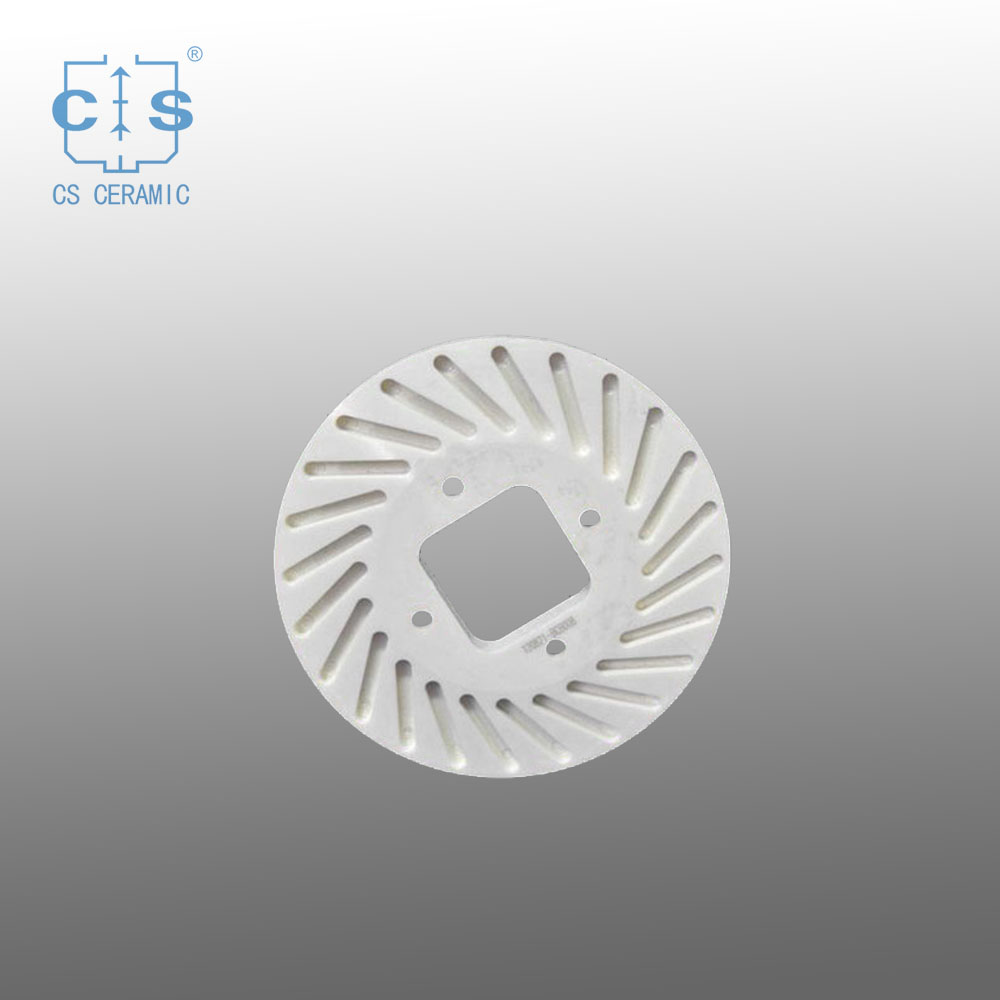

Alumina Ceramic Flange for Precision Machining

99 Al2O3 Alumina Porcelain Ceramic Combustion Boats for Furnace, Ceramic flanges are threaded flanges, welded flanges and clamped flanges.








  • item no. :

    CS-D-01
  • hits :

    285
  • description

Product Item:Alumina Ceramic Flange for Precision Machining


Trpe of Ceramic Flange:

1.Threaded (threaded) flange

2.Welded flange

3.Clamped flanges


Drawing for referance:

Special type and sizes can be customized





Size range :

Ceramic flange size rang
Diameter(mm):  DN10--DN250 Outer Diameter(mm):  395
Bolt Spacing(mm):  350 Flange Thickness(mm): 0.5-35
Bolt diameter(mm): 14-36 OEM By Drawing


Technical reference

CS Ceramic's products accuracy
Shaft part: 0.0015mm for axial dimensions
0.001mm for circular degree
0.0025mm for concentricity
0.01 for roughness
The minimum processing aperture: 0.3mm, and depth limit 3mm
0.002mm for axial dimensions of diameter 1mm aperture
0.02~0.04 for roughness
Tolerance of plane processing: 0.002 for flatness
0.0015mm for measuring tolerance
Ceramic processing thread: processing internal thread size limit M2
Thread accuracy gb-7h
 Unlimited size for external thread
 Thread accuracy gb-6g

Plange Properties :

wear resistance

super strength

ultra-hard

high temperature resistance (refractory)

super corrosion resistance

never rust

antioxidant

insulation

environmental protection


Plange Application:

Ceramic Flanges are the parts connected between shafts and are used for connecting pipe end.Flange connection or flange joint, refers to the flange, gasket and bolt three mutual connection as a group of assembled sealing structure of the removable connection.There are holes in the flange and bolts make the two flanges close together.


Why choose CS CERAMIC

6 Steps Inspection Processes

15+ Years Oversea Market experience

30+ Years Manufacturer

300+ Members Professional Team

8000+ Kinds of alumina ceramic parts in Stock


ShippingWe do international shipping .


OEM : All sizes can be customized,Can be made into various of complex shapes, high dimension accuracy.

Please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
