item no. :
CS-CP-L001Material : Alumina ceramic

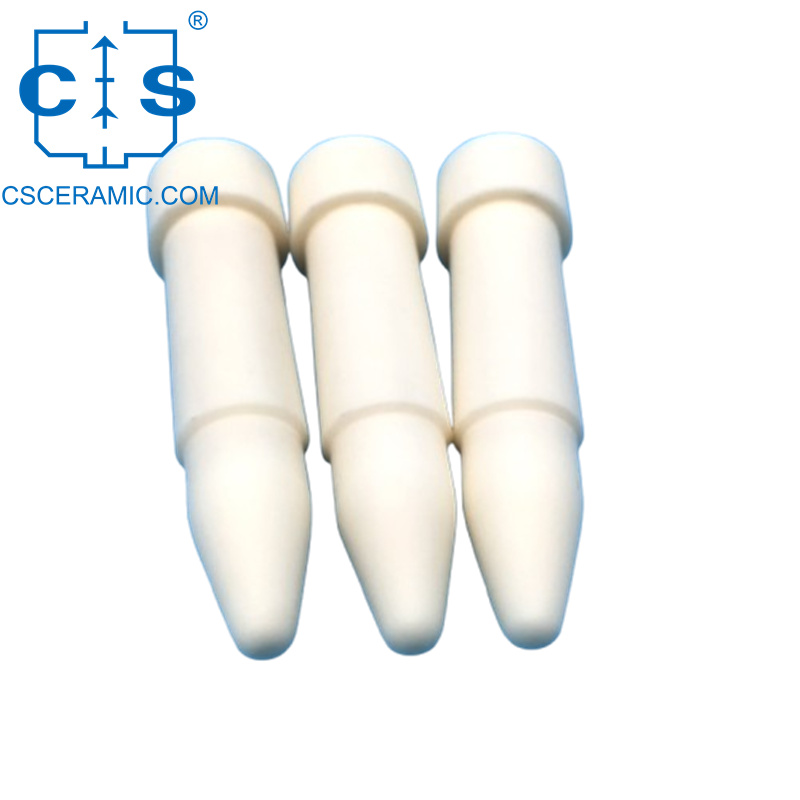

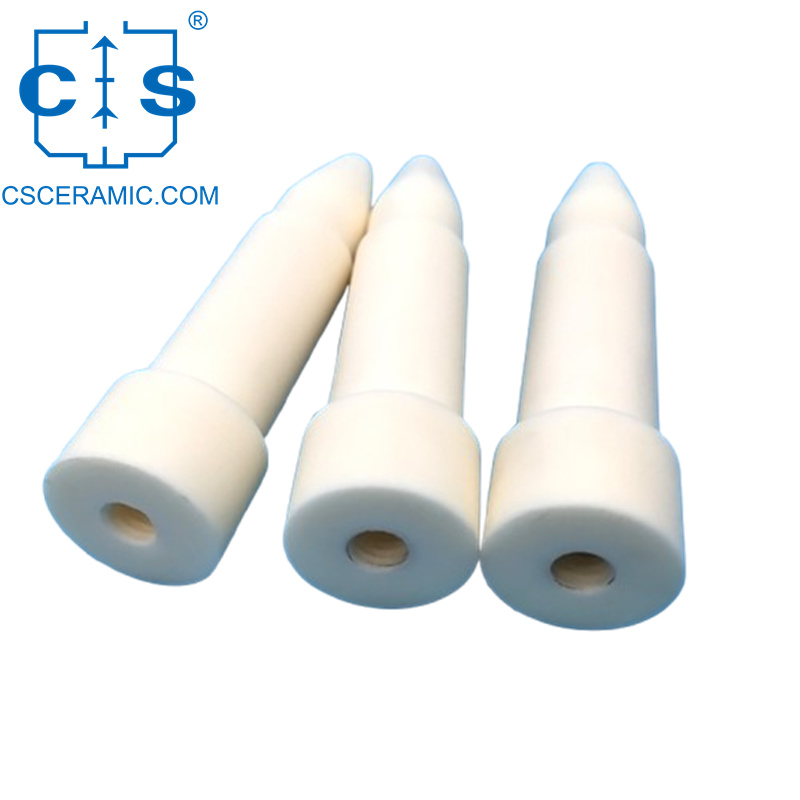

Advantages of Aluminum Oxide Pin
The alumina ceramic pins exhibit superior hardness, wear resistance, high-temperature tolerance, oxidation resistance, and corrosion resistance, making them ideal for a wide range of harsh working environments.
When compared to metal pins, alumina ceramic pins offer a lighter weight, which can contribute to reducing the overall system weight, enhancing efficiency and performance.
These pins possess excellent electrical insulation and non-conductive properties, effectively eliminating the risk of electric leakage and electrochemical corrosion of adjacent components.
The alumina ceramic pins play a vital role as a crucial connector for two or more objects, or as a positioning and fixing mechanism to securely hold an object in a specific position, preventing any unwanted movement or separation. Depending on their type and specific application, these pins can be categorized into various types such as cylindrical pins, conical pins, split pins, and spring pins. Due to their exceptional properties, alumina ceramic pins are widely used in industries like machinery manufacturing, construction, petrochemicals, and metallurgy, where reliability and durability are paramount.
Please provide drawings and parametric specifications for customization.
| Alumina Ceramic Pin Screw Threaded | |||||||
| Item no. |
D - Pin Head Diameter (mm) |
d - Diameter (mm) |
L1 - Length 1 (mm) |
L2 - Length 2 (mm) |
L - Total Length (mm) |
M - Thread |
Al2O3's Purity (%) |
| CS-CP-L001 | 6 | 4 | 7 | 3 | 9 | M2 | 96-99 |
| CS-CP-L002 | 7.5 | 5.5 | 25 | 16 | 29 | M2.5 | 96-99 |
| CS-CP-L003 | 8.6 | 6 | 65 | 40 | 70 | M3 | 96-99 |
| CS-CP-L004 | 9 | 7.5 | 50 | 35 | 55 | M3 | 96-99 |
| CS-CP-L005 | 10.5 | 9 | 43 | 27 | 47 | M5 | 96-99 |
| CS-CP-L006 | 11.8 | 8 | 67 | 42 | 72 | M4 | 96-99 |
| CS-CP-L007 | 12.5 | 8 | 52 | 33 | 56 | M8 | 96-99 |
| CS-CP-L008 | 15 | 10 | 46 | 24 | 50 | M8 | 96-99 |
| CS-CP-L009 | 16.4 | 11.5 | 80 | 40 | 84 | M10 | 96-99 |
| CS-CP-L010 | 18 | 14 | 53 | 35 | 57 | M12 | 96-99 |
| CS-CP-L011 | 21 | 15.5 | 45 | 35 | 48.5 | M14 | 96-99 |
| CS-CP-L012 | 23 | 16 | 32 | 22 | 36 | M14 | 96-99 |
| Alumina Ceramic Pin | |||||
| Item no. |
D - Pin Head Diameter (mm) |
d - Diameter (mm) |
L1 - Length 1 (mm) |
L - Total Length (mm) |
Al2O3's Purity (%) |
| CS-CP-D001 | 8 | 6 | 9 | 11 | 96-99 |
| CS-CP-D002 | 10 | 6 | 5 | 8 | 96-99 |
| CS-CP-D003 | 11 | 5 | 13 | 16 | 96-99 |
| CS-CP-D004 | 11.8 | 6.3 | 15 | 18 | 96-99 |
| CS-CP-D005 | 12.6 | 8 | 16.5 | 20 | 96-99 |
| CS-CP-D006 | 13.5 | 10 | 20 | 24 | 96-99 |
| CS-CP-D007 | 15 | 10 | 14.5 | 17 | 96-99 |
| CS-CP-D008 | 16.4 | 11 | 21 | 23 | 96-99 |
| CS-CP-D009 | 18.5 | 14 | 40 | 45 | 96-99 |
| CS-CP-D010 | 20 | 15 | 43 | 47 | 96-99 |
| CS-CP-D011 | 24.2 | 16.2 | 52 | 56 | 96-99 |
| CS-CP-D012 | 25 | 20 | 16 | 20 | 96-99 |
| CS-CP-D013 | 30 | 18 | 40 | 46 | 96-99 |
High Mechanical Strength Alumina Steatite Ceramic Parts
Alumina steatite ceramic parts are an ideal choice for components that require minimal maintenance and have a long life,they have excellent electrical insulation and thermal shock resistance.Available in various sizes.
Alumina Ceramic Thermocouple Insulator Tubes
Alumina ceramic thermocouple insulated tubes provide excellent insulation performance and durable durability, used to isolate thermocouples from high temperatures and corrosive environments.Available in various sizes.
Alumina Ceramic Laser Reflector
CS CERAMIC is committed to delivering high-quality alumina ceramic laser reflector tailored to your exact specifications.
Alumina Bushing Ceramic Insulator
Alumina Bushing Ceramic Insulator for cable terminations. Multiple fluted and capped bushings, re-entrant bushings, tubular bushings, barrel and cylindrical bushings, etc. can be customized.
Alumina Ceramic Ball Bearing Ceramic Bushings
Alumina ceramic ball bearing is a type of bearing that uses ceramic balls in order to reduce friction and improve bearing performance.These bushings are designed to reduce maintenance costs and extend the life of equipment.
Industrial Alumina Ceramic Piston Parts
Alumina ceramic piston adopts the ultra-hard wear resistance of modern engineering ceramic materials, can be assembled by ceramic metallization bonding,welding and socket technology.Available in various sizes.
High Alumina Ceramic Washer Ceramic Seal
Alumina ceramic washer ceramic seal is used as seals for a variety of applications.These rings are designed to provide a tight,reliable seal that won't leak or break down over time.Available in various sizes.
95% to 99% Alumina Ceramic Washer Ceramic Seal Ring
Alumina washer ceramic seal ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
