item no. :
CS-YHL-DWX001Material : Alumina ceramic

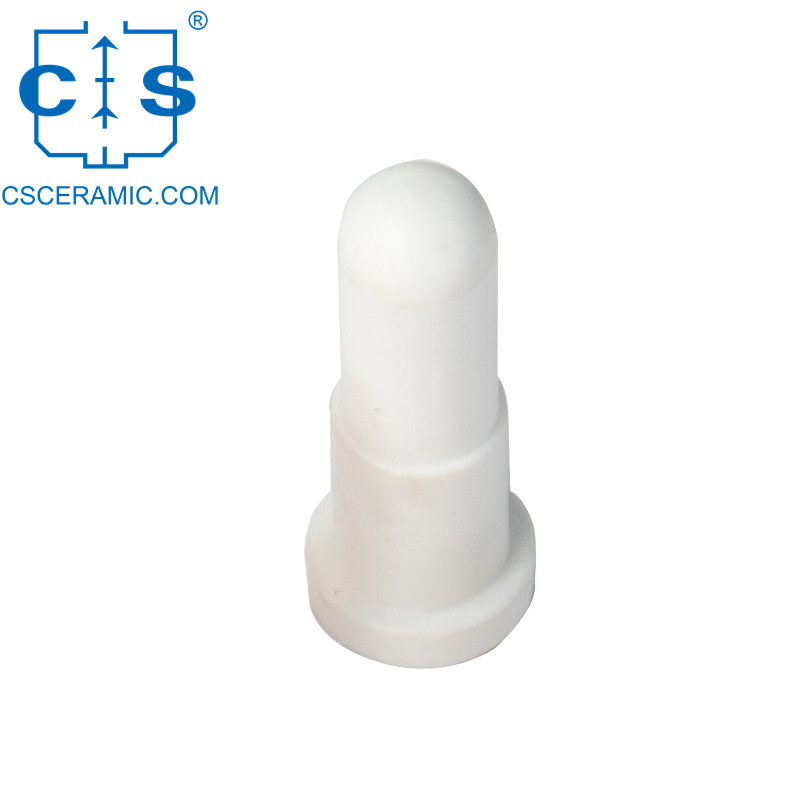

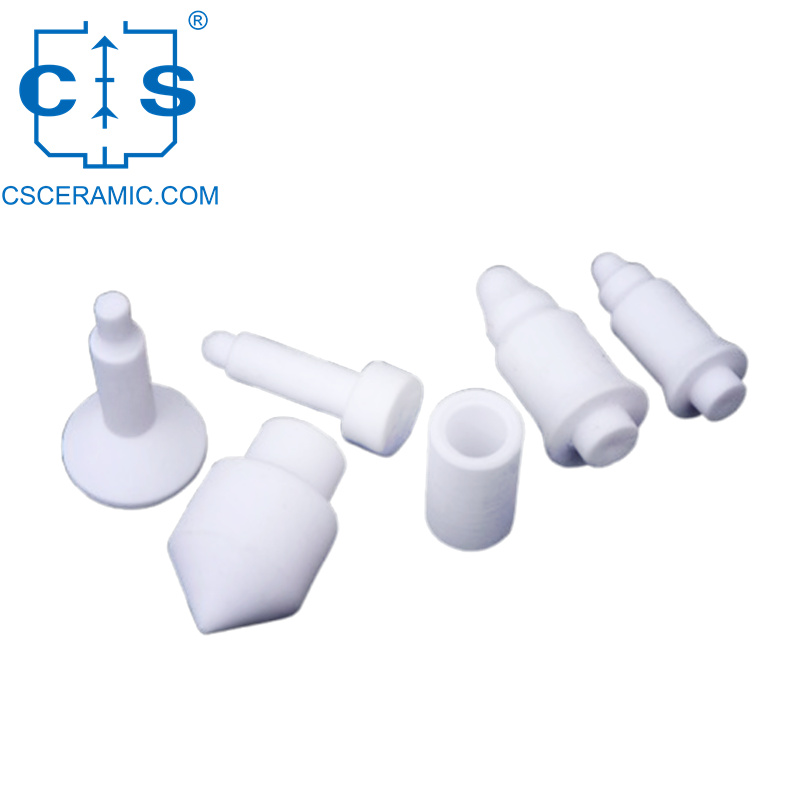

Advantages of Alumina Ceramic Locating Pin
The alumina ceramic locating pin boasts superior hardness, wear resistance, high-temperature tolerance, oxidation resistance, and corrosion resistance, rendering it suitable for various harsh working environments.
Compared to metal locating pins, alumina ceramic pins are lighter in weight, which contributes to reducing the overall weight of the system, enhancing efficiency and performance.
The alumina ceramic locating pin exhibits excellent electrical insulation, effectively preventing electrical leakage and electrochemical corrosion of adjacent components.
Applications of Alumina Ceramic Locating Pin
The alumina locating pin serves as a positioning reference by utilizing component holes, maintaining precise relative distances between components and restricting their movement. This ensures the accuracy and stability of machine components, guaranteeing the smooth operation of the entire machine. It is primarily used in mechanical processing equipment, automated production lines, petrochemical, and metallurgical equipment, where precision and reliability are crucial.
Please provide drawings and parametric specifications for customization.
Alumina Ceramic Locating Pin
Item no.
Dimension
(mm)
Length
(mm)
Diameter
(mm)
Al2O3's Purity
(%)
CS-YHL-DWX001
13.8*35.6
35.6
13.8
95-99
CS-YHL-DWX002
8.7*32.5
32.5
8.7
95-99
CS-YHL-DWX003
7.3*42.2
42.2
7.3
95-99
CS-YHL-DWX004
5.6*32.4
32.4
5.6
95-99
CS-YHL-DWX005
8*17.7
17.7
8
95-99
CS-YHL-DWX006
8.7*34.3
34.3
8.7
95-99
CS-YHL-DWX007
6*24.3
24.3
6
95-99
CS-YHL-DWX008
5.8*21.6
21.6
5.8
95-99
CS-YHL-DWX009
4.9*23.7
23.7
4.9
95-99
CS-YHL-DWX010
13.6*33.4
33.4
13.6
95-99
CS-YHL-DWX011
11*33.2
33.2
11
95-99
CS-YHL-DWX012
6.9*25.7
25.7
6.9
95-99
CS-YHL-DWX013
7.9*27.1
27.1
7.9
95-99
CS-YHL-DWX014
10*30
30
10
95-99
CS-YHL-DWX015
7.8*28.3
28.3
7.8
95-99
CS-YHL-DWX016
8*25.5
25.5
8
95-99
CS-YHL-DWX017
6.9*23.2
23.2
6.9
95-99
CS-YHL-DWX018
6.8*22.6
22.6
6.8
95-99
CS-YHL-DWX019
8.9*22
22
8.9
95-99
CS-YHL-DWX020
10.4*23
23
10.4
95-99
CS-YHL-DWX021
8.7*27.8
27.8
8.7
95-99
CS-YHL-DWX022
7.7*27.4
27.4
7.7
95-99
CS-YHL-DWX023
8.8*23.8
23.8
8.8
95-99
CS-YHL-DWX024
8.6*24.2
24.2
8.6
95-99
CS-YHL-DWX025
13*28.5
28.5
13
95-99
CS-YHL-DWX026
8.8*27.3
27.3
8.8
95-99
CS-YHL-DWX027
9.8*23.7
23.7
9.8
95-99
CS-YHL-DWX028
8.5*25.2
25.2
8.5
95-99
CS-YHL-DWX029
12*37
37
12
95-99
CS-YHL-DWX030
8.7*27.7
27.7
8.7
95-99
CS-YHL-DWX031
6.6*27.1
27.1
6.6
95-99
CS-YHL-DWX032
19*29
29
19
95-99
High Mechanical Strength Alumina Steatite Ceramic Parts
Alumina steatite ceramic parts are an ideal choice for components that require minimal maintenance and have a long life,they have excellent electrical insulation and thermal shock resistance.Available in various sizes.
Alumina Ceramic Thermocouple Insulator Tubes
Alumina ceramic thermocouple insulated tubes provide excellent insulation performance and durable durability, used to isolate thermocouples from high temperatures and corrosive environments.Available in various sizes.
Alumina Ceramic Laser Reflector
CS CERAMIC is committed to delivering high-quality alumina ceramic laser reflector tailored to your exact specifications.
Alumina Bushing Ceramic Insulator
Alumina Bushing Ceramic Insulator for cable terminations. Multiple fluted and capped bushings, re-entrant bushings, tubular bushings, barrel and cylindrical bushings, etc. can be customized.
Alumina Ceramic Ball Bearing Ceramic Bushings
Alumina ceramic ball bearing is a type of bearing that uses ceramic balls in order to reduce friction and improve bearing performance.These bushings are designed to reduce maintenance costs and extend the life of equipment.
Industrial Alumina Ceramic Piston Parts
Alumina ceramic piston adopts the ultra-hard wear resistance of modern engineering ceramic materials, can be assembled by ceramic metallization bonding,welding and socket technology.Available in various sizes.
High Alumina Ceramic Washer Ceramic Seal
Alumina ceramic washer ceramic seal is used as seals for a variety of applications.These rings are designed to provide a tight,reliable seal that won't leak or break down over time.Available in various sizes.
95% to 99% Alumina Ceramic Washer Ceramic Seal Ring
Alumina washer ceramic seal ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
