item no. :
CS-YHL-CL001Material : Alumina ceramic

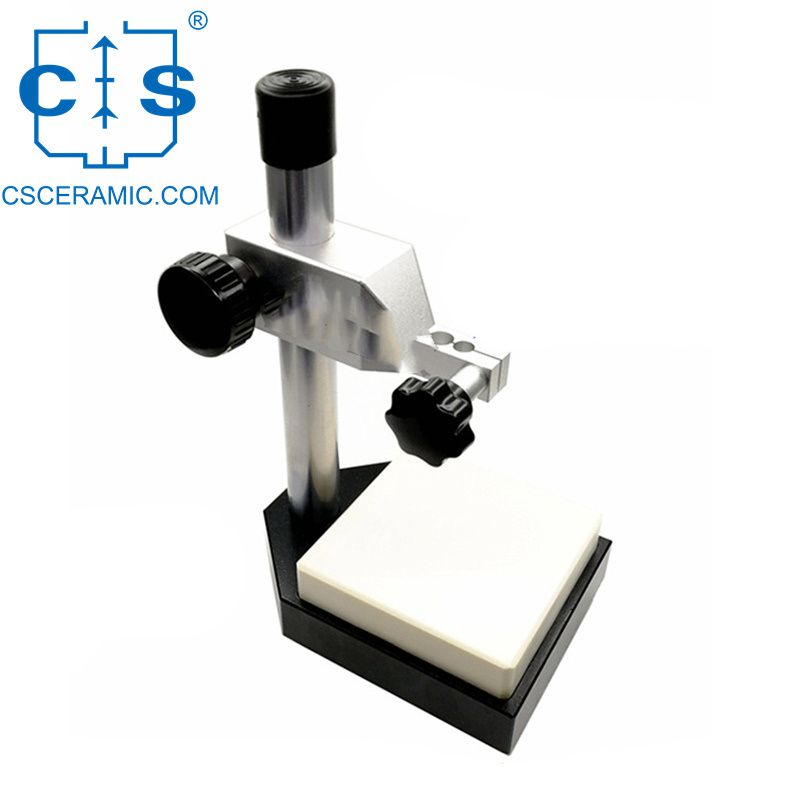

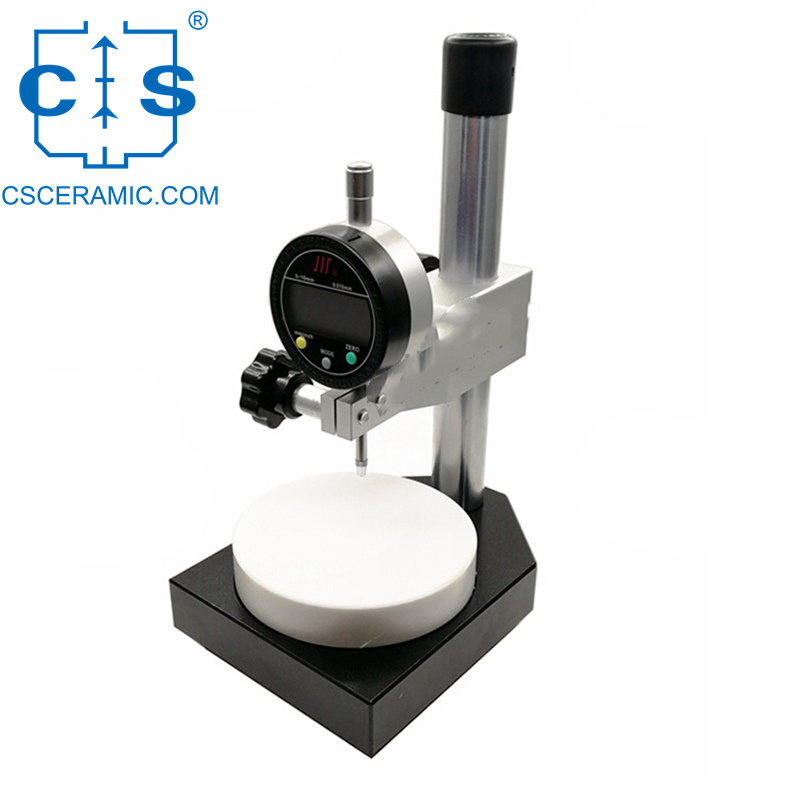

The alumina measuring platform features a high surface finish, non-magnetic properties, and resistance to dust and impurities. Its exceptional planarity and low measurement error guarantee precision and accuracy in measurements.
Thanks to its superior wear and corrosion resistance, as well as rust-proof capabilities, it can come into direct contact with various devices under test without compromising its long service life.
With excellent thermal stability and a low thermal expansion coefficient, the alumina measuring platform maintains stable form and dimensions across a wide temperature range, ensuring consistent measurement accuracy.
Applications of Alumina Measuring Platform
The alumina measuring platform functions as a reliable base for precision instruments, enabling accurate measurement of product dimensions. Due to its versatility, it is widely utilized in experimental instruments, mechanical processing, and various other industries where precision is paramount.
We are dedicated to providing you with optimal alumina ceramic measuring platforms that are precisely tailored to your specific needs. Our committed team ensures meticulous adherence to your instructions, always aiming to surpass your expectations. To accommodate your unique requirements, we offer the flexibility of custom sizes, ensuring you receive the perfect measuring platform for your application.
Please provide drawings and parametric specifications for customization.
Machining Tolerance: 0.0004mm
Alumina Measuring Platform
Item no.
Dimensions
(mm)
Length
(mm)
Width
(mm)
Thickness
(mm)
Machining Tolerance
(mm)
Al2O3's Purity
(%)
CS-YHL-CL001
60*15
60
/
15
0.0004
99
CS-YHL-CL002
80*15
80
/
15
0.0004
99
CS-YHL-CL003
100*20
100
/
20
0.0004
99
CS-YHL-CL004
65*75*15
65
75
15
0.0004
99
CS-YHL-CL005
80*80*15
80
80
15
0.0004
99
CS-YHL-CL006
100*100*15
100
100
15
0.0004
99
CS-YHL-CL007
110*110*20
110
110
20
0.0004
99
CS-YHL-CL008
111*111*15
111
111
15
0.0004
99
CS-YHL-CL009
120*180*20
120
180
20
0.0004
99
CS-YHL-CL010
150*100*20
150
100
20
0.0004
99
CS-YHL-CL011
150*100*50
150
100
50
0.0004
99
CS-YHL-CL012
150*150*20
150
150
20
0.0004
99
CS-YHL-CL013
200*150*50
200
150
50
0.0004
99
CS-YHL-CL014
300*200*50
300
200
50
0.0004
99
CS-YHL-CL015
400*300*50
400
300
50
0.0004
99
