Read Moreitem no. :
CS-QZT-Z001Material : Quartz glass
Purity Available : 99.99% 99.98%

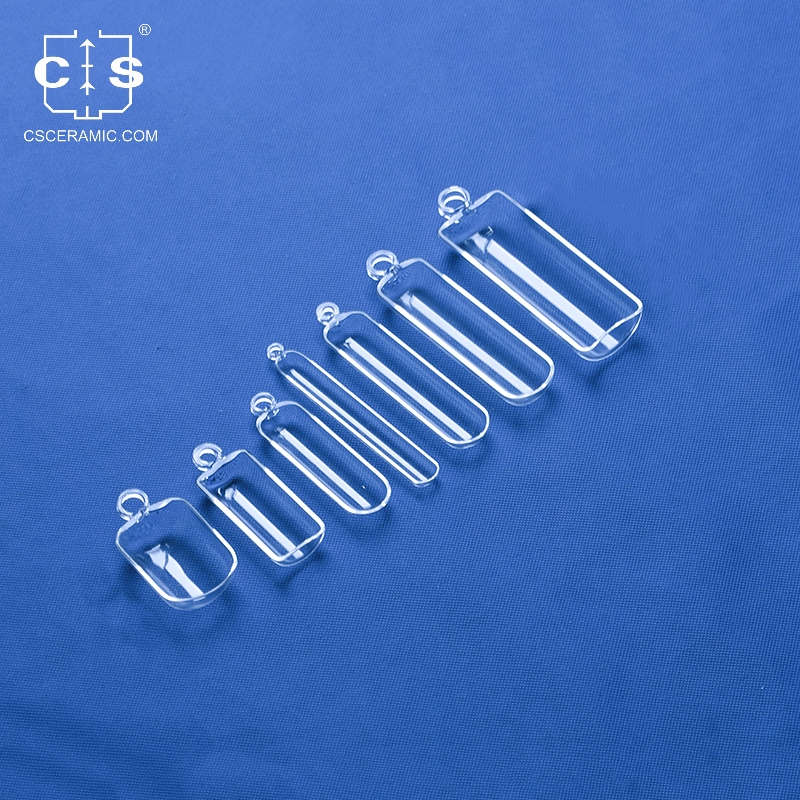

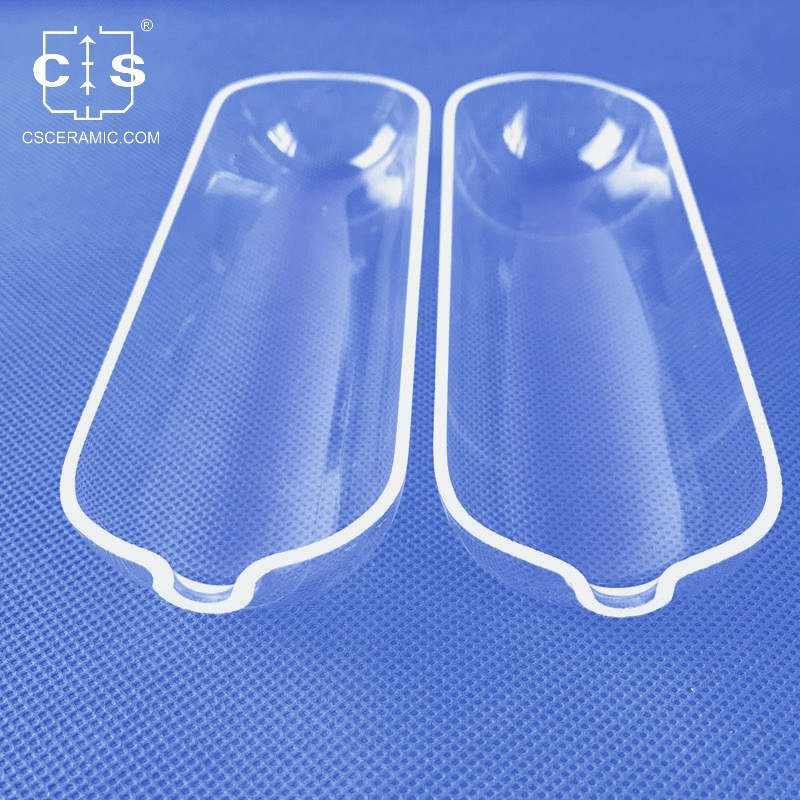

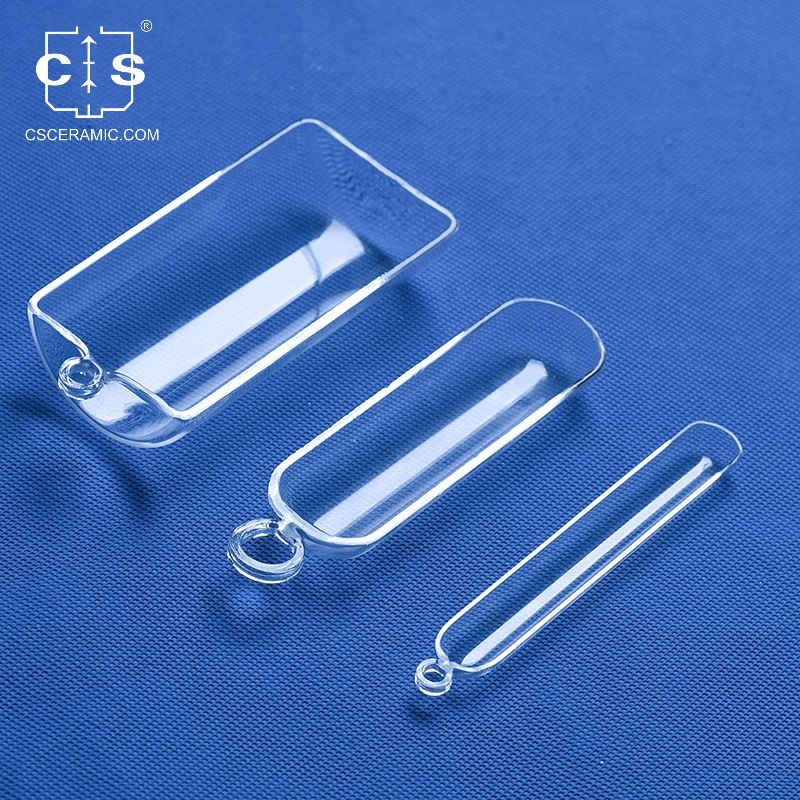

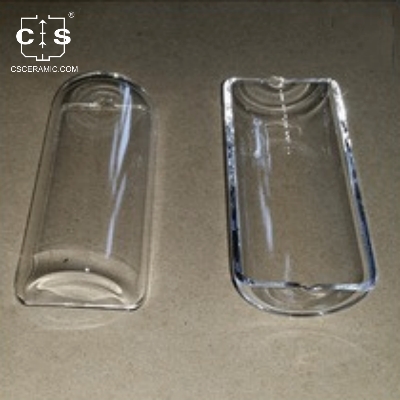

Shape : Boat
1. High Purity: Quartz glass boats have very high purity, They are resistant to contamination and do not react with most chemicals, making them suitable for use in many industrial processes.
2. High Temperature Tolerance: They are resistant to high temperatures,long term use at 1100 ℃, short term use at 1450 ℃.
3. Chemical Resistance: They have strong resistance to chemicals and are very suitable for use in harsh chemical environments.
4. High optical clarity: They have high optical clarity and are ideal for optical applications such as lenses, prisms, and windows.
5. Economical: Quartz glass boats have a high cost-effectiveness and lower life cost compared to other materials, as they have high durability and wear resistance.
1. Quartz glass boats are made of premium quality quartz materials that ensure superior durability and long-lasting performance.
2. For extreme purity requirements, this quartz glass boats are the perfect choice.
3. They have high chemical resistance, they are ideal for containing and transferring aggressive chemicals such as acids, alkalis, and solvents.
4. Quartz glass boats have excellent optical clarity, they are free from impurities, so they don't obstruct the passage of light.

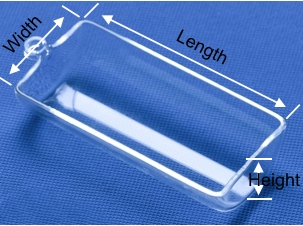

Quartz glass boats size details
Item NO.
Hole
Purity
CS-QZT-Z001
50
10
5
1.5-2
with hole
99.98%
CS-QZT-Z002
100
10
5
1.5-2
with hole
99.98%
CS-QZT-Z003
50
15
7.5
1.5-2
with hole
99.98%
CS-QZT-Z004
100
15
7.5
1.5-2
with hole
99.98%
CS-QZT-Z005
50
20
10
1.5-2
with hole
99.98%
CS-QZT-Z006
100
20
10
1.5-2
with hole
99.98%
CS-QZT-Z007
50
25
12.5
1.5-2
with hole
99.98%
CS-QZT-Z008
100
25
12.5
1.5-2
with hole
99.98%
CS-QZT-Z009
50
30
15
1.5-2
with hole
99.98%
CS-QZT-Z010
100
30
15
1.5-2
with hole
99.98%
CS-QZT-Z011
200
30
15
1.5-2
with hole
99.98%
CS-QZT-Z012
50
40
20
1.5-2
with hole
99.98%
CS-QZT-Z013
100
40
20
1.5-2
with hole
99.98%
CS-QZT-Z014
200
40
20
1.5-2
with hole
99.98%
CS-QZT-Z015
50
50
25
1.5-2
with hole
99.98%
CS-QZT-Z016
100
50
25
1.5-2
with hole
99.98%
CS-QZT-Z017
200
50
25
1.5-2
with hole
99.98%
CS-QTZ-Z018
43
37
19
2
/
99.99%
CS-QTZ-Z019
45
38
26
2
/
99.99%
CS-QTZ-Z020
45
28
18
2
/
99.99%
CS-QTZ-Z021
55
43
21
2
/
99.99%
CS-QTZ-Z022
60
38
23
2
/
99.99%
CS-QTZ-Z023
65
57
25
2
/
99.99%
CS-QTZ-Z024
65
33
16
2
/
99.99%
CS-QTZ-Z025
65
57
25
2
/
99.99%
CS-QTZ-Z026
70
28
17
2
/
99.99%
CS-QTZ-Z027
85
43
18
2
/
99.99%
CS-QTZ-Z028
105
68
31
2.5
/
99.99%
CS-QTZ-Z029
105
43
26
2.5
/
99.99%
CS-QTZ-Z030
105
23
16
2.5
/
99.99%
CS-QTZ-Z031
105
23
21
2.5
/
99.99%
CS-QTZ-Z032
105
33
21
2.5
/
99.99%
CS-QTZ-Z033
105
43
21
2.5
/
99.99%
CS-QTZ-Z034
105
53
31
2.5
/
99.99%
CS-QTZ-Z035
105
43
26
2.5
/
99.99%
CS-QTZ-Z036
105
43
21
2.5
/
99.99%
CS-QTZ-Z037
105
23
16
2.5
/
99.99%
CS-QTZ-Z038
105
23
21
2.5
/
99.99%
CS-QTZ-Z039
105
33
21
2.5
/
99.99%
CS-QTZ-Z040
105
53
31
2.5
/
99.99%
CS-QTZ-Z041
108
58
31
2.5
/
99.99%
CS-QTZ-Z042
155
43
21
3
/
99.99%
CS-QTZ-Z043
165
78
41
3
/
99.99%
CS-QTZ-Z044
250
43
21
3
/
99.99%
CS-QTZ-Z045
255
43
19
3
/
99.99%
CS-QTZ-Z046
295
43
23
3
/
99.99%
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Chemical composition: | SiO2 99.9%;99.98% |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732℃ |
Working temperature: | 1100℃ |
Max temperature can reach in a short time: | 1450℃ |
Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
Visible light transmittance: | above 93% |
UV spectral region transmittance: | 80% |
Resistance value: | 10000 times than ordinary glass |
Annealing point: | 1215℃ |
Softening point: | 1730℃ |
1. Chemical transportation: Quartz glass boats are commonly used in chemical transportation applications to hold and transport chemicals such as acids, alkalis, and solvents. The chemical resistance of quartz glass makes it an ideal material for this purpose.
2. Sample preparation: They are very useful in sample preparation applications, especially for analytical chemistry. Samples can be placed inside the boat and heated to high temperatures for analysis.
3. Semiconductor manufacturing: Used in semiconductor manufacturing for the transportation and storage of semiconductor wafers during the various stages of production. The high purity and low contamination properties of quartz glass makes it an ideal material for this application.
4. Optical handling: They are also used in handling and transportation of optical components primarily for high-precision optical applications.
5. Crystal growth:Used in crystal growth applications, especially in the production of single crystals. The high purity and heat resistance properties of quartz glass make it a suitable material for this application.
6. Thin film deposition: Commonly used in thin film deposition applications such as atomic layer deposition (ALD) and chemical vapor deposition (CVD). The boats are used to hold substrates during deposition processes.
7. Biological analysis: They are used in biological analysis applications such as microscopy and spectroscopy. The boats can be used to hold and analyze biological samples under high temperatures and extreme conditions.
Q1. What information should we supply to get a quote?
Please offer the specification of quartz glass boat, such as shape, dimension, quantity, application etc.
Q2. What are the benefits of quartz glass boats?
Quartz glass boats have several benefits over other materials, including their high purity, chemical resistance, low thermal expansion coefficient, and their ability to withstand high temperatures and thermal shocks. They are also transparent to light, making it easy to monitor the sample during processing.
Q3. Can quartz glass boats be reused?
A: Yes, quartz glass boats can be reused multiple times, provided they are cleaned and inspected carefully after each use to avoid contamination.
Q4. How long do quartz glass boats last?
Quartz glass boats have a long lifespan, as they are highly durable and resistant to most chemicals and thermal stresses. However, their lifespan can be affected by exposure to extreme conditions or harsh chemicals, so proper maintenance and care are important to ensure their longevity.
1. Remove any remaining material from the quartz boat using a soft brush or soft cloth.
2. Fill a container with warm water and add a small amount of detergent.
3. Submerge the quartz boat in the detergent water and let it soak for several minutes.
4. Use a soft brush or cloth to gently scrub the inside and outside of the quartz boat, paying special attention to any stubborn stains or deposits.
5. Rinse the quartz boat thoroughly with clean water to remove all detergent residue.
6. Dry the quartz boat with a soft cloth or let it air dry.
7. Store the clean and dry quartz boat in a clean, dry location until its next use.
1. Visual inspection of the quartz boat for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the quartz boat to check for accuracy.
3. Hold the quartz boat against a light source and inspect it for transparency. Transparent quartz glass should allow light to pass through it easily with little to no distortion.
4. Pour a small amount of water on the surface of the quartz boat and observe the behavior of the water. If the water beads up and does not properly wet the surface of the quartz boat, it may indicate a coating of impurities on the surface.
5. Verification of the material and chemical composition of the quartz boat.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
