item no. :
CS-QTZ-S001Material : Quartz glass
Purity Available : 99.98%
Advantages of quartz glass beaker:
1. High temperature resistance: Quartz glass beaker can withstand a high temperature without cracking or melting. Long term use at 1100 ℃, short term use at 1450 ℃.
2. Chemical resistance: It is highly resistant to acids, bases, and other corrosive chemicals.
3. Non-conductive: Quartz glass is a non-conductive material, making it ideal for use in labs for experiments that require electrical insulation.
4. Transparency: It is highly transparent and have excellent optical clarity, making it ideal for use in labs for analytical purposes, where the transparency of the material is crucial for accurate measurements and observations.
5. Non-porous: Quartz glass is a non-porous material with high resistance, rust -proof and pollution.
6. UV Resistance: It is highly resistant to UV radiation, suitable for experiments that require exposure to UV light, such as photochemistry and photobiology.

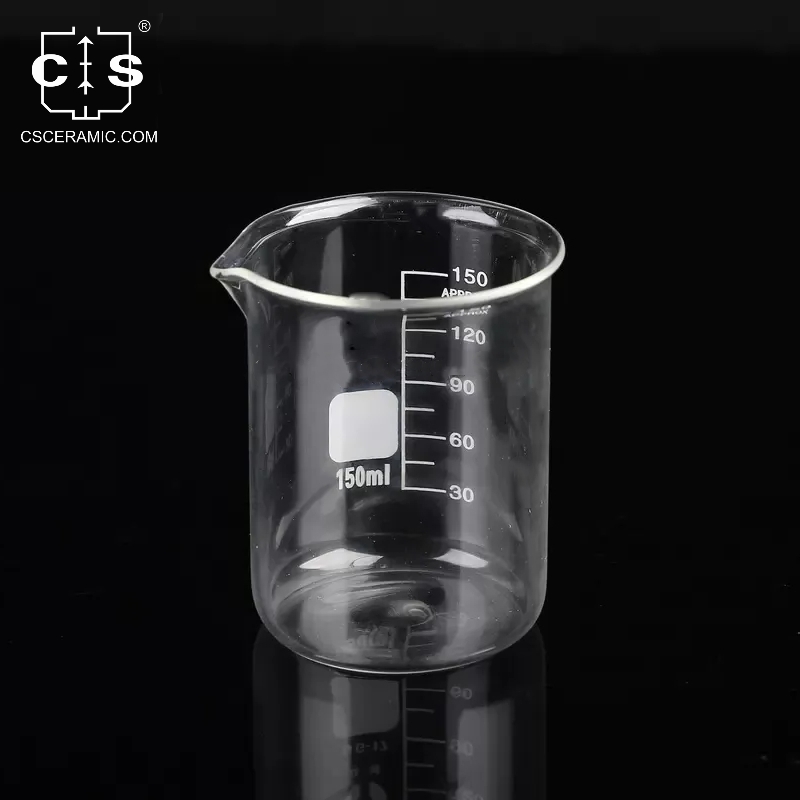

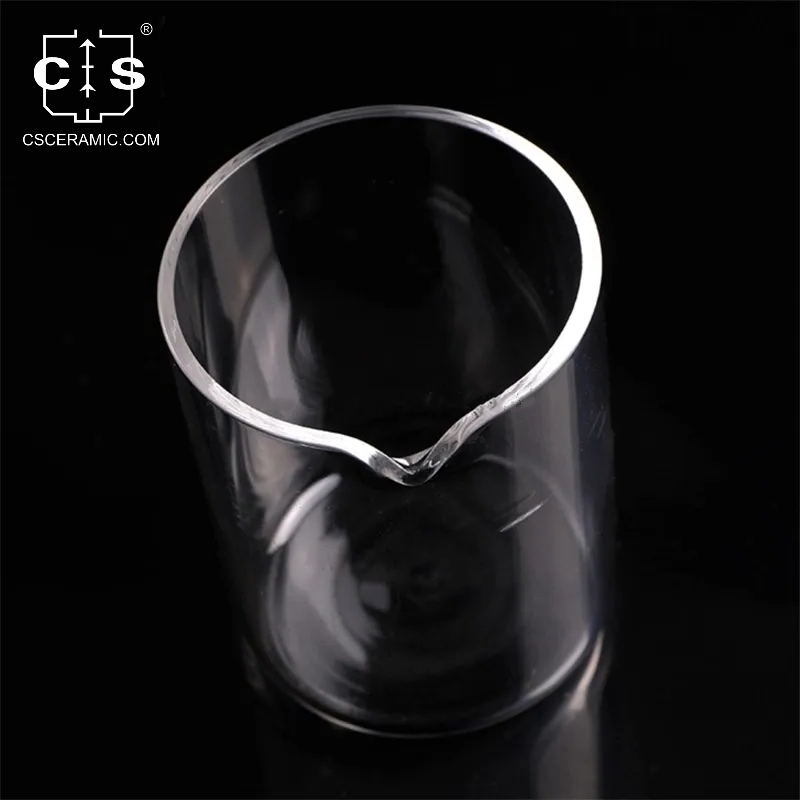

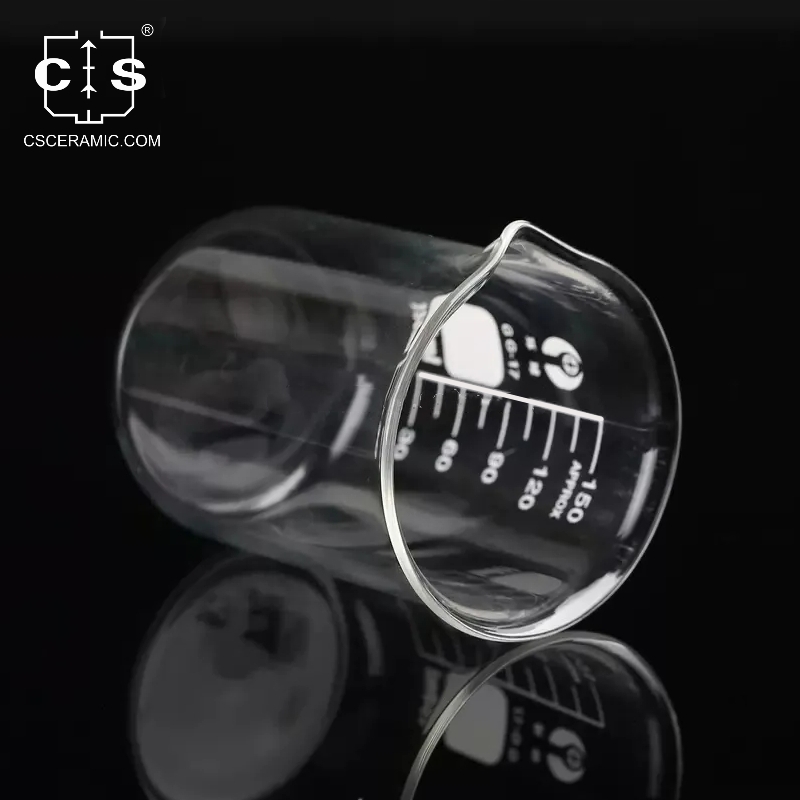

Descriptions of quartz glass beaker:
1. This quartz glass beaker is an essential piece of lab equipment, perfect for mixing and measuring solutions.
2. Its clear construction and wide base make it stable and easy to use.
3. The beaker is made of high-quality quartz glass, providing a durable and heat-resistant vessel.

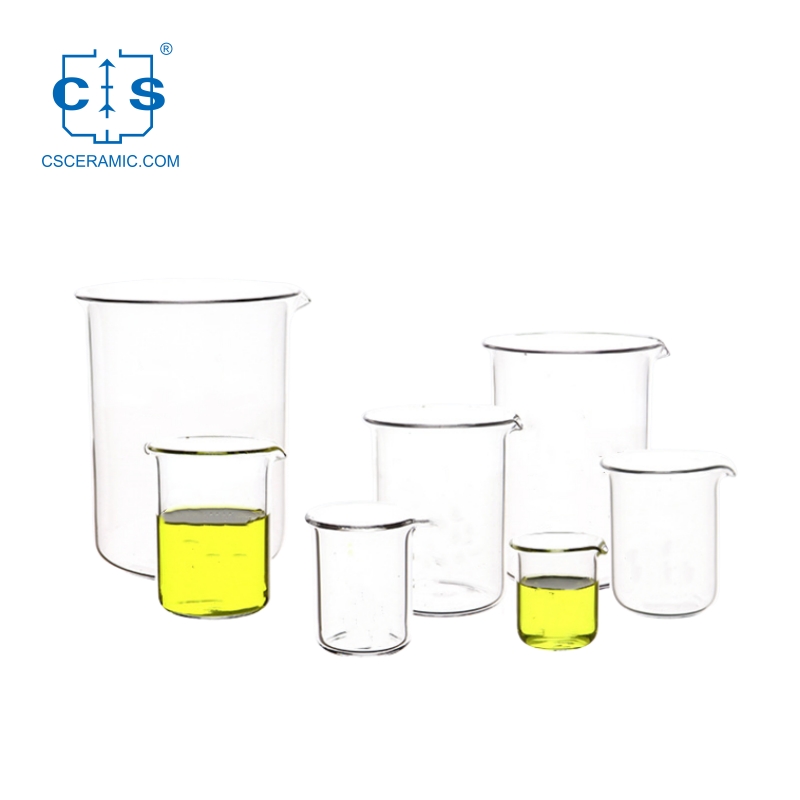

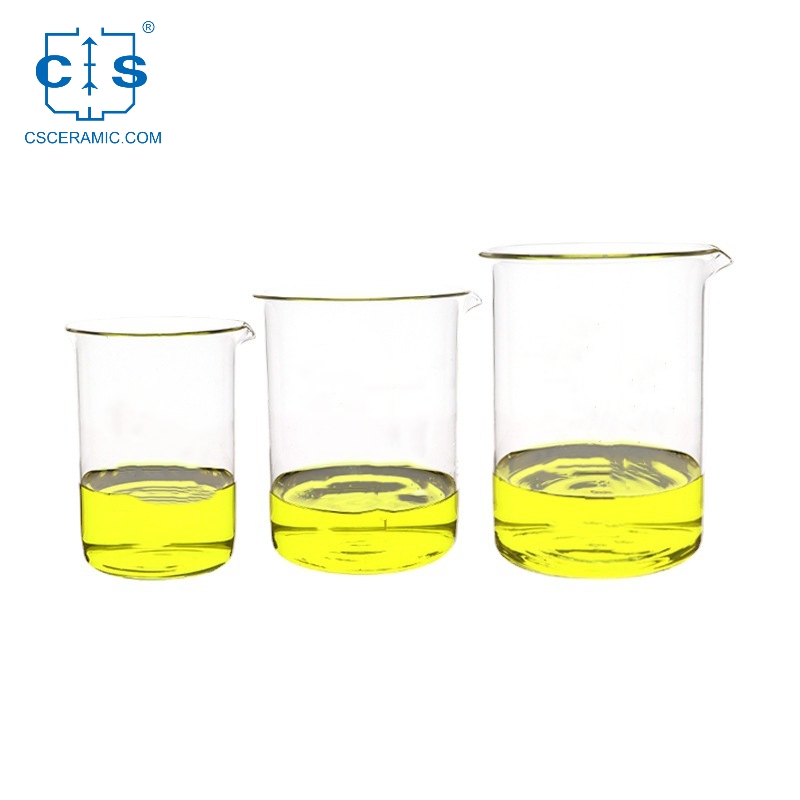

4. Multiple sizes of beakers are available.
Size details of quartz glass beaker:
Size details of quartz glass beaker
Item NO.
Purity
CS-QTZ-S001
5
25
31
2
99.98%
CS-QTZ-S002
10
30
41
2
99.98%
CS-QTZ-S003
25
38
51
2
99.98%
CS-QTZ-S004
50
50
64
2
99.98%
CS-QTZ-S005
100
60
74
2
99.98%
CS-QTZ-S006
150
65
84
2
99.98%
CS-QTZ-S007
200
70
88
2.5
99.98%
CS-QTZ-S008
250
75
103
2.5
99.98%
CS-QTZ-S009
300
90
111
2.5
99.98%
CS-QTZ-S010
500
95
119
2.5
99.98%
CS-QTZ-S011
600
99
130
2.5
99.98%
CS-QTZ-S012
800
108
140
2.5
99.98%
CS-QTZ-S013
1000
130
149
2.5
99.98%
CS-QTZ-S014
2000
397
203
3
99.98%
CS-QTZ-S015
3000
151
214
3
99.98%
CS-QTZ-S016
5000
164
288
3
99.98%
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Parameters of quartz glass beaker:
| Chemical composition: | SiO2 99.98% |
| Density: | 2.2(g/cm3) |
| Degree of hardness moh' scale: | 6.6 |
| Melting point: | 1732℃ |
| Working temperature: | 1100℃ |
| Max temperature can reach in a short time: | 1450℃ |
| Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance: | above 93% |
| UV spectral region transmittance: | 80% |
| Resistance value: | 10000 times than ordinary glass |
| Annealing point: | 1215℃ |
| Softening point: | 1730℃ |
Applications of quartz glass beaker:
1. Laboratory Experiments: Quartz glass beakers are used in laboratories for experiments that require high temperatures and chemical resistance. They are ideal for handling harsh chemicals.
2. Medical Applications: Can be used for medical applications, such as the mixing and heating of medical solutions, because they are inert and non-reactive.
3. Jewelry Making: Used in the jewelry making industry, melting metals, as well as casting and forming jewelry.
4. Chemical Industry: Used in the chemical industry to mix and react chemicals at high temperatures.
5. Petrochemical Industry: In the petrochemical industry, it is used to test petroleum products.
6. Manufacturing Industry: Used in the manufacturing industry to mix and heat materials during the production process.
7. Astronomy Applications: Used for astronomical applications to produce high-quality optics and lenses for telescopes.
8. Environmental Science: In the application of environmental science, it is used to analyze water samples.
9. Research and Development: Quartz glass beakers are used in research and development applications for a variety of industries, including electronics, aerospace, and telecommunications.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of quartz glass beaker, such as shape, dimension, quantity, application etc.
Q2. Are quartz glass beakers safe to use?
Yes, quartz glass beakers are safe to use. They are made from quartz glass, which is non-toxic and chemically inert.
Q3. Can quartz glass beaker be used for mixing chemicals?
Yes, quartz glass beaker is suitable for mixing chemicals due to its high chemical resistance. However, it is important to use appropriate safety measures and follow laboratory protocols to avoid any accidents or mishaps.
Q4. How do I know when a quartz glass beaker needs to be replaced?
When a quartz glass beaker becomes scratched or chipped, it is time to replace it as it can no longer be used safely. Additionally, quartz glass beakers should be replaced if they become severely discolored or stained.
Q5. How to maintain quartz glass beaker?
Regularly clean the beaker,do not use any abrasive materials or chemicals to clean the quartz glass beaker.Always handle quartz glass beakers with care to prevent breakage.When not in use, store quartz glass beakers in a safe, dry place away from any source of heat or direct sunlight.
How to clean quartz glass beaker:
1. Remove any remaining material from the quartz beaker using a soft brush or soft cloth.
2. Fill a container with warm water and add a small amount of detergent.
3. Submerge the beaker in the detergent water and let it soak for several minutes.
4. Use a soft brush or cloth to gently scrub the inside and outside of the beaker, paying special attention to any stubborn stains or deposits.
5. Rinse the beaker thoroughly with clean water to remove all detergent residue.
6. Dry the beaker with a soft cloth or let it air dry.
Quality testing standards：
1. Visual inspection of the quartz beaker for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the beaker to check for accuracy.
3. Hold the beaker against a light source and inspect it for transparency. Transparent quartz glass should allow light to pass through it easily with little to no distortion.
4. Pour a small amount of water on the surface of the beaker and observe the behavior of the water. If the water beads up and does not properly wet the surface of the beaker, it may indicate a coating of impurities on the surface.
5. Verification of the material and chemical composition of the quartz glass beaker.
