Read Moreitem no. :

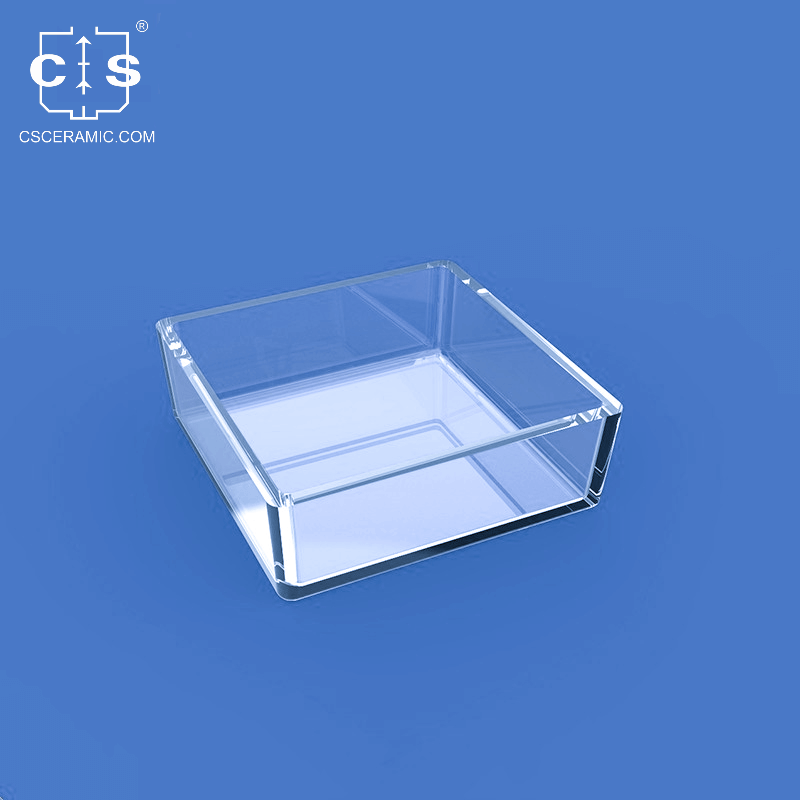

CS-QTZ-C001Material : Quartz glass
Purity Available : 99.99%
Shape : Square
Cover/Lid : Can be equipped
Advantages of square quartz glass crucibles:
1. High thermal shock resistance: Square quartz glass crucibles are highly resistant to rapid temperature changes, making them ideal for high-temperature applications.
2. High chemical resistance: These crucibles are highly resistant to chemical corrosion, making them ideal for use with highly reactive or acidic compounds.
3. High purity: Quartz glass is a highly pure material that is free from impurities, ensuring that the crucible will not contaminate the sample.
4. Resistant to thermal shock: They can withstand rapid temperature changes without cracking or breaking, making them ideal for applications that involve high-temperature gradients.
5. Easy to clean: They are easy to clean and maintain due to their smooth and non-porous surface.
6. Excellent optical clarity: Quartz glass is highly transparent and allows researchers to observe the sample during experiments easily.
7. Long lifespan: They are highly durable and can last for years without degradation.
Descriptions of square quartz glass crucibles:
1. Square quartz glass crucibles are made from premium-quality quartz glass, this square crucible is highly durable and designed to withstand high temperatures and chemical reactions.
2. They have a perfectly square design, this quartz glass crucible offers more space for samples and ensures uniform heating, making it an ideal choice for precision experiments and studies.
3. Ideal for use in laboratory experiments, scientific studies, and industrial applications, this square quartz glass crucible is versatile and can be used for a range of purposes.
4. Cleaning and maintaining this square quartz glass crucible is easy and hassle-free, thanks to its non-porous surface that resists staining and corrosion.

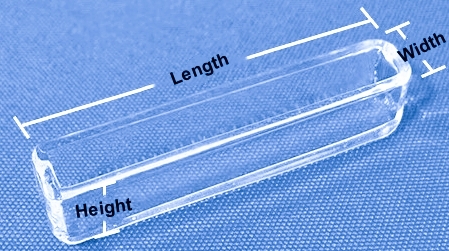

Size details of square quartz glass crucibles:
Square Quartz Glass Crucible
Item NO.
Purity
CS-QTZ-C001
50
10
10
2-3
99.99%
CS-QTZ-C002
100
10
10
2-3
99.99%
CS-QTZ-C003
50
15
10
2-3
99.99%
CS-QTZ-C004
100
15
10
2-3
99.99%
CS-QTZ-C005
50
20
15
2-3
99.99%
CS-QTZ-C006
100
20
15
2-3
99.99%
CS-QTZ-C007
50
30
20
2-3
99.99%
CS-QTZ-C008
100
30
20
2-3
99.99%
CS-QTZ-C009
50
40
25
2-3
99.99%
CS-QTZ-C010
100
40
25
2-3
99.99%
CS-QTZ-C011
50
50
30
2-3
99.99%
CS-QTZ-C012
100
50
30
2-3
99.99%
CS-QTZ-C013
50
50
50
2-3
99.99%
CS-QTZ-C014
100
100
30
2-3
99.99%
CS-QTZ-C015
100
100
50
2-3
99.99%
CS-QTZ-C016
100
100
100
2-3
99.99%
CS-QTZ-C017
200
100
50
2-3
99.99%
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry

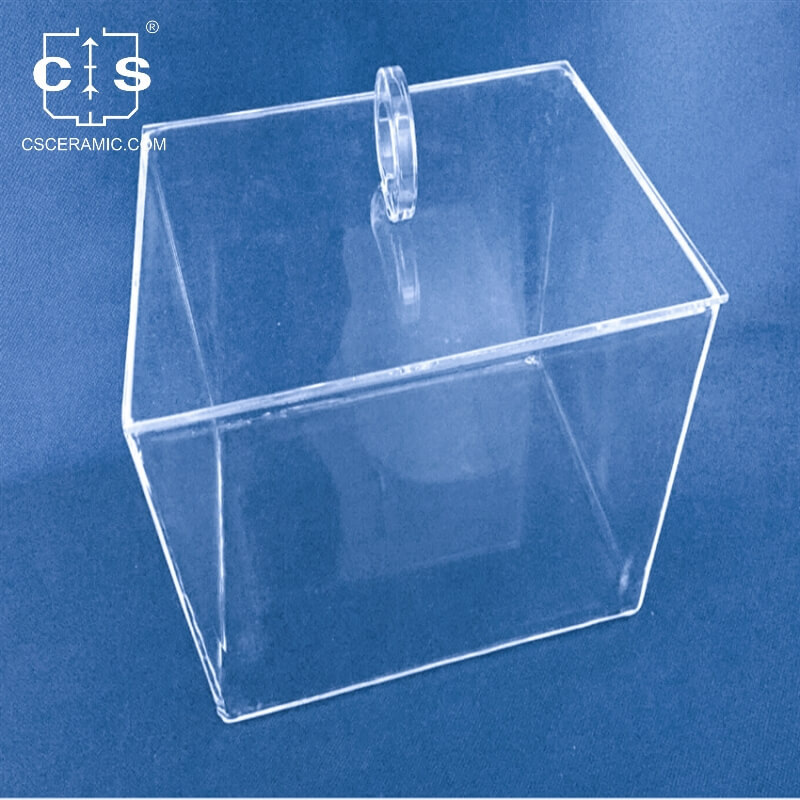

The crucible can be equipped with a lid. If you need it, please provide your request.
Parameters of quartz crucible:
Chemical composition: | SiO2 99.9% |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732℃ |
Working temperature: | 1100℃ |
Max temperature can reach in a short time: | 1450℃ |
Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
Visible light transmittance: | above 93% |
UV spectral region transmittance: | 80% |
Resistance value: | 10000 times than ordinary glass |
Annealing point: | 1215℃ |
Softening point: | 1730℃ |
Applications of square quartz glass crucibles:
1. Chemical analysis and synthesis: Square quartz glass crucibles are suitable for use as containers for chemical reaction and analysis.
2. Semiconductor manufacturing: In semiconductor manufacturing, square quartz glass crucibles are used for the growth of single crystal silicon. These crucibles provide a clean, inert and high temperature environment, which are essential parameters required for successful fabrication of semiconductor devices.
3. Metallurgical sampling: They can also be used in metallurgical sampling. They can hold small samples of metal, which can then be heated to high temperatures for analysis or testing.
4. Glass melting: They can be used in glass melting, particularly in the production of small or experimental batches. This is because they can handle high temperatures without cracking or melting, and they are also non-reactive to the glass being melted.
5. Chemical vapor deposition: They can be used to coat surfaces with thin films through chemical vapor deposition. They provide a stable and inert environment for the deposition process to take place.
6. Powder metallurgy: They can be used to hold powdered metallic materials during sintering. The crucibles can withstand extreme temperatures, ensuring the powder particles sinter and form a solid mass without melting.
7. Crystal growth: They can be used for crystal growth. They provide a stable environment for the growth of crystals, particularly for chemical solutions that require high temperatures.
8. Microelectronics: They can be used in the fabrication of microelectronics. They are used as a source of ultrapure silicon in the production of microchips, which require a high level of purity for their manufacture.
9. UV and IR optics: They are used in UV and IR optics to make lenses and windows that work at wavelengths beyond those that are suitable for glass. Quarz glass is unique in its ability to transmit UV light with low absorption, and thus are particularly useful for making lenses for UV optics.
10. Heat treatment: Square quartz glass crucibles can be used in heat treatment applications. This is particularly important where the materials being heated require a non-reactive environment.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of quartz glass crucible, such as shape, dimension, quantity, application etc.
Q2. What types of materials can be melted in a square quartz glass crucible?
Square quartz glass crucibles are suitable for melting a wide range of materials such as metals, salts, ceramics, and various other materials, particularly in high-temperature applications.
Q3. How is a quartz glass crucible different from other types of crucibles?
Quartz glass crucibles have a number of features that set them apart from other types of crucibles. They are highly resistant to high temperatures, corrosion, and thermal shock, making them ideal for use in high-temperature applications. Quartz glass crucibles are also extremely durable and can withstand repeated heating and cooling cycles.
Q4. How do you handle square quartz glass crucibles?
Square quartz glass crucibles should be handled with care to avoid any physical damage. They should be held by the outer edges using suitable gloves or tongs, and not dropped or knocked against hard surfaces.
Q5. How do I care for and maintain my quartz glass crucible?
To care for your quartz glass crucible, it is important to handle it carefully and avoid physical damage. It is also important to clean your crucible regularly to maintain its purity and prevent contamination. Always follow the manufacturer's instructions for cleaning and maintenance.
How to clean square quartz glass crucibles:
1. Remove any remaining material from the crucible using a soft brush or soft cloth.
2. Fill a container with warm water and add a small amount of detergent.
3. Submerge the crucible in the detergent water and let it soak for several minutes.
4. Use a soft brush or cloth to gently scrub the inside and outside of the crucible, paying special attention to any stubborn stains or deposits.
5. Rinse the crucible thoroughly with clean water to remove all detergent residue.
6. Dry the crucible with a soft cloth or let it air dry.
7. Store the clean and dry crucible in a clean, dry location until its next use.
Quality testing standards:
1. Visual inspection of the crucible for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the crucible to check for accuracy.
3. Hold the crucible against a light source and inspect it for transparency. Transparent quartz glass should allow light to pass through it easily with little to no distortion.
4. Pour a small amount of water on the surface of the crucible and observe the behavior of the water. If the water beads up and does not properly wet the surface of the crucible, it may indicate a coating of impurities on the surface.
5. Verification of the material and chemical composition of the crucible.
Packing way:
