45ul Alumina crucible equivalent to Netzsch GB800153 D6.5mm*H1.86mm

Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.

item no. :
CS-NA-096
Suitable for : Netzsch
Material : ceramic
Part NO : GB800153

contact now catalogue

description

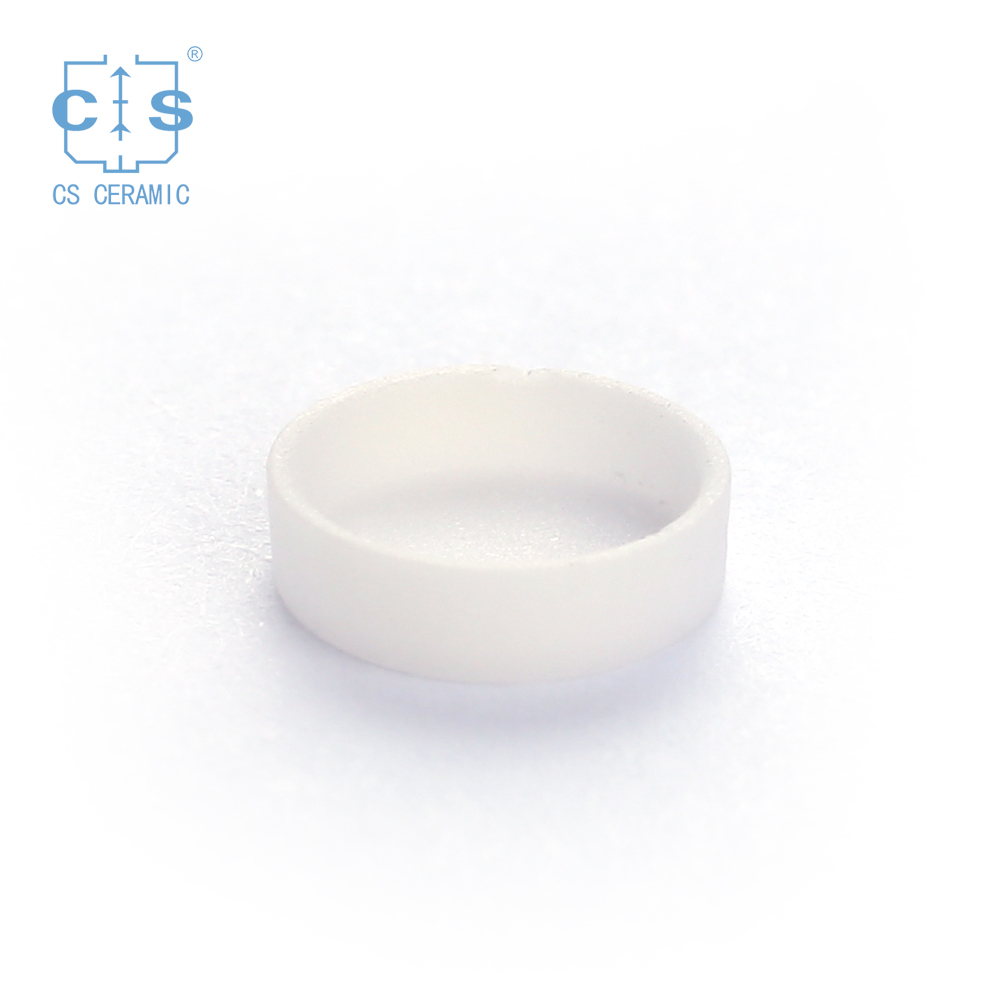

45ul Alumina crucible equivalent to Netzsch GB800153

Item info :

Type	Sample pan /crucible
Suitable for	Netzsch
Part NO	Netzsch GB800153
Size	45ul other size are available： 25μl alumina crucible for Netzsch Size D72mm CS-NA-068, 25ul alumina crucible Size D7.51.8mm CS-NA-069, 45 μl alumina crucibleNetzsch J1560181 , 45μL alumina crucible Netzsch GB800153 80μl alumina crucible Size D6.75mm CS-NA-070, 85μl alumina crucible with lid GB399972 &GB399973 , 90μl alumina crucible Size D6.85mm CS-NA-075, 95 μl alumina crucible Netzsch J1560182 , 100μl alumina crucible with lid D98mm CS-NA-094-1 , 160μl alumina crucible Size D6.480.5mm CS-NA-076 , 300μl alumina crucible NGB803698 /NGB808209 , 350μl alumina crucible Netzsch NGB800453/NGB800454 , 400 μl alumina crucible Netzsch JA004738 , 450μl alumina crucible D8H12MM CS-NA-083, 1ml alumina crucible D18*H8MM CS-NA-084
Lid	Without
Material	Alumina Ceramic
Temperature range	Room temperature to 1600℃
QTY/PKG	20PCS/BOX ; 100PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Cleaning :

There sample pans (crucibles) can be reused. After mechanical cleaning ,store them in water, or possibly even in 10% hydrochloric acid, because salts are soluble in water. Oxides form chlorides in hydrochloric acid, which can then be removed by rinsing. After drying, heat the crucibles to red heat to ensure that no weight loss occurs when they are used.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
