Read Moreitem no. :
CS-NY0.5-001Material : Zirconia
Purity Available : ZrO2=95% , Y2O3=5%
Shape : Ball, Cylindrical
1. High Thermal Stability: Yttria stabilized zirconia(YSZ) beads can withstand extremely high temperatures, making them suitable for applications in high-temperature environments, such as in furnaces, aerospace components, and thermal barrier coatings.
2. Chemical Inertness: YSZ beads are chemically inert, which means they do not react with most chemicals, acids, or bases.
3. Mechanical Strength: YSZ beads exhibit exceptional mechanical strength and hardness, which makes them suitable for use in abrasive applications.
4. High Wear Resistance: They are highly wear-resistant, making them ideal for use in wear-resistant coatings, cutting tools, and abrasive materials.
5. Thermal Barrier Coatings: Yttria stabilized zirconia is widely used as a thermal barrier coating material for aerospace components and gas turbine engines.
6. Low Thermal Expansion: Yttria stabilized zirconia has a relatively low coefficient of thermal expansion, making it suitable for applications where thermal stability and resistance to thermal shock are essential.
7. Long Lifespan: They have a long service life due to their resistance to wear, corrosion, and thermal degradation.

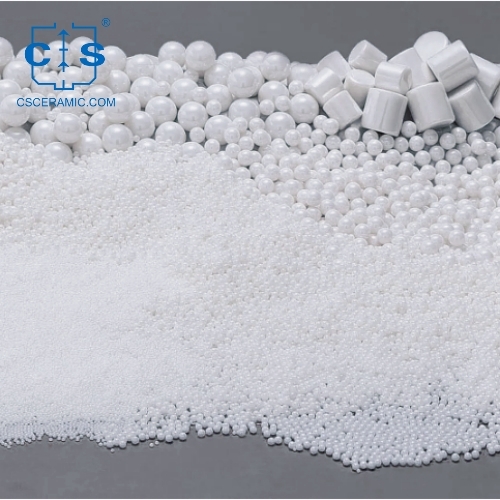

1. Yttria stabilized zirconia (YSZ) beads are a type of ceramic material composed primarily of zirconium dioxide (ZrO2) with a stabilizing addition of yttrium oxide (Y2O3).
2. The yttrium oxide stabilizes the zirconium dioxide crystal structure, preventing phase transitions that would otherwise occur at elevated temperatures, and enhancing its overall performance. This stability and resistance to extreme conditions make YSZ beads highly desirable for a wide range of applications.
3. The primary characteristic of YSZ beads is their exceptional stability and resistance to high temperatures, thermal shock, and chemical corrosion. They are often used as grinding media, insulating components, electrolytes in fuel cells and sensors, thermal barrier coatings.
4. Available in various shapes and sizes, including spheres, cylinders, and custom designed forms, depending on the specific application requirements.

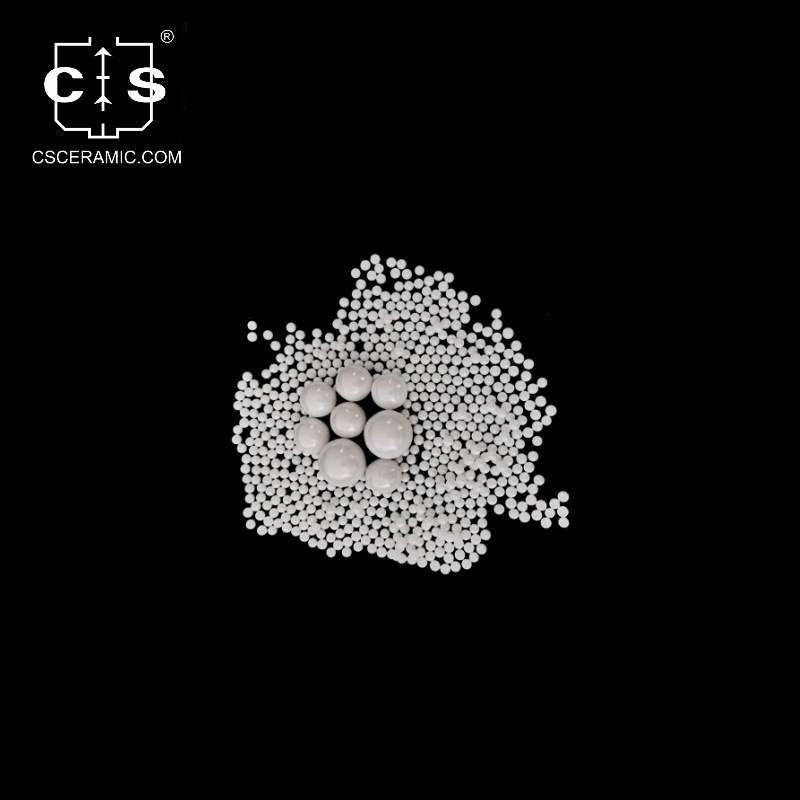

Yttrium stabilized zirconia beads | |||
Item No. | Diameter(mm) | Item No. | Diameter(mm) |
CS-NY0.5-001 | 0.05 | CS-NY25-017 | 2.5-2.8 |
CS-NY1-002 | 0.1 | CS-NY28-018 | 2.8-3.2 |
CS-NY2-003 | 0.2 | CS-NYB3-019 | 3 |
CS-NY3-004 | 0.3 | CS-NYB5-020 | 5 |
CS-NY4-005 | 0.4-0.6 | CS-NYB6-021 | 6.5 |
CS-NY6-006 | 0.6-0.8 | CS-NYB8-022 | 8.5 |
CS-NY8-007 | 0.8-1.0 | CS-NYB10-023 | 10 |
CS-NY9-008 | 0.9-1.1 | CS-NYB12-024 | 12 |
CS-NY10-009 | 1.0-1.2 | CS-NYB15-025 | 15 |
CS-NY11-010 | 1.1-1.3 | CS-NYB20-026 | 20 |
CS-NY12-011 | 1.2-1.4 | CS-NYB25-027 | 25 |
CS-NY14-012 | 1.4-1.6 | CS-NYB30-028 | 30 |
CS-NY16-013 | 1.6-1.8 | CS-NYB35-029 | 35 |
CS-NY18-014 | 1.8-2.0 | CS-NYB40-025 | 40 |
CS-NY20-015 | 2.0-2.2 | CS-NYB45-026 | 45 |
CS-NY22-016 | 2.2-2.5 | CS-NYB50-027 | 50 |

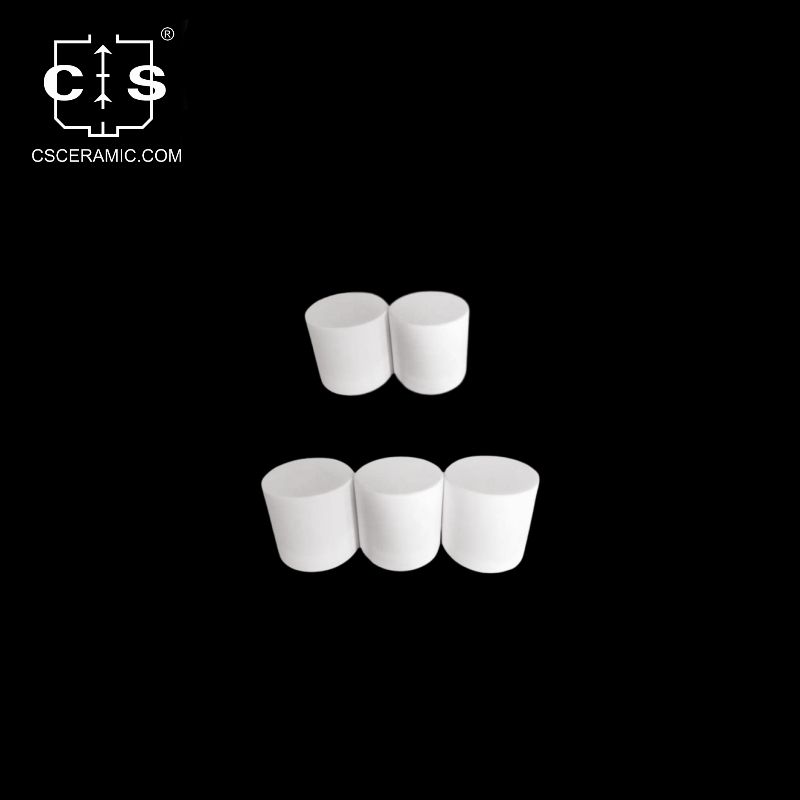

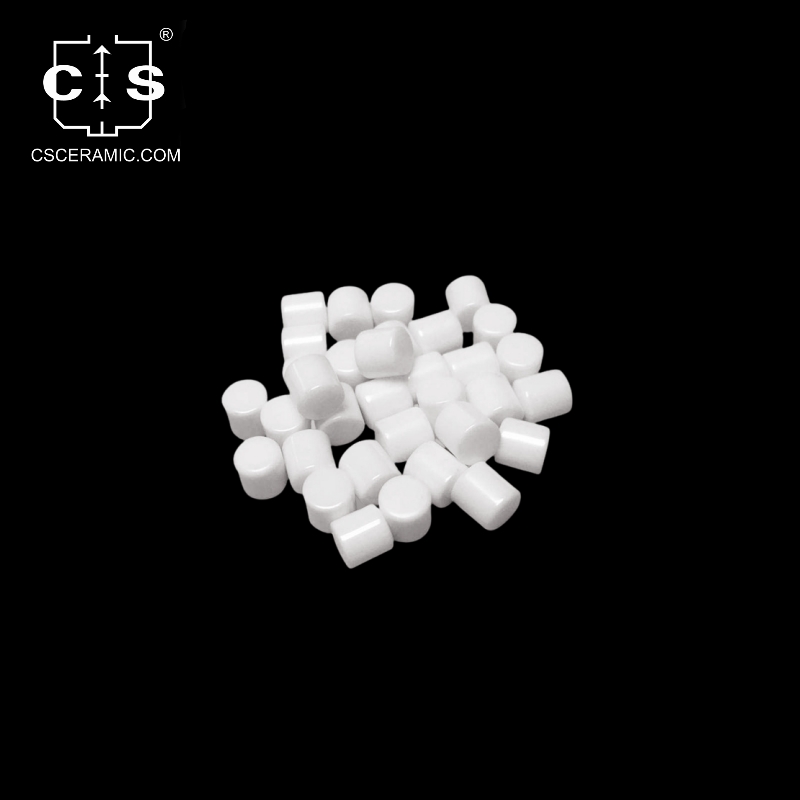

Cylindrical yttrium stabilized zirconia beads | |
Item No. | Diameter*Height (mm) |
CS-NYC5-029 | 5*5 |
CS-NYC7-030 | 7*7 |
CS-NYC10-031 | 10*10 |
CS-NYC12-032 | 12*12 |
CS-NYC15-033 | 15*15 |
CS-NYC20-034 | 20*20 |
CS-NYC25-035 | 25*25 |
CS-NYC30-036 | 30*30 |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry.
1. Ball Milling: Yttria stabilized zirconia grinding balls are commonly used as grinding media in ball mills and attritors.
2. Paints and Coatings: Yttria stabilized zirconia grinding media are employed in the production of high-quality paints, inks, and coatings.
3. Ceramic and Glass Industry: Yttria stabilized zirconia grinding media are used for milling and grinding of ceramic and glass materials, aiding in the production of ceramic powders, frits, and glass powders.
4. Minerals and Mining: They are employed in mineral processing operations to crush and grind ores, achieving the desired particle size for subsequent extraction processes.
5. Chemical Industry: Yttria stabilized zirconia grinding media are used in chemical processes, including grinding and dispersion of chemicals, catalysts, and pigments, as well as in the production of specialty chemicals.
6. Electronic Materials: Yttria stabilized zirconia grinding media are used in the production of electronic materials, such as semiconductor powders and phosphors, by achieving precise particle size control.
7. Battery Materials: Yttria stabilized zirconia grinding media are employed in the production of battery materials, such as cathode and anode materials, through processes like ball milling and mixing.
8. Catalyst Manufacturing: They aid in the preparation of catalysts by grinding and blending various catalytic materials, leading to improved catalytic activity and selectivity.
9. Pigment Production: Yttria stabilized zirconia grinding media are used in pigment manufacturing to achieve optimal dispersion and color consistency in pigment particles.
Specific Gravity | Moh's Hardness | Vickers Hardness | Fracture Toughness | Elastic Modulus | Crushing Strength | Loss per ton |
>6.0kg/dm3 | 9 | >1200kg/mm2 | >10MPa.m½ | >200Gpa½ | 2000N(2mm) | <0.01kg/T |
Q1. Can yttria stabilized zirconia beads grinding media be used in wet and dry milling processes?
Yes, yttria stabilized zirconia beads grinding media can be used in both wet and dry milling processes. They are effective in grinding and dispersing materials in aqueous and non-aqueous environments.
Q2. What particle sizes can yttria stabilized zirconia beads grinding media achieve in milling applications?
Yttria stabilized zirconia beads grinding media can achieve a wide range of particle sizes, from micrometers to nanometers, depending on the milling conditions, equipment used, and the nature of the material being processed.
Q3. Are yttria stabilized zirconia beads grinding media chemically inert?
Yes, they are chemically inert and do not react with most chemicals, acids, or bases.
Q4. Can yttria stabilized zirconia beads grinding media withstand high temperatures?
Yes, yttria stabilized zirconia beads grinding media have a high thermal stability and can withstand extremely high temperatures, which makes them suitable for applications in high-temperature environments, including those involving molten materials.
Q5. Are yttria stabilized zirconia beads grinding media available in different sizes and shapes?
Yes, yttria stabilized zirconia beads grinding media are available in various sizes and shapes, including spheres and cylinders. We can customize the shape and size according to your requirements.
Q6. Are yttria stabilized zirconia beads grinding media reusable?
Yttria stabilized zirconia beads grinding media can often be reused after cleaning.
1. Wear Protective Gear: Before handling the grinding balls, wear appropriate personal protective equipment such as gloves and safety goggles to prevent skin contact and eye irritation.
2. Remove Residue: If there are visible residues on the grinding balls, gently remove them using a soft brush or cloth. Avoid using abrasive materials that could scratch the surface.
3. Rinse with Solvent: Immerse the grinding balls in a suitable solvent or cleaning solution.Allow the grinding balls to soak for a few minutes to loosen any adhered particles.
4. Agitate Gently: Gently agitate the solution to help dislodge any particles or contaminants from the surface of the grinding balls.
5. Ultrasonic Cleaning: For thorough cleaning, you can use an ultrasonic cleaner. Place the grinding balls and solvent in the ultrasonic bath and run it for a set duration, following the manufacturer's instructions. Ultrasonic cleaning can help remove stubborn residues.
6. Rinse with Distilled Water: After cleaning in the solvent, rinse the grinding balls with distilled water to remove any residual solvent or cleaning solution.
7. Dry Thoroughly: Place the cleaned grinding balls on a clean surface or in a container lined with a lint-free cloth to air dry.
1. Visual Inspection: Start with a visual inspection to identify any visible defects, irregularities, or contamination on the surface of the beads. Look for cracks, chips, discolorations, and foreign particles that might affect their performance.
2. Size and Shape Uniformity: Measure the size and shape of a representative sample of beads using calipers or a microscope with image analysis software. Check for consistency in size and shape, as deviations can affect their performance in applications like grinding and milling.
3. Mechanical Strength Test: Perform mechanical strength tests on a sample of beads to determine their resistance to cracking and breaking under stress. This is particularly important for applications involving high mechanical loads.
4. Chemical Resistance Test: Test the beads against the chemicals they might come into contact with during their application. This could involve exposing them to specific chemicals or solutions and assessing any changes in appearance or properties.
