Agate Balls Grinding / Milling Balls

Advantages of agate grinding balls

1. High Hardness and Wear Resistance: Agate grinding balls are exceptionally hard, ranking high on the Mohs scale of mineral hardness.

2. Minimal Contamination: Agate is naturally low in impurities, making these grinding balls an excellent choice for applications where sample purity is crucial.

3. Chemical Inertness: Agate is chemically inert, which means it does not react with most substances, including acids, bases, and solvents.

4. Uniform Particle Size Reduction: The consistent shape and size of agate grinding balls contribute to uniform particle size reduction during grinding processes.

5. Versatility in Grinding Techniques: They are suitable for both wet and dry grinding techniques.

6. Wide Range of Applications: From pharmaceuticals and materials science to geology and nanotechnology, agate grinding balls find applications in diverse fields.

7. Reduced Heat Generation: Agate's excellent thermal properties help dissipate heat generated during grinding.

8. Eco-Friendly Choice: Agate is a naturally occurring mineral, and using agate grinding balls promotes sustainability compared to synthetic alternatives. Choosing agate as grinding media aligns with environmentally conscious practices.

Descriptions of agate grinding balls

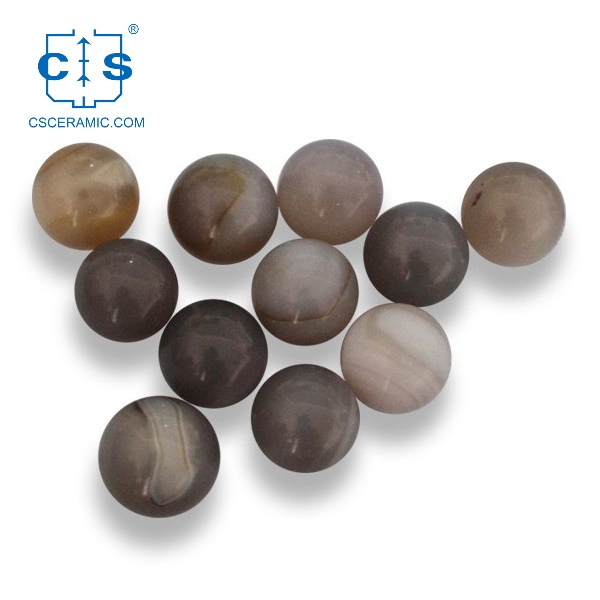

1. Agate grinding balls are spherical grinding media made from natural agate,a semi-precious gemstone known for its hardness and durability.

2. They are commonly used in grinding and milling applications across various industries and scientific fields.

3. Agate balls can be customized according to different applications and needs.

Applications of agate grinding balls

1. Materials Science: Agate grinding balls are used in materials science research to prepare samples for analysis.

2. Pharmaceuticals: In pharmaceutical manufacturing, agate grinding balls are employed to finely grind active pharmaceutical ingredients (APIs) and excipients.

3. Geology and Mineralogy: They are indispensable for grinding geological and mineralogical samples.

4. Nanotechnology: For nanomaterials production, agate grinding balls are used to achieve precise particle size reduction in the nanometer range.

5. Ceramics and Glass: They aid in processing ceramic and glass powders, ensuring even particle size distribution.

6. Paints and Pigments: They are used to disperse pigments and achieve uniform coloration in paints, inks, and coatings. Their chemical inertness preserves pigment properties and prevents unwanted reactions.

7. Environmental Analysis: They are employed in environmental laboratories to grind soil, sediment, and other samples for analysis.

8. Paint and Coating Analysis: They assist in grinding and dispersing pigments and fillers for paint and coating analysis, ensuring consistent color and texture.

Properties of agate grinding balls

Specific Gravity	Moh's Hardness	Elastic Modulus
＞2.60kg/dm3	7	＞70Gpa

FAQ

Q1. What are agate grinding balls?

Agate grinding balls are spherical grinding media made from natural agate, a semi-precious gemstone known for its hardness and durability.

Q2. How do agate grinding balls prevent sample contamination?

Agate is chemically inert and low in impurities. This means that when used as grinding media, agate balls do not react with most substances, preventing contamination of the sample being ground.

Q3. Are agate grinding balls reusable?

Agate grinding balls are very durable and can be reused multiple times. Compared to other grinding media, their high hardness ensures minimal wear, thereby extending their service life.

Q4. How do I choose the right size of agate grinding balls for my application?

The size of agate grinding balls depends on your specific grinding requirements and the equipment you are using. Smaller balls are suitable for finer grinding, while larger balls are effective for coarser grinding.

Q5. Are there any alternatives to agate grinding balls?

Yes, there are various alternative grinding media materials available, such as alumina, zirconia, stainless steel, and tungsten carbide. The choice of material depends on factors like the sample type, desired particle size, and compatibility with the process conditions.

How to clean agate grinding balls

1. Wear Protective Gear: Before handling the grinding balls, wear appropriate personal protective equipment such as gloves and safety goggles to prevent skin contact and eye irritation.

2. Remove Residue: If there are visible residues on the grinding balls, gently remove them using a soft brush or cloth. Avoid using abrasive materials that could scratch the surface.

3. Rinse with Solvent: For thorough cleaning, immerse the grinding balls in a suitable solvent or cleaning solution.Allow the grinding balls to soak for a few minutes to loosen any adhered particles.

4. Agitate Gently: Gently agitate the solution to help dislodge any particles or contaminants from the surface of the grinding balls.

5. Rinse with Distilled Water: After cleaning in the solvent, rinse the grinding balls with distilled water to remove any residual solvent or cleaning solution.

6. Dry Thoroughly: Place the cleaned grinding balls on a clean surface or in a container lined with a lint-free cloth to air dry.

1. Visual Inspection: Start by visually examining the grinding balls. Look for any visible signs of wear, chipping, cracking, or discoloration on the surface.Check for any irregularities or deformities in shape. Grinding balls should be uniformly spherical without significant deviations.

2. Dimensional Inspection:Measurement the dimensions of the grinding balls to check for accuracy.Ensure that the dimensions are within the specified tolerances.

3. Hardness Testing: Perform a hardness test on a representative sample of grinding balls using a hardness tester. Compare the hardness values to the expected range.
