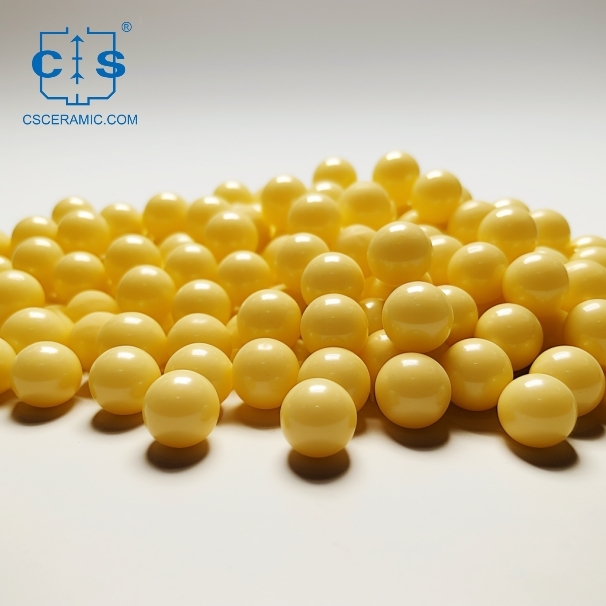

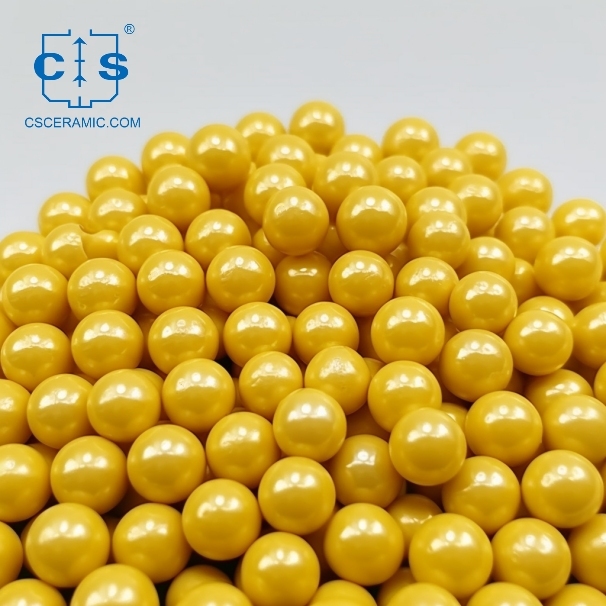

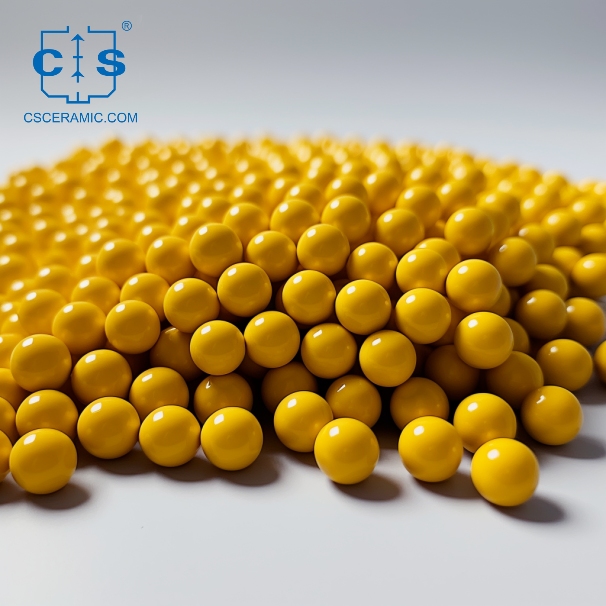

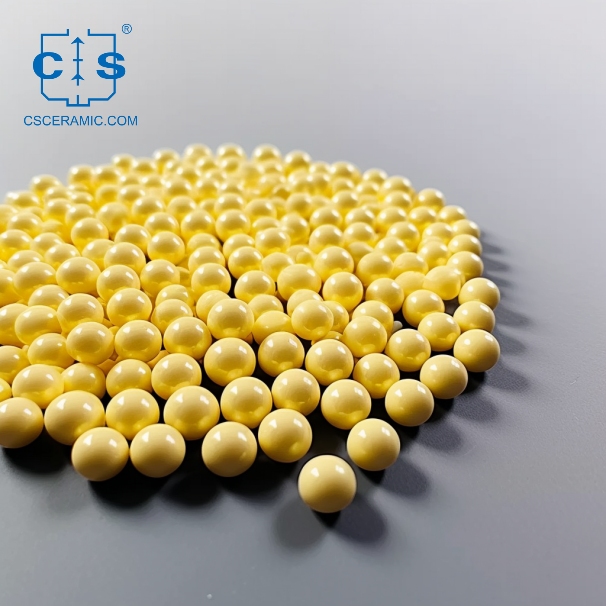

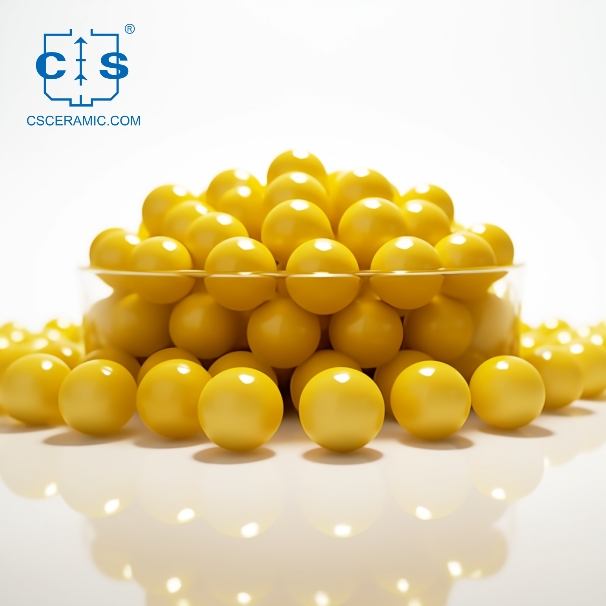

Read MoreCeria stabilized zirconia beads have high thermal stability, enhanced mechanical strength, chemical inertness, ion conductivity. Products can be customized according to the required size and different ceria content.
item no. :
CS-NC3-001Material : ZrO2, CeO2
Purity Available : 80% ZrO2, 20% CeO2
Shape : ball
1. High Thermal Stability: Ceria-stabilized zirconia beads exhibit excellent thermal stability, allowing them to withstand high temperatures without undergoing significant structural changes.
2. Enhanced Mechanical Strength: The addition of ceria to zirconia improves its mechanical strength and toughness.
3. Chemical Inertness: They have high chemical inertness, making them resistant to corrosion and chemical reactions with various substances.
4. High Ion Conductivity: In some compositions, ceria-stabilized zirconia exhibits high oxygen ion conductivity at elevated temperatures.
5. Catalytic Activity: The ceria component in ceria-stabilized zirconia beads can exhibit catalytic activity, especially for redox reactions.
6. Sintering Aid: They can serve as sintering aids for other ceramics due to their ability to enhance densification and reduce sintering temperatures, which can lead to energy savings and improved material processing.
1. Cerium stabilized zirconia (CSZ) beads are composite materials mainly composed of zirconia(ZrO2) , which are stabilized by the addition of ceria(CeO2).
2. They combined the properties of zirconia and cerium dioxide to create a material with enhanced properties, which has excellent value in various industrial applications.
3. The addition of ceria to zirconia introduces certain advantageous properties, mainly the ability to retain stability in conditions where pure zirconia might undergo structural changes.
4. CSZ beads can have different compositions of zirconia and ceria depending on the specific application requirements. The cerium oxide content is typically between 5% and 20% by weight. The resulting material exhibits a range of beneficial properties.
Ceria Stabilized Zirconia Beads | |
Item No. | Diameter(mm) |
CS-NC3-001 | 0.3-0.4 |
CS-NC4-002 | 0.4-0.6 |
CS-NC6-003 | 0.6-0.8 |
CS-NC8-004 | 0.8-1.0 |
CS-NC9-005 | 0.9-1.1 |
CS-NC10-006 | 1.0-1.2 |
CS-NC1-007 | 1.1-1.3 |
CS-NC12-008 | 1.2-1.4 |
CS-NC14-009 | 1.4-1.6 |
CS-NC16-010 | 1.6-1.8 |
CS-NC18-011 | 1.8-2.0 |
CS-NC20-012 | 2.0-2.2 |
CS-NC22-013 | 2.2-2.5 |
CS-NC25-014 | 2.5-2.8 |
CS-NC28-015 | 2.8-3.2 |
1. Grinding and Milling Media: Ceria-stabilized zirconia beads are used as grinding and milling media in various industries, including pharmaceuticals, paints, coatings, and ceramics.
2. Catalyst Support: They are utilized as catalyst supports in catalytic processes, where their high surface area and chemical stability help enhance catalyst activity and efficiency.
3. Thermal Barrier Coatings: Due to their high thermal stability and low thermal conductivity, they are used as a component of thermal barrier coatings (TBCs) in the aerospace and gas turbine industries.
4. Electrolytes for Oxygen Separation Membranes: In applications such as industrial oxygen production and air separation, they are used as solid electrolytes in oxygen separation membranes.
5. Electronics and Energy Storage: They find application as dielectric materials in electronics, including capacitors and ceramic insulators.
6. Ceramic Injection Molding: They can be used in ceramic injection molding processes to create complex-shaped ceramic components.
Specific Gravity | Moh's Hardness | Vickers Hardness | Fracture Toughness | Crushing Strength | Loss per ton |
>6.1kg/dm3 | 9 | >1100kg/mm2 | >15MPa.m½ | 1000N(2mm) |
<0.01kg/T |
Q1. How is the stability of ceria-stabilized zirconia(CSZ) beads achieved?
The addition of ceria stabilizes the crystal lattice of zirconia, preventing or delaying phase transformations that would occur in pure zirconia at high temperatures.
Q2. Can CSZ beads conduct ions?
Yes, depending on the composition, CSZ beads can exhibit ion conductivity, particularly oxygen ion conductivity at elevated temperatures.
Q3. Can CSZ beads be customized for specific applications?
Yes, the ratio of ceria to zirconia in CSZ beads can be adjusted to tailor their properties to specific application requirements.
Q4. Are CSZ beads environmentally friendly?
The environmental impact of CSZ beads depends on factors such as their manufacturing process, application, and disposal. In general, they can contribute to environmental friendliness in applications such as catalysis and clean energy technologies.
1. Wear Protective Gear: Before handling the grinding balls, wear appropriate personal protective equipment such as gloves and safety goggles to prevent skin contact and eye irritation.
2. Remove Residue: If there are visible residues on the grinding balls, gently remove them using a soft brush or cloth. Avoid using abrasive materials that could scratch the surface.
3. Rinse with Solvent: For thorough cleaning, immerse the grinding balls in a suitable solvent or cleaning solution.Allow the grinding balls to soak for a few minutes to loosen any adhered particles.
4. Agitate Gently: Gently agitate the solution to help dislodge any particles or contaminants from the surface of the grinding balls.
5. Rinse with Distilled Water: After cleaning in the solvent, rinse the grinding balls with distilled water to remove any residual solvent or cleaning solution.
6. Dry Thoroughly: Place the cleaned grinding balls on a clean surface or in a container lined with a lint-free cloth to air dry.
1. Visual Inspection: Start with a visual inspection to identify any visible defects, irregularities, or contamination on the surface of the beads. Look for cracks, chips, discolorations, and foreign particles that might affect their performance.
2. Size and Shape Uniformity: Measure the size and shape of a representative sample of beads using calipers or a microscope with image analysis software. Check for consistency in size and shape, as deviations can affect their performance in applications like grinding and milling.
3. Mechanical Strength Test: Perform mechanical strength tests on a sample of beads to determine their resistance to cracking and breaking under stress. This is particularly important for applications involving high mechanical loads.
4. Chemical Resistance Test: Test the beads against the chemicals they might come into contact with during their application. This could involve exposing them to specific chemicals or solutions and assessing any changes in appearance or properties.
