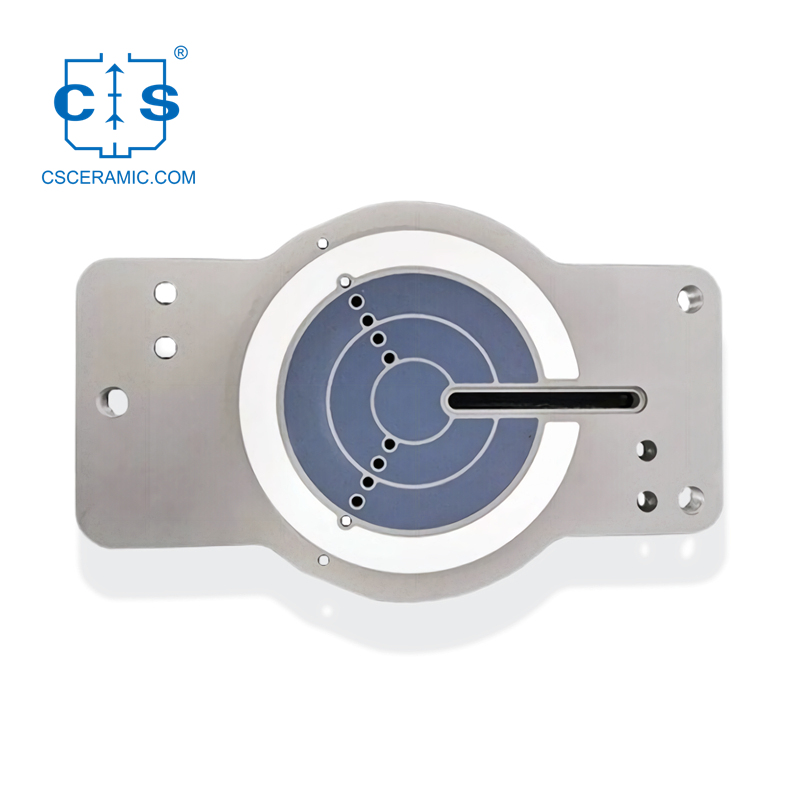

Microporous Ceramic Vacuum Chuck

The electrostatic vacuum chuck leverages the Coulombic force generated between the workpiece (the object under processing) and the electrode with applied voltage to securely adsorb the workpiece.

item no. :
CS-YHL-XP001
Material : Alumina ceramic

contact now catalogue

description

Properties of Alumina Vacuum Chuck

1. Compatible for use in both atmospheric and vacuum environments.

2. Capable of adsorbing conductors, semiconductors, insulators, and porous materials.

3. Simplified clamping and handling mechanism with low electrostatic adsorption energy consumption.

4. Even distribution of adsorption force, eliminating localized stress during adsorption.

5. Gentle support for large-area thin workpieces, preventing scratches and wrinkles during adsorption.

6. Quick activation and deactivation, with no residual potential on the backside of the object, preventing attraction of surrounding dust.

Applications of Alumina Microporous Vacuum Chuck

Ideal for vacuum lamination in panel manufacturing, semiconductor chip packaging, microelectronics integrated circuits, precision optical component manufacturing, and solar photovoltaic production.

Size Chart of Alumina Microporous Vacuum Chuck

Alumina Microporous Vacuum Chuck Square
Item NO.	Length (mm)	Width (mm)	Thickness (mm)	Material
CS-YHL-XP001	305	305	14	316 stainless steel + microporous ceramic (brown)
CS-YHL-XP002	305	305	14	316 stainless steel + microporous ceramic (brown)
CS-YHL-XP003	420	275	20	Aluminum alloy + microporous ceramic
CS-YHL-XP004	450	200	20	SKD61 + porous ceramic
CS-YHL-XP005	520	520	20	Aluminum alloy + microporous ceramic

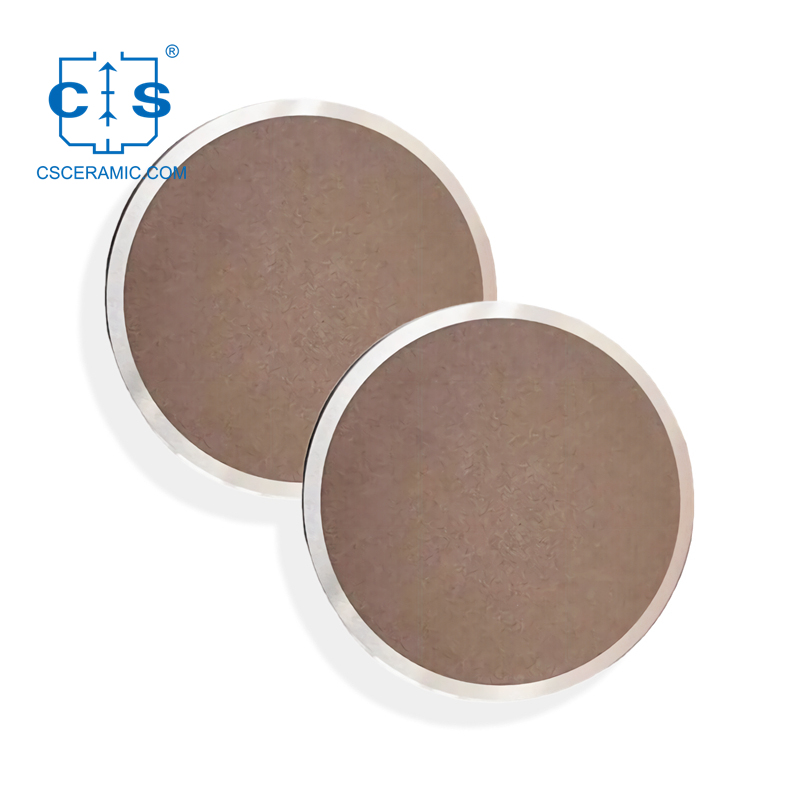

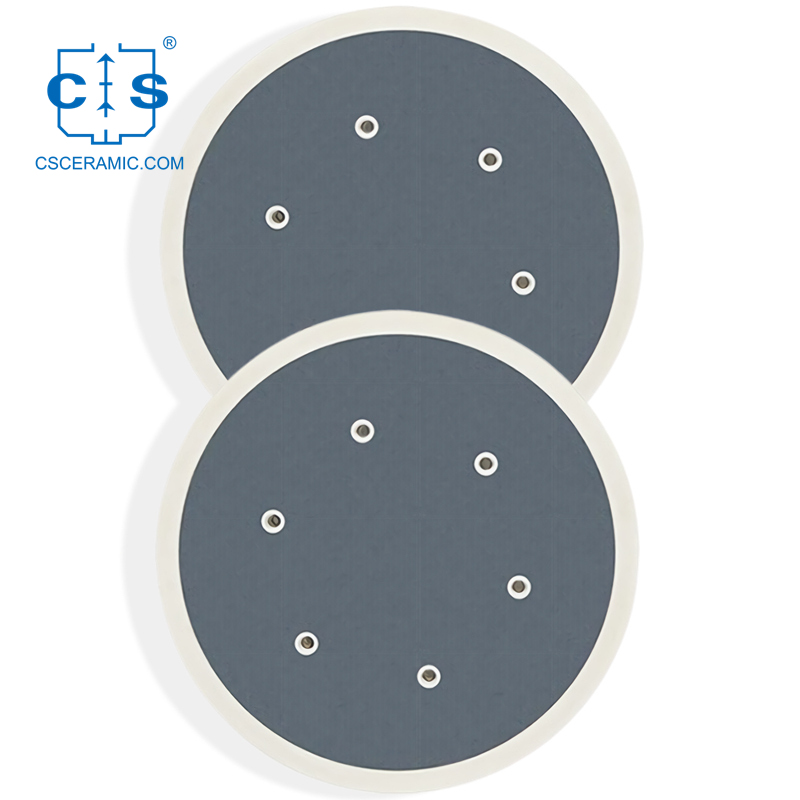

Alumina Microporous Vacuum Chuck Round
Item NO.	Diameter (mm)	Thickness (mm)	Material
CS-YHL-XP006	174	10	316 stainless steel + microporous ceramic
CS-YHL-XP007	220	35	Only alumina ceramic
CS-YHL-XP008	230	16	316 stainless steel + microporous ceramic
CS-YHL-XP009	239	12	Aluminum alloy + microporous ceramic
CS-YHL-XP010	240	12	316 stainless steel + microporous ceramic
CS-YHL-XP011	286	20	Only alumina ceramic
CS-YHL-XP012	320	16	316 stainless steel + microporous ceramic
CS-YHL-XP013	325	12	Aluminum alloy + microporous ceramic

We are committed to delivering optimal alumina vacuum chuck tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Specification Tolerances:

1. Size Range: 05mm-0800mm
2. Micropore Size: 20-60um
3. Porosity: 30-50%
4. Vacuum Chuck Planar Accuracy: 6-8 inches <3um; 12 inches <5um

Customization Requirements:

1. Provide dimensions, thickness, and shape for 2, 3, 4, 5, 6, 8, 12-inch, and non-standard customizations.
2. Choose from aluminum alloy, stainless steel, ceramic, plastic, and other materials for the base and frame.
