laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-YHL-GL001Material : Alumina ceramic

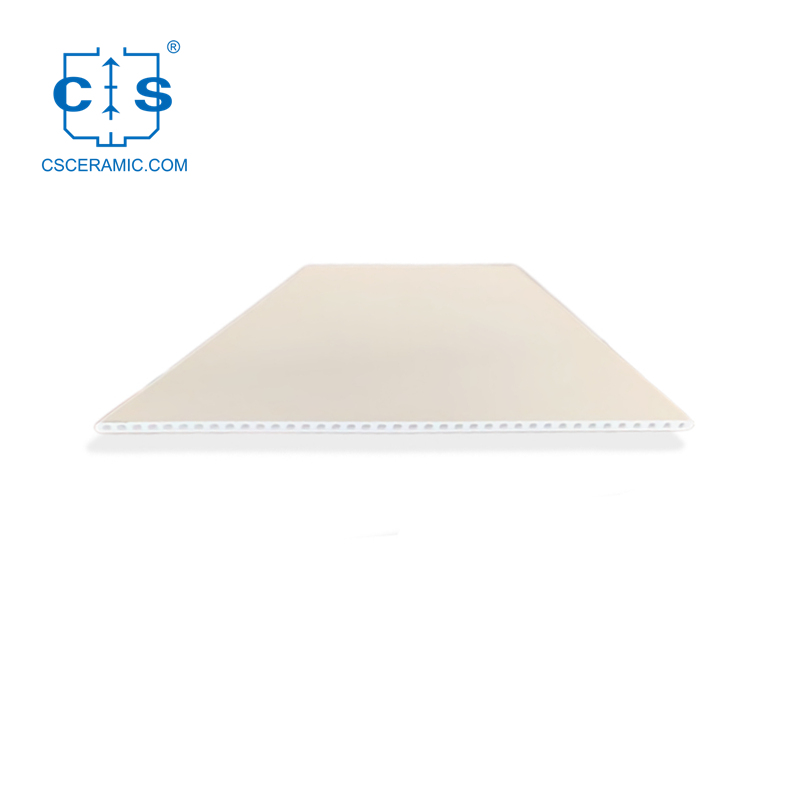

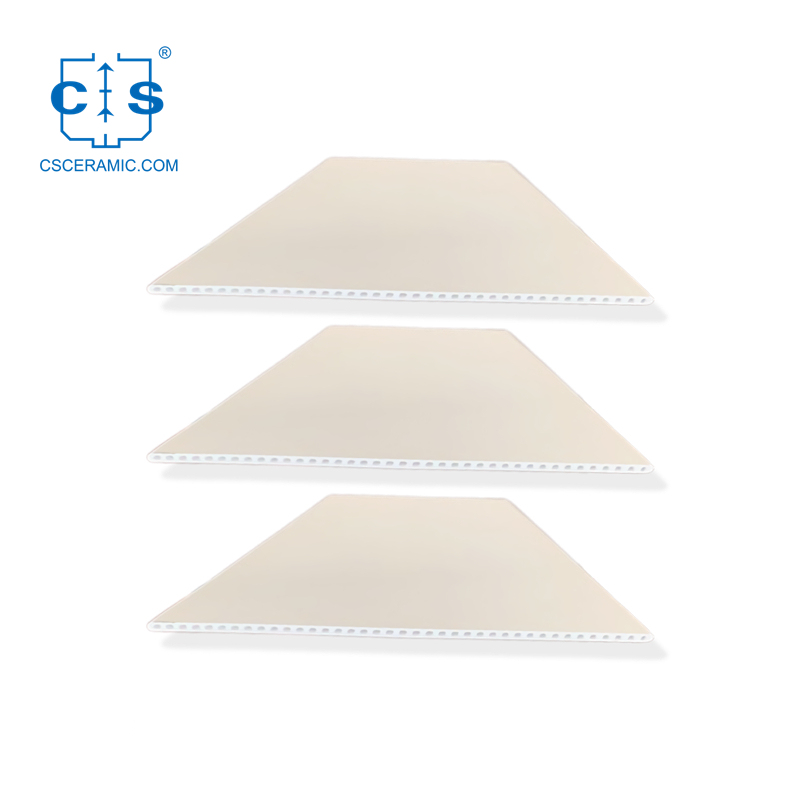

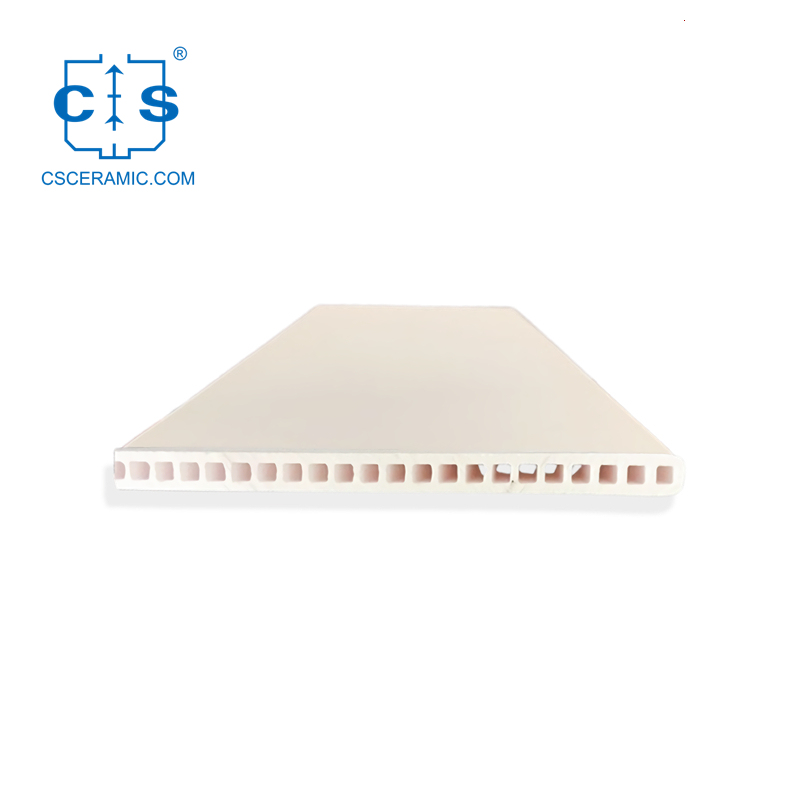

2. The alumina filtration module possesses excellent chemical stability and corrosion resistance, enabling it to function normally under high-temperature conditions. It is suitable for filtering various liquids without causing any contamination.
Applications of Alumina Filtration Module
The alumina filtration module finds applications in water treatment, chemical industry, food and beverage production, biopharmaceuticals, and other fields.
1. Food and Beverage Industry
The alumina filtration module can be used for milk filtration, juice concentration, natural extraction, and production of alcoholic/tea beverages.
2. Chemical Industry
Primarily used for solid-liquid separation, gas-solid separation, as well as separation and purification of organic substances such as benzene, phenol, alcohol, and various pigments.
3. Environmental Protection
Used for purifying oily wastewater, textile wastewater, urban domestic sewage, papermaking wastewater, and purifying high-temperature gases.
4. Biopharmaceuticals
Filters particles, bacteria, and macromolecular impurities from drugs, decolors drugs, or refines and concentrates medicinal liquids to extract active ingredients and effective monomers.
Size Chart for Alumina Filtration Module
| Alumina Filtration Module | |||||
| Item NO. |
Specificatio (mm) |
Quantity (pieces) |
Membrane Area (m²) |
Water Production Capacity (m³/d) |
Weight (kg) |
| CS-YHL-GL001 | 300*320*1200 | 10 | 2.5 | 2-5 | 15 |
| CS-YHL-GL002 | 720*570*450 | 34 | 6 | 7-14 | 32 |
| CS-YHL-GL003 | 720*570*600 | 68 | 12 | 8-10 | 64 |
| CS-YHL-GL004 | 920*320*1800 | 50 | 25 | 15-35 | 200 |
| CS-YHL-GL005 | 1720*320*1800 | 100 | 50 | 3-70 | 310 |
| CS-YHL-GL006 | 1720*720*1800 | 200 | 100 | 60-140 | 630 |
| CS-YHL-GL007 | 1720*720*3250 | 400 | 200 | 120-280 | 1185 |
Dedicated to delivering optimal alumina filtration modules customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.
Please provide drawings and parametric specifications for customization.
High Mechanical Strength Alumina Steatite Ceramic Parts
Alumina steatite ceramic parts are an ideal choice for components that require minimal maintenance and have a long life,they have excellent electrical insulation and thermal shock resistance.Available in various sizes.
Alumina Ceramic Thermocouple Insulator Tubes
Alumina ceramic thermocouple insulated tubes provide excellent insulation performance and durable durability, used to isolate thermocouples from high temperatures and corrosive environments.Available in various sizes.
Alumina Ceramic Laser Reflector
CS CERAMIC is committed to delivering high-quality alumina ceramic laser reflector tailored to your exact specifications.
Alumina Bushing Ceramic Insulator
Alumina Bushing Ceramic Insulator for cable terminations. Multiple fluted and capped bushings, re-entrant bushings, tubular bushings, barrel and cylindrical bushings, etc. can be customized.
Alumina Ceramic Ball Bearing Ceramic Bushings
Alumina ceramic ball bearing is a type of bearing that uses ceramic balls in order to reduce friction and improve bearing performance.These bushings are designed to reduce maintenance costs and extend the life of equipment.
Industrial Alumina Ceramic Piston Parts
Alumina ceramic piston adopts the ultra-hard wear resistance of modern engineering ceramic materials, can be assembled by ceramic metallization bonding,welding and socket technology.Available in various sizes.
High Alumina Ceramic Washer Ceramic Seal
Alumina ceramic washer ceramic seal is used as seals for a variety of applications.These rings are designed to provide a tight,reliable seal that won't leak or break down over time.Available in various sizes.
95% to 99% Alumina Ceramic Washer Ceramic Seal Ring
Alumina washer ceramic seal ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
