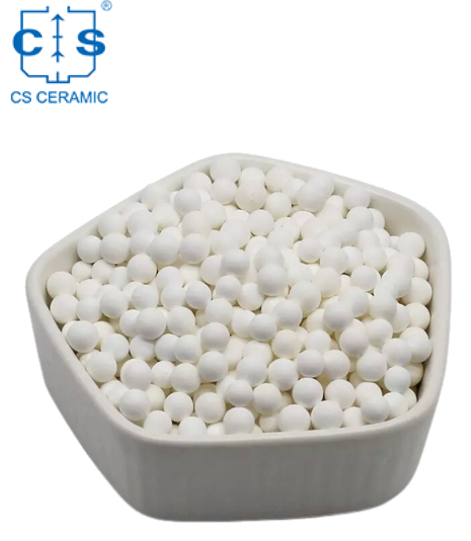

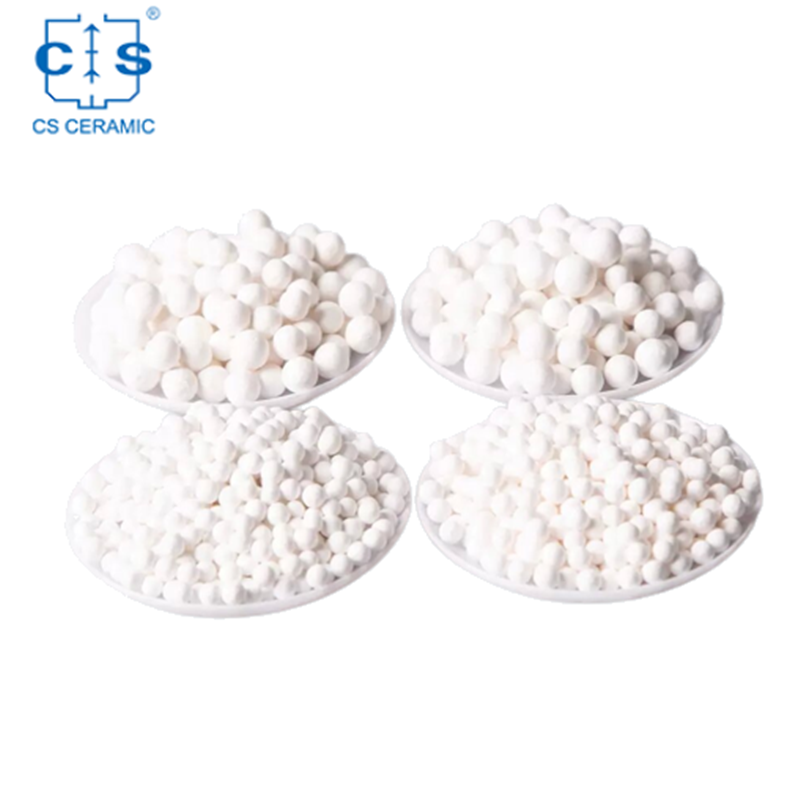

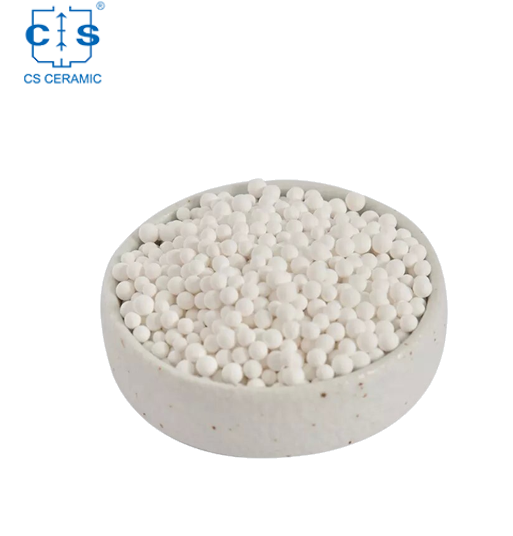

item no. :
CS-AB-020Color :
whiteMaterial : Alumina ceramic
Shape : Ball
Size : 1.0mm-14mm
1. Catalyst Carrier Activated Alumina Balls have high surface area and excellent pore structure that provides high adsorption capacity.
2. Chemically inert, non-toxic, and non-corrosive.
3. High mechanical strength and low attrition rate, making it suitable for long service life.
4. They can be used as a catalyst as well as a adsorbent.
5. Excellent thermal stability,cost-effective.
1. Catalyst Carrier Activated Alumina Balls are spherical pellets used as a support material for catalysts in a wide variety of chemical processes.
2. Their uniform size and shape make them easy to handle, and their uniformity ensures consistent performance.
3. The porous nature of the balls allows for maximum contact between the catalyst and the reactants, leading to optimal efficiency.
4. They are an ideal choice for high temperature applications due to their superior thermal shock resistance.
Item No. | Diameter | Tolerance | Item No. | Diameter | Tolerance |
CS-AB-020 | ø 1.0mm | ± 0.1 | CS-AB-026 | ø 7.0mm | ± 0.2 |
CS-AB-021 | ø 2.0mm | ± 0.1 | CS-AB-027 | ø 8.0mm | ± 0.2 |
CS-AB-022 | ø 3.0mm | ± 0.1 | CS-AB-028 | ø 9.0mm | ± 0.2 |
CS-AB-023 | ø 4.0mm | ± 0.1 | CS-AB-029 | ø 10.0mm | ± 0.2 |
CS-AB-024 | ø 5.0mm | ± 0.1 | CS-AB-030 | ø 11.0mm | ± 0.2 |
CS-AB-025 | ø 6.0mm | ± 0.1 | CS-AB-031 | ø 12.0mm | ± 0.2 |
Application
Adsorbent
Fluoride Removal
H2O2 Production
Catalyst Carrier
Air Dryer
Appearance
White, Sphere, No Odor, Insoluble In Water, Innocuous
Crystal Type
x-p
x-p
y
y
x-p
Composition (%)
Al2O3
≥93
≥93
≥93
≥93
≥93
Na2O
≤0.3
≤0.3
≤0.3
≤0.3
≤0.3
LOI (%)
4~7
4~7
≤8
≤5
6~8
Bulk Density (g/ml)
0.68~0.75
0.70~0.75
0.65~0.80
0.70~0.80
0.72~0.80
Surface Area (m2/g)
≥300
≥300
280~300
≥300
≥300
Pore Volume (ml/g)
0.35~0.45
0.30~0.42
0.45~0.50
0.4
0.40~0.50
Attrition Loss (%)
≤0.1
≤0.1
≤0.1
≤0.4
≤0.1
Crushing
2~3m
≥60
≥60
/
/
≥60
Strength
3~5m
≥150
/
≥150
≥150
≥150
(N/pc)
4~6m
≥250
/
≥250
≥250
≥250
8~10
≥350
/
/
/
≥350
1. The alumina balls can be used to increase the surface area of a reaction mixture, thus allowing for greater heat transfer and a more efficient process.
2. They can be used in air and water filtration systems. The alumina balls have a high affinity for pollutants and can be used to efficiently remove pollutants from air and water.
3. Catalyst carrier activated alumina balls can be used in the purification of food and beverages.
4. They can be used in the removal of heavy metals from wastewater. The alumina balls have a high affinity for heavy metals and can be used to effectively remove heavy metals from wastewater, thus preventing them from entering the environment.
Q1. What information should we supply to get a quote?
Please offer the specification of alumina ball, such as dimension, quantity, application etc.
Q2: What size alumina balls should I use?
The size of alumina balls depends on the application. Generally, the size should be matched to the size of the mill and the material being ground.
Q3: How long does alumina balls last?
A: The lifespan of alumina balls depends on the type of material it is used to grind and the frequency of use. Generally, it has a longer lifespan than other types of grinding media.
Q4: Are there any special considerations when using alumina balls?
Yes, it is important to take note of the operating temperature range of the alumina balls. When exposed to temperatures above 1600°C, the alumina balls may become porous and lose their non-reactive properties. It is also important to ensure that the alumina balls are not exposed to any strong acid or alkaline solutions.
1. First, add detergent to the alumina ball, then add some water and stir with a stirring rod to evenly distribute the detergent on the alumina ball.
2. Brush alumina balls with a soft bristle brush.
3. Rinse the alumina ball repeatedly with clean water.
4. Place the alumina ball in a cool and ventilated place to dry.
1. Visual Inspection: Inspect the alumina ball for any defects in the surface, such as chips, cracks, or other damage.
2. Size and Weight Test: Measure the size and weight of the ball to make sure that it is within the specified range.
3. Hardness Test: Use a hardness tester to measure the hardness of the alumina ball.
4. Abrasion Test: Use an abrasion test to measure the amount of wear the alumina ball can withstand.
5. Chemical Analysis: Analyze the chemical composition of the alumina ball to make sure it is within the specified range.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
Alumina ceramic pots mill grinding jars have extremely high abrasion resistance, long service life, negligible contamination factor, available in a variety of sizes, shapes and colors.
Alumina ceramic milling jar grinding jars with cover are available in a variety of sizes, shapes and colors to suit any application. With its air-tight seal, it is ideal for grinding, mixing materials in a hygienic, dust-free environment.
Alumina grinding balls are high-density and ultra-high fired ceramic balls used in high-intensity stirred mills for fine and ultra-fine grinding. Available in various sizes.

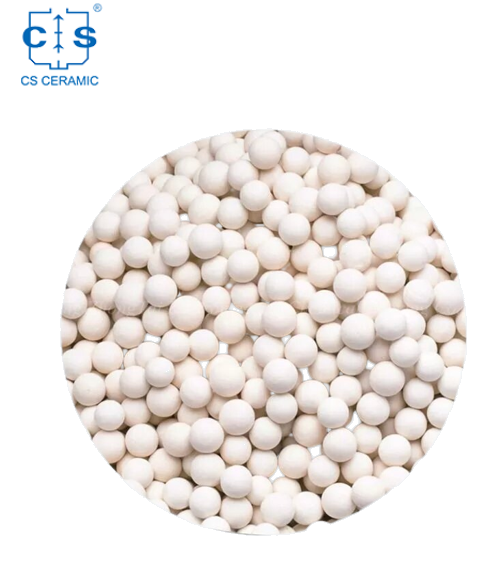

Inert Alumina Ceramic Ball as a catalyst in the reactor to cover support material and tower packing.Available in various sizes.
