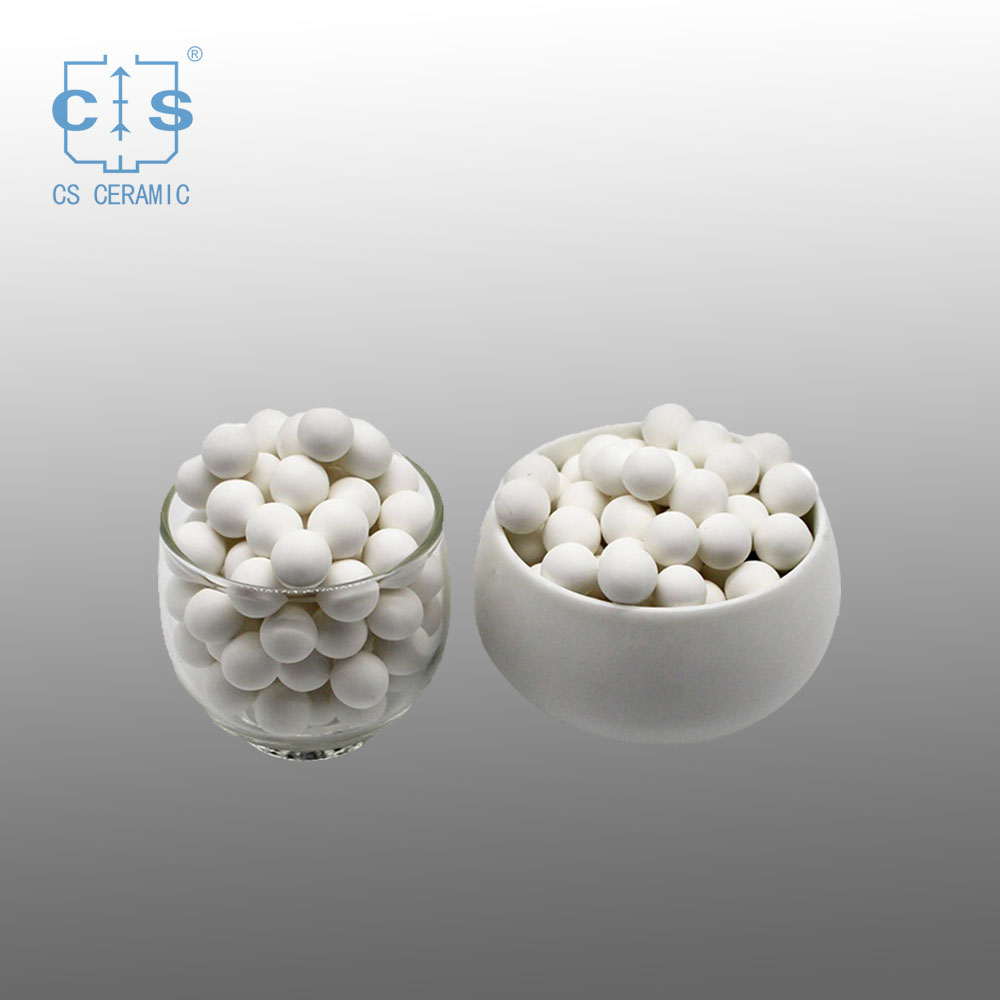

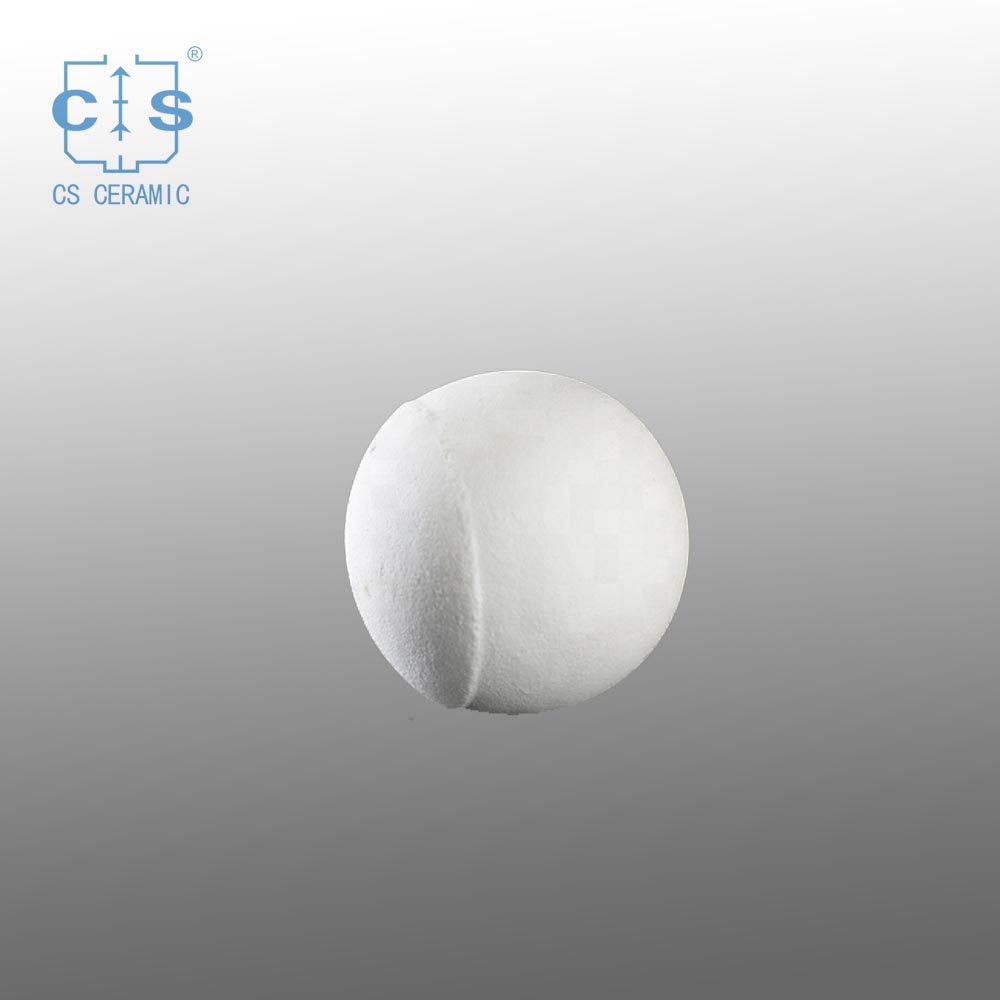

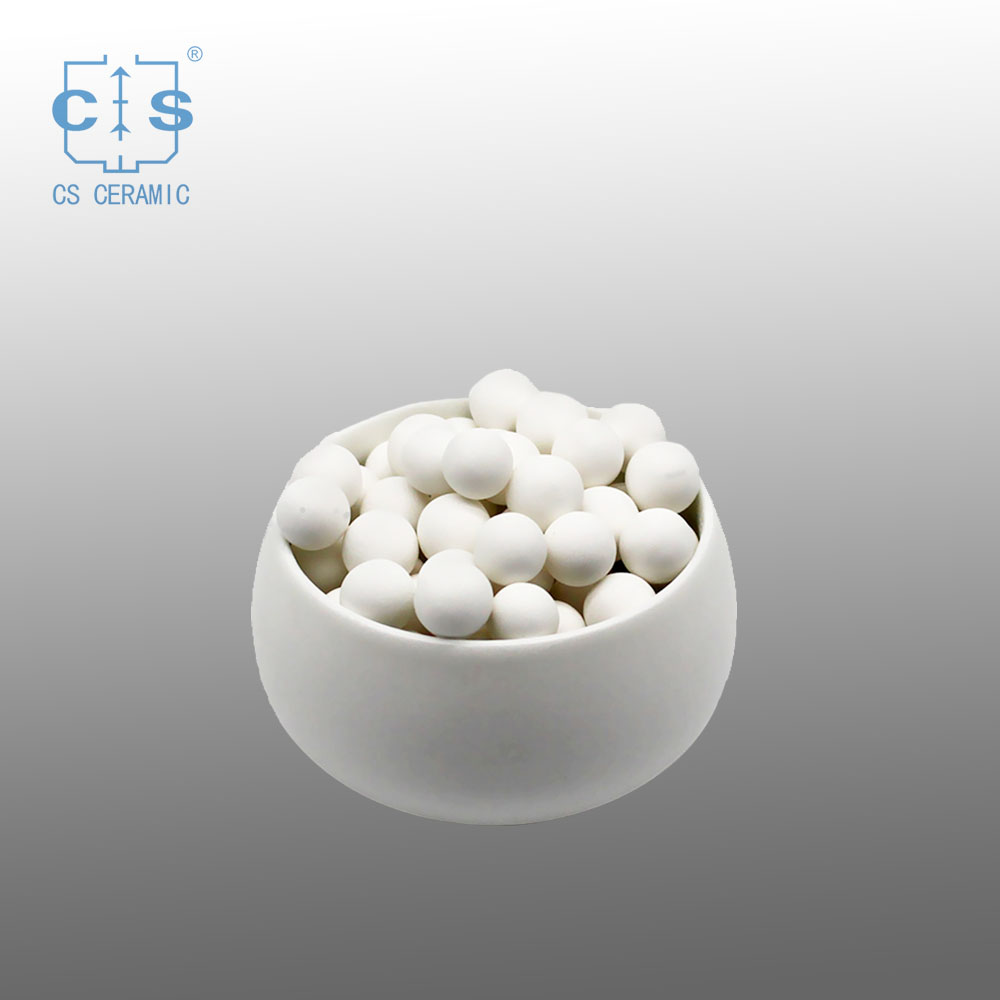

Alumina grinding balls are high-density and ultra-high fired ceramic balls used in high-intensity stirred mills for fine and ultra-fine grinding. Available in various sizes.
item no. :
CS-A-22Color :
whiteMaterial : Alumina ceramic
Shape : Ball
Size : 0.5mm-90mm
1. Alumina grinding balls are highly efficient grinding media for high-speed grinding and milling processes.
2. Extremely wear-resistant, offering excellent cost effectiveness and long service life.
3. They are non-porous and non-absorbent, meaning that they do not absorb impurities or moisture, resulting in a cleaner, more hygienic grinding process.
4. They are non-magnetic, meaning they do not react with other materials or media, allowing better control of the grinding process.
5. Corrosion resistant, suitable for various environments.
1. Made from alumina, they are extremely hard and durable and can be used in various milling processes, such as fine grinding and dispersing.
2. Alumina grinding ball is one ideal ball mill grinding media it can keep the purity and improve the stability of the grinded materials especially the ceramic glaze.
3. They are used to grind materials such as ceramics, minerals, and other materials.
4. Alumina grinding balls are available in a variety of sizes and shapes, and can be customized to meet the specific needs of the custome
Moulding
Rolling
Isostatic
pressing
Grinding Ceramic Balls /wear-resistant alumina ball
Item No.
Diameter
Tolerance
Item No.
Diameter
Tolerance
CS-YM-01
0.5mm
± 0.1
CS-YM-13
25mm
±1.5
CS-YM-02
1.0mm
± 0.2
CS-YM-14
30mm
±2.0
CS-YM-03
2.0mm
± 0.2
CS-YM-15
35mm
±2.0
CS-YM-04
3.0mm
± 1.0
CS-YM-16
40mm
±2.0
CS-YM-05
4.0mm
± 1.0
CS-YM-17
45mm
±2.0
CS-YM-06
5.0mm
± 1.0
CS-YM-18
50mm
±2.0
CS-YM-07
6.0mm
± 1.0
CS-YM-19
60mm
±2.0
CS-YM-08
8.0mm
± 1.0
CS-YM-20
70mm
±3.0
CS-YM-09
10mm
± 1.0
CS-YM-21
80mm
±3.0
CS-YM-10
13mm
±1.5
CS-YM-22
90mm
±3.0
CS-YM-11
15mm
±1.5
CS-YM-12
20mm
±1.5
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
1. Alumina grinding balls are used in wet grinding and dry grinding processes for a variety of applications including grinding of clays, glazes, glaze frits, and colouring agents.
2. Production of ceramic tiles and other ceramic products.
3. Production of paper, paint, pharmaceuticals, and rubber products.
4. Production of abrasives, ceramic refractories, and in the chemical and petrochemical industries.
5. Milling of agricultural products, such as grains, flours, and spices.
6. They are also used in the production of lightweight construction materials, such as fiberglass and concrete.
| Product | Al2O3% | Bulk density g/cm2 | Water absorption% | Mohs Hardness scale | Abrasion loss% |
| High Alumina Grinding Balls | 92 | 3.65 | 0.01 | 9 | 0.011 |
| 95 | 3.68 | 0.005 | 9 | 0.0084 | |
| Appearance Demand | |||||
| Crack | Not Permission | Not Permission | Not Permission | ||
| Impurity | Not Permission | Not Permission | Not Permission | ||
| Foam hole | Above 1mm not permission, size in 0.5mm permit 3 balls | ||||
| Flaw | Max. size in 0.3mm permit 3 balls | ||||
Q1. What information should we supply to get a quote?
Please offer the specification of alumina grinding ball, such as dimension, quantity, application etc.
Q2: What size alumina grinding ball should I use?
The size of alumina grinding ball depends on the application. Generally, the size should be matched to the size of the mill and the material being ground.
Q3: What types of materials can alumina grinding ball be used to process?
A: Alumina grinding ball is suitable for milling a wide range of materials, including ceramic, glass, and metal powders. It can also be used in the grinding of food products, pigments, and other materials.
Q4: How long does alumina grinding ball last?
A: The lifespan of alumina grinding ball depends on the type of material it is used to grind and the frequency of use. Generally, it has a longer lifespan than other types of grinding media.
1. First, add detergent to the alumina grinding ball, then add some water and stir with a stirring rod to evenly distribute the detergent on the alumina grinding ball.
2. Brush alumina grinding balls with a soft bristle brush.
3. Rinse the alumina grinding ball repeatedly with clean water.
4. Place the alumina grinding ball in a cool and ventilated place to dry.
1. Visual Inspection: Inspect the alumina grinding ball for any defects in the surface, such as chips, cracks, or other damage.
2. Size and Weight Test: Measure the size and weight of the ball to make sure that it is within the specified range.
3. Hardness Test: Use a hardness tester to measure the hardness of the alumina grinding ball.
4. Abrasion Test: Use an abrasion test to measure the amount of wear the alumina grinding ball can withstand.
5. Chemical Analysis: Analyze the chemical composition of the alumina grinding ball to make sure it is within the specified range.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
Alumina Pots Ceramic Mill Grinding Jars
Alumina ceramic pots mill grinding jars have extremely high abrasion resistance, long service life, negligible contamination factor, available in a variety of sizes, shapes and colors.
Alumina Ceramic Milling Jar Grinding Jars with Cover
Alumina ceramic milling jar grinding jars with cover are available in a variety of sizes, shapes and colors to suit any application. With its air-tight seal, it is ideal for grinding, mixing materials in a hygienic, dust-free environment.
99% Inert Alumina Ceramic Balls - Catalyst Support Media
Inert Alumina Ceramic Ball as a catalyst in the reactor to cover support material and tower packing.Available in various sizes.
Alumina Ceramic Milling Jar / Ball Mill Jar / Mill Pot
Alumina ceramic milling jar has a wide mouth and a flat bottom, allowing for easy stirring and efficient grinding,available in a variety of sizes.
Desiccant Catalyst Carrier Activated Alumina Ceramic Balls 93%
Desiccant Catalyst Carrier Activated Alumina Balls can be used as a catalyst as well as a adsorbent.Available in various sizes.
95% Alumina Ceramic Mill Jars Ball Milling Jar
Alumina ceramic mill jars with monolithic construction,big round arc angle.The mouth of pot can be sealed and opened easily, hard and durable. Bad phenomena such as gap,leak,dead space ect can not occur in use.
0.5L 1L Alumina Ceramic Mill Jars for Roll Ball Mill
Alumina ceramic mill jars are cylindrical,heavy-duty containers designed to hold and process materials such as chemicals, minerals, and pharmaceuticals, available in a variety of sizes.
99% Alumina Ceramic Ball Milling Jar/ Corundum Mill Jars
Alumina ceramic milling jar have monolithic construction,big round arc angle. The mouth of pot can be sealed and opened easily, hard and durable.Bad phenomena such as gap,leak,dead space ect can not occur in use.
