Alumina Ceramic Mill Jar for Roll Ball Mill
95% Alumina Ceramic Mill Jars Ball Milling Jar 95% Alumina Ceramic Mill Jars Ball Milling Jar 95% Alumina Ceramic Mill Jars Ball Milling Jar 95% Alumina Ceramic Mill Jars Ball Milling Jar

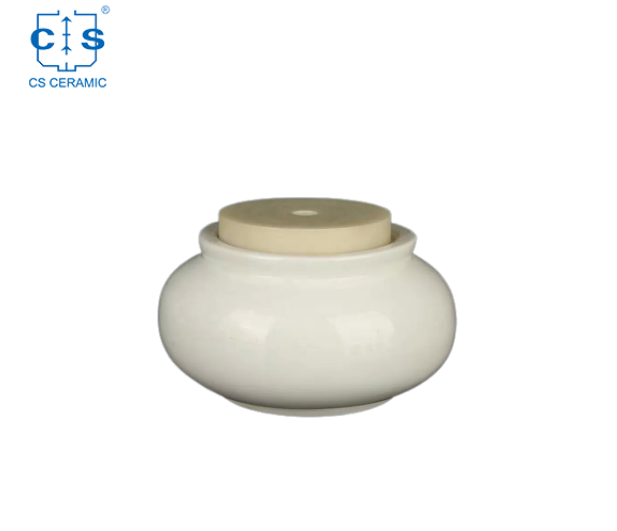

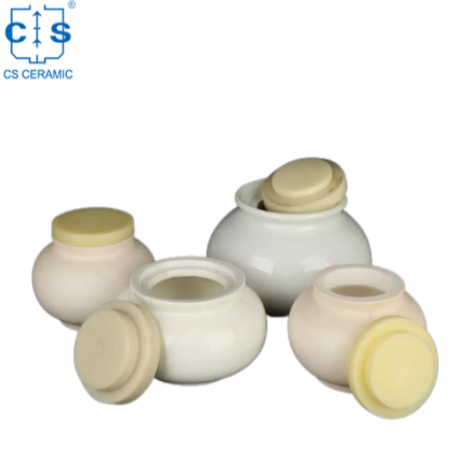

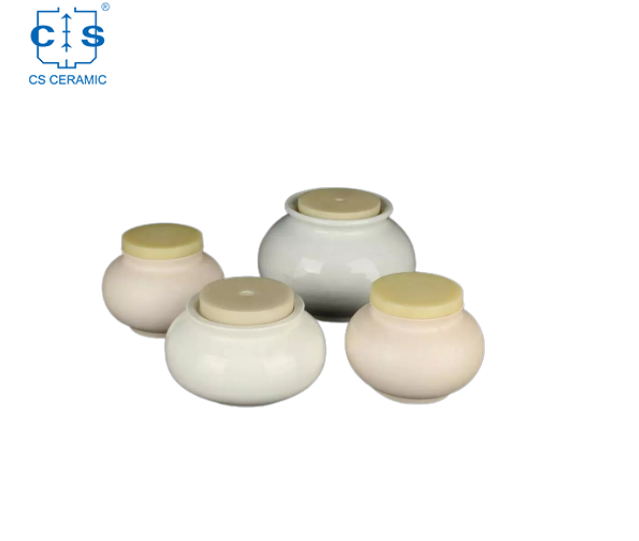

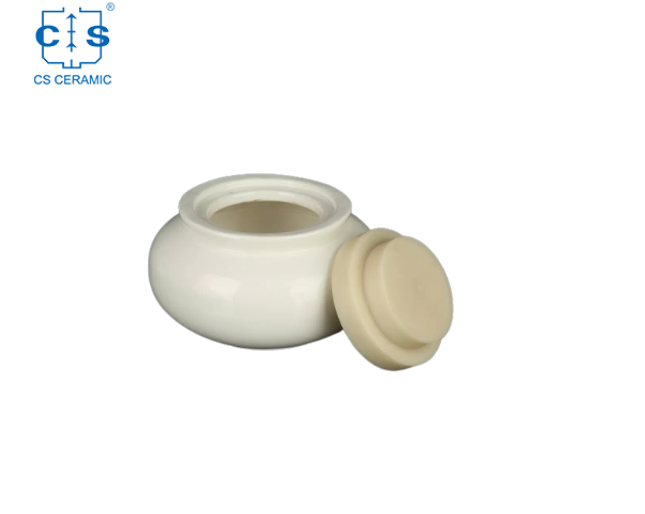

95% Alumina Ceramic Mill Jars Ball Milling Jar

Alumina ceramic mill jars with monolithic construction,big round arc angle.The mouth of pot can be sealed and opened easily, hard and durable. Bad phenomena such as gap,leak,dead space ect can not occur in use.

  • item no. :

    CS-AM-004
  • Color :

    WHITE
    • Purity Available

      90% 92% 95%

    • Material : Alumina ceramic

    • Size : 1-40 liters

  • description

95% Alumina Ceramic Mill Jars Ball Milling Jar


Advantages

1. Alumina ceramic mill jars have a high mechanical strength, high wear resistance and good chemical stability.

2. Corrosion resistance and low thermal conductivity means that they can be used in high-temperature environments without the risk of material contamination.

3. Non toxic, very suitable for containing acidic and alkaline materials.

4. The smooth surface of alumina ceramic mill jars ensures no product residue is left behind, making them easy to clean and maintain.

5. Cost-effective and highly durable, with a long operating life.



Descriptions

1. Alumina ceramic mill jars are widely used in various types of mills for grinding and dispersing applications.

2. They are made from high-purity alumina ceramic and are extremely durable, providing excellent wear and corrosion resistance.

3. They also provide excellent insulation and thermal stability, making them ideal for use in a wide variety of milling applications.

4. The jars come in a variety of sizes and shapes, allowing for optimal grinding and dispersing performance.



Size Details


Item Model & Specification Capacity Outer diameter * Height(mm)
Appro.net weight
(in kgs)
Alumina Ceramic Grinding Jars with Cover CS 30-40L 400*600
XL size 18-18.5 300*400 18
L size 15-16 300*330 14~15
One-size 10-14 270*320 11
Two-size 5-6.5 220*260 9
Three-size 3-5 180*250 6
Four-size 1.5 150*180
Five-size 1 130*170 5

OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry



Technical parameters


Al2o3 content 65%,95%,99%
Rockwell hardness ≥80, impact resistance
Rockwell hardness ≤0.02
Vol.density ≥3
Wear-resistance coefficient ≤0.9
Application Electrical eramic,magnetic




Applications

1. Alumina ceramic mill jars are an ideal choice for pharmaceutical companies as they can be used to safely and effectively grind a variety of drugs and medicines.

2. Grinding and mixing food products such as spices, flours, and grains.

3. Used in dentistry for grinding and shaping dental prosthesis.

4. Grinding, mixing, and homogenizing samples for scientific analysis.



FAQs


Q1. What information should we supply to get a quote?

Please offer the specification of alumina ceramic milling jar, such as shape, dimension, quantity, application etc.


Q2: What types of materials can be milled in an alumina ceramic milling jar?

Alumina ceramic milling jars are suitable for grinding and milling a wide variety of materials, including chemicals, pigments, and other substances.


Q3: What size of alumina ceramic milling jar do I need?

The size of the alumina ceramic milling jar you need will depend on the size and type of milling media you are using


Q4: How often should I replace my alumina ceramic milling jar?

It depends on the frequency of use and the type of material being milled. Generally, alumina ceramic milling jars should be replaced after 1-2 years of use.



How to clean alumina ceramic mill jars

1. Wash the jar and lid separately with water to remove any debris.

2. Use a soft cloth and mild detergent to scrub the inside of the jar and lid.

3. Use a soft brush and mild detergent to scrub the outside of the jar and lid

4. Rinse the jar and lid with water, and then dry with a soft cloth.

5. Ensure that the grinding tank is dry when used again.



Quality testing standards

1. Visually inspect the jar for any signs of wear and tear such as cracks, chips, or any other visible damage.

2. Make sure the lid is properly sealed and there are no gaps that could allow for particles to escape.

3. Check the threads of the lid and the jar body for any signs of stripping or damage.

4. Ensure the lid fits tightly and securely on the jar body.

5. Inspect the seals around the lid and the jar body for any signs of damage or wear.

6. Check the interior of the jar for any signs of contamination such as dust, dirt, or other materials.

7. Check the exterior of the jar for any signs of corrosion or other damage.



Production Process





Packing





Why Choose us?

1. We supply personalized and customized services to contact your personal needs.

2. We are experienced professionals with a good record of success.

3. We provide superior client service and promptly respond to all inquiries.

4. We provide militant prices and strive to ensure that your funds receive the best value.

5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
