laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
ME-00024123 DSC Alumina crucibles sample pans for Mettler TGA/sample robot measurements. Manufacturer for Mettler Toledo crucibles,sample pans and dsc consumables.
Read More
20 ml Large Ceramic Crucible 529-047 / 621-331 for LECO, Alpha AR9047. Manufacturer of TGA ceramic crucible for LECO TGA 500/501/601/701, MAC 400 / 500. TGA alumina crucible/pans for TGA-Thermogravimetric Analyzer analysis TGA measurement.
Read More
item no. :
CS-A-12Color :
White99.5% 99.7% 99%
Material : Alumina ceramic
1.Ultra-high fired ceramic body composed primarily of high-grade aluminum oxide.
2. Long service life, negligible contamination factor.
3. Alumina ceramic milling jars are chemically inert, making them ideal for use with reactive or corrosive materials.
4. Non-porous, making them easy to clean and decontaminate.
5. Highly wear-resistant, making them suitable for extreme wear environments.
6. Alumina ceramic milling jars are significantly more cost-effective than alternatives like steel or stainless steel.
1. Alumina ceramic milling Jar is a durable, non-contaminating, wear-resistant vessel commonly used for grinding, blending and storing materials in laboratories and industrial settings.
2. It is made from high-grade alumina ceramic material and features a high thermal shock resistance and chemical resistance.
3. Alumina ceramic milling jars are available in a variety of sizes, shapes and colors.
4. Ideal for grinding, mixing and storing materials in a hygienic, dust-free environment.
| Item | Model & Specification | Capacity | Outer diameter * Height(mm) |
Appro.net weight
(in kgs)
|
| Alumina Ceramic Grinding Jars with Cover | CS | 30-40L | 400*600 | |
| XL size | 18-18.5 | 300*400 | 18 | |
| L size | 15-16 | 300*330 | 14~15 | |
| One-size | 10-14 | 270*320 | 11 | |
| Two-size | 5-6.5 | 220*260 | 9 | |
| Three-size | 3-5 | 180*250 | 6 | |
| Four-size | 1.5 | 150*180 | ||
| Five-size | 1 | 130*170 | 5 |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
1. Alumina ceramic milling jar can be used for pulverizing minerals and other materials in a laboratory setting. The ceramic material provides an inert environment for grinding, allowing for precision and accuracy.
2. Ideal for use in food processing, pharmaceuticals and personal care products, where contamination must be controlled. This jar can be used to efficiently grind and mix ingredients without introducing any unwanted particles into the mix.
3. It is often used in the pharmaceutical industry for grinding active ingredients, excipients and other materials into a fine powder. The ceramic material ensures the purity of the product.
4. Widely used in high temperature furnaces. This jar is an ideal choice for accurately measuring and mixing materials in a high-temperature environment.
5. Ideal for use in industrial processes such as milling, grinding, and blending of powders and other materials. The ceramic material provides an inert environment that is resistant to abrasion and corrosion.
| Material | 85%Al203 | 90%Al203 | 95%Al203 | 99%Al203 |
| Al203 | 0.85 | 0.9 | 0.93 | 0.993 |
| Fe2O3 | ≤1.0 | ≤0.5 | ≤0.5 | ≤0.3 |
| Desnsity:g/cm3 | 3.4 | 3.5 | 3.6 | 3.85 |
| Vickers Hardness | ≥8.6 | ≥8.8 | 9 | 9 |
| Water Absorption:% | ≤0.2 | ≤0.1 | ≤0.085 | ≤0.01 |
| Refractoriness:℃ | 1580℃ | 1600℃ | 1650℃ | 1800℃ |
| Flexural Strength:Mpa | 180 | 200 | 240 | 280 |
| Wear Rate(at room temperatureerosion 100 grinding)% | ≤3 | ≤2.5 | ≤1 | ≤0.5 |
Q1. What information should we supply to get a quote?
Please offer the specification of alumina ceramic milling jar, such as shape, dimension, quantity, application etc.
Q2: What types of materials can be milled in an alumina ceramic milling jar?
Alumina ceramic milling jars are suitable for grinding and milling a wide variety of materials, including chemicals, pigments, and other substances.
Q3: What size of alumina ceramic milling jar do I need?
The size of the alumina ceramic milling jar you need will depend on the size and type of milling media you are using
Q4: How often should I replace my alumina ceramic milling jar?
It depends on the frequency of use and the type of material being milled. Generally, alumina ceramic milling jars should be replaced after 1-2 years of use.
1. Wash the jar and lid separately with water to remove any debris.
2. Use a soft cloth and mild detergent to scrub the inside of the jar and lid.
3. Use a soft brush and mild detergent to scrub the outside of the jar and lid
4. Rinse the jar and lid with water, and then dry with a soft cloth.
5. Ensure that the grinding tank is dry when used again.
1. Visually inspect the jar for any signs of wear and tear such as cracks, chips, or any other visible damage.
2. Make sure the lid is properly sealed and there are no gaps that could allow for particles to escape.
3. Check the threads of the lid and the jar body for any signs of stripping or damage.
4. Ensure the lid fits tightly and securely on the jar body.
5. Inspect the seals around the lid and the jar body for any signs of damage or wear.
6. Check the interior of the jar for any signs of contamination such as dust, dirt, or other materials.
7. Check the exterior of the jar for any signs of corrosion or other damage.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.

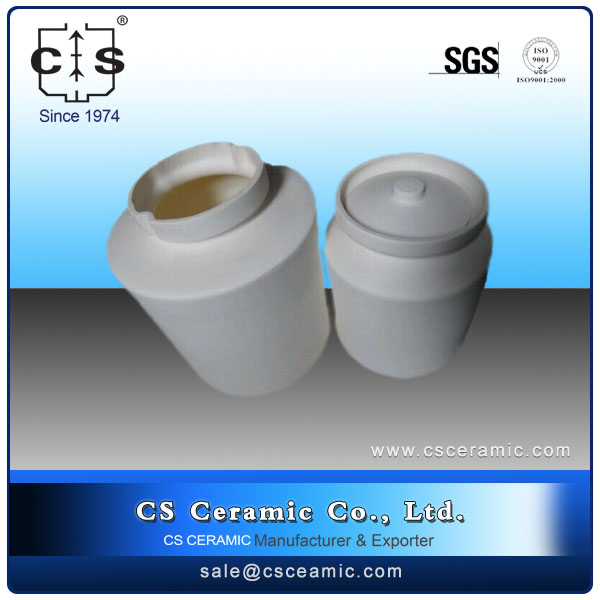

Alumina Ceramic Milling Jar Grinding Jars with Cover
Alumina ceramic milling jar grinding jars with cover are available in a variety of sizes, shapes and colors to suit any application. With its air-tight seal, it is ideal for grinding, mixing materials in a hygienic, dust-free environment.
Alumina Grinding Ball Wear-resistant 92% 95%
Alumina grinding balls are high-density and ultra-high fired ceramic balls used in high-intensity stirred mills for fine and ultra-fine grinding. Available in various sizes.
99% Inert Alumina Ceramic Balls - Catalyst Support Media
Inert Alumina Ceramic Ball as a catalyst in the reactor to cover support material and tower packing.Available in various sizes.
Alumina Ceramic Milling Jar / Ball Mill Jar / Mill Pot
Alumina ceramic milling jar has a wide mouth and a flat bottom, allowing for easy stirring and efficient grinding,available in a variety of sizes.
Desiccant Catalyst Carrier Activated Alumina Ceramic Balls 93%
Desiccant Catalyst Carrier Activated Alumina Balls can be used as a catalyst as well as a adsorbent.Available in various sizes.
95% Alumina Ceramic Mill Jars Ball Milling Jar
Alumina ceramic mill jars with monolithic construction,big round arc angle.The mouth of pot can be sealed and opened easily, hard and durable. Bad phenomena such as gap,leak,dead space ect can not occur in use.
0.5L 1L Alumina Ceramic Mill Jars for Roll Ball Mill
Alumina ceramic mill jars are cylindrical,heavy-duty containers designed to hold and process materials such as chemicals, minerals, and pharmaceuticals, available in a variety of sizes.
99% Alumina Ceramic Ball Milling Jar/ Corundum Mill Jars
Alumina ceramic milling jar have monolithic construction,big round arc angle. The mouth of pot can be sealed and opened easily, hard and durable.Bad phenomena such as gap,leak,dead space ect can not occur in use.
