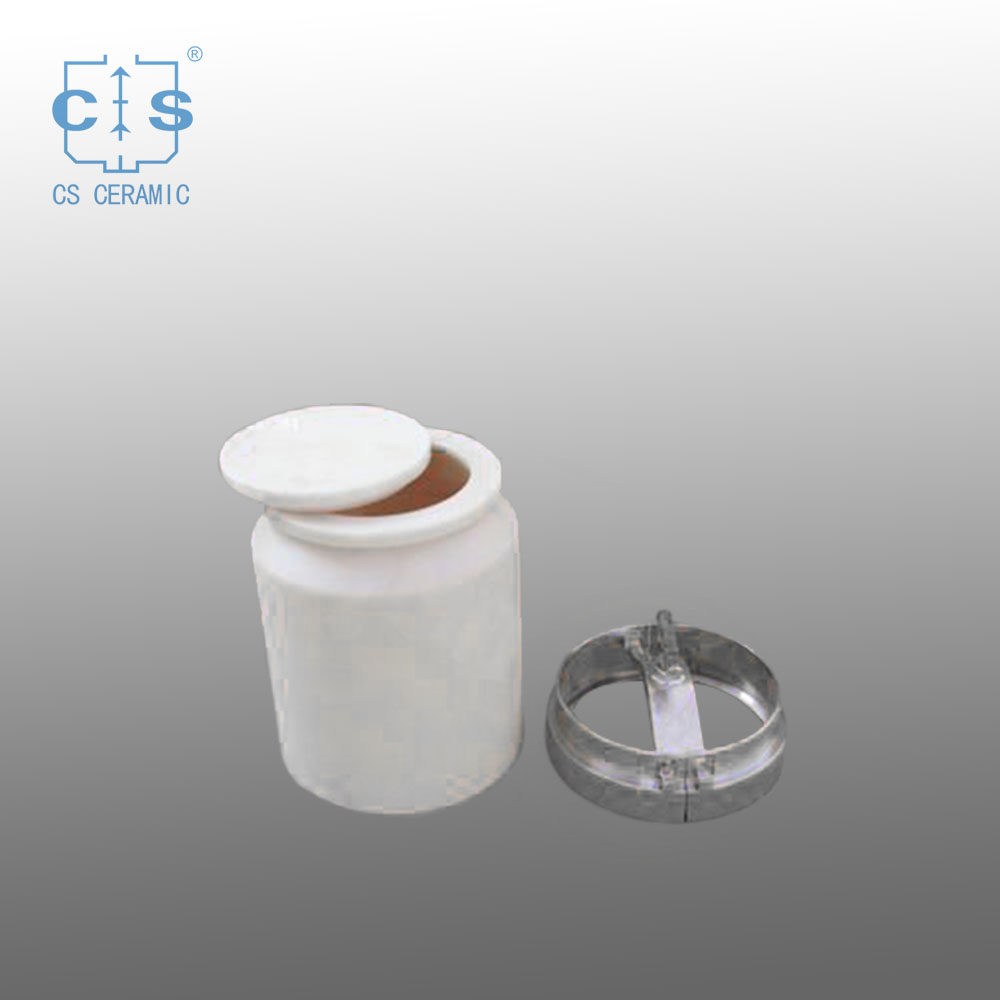

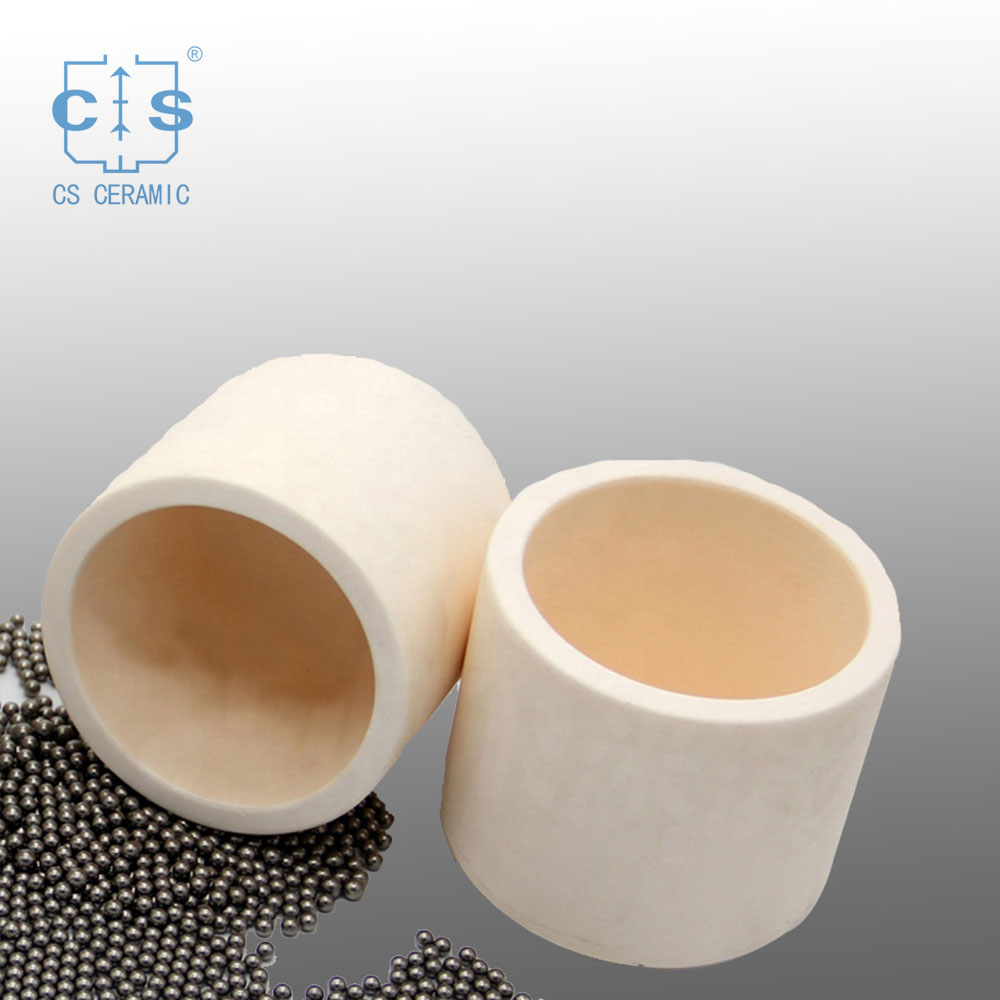

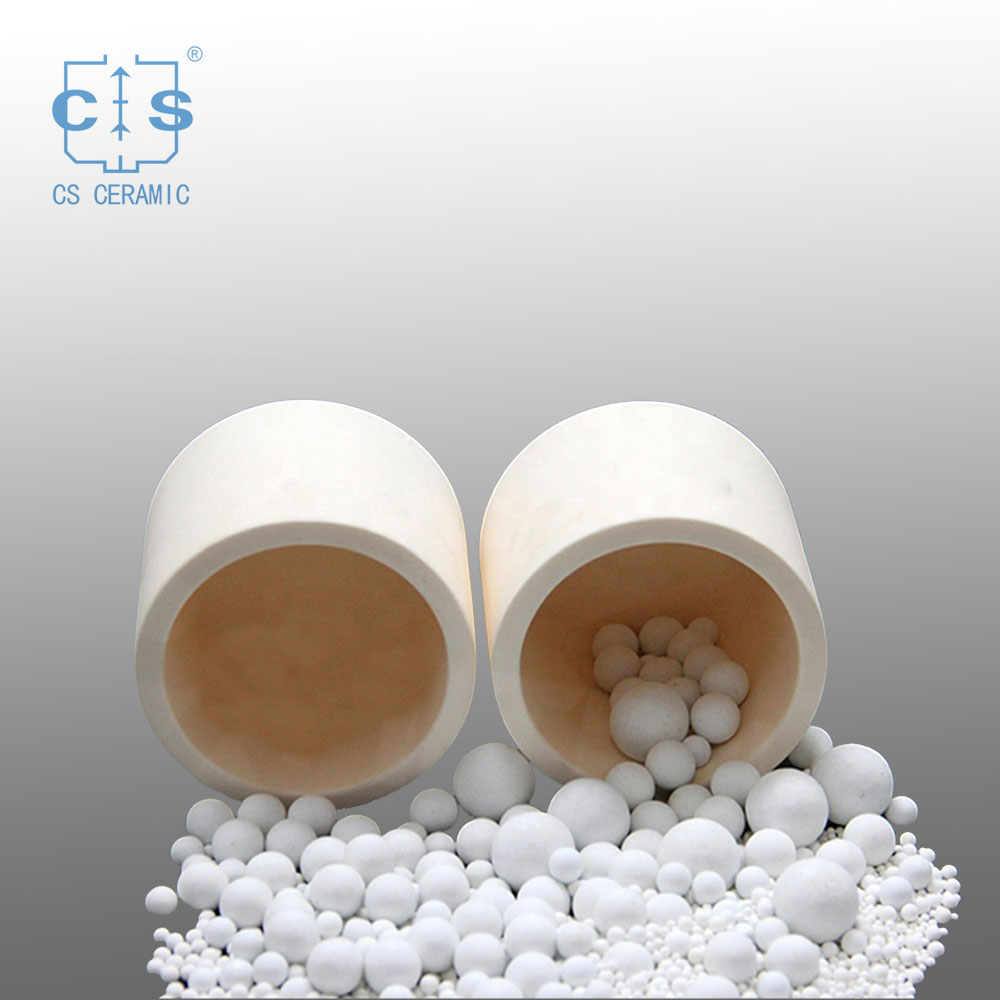

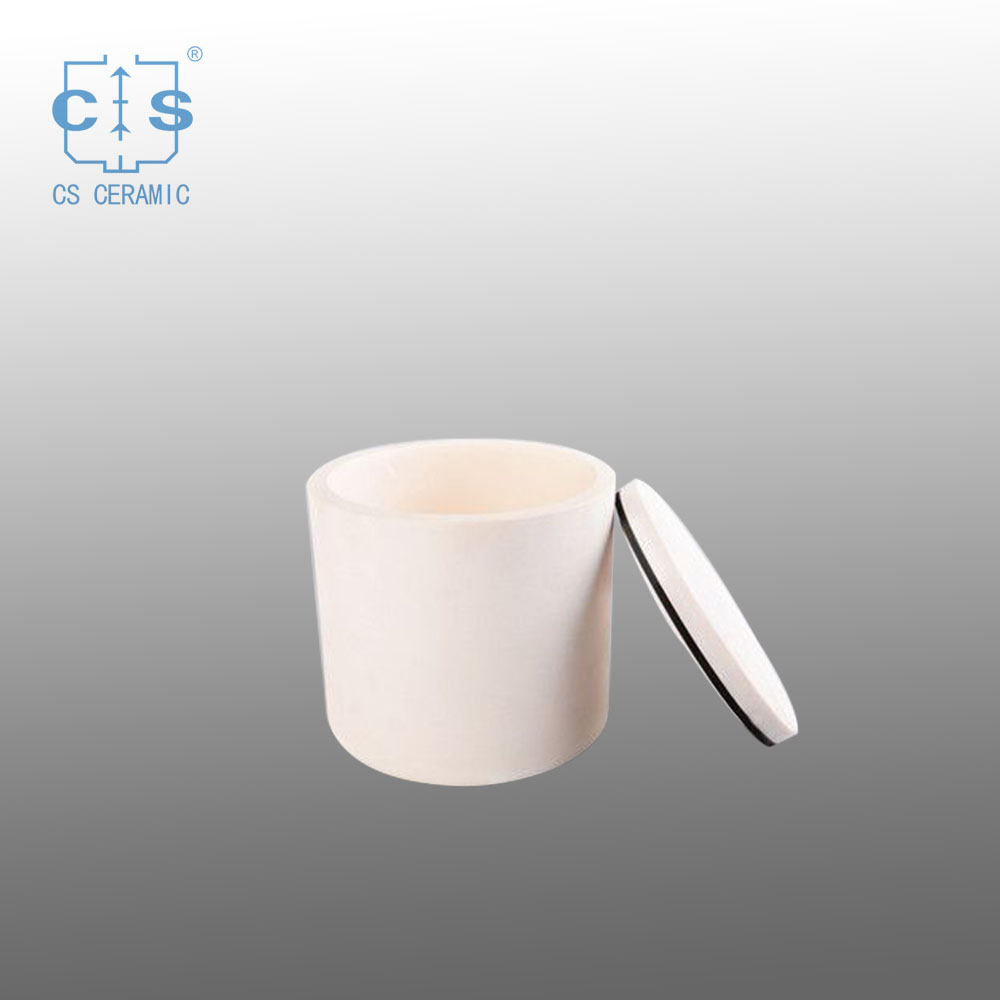

Read MoreAlumina ceramic milling jar has a wide mouth and a flat bottom, allowing for easy stirring and efficient grinding,available in a variety of sizes.
item no. :
CS-J-0190% 92% 95%
Material : Alumina ceramic
Volume : : 300ml-3L
Shape : Cylindrical
Cover : with
1. Alumina ceramic milling jar is incredibly durable and have a long lifespan, making them an excellent long-term investment.
2. Because of its durability, alumina ceramic milling jars require very little maintenance, saving you time and money.
3. Non-toxic and safe for use in food related industries.
4. Alumina ceramic milling jar is generally more affordable than other types of milling jars, making them a cost-effective option.
1. Alumina ceramic milling jar is an ideal choice for grinding and milling applications.
2. It is made of high-quality alumina ceramic material, which gives it strong hardness and durability.
3. It is designed to provide an efficient and reliable grinding experience, with its smooth surface and tight lid.
4. There are various sizes available to meet different needs.

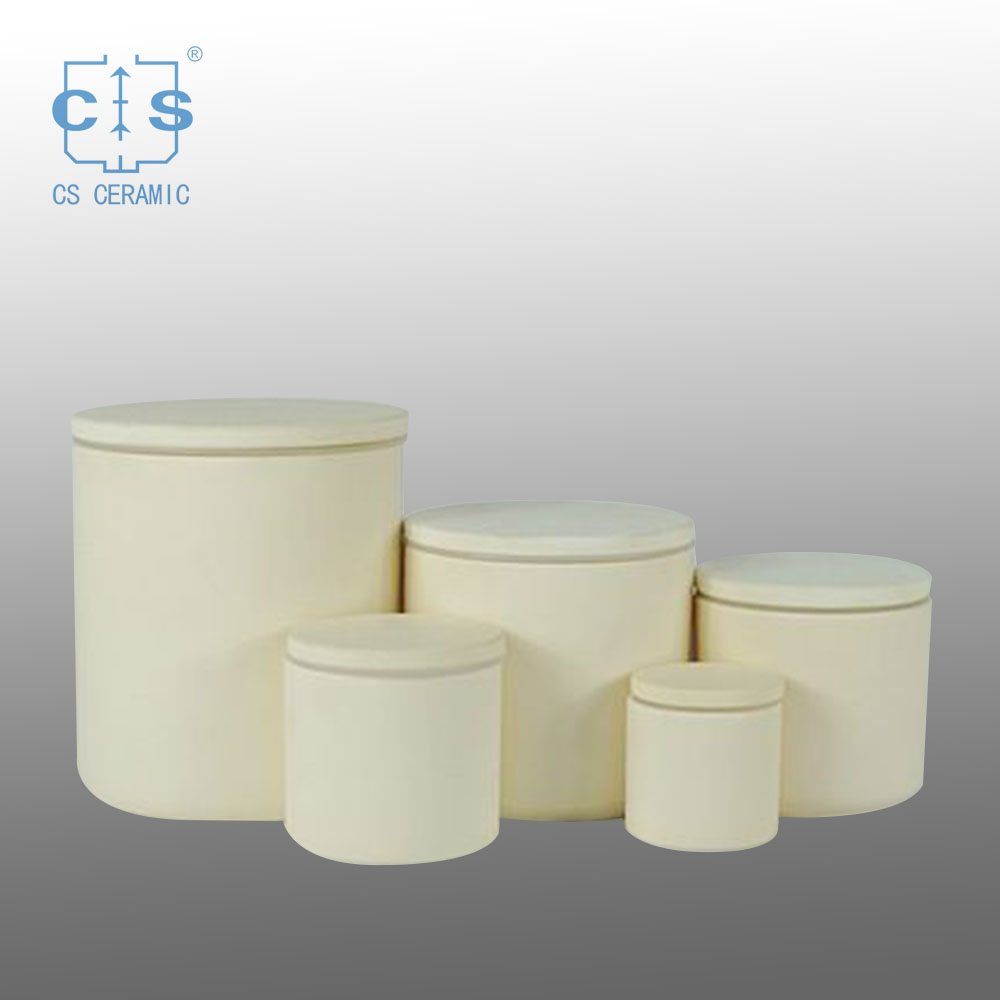

Vertical (Cylindrical )Alumina Ball Mill Jar | |||||||
Item NO. | Jar Volume |
Outer diameter
(mm)
|
Inner diameter
(mm)
|
Height without cover (mm) |
Height of
Cover (mm)
|
Total Height (mm) |
Wall Thickness
(mm)
|
CS-J-01 | 50ml | 55 | 38 | 60 | 8 | 67 | 8 |
CS-J-02 | 100ml | 65 | 50 | 66 | 8 | 75 | 8 |
CS-J-03 | 250ml | 92 | 74 | 78 | 9 | 88 | 8 |
CS-J-04 | 500ml | 100 | 84 | 108 | 9 | 118 | 9 |
CS-J-05 | 1L | 128 | 108 | 117 | 10 | 150 | 10 |
CS-J-06 | 1.5L | 132 | 112 | 158 | 10 | 175 | 10 |
CS-J-07 | 2.0L | 158 | 138 | 151 | 12 | 162 | 10 |
CS-J-08 | 2.5L | 170 | 150 | 160 | 12 | 170 | 10 |
CS-J-09 | 3.0L | 158 | 138 | 185 | 12 | 220 | 10 |
Horizontal alumina ball grinding tank | ||||
Item NO. | Jar Volume |
Outer diameter
(mm)
|
Inner diameter
(mm)
|
Wall Thickness
(mm)
|
CS-J-10 | 50ml | 64 | 59 | 11 |
CS-J-11 | 100ml | 66 | 69 | 9 |
CS-J-12 | 250ml | 90 | 78 | 10 |
CS-J-13 | 500ml | 106 | 99 | 10 |
CS-J-14 | 1L | 133 | 126 | 12 |
CS-J-15 | 1.5L | 152 | 172 | 12 |
CS-J-16 | 2.0L | 168 | 210 | 12 |
CS-J-17 | 3.0L | 200 | 265 | 12 |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Technical parameters of Alumina Ball Mill Jar | |
Capacity | 50ml,100ml, 250ml, 500ml,1L, 2L, 3L, 5L |
Alumina content | 99% |
Mohs hardness | 9.2 |
Density | 3.7 g.cm-3 |
Refractoriness | ≥ 1850 °C |
Water absorption | ≤ 0.005 |
Wear resistance g .(kg.h) -1 | ≤0.005 |
Specific Gravity | ≥ 60.2 |
Grinding mode | Dry grinding/wet grinding |
Grinding Jar Volume | 100ml | 250ml | 500ml | 1000ml |
Compatible Ball Weight | 66g | 165g | 330g | 660g |
Φ5mm grinding balls (0.25 g/pc) | 106pcs | 300pcs | ||
Φ10mm grinding balls (1.99 g/pc) | 20pcs | 76pcs | 50pcs | 100pcs |
Φ15mm grinding balls (6.72 g/pc) | 4pcs | 30pcs | 59pcs | |
Φ20mm grinding balls (15.92 g/pc) | 3pcs | 5pcs | ||
These values are just clues: the number of balls should be determined experimentally if necessary. |
1. Alumina milling jar can be used in the pharmaceutical industry to produce finely milled powder for use in drug manufacturing.
2. Grind and homogenize food products such as coffee beans, nuts, and spices.
3. Produce ceramic glazes and pigments in various degrees of fineness.
4. Mixing and refining chemicals for industrial and laboratory applications.
5. In the mining industry, ore samples are crushed into fine particles for ore analysis and extraction.
Q1. What information should we supply to get a quote?
Please offer the specification of alumina ceramic milling jar, such as shape, dimension, quantity, application etc.
Q2: What types of materials can be milled in an alumina ceramic milling jar?
Alumina ceramic milling jars are suitable for grinding and milling a wide variety of materials, including chemicals, pigments, and other substances.
Q3: What size of alumina ceramic milling jar do I need?
The size of the alumina ceramic milling jar you need will depend on the size and type of milling media you are using
Q4: How often should I replace my alumina ceramic milling jar?
It depends on the frequency of use and the type of material being milled. Generally, alumina ceramic milling jars should be replaced after 1-2 years of use.
1. Wash the jar and lid separately with water to remove any debris.
2. Use a soft cloth and mild detergent to scrub the inside of the jar and lid.
3. Use a soft brush and mild detergent to scrub the outside of the jar and lid
4. Rinse the jar and lid with water, and then dry with a soft cloth.
5. Ensure that the grinding tank is dry when used again.
1. Visually inspect the jar for any signs of wear and tear such as cracks, chips, or any other visible damage.
2. Make sure the lid is properly sealed and there are no gaps that could allow for particles to escape.
3. Check the threads of the lid and the jar body for any signs of stripping or damage.
4. Ensure the lid fits tightly and securely on the jar body.
5. Inspect the seals around the lid and the jar body for any signs of damage or wear.
6. Check the interior of the jar for any signs of contamination such as dust, dirt, or other materials.
7. Check the exterior of the jar for any signs of corrosion or other damage.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
Alumina ceramic pots mill grinding jars have extremely high abrasion resistance, long service life, negligible contamination factor, available in a variety of sizes, shapes and colors.
Alumina ceramic milling jar grinding jars with cover are available in a variety of sizes, shapes and colors to suit any application. With its air-tight seal, it is ideal for grinding, mixing materials in a hygienic, dust-free environment.
Alumina grinding balls are high-density and ultra-high fired ceramic balls used in high-intensity stirred mills for fine and ultra-fine grinding. Available in various sizes.
Inert Alumina Ceramic Ball as a catalyst in the reactor to cover support material and tower packing.Available in various sizes.
Desiccant Catalyst Carrier Activated Alumina Balls can be used as a catalyst as well as a adsorbent.Available in various sizes.
Alumina ceramic mill jars with monolithic construction,big round arc angle.The mouth of pot can be sealed and opened easily, hard and durable. Bad phenomena such as gap,leak,dead space ect can not occur in use.
Alumina ceramic mill jars are cylindrical,heavy-duty containers designed to hold and process materials such as chemicals, minerals, and pharmaceuticals, available in a variety of sizes.
Alumina ceramic milling jar have monolithic construction,big round arc angle. The mouth of pot can be sealed and opened easily, hard and durable.Bad phenomena such as gap,leak,dead space ect can not occur in use.
