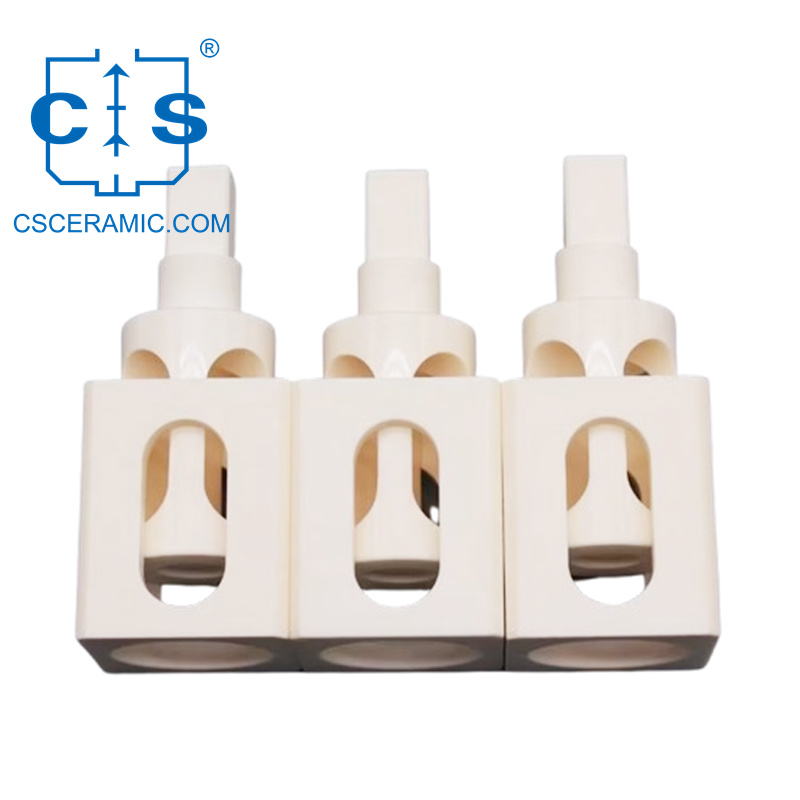

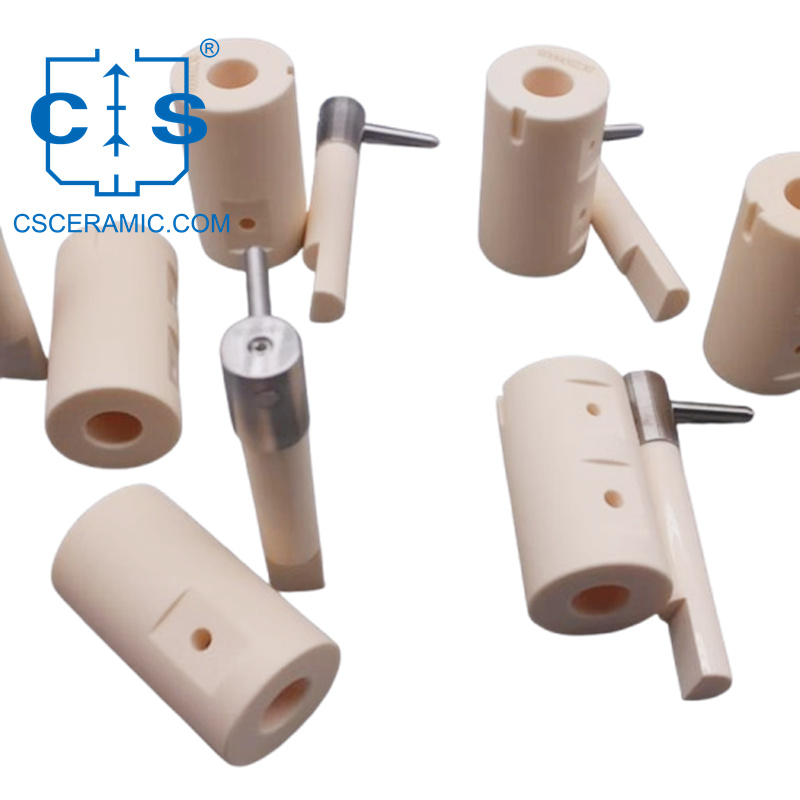

Ceramic Fillinf Valve Alumina Filling Valve Aluminum Oxide Filling Valve

The alumina ceramic filling valve is a precision-engineered component made from high-purity alumina powder through processes such as shaping and sintering. It is specifically designed for use in automatic filling machines, where it regulates and controls flow rates to achieve accurate and automated filling operations.

item no. :
CS-YHL-GZF001
Material : Alumina ceramic

contact now catalogue

description

Advantages of Alumina Ceramic Filling Valve

High Hardness and Wear Resistance: The alumina filling valve boasts a high degree of hardness, wear resistance, and corrosion resistance. This makes it suitable for filling liquids of various compositions without posing any contamination risk to the liquid. It has a long service life and maintains its performance over extended periods of use.
Precise Machining Accuracy and Airtightness: The valve exhibits excellent machining accuracy, ensuring precise control over the flow rate. Its airtight design prevents any leakage, maintaining the integrity of the filling process.
High Temperature Resistance: The alumina filling valve can withstand high temperatures with a low thermal expansion coefficient. This ensures unimpaired airtightness and normal operation under high-temperature conditions, making it suitable for applications where heat is a factor.

Applications of Alumina Filling Valve

Beverages, Dairy Products, and Condiments: The alumina filling valve is used for quantitative filling of these types of liquids. It offers high filling accuracy without compromising product quality or taste, ensuring that consumers receive consistent and high-quality products.
Liquid Medications and Biological Agents: The alumina material exhibits good biocompatibility, making the valve suitable for metering and filling various liquid medications and biological agents. It meets the high standards of drug safety and stability in the biomedical field, ensuring that patients receive safe and effective treatments.
Liquid Cosmetics: The alumina filling valve is used for filling various liquid cosmetics such as perfumes and lotions. Its high precision and efficiency ensure that the final product meets the highest standards of quality and consistency.
Chemical Liquids: With its excellent chemical inertness and corrosion resistance, the alumina material is suitable for precise filling of various chemical liquids, including chemical reagents and battery electrolytes. This makes it an ideal choice for applications where chemical compatibility and accuracy are critical.
