Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More

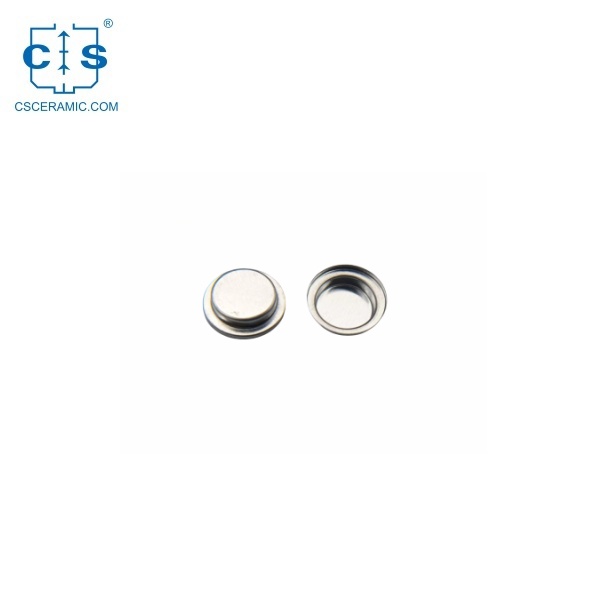

Netzsch Aluminum Sample Pans(with lid) 6.239.2-64.5.00/6.239.2-64.51.00, 6.239.2-64.501/6.239.2-64.502 for Netzsch DSC 3500 Sirius TDA DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
item no. :
CS-NM-093-1Suitable for : Netzsch
Material : Aluminum
Part NO : 6.239.2-64.5.00/6.239.2-64.51.00
Item info :
| Type | Sample pan /crucible |
| Suitable for | Netzsch DSC 3500 Sirius |
| Part NO |
Netzsch 6.239.2-64.5.00/6.239.2-64.51.00 Netzsch 6.239.2-64.501/6.239.2-64.502 |
| Volume |
25/40μl |
| Lid |
Without | if need lid lid, for Volume 25/40 μl Aluminum crucible lid CS-NM-093-2 |
|
Sealing Tool |
Netzsch 6.240.10-80.0.00A |
| Material | Aluminum |
| Temperature range | -180°C to 600°C |
| QTY/PKG | 100PCS/BOX, 200PCS/BOX (Both available) |
| Brand | CS CERAMIC |
| Original | MADE IN CHINA |
Usage:
Aluminum sample pan and cover are applicable for non-volatile solid sample, like polymer and medicine.
It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material.
Notice :
To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.
Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.
Aluminum Crucibles for Thermal Analysis Experiments (click to review the video)
Recommended matching sealing press Netzsch 6.240.10-80.0.00A(click to review the video)
Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
25μl Netzsch Alumina Crucibles D7*2*0.5 for Netzsch (Sample pans)
25μl Alumina crucibles for Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
85μl Alumina Crucible Lids P/N: 399.973 / GB399973 for Netzsch (Sample Lids)
85μl GB399973 Alumina crucible lids for Netzsch/DSC404C, DTA404PC, STA409PC, STA449C and Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups lids. Netzsch Instruments good alternative DSC sample pans.
85μl Alumina Crucibles w/lid equivalent to Netzsch GB399972 &GB399973
85μl GB399972/GB399973 Alumina crucibles and lids for Netzsch DSC 204 F1 Phoenix®, DSC 200 F3 Maia®,DSC 3500 Sirius and DSC 214 Polyma, TG 209 F1 Libra® and TG 209 F3, STA 449 F1/F3/F5 Jupiter® and DSC 404 F1/F3 Pegasus and Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instrument1
85μl Zirconia Sample Pan equivalent to Netzsch GB397053 (Crucibles)
85μl Zirconia crucibles for Netzsch/TG 209 F3，TG 209 F1/STA 449 F3，STA 449 F1 and Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
25μl Netzsch Alumina Crucibles D7.5*1.8*0.4 for Netzsch (Sample pans)
25μl Alumina crucibles for Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
80μl Netzsch Alumina Crucibles D6.7*5mm for Netzsch (Sample pans)
80μl Alumina crucibles for Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
90μl Alumina ceramic Crucibles D6.8*5mm for Netzsch (Sample pans)
90μl Alumina crucibles for Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
160μl Netzsch Ceramic Crucibles D6.4*8mm for Netzsch (Sample pans)
160μl Alumina crucibles for Netzsch DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
