Zirconia Crucible Square Crucibles Wholesale
Square Zirconia Smelting Crucible Square Zirconia Smelting Crucible Square Zirconia Smelting Crucible Square Zirconia Smelting Crucible Square Zirconia Smelting Crucible

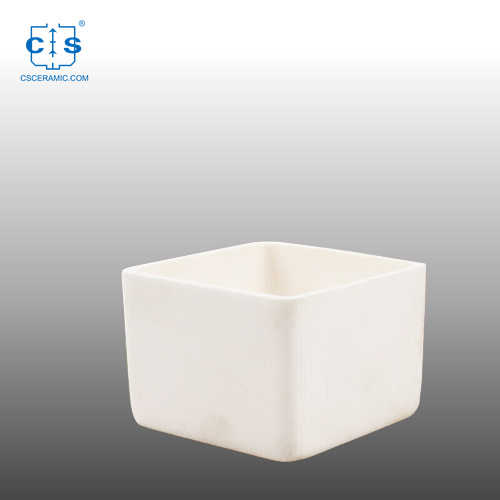

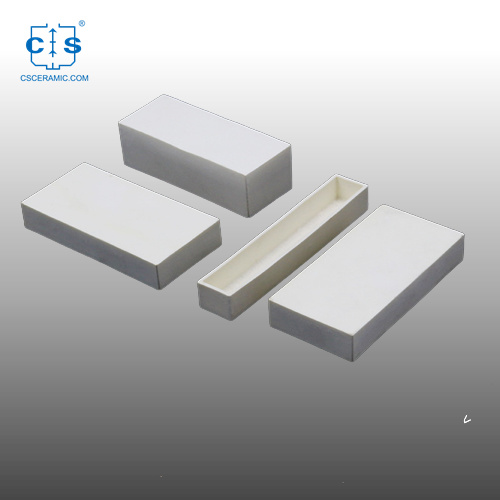

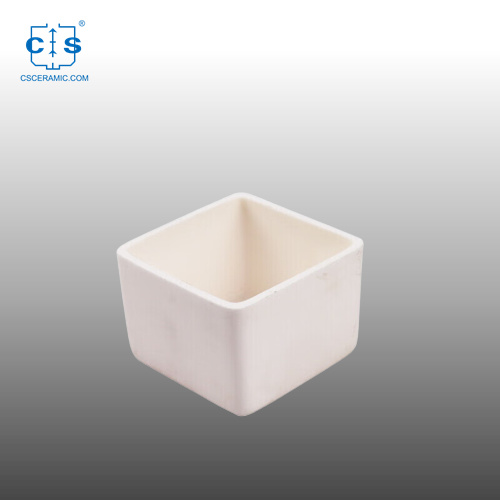

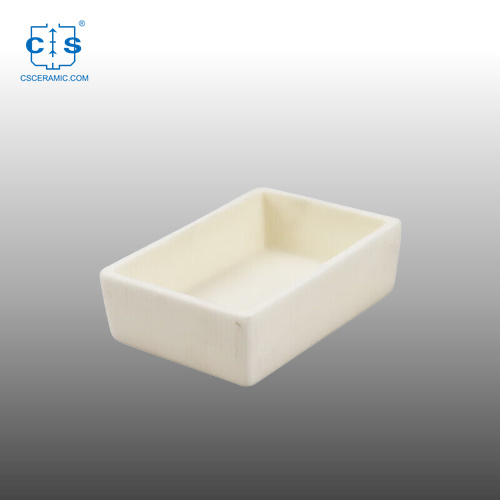

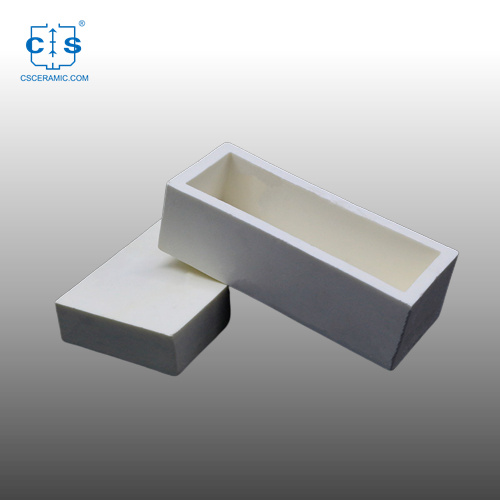

Square Zirconia Smelting Crucible

ZrO2 crucible's extreme heat resistance and excellent thermal shock resistance make it ideal for performing high-temperature processes such as melting and annealing metals, as well as for storing, mixing, and heating hazardous materials.

  • item no. :

    CS-YHG-F001
  • Color :

    White
  • Port :

    Any ports of China
  • lead date :

    1-7 days
  • Material : Zirconia

  • Purity : 95%

  • Shape : Square

  • description

Square Zirconia Smelting Crucible


ZrO2 Smelting Crucible's Features

1. High Temperature Resistance (up to 2200°C ~ 2400°C)

2. High density (up to 6.0g/cm3)

3. Low thermal conductivity

4. Chemical inertness

5. Resistance to molten metals

6. Lonic electrical conduction

7. Wear resistance

8. High fracture toughness

9. High hardness



Zirconia Crucible's Description

1.Zirconia crucible is a type of melting pot used in the smelting process.

2.It is made of zirconium dioxide, a undefined stuff that is extremely resistant to thermal traumatize and corrosion.

3.Zirconia smelting crucibles are used to melt and alloy metals like gold, silver, copper, and atomic number 13 at temperatures up to 2,200°C (3,992°F).

4.They are nonpareil for casting small batches of preciously metals and other alloys, as well as for refining and clearing metals.

5.They are also an fantabulous option for melting down scrap metals for recycling purposes.



Zirconia Ceramic Crucible's Applications

(1) Chemical/metallurgic processes;

(2) Laboratory thermal analysis;

(3) nuclear industries.



Crucible Size Chart

Item

Length /mm

Width /mm

Height /mm

Thickness /mm

Purity

CS-YHG-F001

50

50

15

3

95%

CS-YHG-F002

60

30

20

3

95%

CS-YHG-F003

64

53

17

3

92%

CS-YHG-F004

66

55

16.8

3

92%

CS-YHG-F005

70

45

20

3

95%

CS-YHG-F006

70

70

20

3.5

95%

CS-YHG-F007

75

50

20

3

95%

CS-YHG-F008

98

39

29

3.5

92%

CS-YHG-F009

100

49

16

4

92%

CS-YHG-F010

100

40

20

3

95%

CS-YHG-F011

100

35

10

3.5

95%

CS-YHG-F012

110

110

18

4

95%

CS-YHG-F013

120

22

16

4

92%

CS-YHG-F014

135

135

20

5

95%

CS-YHG-F015

160

80

14

5

92%

CS-YHG-F016

164

164

25

5

95%

CS-YHG-F017

84

84

23

4

95%

CS-YHG-F018

67

67

48

4

95%

CS-YHG-F019

88

62

27

4

95%

P.S. Customized manufacturing is also provided.
Please tell us about product’s parameters such as outer diameter, inner diameter, wall thickness, height, purity, shape, etc. when a customization is needed.



Technical Parameters

(1) Constitution of ZrO2 crucible

Component

Percentage

Fe2O3

<=0.5

SiO2

<=0.5

ZrO2

>=92

porosity

<=0.5


(2) Maximum size tolerance allowed for ZrO2 crucible (SB17-88)

model size

unit

limit

diameter

height

deformation

50

mm

<=

±1

±2

2%

50~100

mm

<=

±1.5

±2.5

3%

100

mm

<=

±1.5

±2.5

3.5%



Crucible's Manufacturing Process



Zirconia Crucible test standard

1. visible Test: The crucible should be visually inspected for signs of cracks, chips, or other signs of damage.
2. angle Test: The crucible should be weighed to insure that it meets the stated weight requirements.
3. thermic Shock Test: The crucible should be subjected to thermic shock testing to ensure that it can withstand fulminant changes in temperature without cracking or deforming.
4. energy Expansion Test: The crucible should be heated to a temperature above the thaw direct of the material and then cooled to control that it can withstand thermal stresses.
5. Impact Test: The crucible should be dropped from a predetermined tallness to verify that it can resist physical science impacts.
6. Corrosion underground Test: The crucible should be exposed to different undefined agents to insure that it is resistant to corrosion.
7. flex Test: The crucible should be bent to control that it is strong enough to withstand physics forces.



Packaging & Delivery

Carefully packed by wooden boxes with padded foams.



Zirconia Ceramic crucible OEM requests

1.We can customize the crucibles based on the customer's specifications, such as size, shape, type, etc.

2.Additionally, we can provide custom branding on the crucibles, as well as color customization.


Use / Maintenance Methods

1.Do not use gasoline spraying gun, acetylene gun or alcohol burner for direct heating.
2.Before using the crucible for the first time, put it into an oven with a temperature of about 105 ℃ and bake it for 120 minutes to dry up.
3.The heating/cooling speed shall not be too fast, below 1200 ℃ 5 ℃/min; Above 1200 ℃ 4 ℃/min; It is recommended to use electric control for cooling. A too fast cooling speed in the early stage of furnace cooling at a high temperature after the power is turned off may result in a surface cracking of the crucible.
4.The distance between the crucible and the heating element (silicon carbon tube, silicon molybdenum rod, heating wire, etc.) should be greater than 2CM.
5.The bottom of the crucible shall not have a direct contact with the surface of the furnace. It is recommended to use temperature resistant materials such as corundum sheets to separate the equipment as well as to form air convection.
6.Feed within the capacity of the crucible. Do not squeeze too tightly to prevent the metal from thermal expansion and cracking of the crucible.
7.Taking out the molten metal with a spoon instead of with a caliper is recommended. If a caliper or other tools must be used, the shape of the tool should better be similar to that of the crucible to avoid shortening the life of the container due to an excessive local force upon the crucible.


Why Choose US

As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.

1.Reliable quality control, complete specifications, support customization of non-standard products

2.Professional and committed service team

3.Multiple protection of packaging, secure and reliable

4.Highly efficient delivery channel, safe and rest-assured



FAQ

1.Q1: What is a zirconia smelting crucible?

A: A zirconia smelting crucible is a special type of crucible used for smelting and melting metals and alloys. It is made from a special type of zirconia ceramic, which is highly resistant to corrosion, heat, and other harsh conditions. This makes it ideal for melting down metals and alloys for casting and other manufacturing processes.

2.Q:What's the delivery time?

A: 1-7 working days for standard products 20-30 days for customized products.

3. Q:What is the maximum temperature that a zirconia ceramic crucible can withstand?

A:The maximum temperature that a zirconia ceramic crucible can withstand is around 2,200°C (4,000°F).

4. Q:Are there any safety precautions that need to be taken when using a zirconia ceramic crucible?

A:Yes, it is important to wear protective gear when using a zirconia ceramic crucible.



Related Products

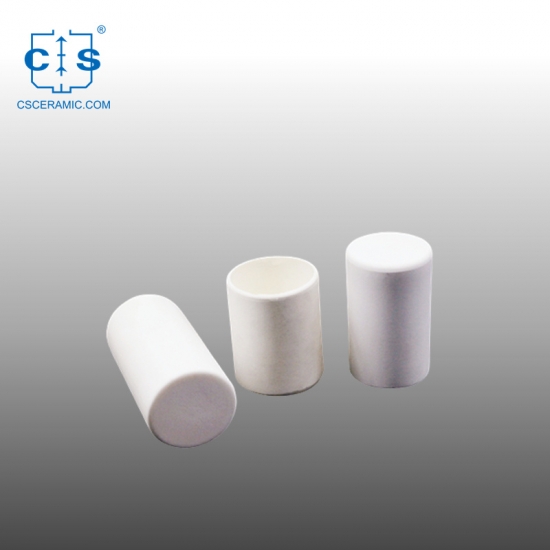

Cylinder Zirconia ceramic refractory crucibles            Zirconia Sintering Dental Saggar with Lid
