Read MoreSiC vortex nozzles are used for waste gas washing, desulphurization and denitrification, flue gas dust removal, fire prevention and fire extinguishing.
item no. :
CS-THG-DN32Color :
BlackPort :
Shenzhen China, Express deliverylead date :
5-7 daysMaterial : Silicon Carbide
Purity : 92%
Shape : vortex
Original Country : China
1. High Temperature Resistance: Silicon carbide is one of the most heat resistant materials available, which makes it an ideal choice for a nozzle that will be exposed to high temperatures.
2. High Wear Resistance: Silicon carbide is highly resistant to abrasion and wear, making it an ideal choice for a nozzle that will be used in abrasive conditions.
3. Corrosion Resistance: Silicon carbide is resistant to many corrosive liquids, making it an ideal choice for a nozzle that will be used in corrosive environments.
4. Durability: Silicon carbide is very durable and can withstand high temperatures, pressures, and impacts, making it an ideal choice for a nozzle that will be used in harsh conditions.
5. Low Friction: The smooth surface of silicon carbide reduces friction, making it an ideal choice for a nozzle that will be used in high-friction applications.

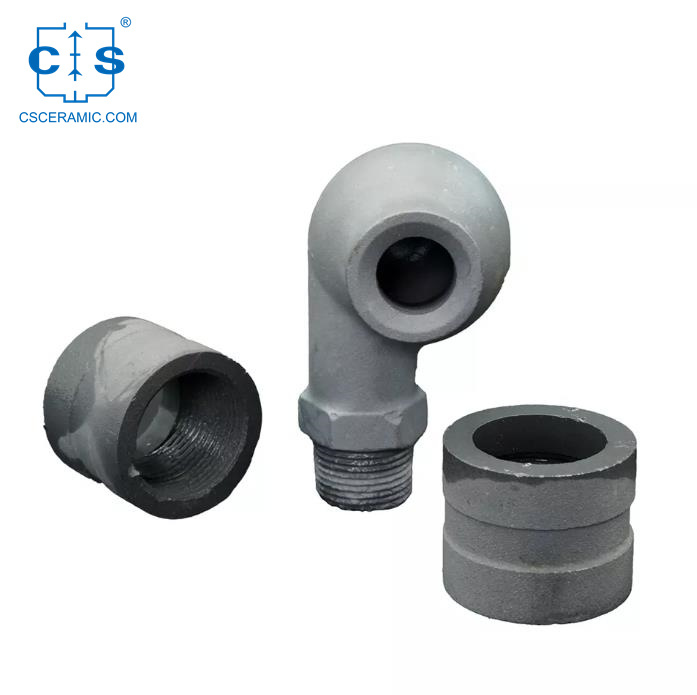

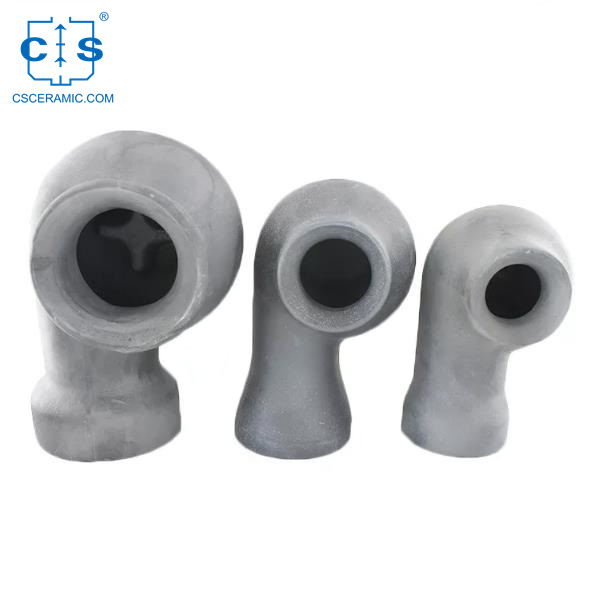

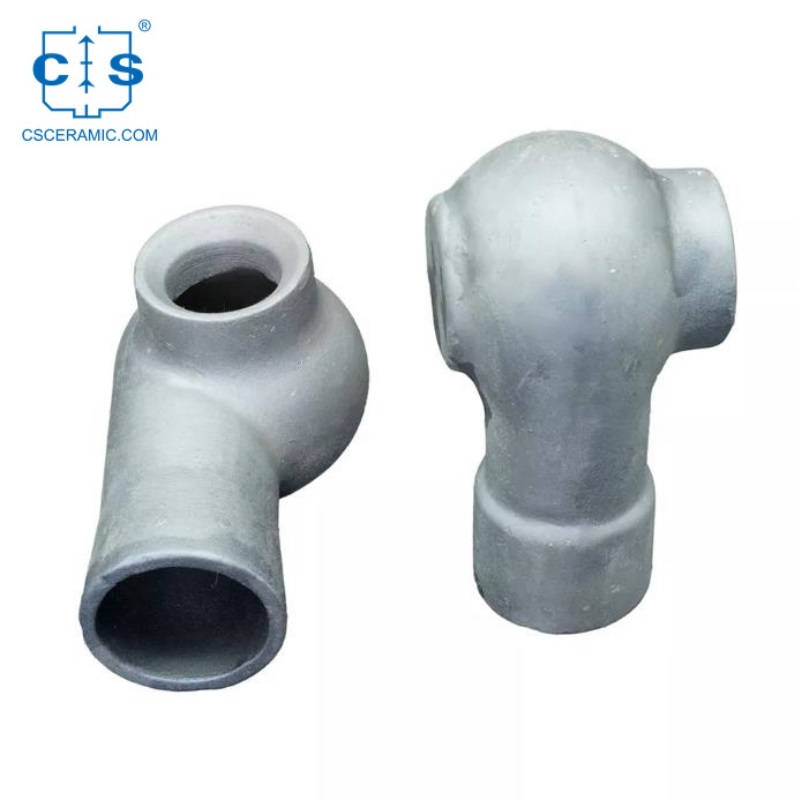

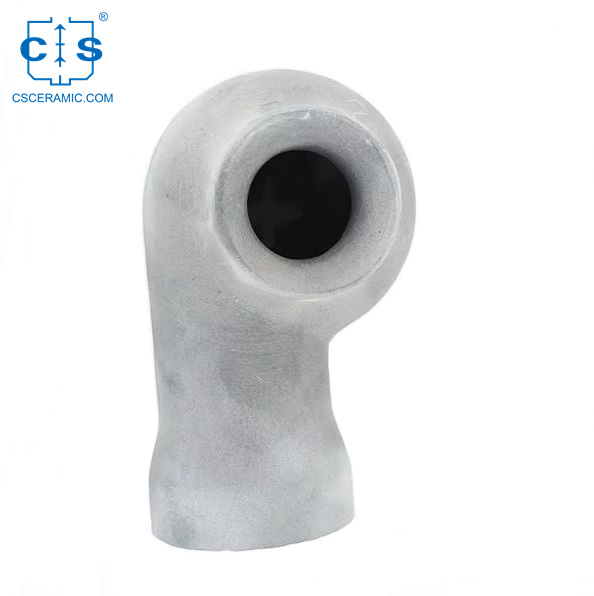

Sic Nozzle
Silicon Carbide Vortex Nozzles are used in a variety of applications, including:
1. Automotive exhaust systems
2. Industrial burners and furnaces
3. Industrial gas turbines & Aerospace engine exhausts
4. Chemical processing and waste treatment
5. Food and beverage processing
6. Heat exchangers & HVAC systems
7. Drying and cooling & Paint booths
8. Plasma cutting and welding
9. Dust collection and filtration systems
10. Spray drying and atomization
(RBSC) | (NBSC) | |
Materials | 8%Si+92%SiC | 75%SiC+ 23%SiN |
Temperature tolerance limit | 1380℃ | 1600℃ |
Density | 3.0 g/ cm 3 | 2.5 g/ cm 3 |
Indicated Parosity | 0% | 16% |
Flexural Strength | 260MPa(20℃) | 60MPa(20℃) |
Elastic Modulus | 330 GPa(20℃) | 150 GPa(20℃) |
Thermal Conductivity | 45W/m.k(1200℃) | 15W/m.k(1200℃) |
Coefficient of Heat Expansion | 4.5 K -1X10 -6 | 4.5 K -1X10 -6 |
Moh's hardness | 13 | 10 |
acid & alkali proof | Excellent | Excellent |
Vortex Nozzle Specifications
Item | Size(inch) | OD(mm) | Flow(m³/hour) | Scope(m) | Purity | Link mode |
CS-THG-DN32 | 1.2“ | 30 | 9-11 | 1.2-1.3 | 92% | vortex |
CS-THG-DN40A | 1.5“ | 30 | 10-12 | 1.2-1.3 | 92% | vortex |
CS-THG-DN40B | 1.5“ | 35 | 12-15 | 1.2-1.3 | 92% | vortex |
CS-THG-DN25A | 1“ | 20 | 5-6 | 1.2 | 92% | vortex |
CS-THG-DN25B | 1“ | 25 | 6-8 | 1.2 | 92% | vortex |
CS-THG-DN25C | 1“ | 25 | 7-10 | 1.2 | 92% | vortex |
CS-THG-DN65 | 2.5“ | 50 | 25-30 | 1.6-1.7 | 92% | vortex |
CS-THG-DN50A | 2“ | 35 | 12-15 | 1.4-1.5 | 92% | vortex |
CS-THG-DN50B | 2“ | 45 | 15-16 | 1.5-1.6 | 92% | vortex |
CS-THG-DN10 | 3” | 14 | 2-3 | 1.1-1.2 | 92% | vortex |
CS-THG-DN80A | 3“ | 55~60 | 30-40 | 1.7-1.8 | 92% | vortex |
CS-THG-DN80B | 3“ | 60~65 | 40-50 | 1.7-1.8 | 92% | vortex |
CS-THG-DN15 | 4” | 16 | 2-3 | 1.1-1.2 | 92% | vortex |
CS-THG-DN100A | 4“ | 65~70 | 50-60 | 1.8 | 92% | vortex |
CS-THG-DN100B | 4“ | 70~75 | 60-80 | 1.8 | 92% | vortex |
CS-THG-DN20 | 6“ | 18 | 2-3 | 1.1-1.2 | 92% | vortex |
CS-THG-DN125 | 5“ | / | / | / | 92% | vortex |
CS-THG-DN150 | 6“ | / | / | / | 92% | vortex |
1. Design and performance: A thorough review of the design and performance of the unit should be conducted to ensure the unit is suitable for its intended purpose and meets the necessary performance requirements.
2. Pressure rating: The pressure rating of the unit should be tested to ensure it meets the required pressure ratings for its particular application.
3. Temperature rating: The temperature rating of the unit should be tested to ensure it meets the required temperature ratings for its particular application.
4. Flow rate: The flow rate of the unit should be tested to ensure it meets the required flow rate for its particular application. 5.Leakage: The leakage of the unit should be tested to ensure it meets the required leakage levels for its particular application.
6. Vibration: The vibration levels of the unit should be tested to ensure they meet the required vibration levels for its particular application.
7. Durability: The durability of the unit should be tested to ensure it meets the required durability standards for its particular application.
8. Maintenance: The maintenance requirements of the unit should be tested to ensure they meet the required maintenance requirements for its particular application.
9. Safety: The safety of the unit should be tested to ensure it meets the required safety standards for its particular application.
Customize Service
1.At OEM Vortex Nozzle, we specialize in customizing silicon carbide nozzles to the exact specifications of your application. Our Technials have the experience and expertise to design and manufacture a custom nozzle that meets your exact requirements.
2.We also offer a variety of standard sizes and configurations to meet most common requirements.
3.Our silicon carbide nozzles are designed to provide efficient cooling and extended service life.
4.We use a proprietary manufacturing process to ensure that each nozzle is built with an extremely tight tolerance for precise performance and reliable operation.
5.Our nozzles are also resistant to thermal shock and abrasion, providing superior strength and durability.
Nozzles Packing and Shippment
CS’s Silicon Carbide Products are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Why Choose US
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
