Silicon Carbide Tube SiC Nozzle
Silicon Carbide Sandblasting Burner Nozzle Silicon Carbide Sandblasting Burner Nozzle Silicon Carbide Sandblasting Burner Nozzle Silicon Carbide Sandblasting Burner Nozzle

Silicon Carbide Sandblasting Burner Nozzle

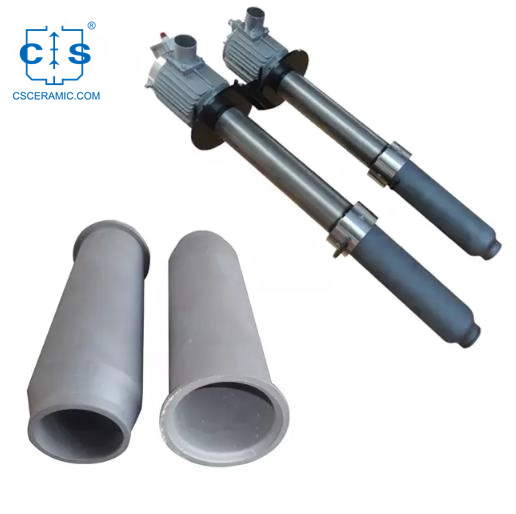

RBSIC SISIC refractory reaction bonded silicon carbide tube silicon carbide burner nozzle to match your existing kiln burners. Using Silicon carbide burner tubing as flame tubes for roller hearth kiln.
  • item no. :

    CS-THG-J20001
  • Color :

    Black
  • Port :

    Any ports of China
  • lead date :

    5-7 days
  • Material : Silicon Carbide

  • Purity : 98.5%

  • Shape : Tube

  • Original Country : China

  • description

Silicon Carbide Sandblasting Burner Nozzle


SiC Nozzle Features

1.High-temperature resistance: Silicon carbide is an excellent material for use in high-temperature applications, as it is able to withstand temperatures up to 2200°C.

2.Corrosion resistance: Silicon carbide is highly resistant to corrosion, even in acidic environments.

3. Wear resistance: Silicon carbide is extremely hard and durable, making it an ideal material for sandblasting nozzles.

4.Low thermal expansion: Silicon carbide has a low thermal expansion rate, which is important for applications that involve rapid changes in temperature.

5.High thermal conductivity: Silicon carbide has a high thermal conductivity, which helps to dissipate heat quickly and efficiently.

6. Low density: Silicon carbide has a low density, which helps to reduce the weight of the nozzle.

7. Low cost: Compared to other materials, silicon carbide is relatively inexpensive, making it a cost-effective solution for sandblasting nozzles.


Burner Nozzle Applications

1.Silicon Carbide sandblasting nozzles are ideal for use in a variety of industries including automotive, aerospace, medical, industrial, and many others.

2.They are highly effective at blasting away dirt, rust, and other contaminants from a variety of surfaces including metal, ceramic, and other materials.

3.They can also be used for surface preparation, such as cleaning and smoothing prior to painting or powder coating.

4.Silicon Carbide sandblasting nozzles are also ideal for cleaning and removing rust, paint, and other contaminants from metal and other surfaces.

5.They are also excellent for cleaning and removing metal deposits from surfaces prior to welding or other fabrication processes.

6.Additionally, they can be used for general cleaning, polishing, and smoothing of surfaces.



Silicon Carbide Nozzle's Properties

Item Unit SiC SSiC
Purity % ≥90 ≥98
Density G/cm3 3.05 3.1
Shore Hardness HS 110-125 120-130
Elastic Modulus MPa 4.12*105 4.10*10s
Poisson Ratio 0.15 0.16
Tensile Strength MPa 2.75*102 2.8*102
Bending Strength MPa 4.41*102 4.9*102
Compression Strength MPa 2.94*103 3.0*102
Thermal Conductivity W/m.k 141 147
Coefficient of Thermal Expansion I/℃ 4.3*10-6 4.0*10-6
Heat Resistance 1600C 165CTC
Tolerance Mm -0.02——+0.02 -0.02——+0.02
Acid Resistance

5 times higher than the usual TC

Resist all chemical media


Silicon Carbide Burner Nozzle's Specifications

Item Bottom Length along with edge(mm)
Bottom OD
(mm)
Bottom ID
(mm)
Top OD      (mm)
Top ID
(mm)
 Tupe Height
(mm)
Ttl Height (mm) Purity
CS-THG-J20001 30 18 12 24 18 75 100 98.5%
CS-THG-J20002 65 54 44 60 50 230 260 98.5%
CS-THG-J20003 90 74 66 80 72 250 280 98.5%
CS-THG-J20004 140 126 114 132 120 360 300 98.5%
CS-THG-J20005 157 140 124 147 131 280 310 98.5%
CS-THG-J20006 178 150 136 160 146 370 390 98.5%
CS-THG-J20007 204 175 159 184 168 410 460 98.5%
CS-THG-J20008 283 250 230 263 243 480 510 98.5%
CS-THG-J20009 350 308 288 320 300 510 550 98.5%
CS-THG-J20010 410 362 342 370 350 540 590 98.5%
CS-THG-J20011 500 450 430 460 440 530 600 98.5%


Burner Nozzle Test Standards

The performance testing of a silicon carbide sandblasting burner nozzle should include the following:

1. Pressure drop: This test measures the pressure drop across the nozzle as air is forced through it. This is important to ensure the nozzle is able to deliver the desired air pressure and flow rate.

2. Flow rate: This test measures the rate at which air is forced through the nozzle. This is important to ensure the nozzle is able to deliver the desired air pressure and flow rate.

3. Temperature: This test measures the temperature of the air coming out of the nozzle. This is important to ensure the nozzle is able to deliver the correct temperature for the sandblasting application.

4. Particle size: This test measures the size of the particles coming out of the nozzle. This is important to ensure the nozzle is able to deliver the correct particle size for the sandblasting application.

5. Durability: This test measures the durability of the nozzle. This is important to ensure the nozzle is able to withstand the wear and tear associated with sandblasting applications.



Silicon Carbide Tube's Packing & Shipping

CS’s Silicon Carbide Products are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.





SiC Nozzle's Use/Maintenance Methods

1. The amount of oil injection depends on the length of the injection time.According to the different control methods of the electromagnetic coil, the injector can be divided into voltage drive and current drive.The voltage pattern can also be divided into low resistance and high resistance.High resistors can be connected to 12V of electricity, while low resistors can only be connected to low voltages.The coil will burn if it is incorrectly connected to 12V for a long time.When the fuel is injected, the voltage provided by the computer is constant, such as 12V, and will immediately change to 0V when the oil is off.The change is instantaneous, like the concepts of 0 and 1 in computer language, without saying 0.5 in between;

2. In the same type of EFI vehicle, the pressure of the gasoline pump is constant.Regardless of the throttle opening, the pressure of the silicon carbide nozzle is always constant as long as it is regulated by the fuel pressure regulator.The silicon carbide nozzle is strictly matched to the fuel pump and fuel pressure regulator and has only the designed pressure.Can achieve the atomization effect of silicon carbide nozzle, the pressure is lower than the design pressure, the oil is not mist but column, not suitable for mixing with air;If the pressure is too high, the oil emitted is conical and difficult to mix, and the injection force is too large, a large amount of fuel is directly injected on the pipe wall, which directly affects the mixing ratio parameters.The pressure should be constant whether accelerating or idling, and different models have different pressures.3: When cleaning the silicon carbide nozzle, you can not damage the silicon carbide nozzle. For example, it is suggested that you can use a soft brush to clean the silicon carbide nozzle.



Why choose us

As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market .

1. Sufficient inventory (delivery within 1-3 days);

2, complete size (caliber 30-500mm height 100-600mm);

4. Long service life;

5, quality assurance (each nozzle nozzle has passed 100% strict inspection before leaving the factory);

6, quality commitment (quality problems we bear back and forth freight package return package);

7, preferential prices (production direct sales manufacturers, production enterprises, global direct sales);

8. Excellent service (customized according to customer's requirements);

9. Sincere attitude (professional and technical personnel analyze and solve various desulfurization and dust removal problems for customers).



FAQ

1.Q: What are the benefits of using a silicon carbide sandblasting burner nozzle?

A: Silicon carbide sandblasting burner nozzles offer many benefits, including improved surface finish, higher pressure, and better coverage. They are also more efficient than other types of nozzles, as they require less air to power and use less abrasive material. Additionally, they produce less dust and debris, which makes them safer to use.

2.Q: How do I properly maintain a silicon carbide sandblasting burner nozzle?

A: To ensure that your silicon carbide sandblasting burner nozzle continues to function properly, it is important to regularly inspect and clean it. This includes regularly inspecting the nozzle for wear and tear, and replacing any worn parts. Additionally, it is important to ensure that the nozzle is regularly cleaned to remove any built-up debris and to prevent any clogging.
