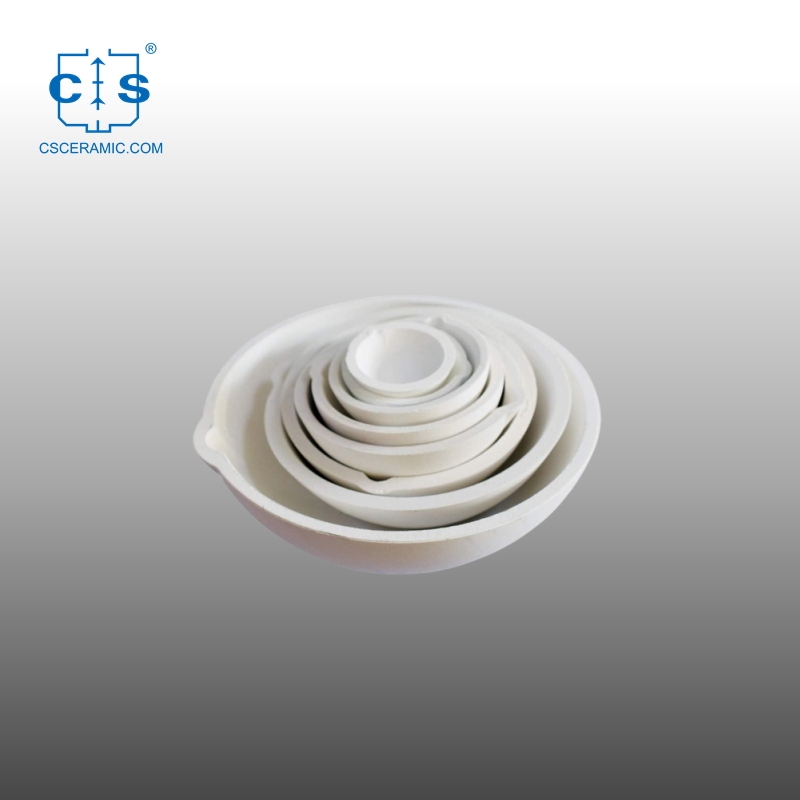

item no. :
CS-QC-B001Material : SiO₂ Quartz Ceramic
Purity Available : 98%-99.99%
Shape : Bowl
1. Quartz ceramic crucible bowls can withstand high temperatures and are suitable for high-temperature applications such as gold melting.
2. They have high wear and corrosion resistance.
3. Compared with other materials, they have lower costs and higher cost-effectiveness.
4. They have comparatively low thermal conductivity, allowing them to safely store molten metal at very high temperatures.
1. Quartz ceramic crucibles bowls are made from heat-resistant quartz ceramic and feature a wide base, these crucibles are ideal for holding and melting high-temperature materials without leaching chemicals or absorbing contamination.
2. Quartz ceramic crucibles bowls feature durable quartz ceramic construction, making them capable of holding a variety of substances for heating and melting processes.
3. For gold melting and other heating processes, quartz ceramic crucibles bowls are the perfect choice.
4. The quartz ceramic construction ensures maximum durability and a non-porous surface to prevent contamination or chemical leaching.

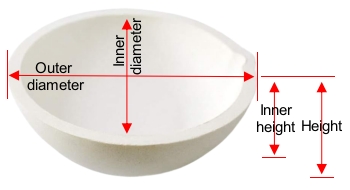

Item No. |
Outer diameter
(mm)
|
Inner diameter
(mm)
|
Inner height
(mm)
|
Height(mm) |
CS-QC-B001 | 57 | 45 | 16 | 23 |
CS-QC-B002 | 68 | 55 | 18 | 25 |
CS-QC-B003 | 79 | 70 | 25 | 35 |
CS-QC-B004 | 88 | 78 | 27 | 36 |
CS-QC-B005 | 98 | 90 | 28 | 38 |
CS-QC-B006 | 104 | 93 | 33 | 44 |
CS-QC-B007 | 119 | 105 | 40 | 49 |
CS-QC-B008 | 141 | 126 | 44 | 54 |
CS-QC-B009 | 170 | 151 | 51 | 63 |
CS-QC-B010 | 220 | 205 | 65 | 78 |
1. Quartz ceramic crucibles bowls are ideal tools for safely melting gold. The crucible bowls are highly heat-resistant, which allows them to withstand temperatures that would otherwise cause damage to other materials while containing the high temperature during the melting process.
2. They are often used in ceramic and sculpture arts. The quartz ceramic bowls are tough and heat-resistant enough to remain solid assembly temperatures which permit firing of clay sculpture. They are also resistant to chemical erosion and can be used with acidic and corrosive materials.
3. They are ideal for analyzing and retrieving the last few traces of rare elements in a sample. The bowls are heat-resistant enough to withstand temperatures necessary to accurately measure the amount of rare elements contained in the sample.
4. They are perfect for glass forming and gemstone made from silica or other materials. Since quartz ceramic bowls are able to withstand high temperatures, they are ideal for melting glass to create all sorts of shapes. The bowls can also be used in the formation of different gemstones.
Items | Specifications |
Max Operation Temperature(℃) | 1650 |
Volume Density(g/cm3) | ≥1.90 |
Apparent Porosity (%) | ≤15 |
Room Temperature Compressive Strength(MPa) | ≥50 |
Room Temperature Flexural Strength (MPa) | ≥20 |
Thermal Conductivity(W/m·k) (RT~1000℃) | 0.6~1.7 |
Thermal Expansion Coefficient(℃-1)(RT~1000℃) | ≤0.9×10-6 |
Crystallinity (vol%) | ≤1 |
Q1: What is a quartz ceramic crucible bowl?
A1: A quartz ceramic crucible bowl is a bowl-shaped container designed for holding high-temperature materials. It is made out of a mixture of quartz particles and a ceramic-based material to create a heat-resistant bowl.
Q2: How durable are quartz ceramic crucible bowls?
A2: Quartz ceramic crucible bowls are designed to be highly durable and chemically resistant. They can withstand temperatures up to 1650°C and typically have a long-lasting lifespan.
Q3: Are quartz ceramic crucibles bowls safe to use?
A3: Quartz ceramic crucibles bowls are generally deemed safe to use when installed and used properly, according to manufacturer’s instructions. Additionally, use of safety gloves and other protective equipment is recommended to protect users from burns, cuts, and other potential hazards associated with high-heat applications.
Q4: Are quartz ceramic crucibles bowls reusable?
A4: Yes, Quartz ceramic crucibles bowls are designed for longevity and can be reused multiple times. To retain its quality, it is important to handle and clean the crucible carefully and store after each use.
1. Before you clean the quartz ceramic crucible bowl, it is important to make sure that it has cooled completely.
2. Start by brushing off any excess debris with a dry, soft-bristled brush.
3. If the bowl is still dirty, you can use a few drops of mild soap to help loosen any grime and dirt.
4. Gently scrub the surface of the bowl with a soft-bristled brush, rinse the bowl with clean, warm water.
5. Allow the quartz ceramic crucible bowl to air dry.
1. Visually Inspect the Bowls: Inspect the bowls closely for any visible defects, such as cracks, chips, or dirt. Also check for uniformity of shape and size.
2. Measure the Dimensions: Use a ruler or caliper to measure the dimensions of the bowls. For accuracy, measure from multiple points around the circumference of the bowl and compare measurement points.
3. Assess Color Uniformity: Look at the color of the ceramic crucible bowl and compare it to any reference samples available. If there are any variations, test several bowls to check for uniformity.
4. Measure Uniformity of Density: Measure the specific gravity of the test sample and compare it to the standard. Take measurements from multiple points around the bowl and compare the density measurements.
