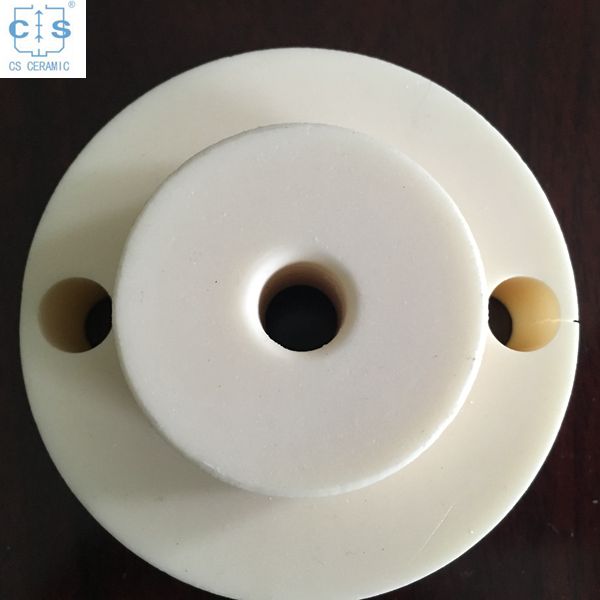

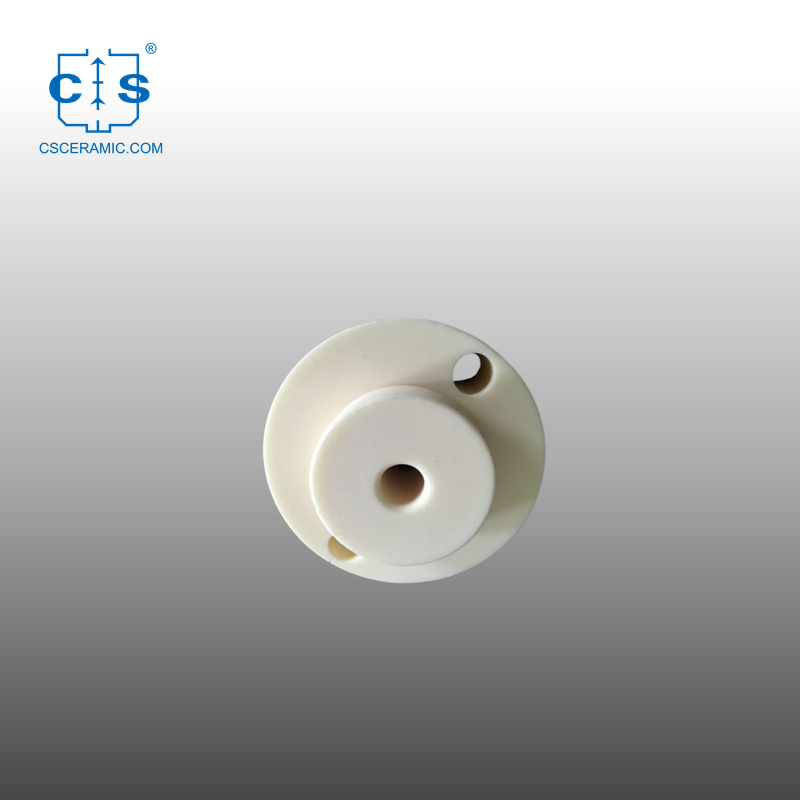

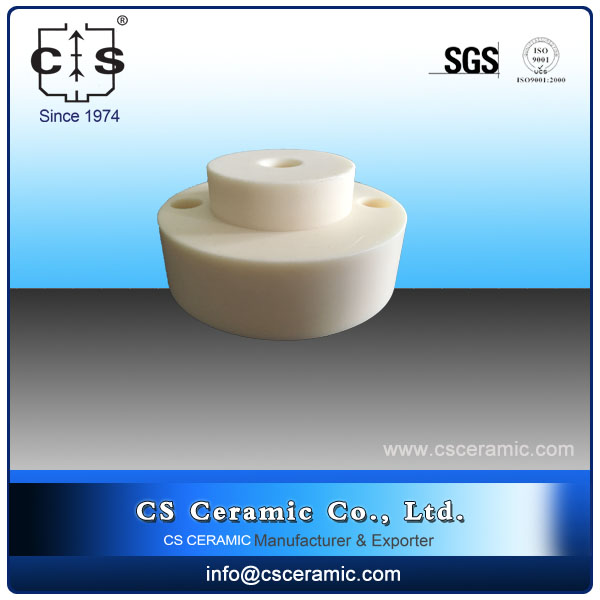

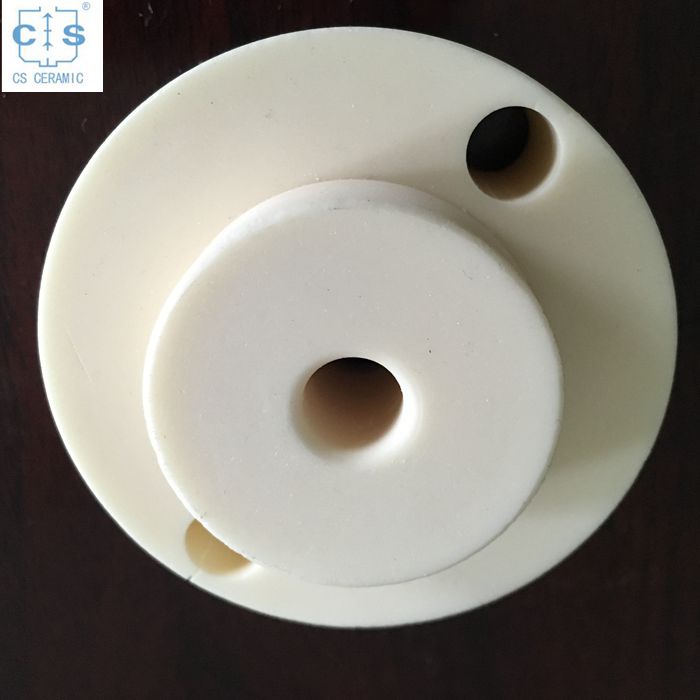

Alumina ceramic base is a type of ceramic material with high strength and hardness. It can be easily shaped and molded into various forms, including complex geometries and intricate designs.
item no. :
CS-A-42-10Color :
White90% 92% 95% 99.5% 99.7% 99%
Material : Alumina ceramic
Shape : OEM
Size : OEM
1. High Thermal Conductivity: Alumina ceramic base is an excellent thermal conductor and is suitable for high-temperature applications.
2. Wear Resistance: Highly resistant to wear and tear, making it ideal for use in areas of high abrasion.
3. Corrosion Resistance: Highly resistant to corrosion and is suitable for use in harsh chemical environments.
4. Electrical Insulation: Excellent electrical insulator and is used in electronic components, electrical substrates, and power distribution systems.
5. Dimensional Stability: High dimensional stability and maintains its shape and size even under extreme temperature changes.
6. High Strength: High compression strength, enabling it to withstand heavy loads and impacts.
1. Alumina ceramic base is a type of ceramic material with high strength and hardness.
2. It is composed of aluminum oxide, which gives it excellent thermal and electrical insulation properties.
3. The alumina ceramic base has a smooth surface finish, making it ideal for precise machining and grinding applications.
4. It can be easily shaped and molded into various forms, including complex geometries and intricate designs.
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
| Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
| Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
| Moisture absorption | % | 0 | 0 | 0 | ||
| Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
| Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
| Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
| Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
| Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
| Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
| Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
| Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
| Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
| Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
| Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
| Dielectric constant (100MHz) | (E) | 9.5 | ||||
1. High-temperature furnace linings: Alumina ceramic base it highly resistant to high temperatures, making it ideal for use in furnace linings that require extreme heat resistance,and it can be used in industries such as metallurgy, glass production, and chemical processing.
2. Ballistic armor plates: It is known for their exceptional hardness and strength, making it an excellent material for armor plates in military and law enforcement applications.
3. Electrical insulators: Excellent electrical insulation properties, making it ideal for use as insulators in electrical and electronic applications.
4. Medical implants: Used to produce medical implants such as hip joints, dental implants, and bone screws. Alumina ceramic base is biocompatible, which means it can be safely implanted into the human body without causing adverse reactions.
5. Cutting tools: It is extremely hard and can be used as cutting tools for machining and cutting applications, and can be used in industries such as aerospace, automotive, and manufacturing.
6. Wear-resistant coatings: Used to produce wear-resistant coatings for part that is subject to frequent wear and tear.
Q1. What information should we supply to get a quote?
Please offer the specification of alumina ceramic base, such as shape, dimension, quantity, application etc.
Q2. Are there any safety considerations when handling alumina ceramic base?
Alumina ceramic base is generally safe to handle. However,it can break or chip if mishandled, which can result in sharp edges that could cause injury. It is also essential to avoid inhaling dust or particles that may be generated during machining or handling of the material.
Q3. Can alumina ceramic base be recycled or reused?
Yes, alumina ceramic base can be recycled or reused in certain applications. Depending on the specific composition and application of the material, it may be possible to recycle it through a ceramics recycling program or to reuse it in a variety of industrial or engineering applications
Q4. What is the lead time for the alumina ceramic base?
The lead time is dependent on the size and quantity required. Please contact us for more infor.
1. First, wipe the alumina ceramic base with a damp cloth to remove dust and dirt.
2. Use a soft bristle brush and a mild detergent solution to scrub the alumina ceramic base.
3. Wash the alumina ceramic base with clean water, and then dry it with a soft cloth.
4. Ensure that the alumina ceramic base is dry when used next time.
1. Visual inspection of the alumina ceramic base for any signs of damage or irregularities.
2. Measurement the dimensions of the alumina ceramic base to check for accuracy.
3. Checking for any pinhole defects in the alumina ceramic base.
4. Verification of the material and chemical composition of the alumina ceramic base.
