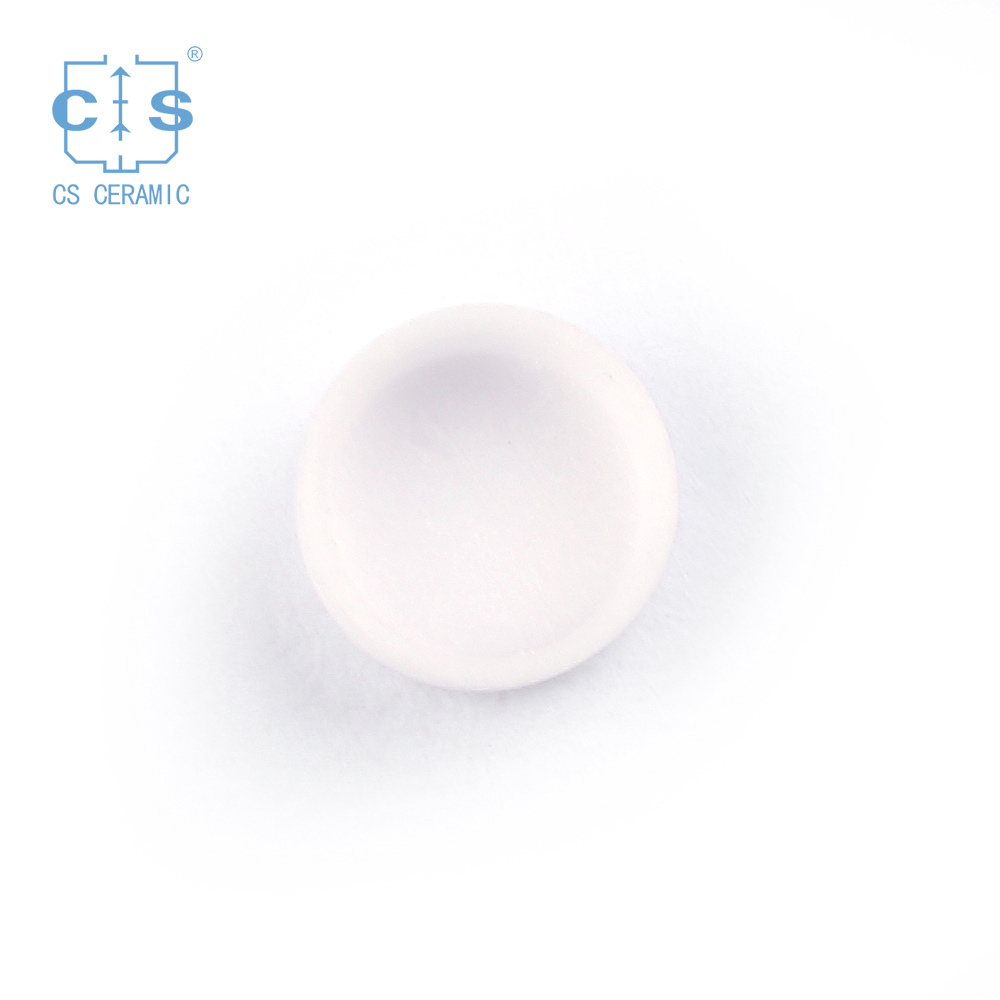

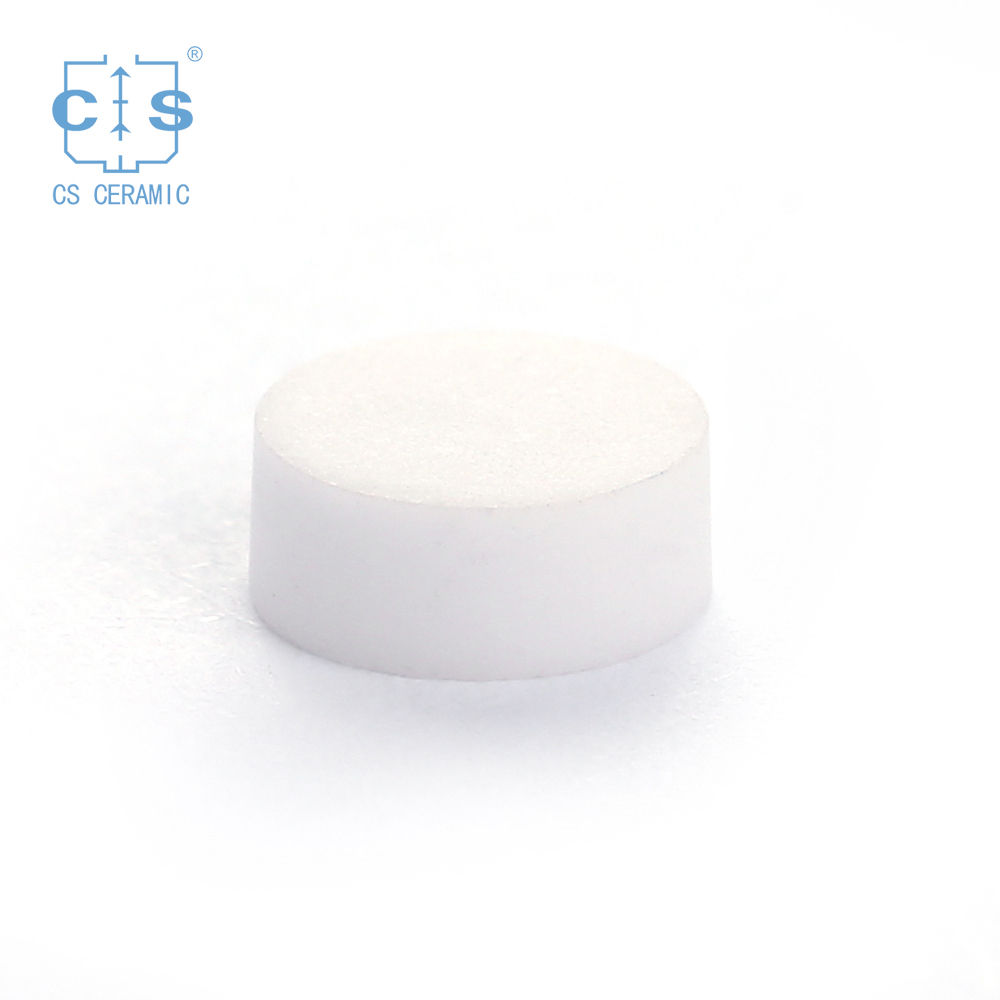

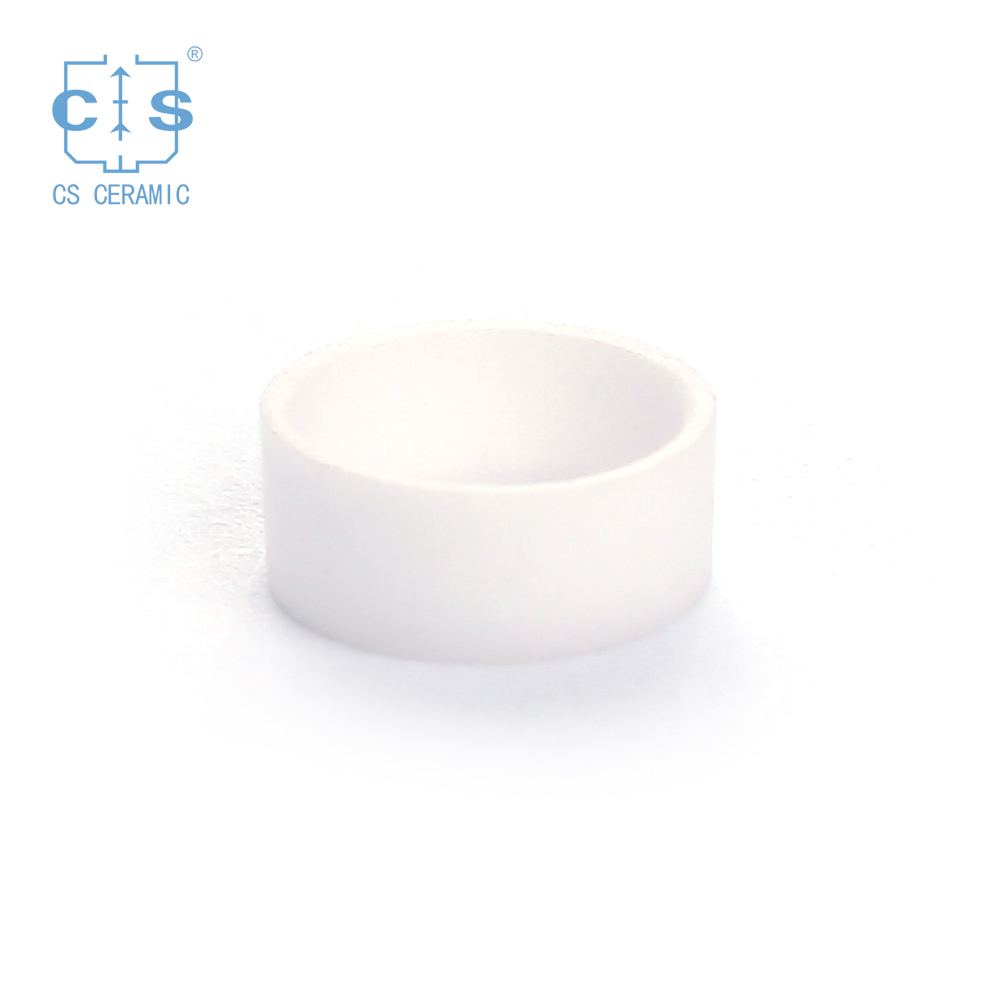

Shimadzu Alumina Cells Crucibles Sample Pans

Alumina cell/pan equivalent to Shimadzu 201-54321-01for DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments

Alumina cell/pan equivalent to Shimadzu 201-54321-01for DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments

Alumina crucibles cells for Shimadzu Shimadzu DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments. Manufacturer for Shimadzu crucibles and sample cups. Shimadzu Instruments good alternative DSC sample pans. Complete Shimadzu Consumables list.

item no. :
CS-DA-099-1
Suitable for : Shimadzu
Material : ceramic
Part NO : 201-54321-01

contact now catalogue

description

Product Item:Alumina cell/pan equivalent to Shimadzu 201-54321-01for DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments

Item info :

Type	Sample pan /crucible
Suitable for	Shimadzu DSC-60 series, DSC-60 plus series, TGA-50 series, TGA-51 series, DTG-60 series, and DTA-50 instruments
Part NO	Shimadzu 201-54321-01
Color	White
Lid	Without
Material	Alumina Ceramic
Temperature range	Room temperature to 1600℃
QTY/PKG	20PCS/BOX ; 100PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Usage :

Shimadzu Alumina (Aluminum oxide) sample pans are the crucibles that are normally used for DSC and TGA measurements.

Cleaning :

There sample pans (crucibles) can be reused. After mechanical cleaning ,store them in water, or possibly even in 10% hydrochloric acid, because salts are soluble in water. Oxides form chlorides in hydrochloric acid, which can then be removed by rinsing. After drying, heat the crucibles to red heat to ensure that no weight loss occurs when they are used.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
