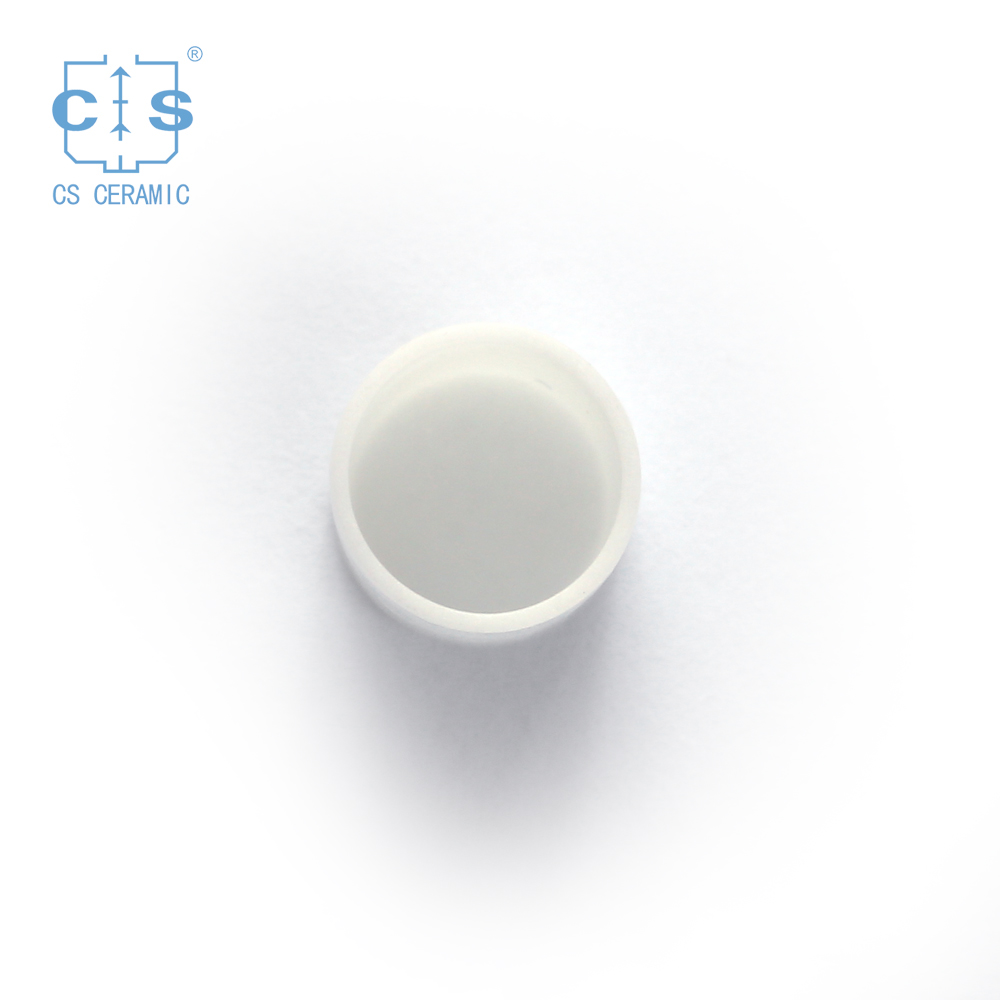

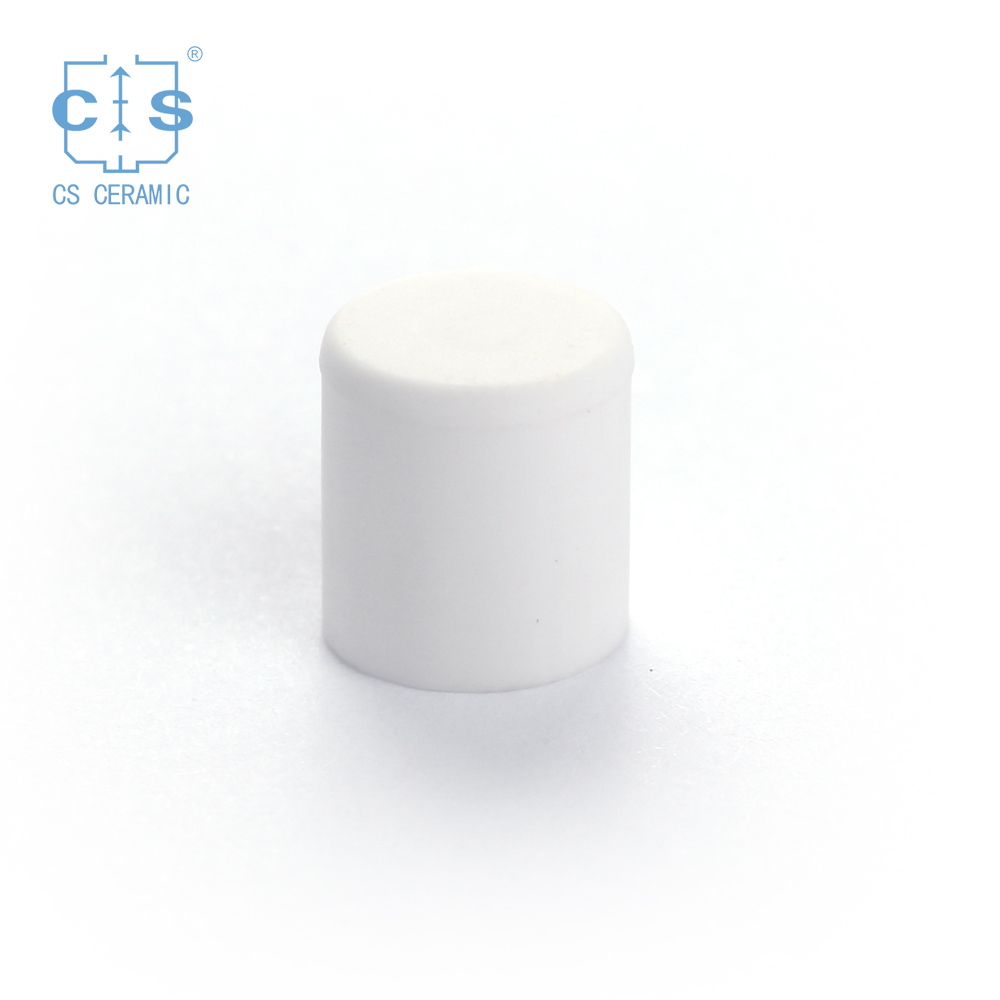

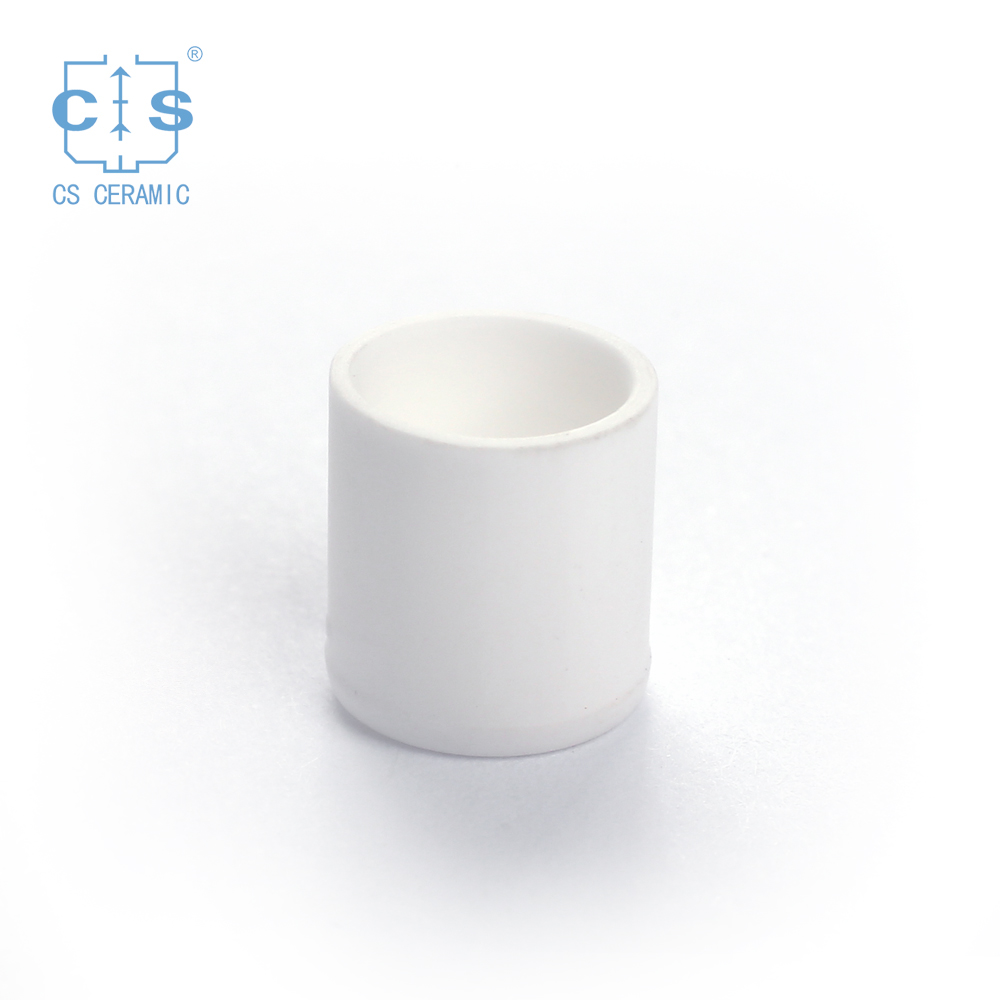

40μl Alumina Crucible with Lid for Netzsch

40μl Alumina Crucible with Lid for Netzsch

40μl Netzsch Alumina crucibles with lids for Netzsch. Manufacturer for Netzsch crucibles and sample cups. High quality alternative DSC sample pans/caps for Netzsch.

item no. :
CS-NA-090-5
Suitable for : Netzsch DSC
Material : ceramic
Part NO : /

contact now catalogue

description

Product Item: 40μl Alumina Crucible with Lid for Netzsch

Item info.

Type	Sample pan/crucible
Suitable for	Netzsch DSC instruments
Part NO	/
Material	Al2O3, 99.7%
Volume μL	40μL
Size	5.2 x 2.7 mm
Lid	With
Material	Alumina Ceramic
Temperature range	Room temperature to 1700℃
QTY/PKG	20PCS/BOX; 100PCS/BOX (Both available)
Brand	CSCERAMIC
Shipping	Express via DHL/EMS/FEDEX/ARAMEX
Shipping Time	3-15 days
Original	MADE IN CHINA

Usage:

Netzsch Alumina (Aluminum oxide) sample pans are the crucibles that are normally used for DSC and TGA measurements.

Cleaning:

There sample pans/crucibles can be reused. After mechanical cleaning, store them, if needed, in water (or possibly even in 10% hydrochloric acid) because salts are soluble in water. Oxides form chlorides in hydrochloric acid, which can then be removed by rinsing. After drying, heat the crucibles to red heat to ensure that no weight loss occurs when they are used.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
