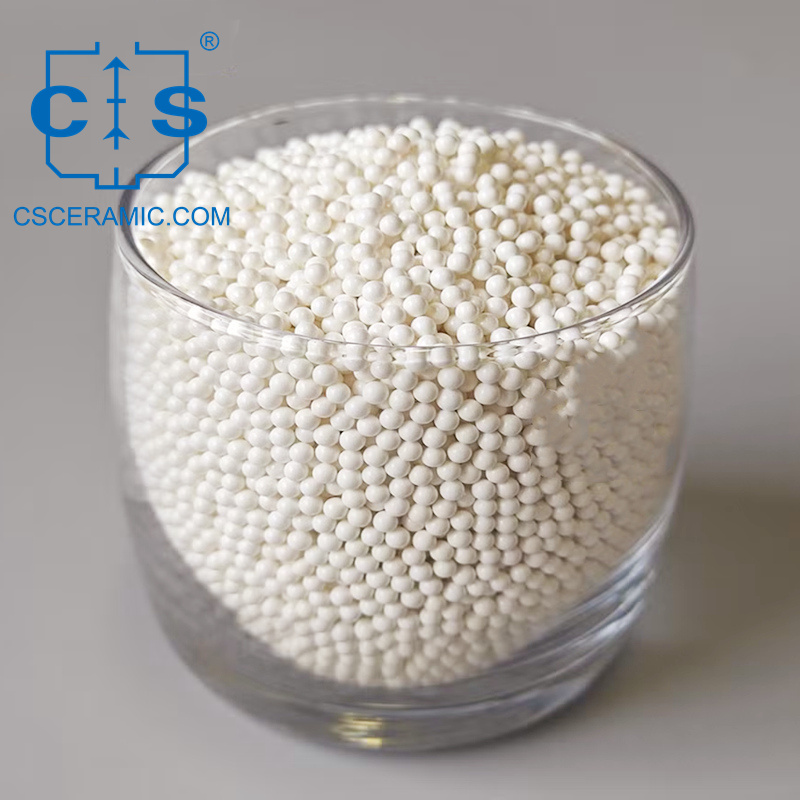

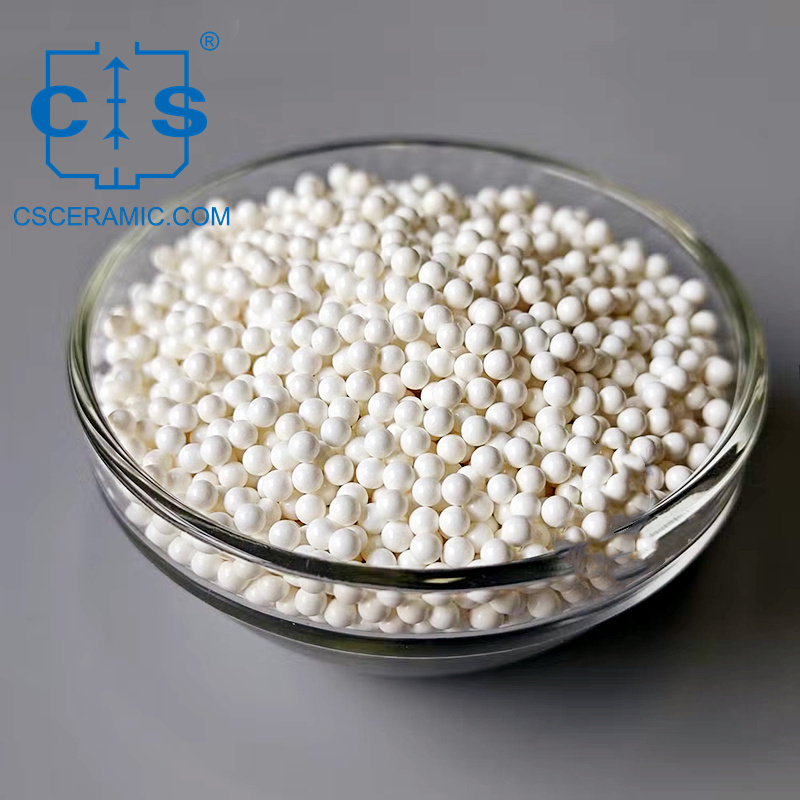

Zirconia Grinding Balls High Density Media Beads

zirconia grinding balls are ultra-wear-resistant, high-density ceramic beads ideal for fine grinding and dispersion of high-hardness materials. With high strength, hardness, and fracture toughness, they offer excellent temperature resistance, corrosion resistance, and non-magnetic conductivity.

  • item no. :

    CS-YHG-Q001

  • Material : ZrO2

contact now catalogue
  • description

Properties of Zirconia Milling Balls




  1. High Density & Efficiency: Provides large shearing force during grinding, enhancing efficiency. Wear-resistant, with a lifespan 8x longer than zirconium silicate beads and 50x that of glass beads.
  2. Corrosion Resistance: Resistant to acids, alkalis, and salts, suitable for diverse grinding materials. Smooth surface for easy cleaning.
  3. Mechanical Strength: High impact resistance, preventing breakage during high-speed operation.
  4. Non-toxic & Pollution-Free: Ideal for food, medicine, and zero-pollution applications.







Applications of Zirconium Oxide Grinding Media



Applications include ultra-fine grinding of dyes, coatings, electronic materials, lithium battery raw materials, and more. Our zirconia grinding balls ensure precise grinding and dispersion, making them a must-have for high-end grinding media needs.




Size Chart of Zirconia Grinding Media

Requirements for Custom Design
1. Device name or device model.
2. Feed size and discharge size of abrasive material (mesh)
3. Abrasive mode: wet grinding, dry grinding




Zirconia Milling Beads and Balls

Item No. Diameter (mm) ZrO2's Purity (%)
CS-YHG-Q001 0.1 95
CS-YHG-Q002 0.2 95
CS-YHG-Q003 0.3 95
CS-YHG-Q004 0.4 95
CS-YHG-Q005 0.6-0.8 95
CS-YHG-Q006 0.8-1.0 95
CS-YHG-Q007 1.0-1.2 95
CS-YHG-Q008 1.2-1.4 95
CS-YHG-Q009 1.4-1.6 95
CS-YHG-Q010 1.6-1.8 95
CS-YHG-Q011 1.8-2.0 95
CS-YHG-Q012 2.0-2.2 95
CS-YHG-Q013 2.2-2.4 95
CS-YHG-Q014 2.4-2.6 95
CS-YHG-Q015 2.6-2.8 95
CS-YHG-Q016 2.8-3.0 95
CS-YHG-Q017 3.0-3.2 95
CS-YHG-Q018 3.2-3.4 95
CS-YHG-Q019 4.0-4.3 95
CS-YHG-Q020 4.8-5.3 95
CS-YHG-Q021 5.8-6.3 95
CS-YHG-Q022 8 95
CS-YHG-Q023 10 95
CS-YHG-Q024 12 95
CS-YHG-Q025 15 95
CS-YHG-Q026 20 95
CS-YHG-Q027 0.4-0.6 95
CS-YHG-Q028 0.28-0.35 95
CS-YHG-Q029 0.22-0.28 95
CS-YHG-Q030 0.18-0.23 95
CS-YHG-Q031 0.12-0.18 95
CS-YHG-Q032 0.08-0.12 95
CS-YHG-Q033 5 95
CS-YHG-Q034 6 95
CS-YHG-Q035 7 95
CS-YHG-Q036 17 95
CS-YHG-Q037 25 95
CS-YHG-Q038 30 95
CS-YHG-Q039 40 95
CS-YHG-Q040 50 95

Zirconia Grinding Cylinder
Item No. Diameter (mm) Height (mm) ZrO2's Purity (%)
CS-YHG-Q041 7.5 7.5 95
CS-YHG-Q042 10 10 95
CS-YHG-Q043 12.7 12.7 95
CS-YHG-Q044 15 15 95

Zirconia Toughened Alumina ZTA Beads
Item No. Diameter (mm)
CS-NZC8-001 1.0-1.3
CS-NZC10-002 1.3-1.7
CS-NZC12-003 1.5-2.0
CS-NZC20-004 2.0-2.5
CS-NZC25-005 2.5-3.0
CS-NZC30-006 3.0-3.5
CS-NZC35-007 3.5-4.0
CS-NZC40-008 4.0-4.5
CS-NZC45-009 4.5-5.0



Cerin Stabilized Zirconium Dioxide Beads
Item No. Diameter (mm)
CS-NC3-001 0.3-0.4
CS-NC4-002 0.4-0.6
CS-NC6-003 0.6-0.8
CS-NC8-004 0.8-1.0
CS-NC9-005 0.9-1.1
CS-NC10-006 1.0-1.2
CS-NC1-007 1.1-1.3
CS-NC12-008 1.2-1.4
CS-NC14-009 1.4-1.6
CS-NC16-010 1.6-1.8
CS-NC18-011 1.8-2.0
CS-NC20-012 2.0-2.2
CS-NC22-013 2.2-2.5
CS-NC25-014 2.5-2.8
CS-NC28-015 2.8-3.2

Zirconium Silicate Beads
Item No. Diameter (mm)
AT-CZ4-001 0.4-0.6
AT-CZ6-002 0.6-0.8
AT-CZ8-003 0.8-1.0
AT-CZ10-004 1.0-1.2
AT-CZ12-005 1.2-1.4
AT-CZ14-006 1.4-1.6
AT-CZ16-007 1.6-1.8
AT-CZ18-008 1.8-2.0
AT-CZ20-009 2.0-2.2
AT-CZ22-010 2.2-2.5
AT-CZ25-011 2.5-2.8
AT-CZ28-012 2.8-3.2
AT-NZB3-013 3.5-4.0
AT-NZB4-014 4.0-5.0
AT-NZB5-015 5.0-6.0
AT-NZB6-016 6.0-7.0
AT-NZB7-017 7.0-9.0
AT-NZB9-018 9.0-10.0

ZrO2 and Y2O3 Composite Zirconia Beads
Item No. Diameter (mm)
CS-NH6-001 0.6-0.8
CS-NH8-002 0.8-1.0
CS-NH10-003 1.0-1.2
CS-NH12-004 1.2-1.4
CS-NH14-005 1.4-1.6
CS-NH16-006 1.6-1.8
CS-NH18-007 1.8-2.0
CS-NH22-008 2.2-2.5
CS-NH25-009 2.5-2.8
CS-NH28-010 2.8-3.2
CS-NHB3-011 3.0-5.0
CS-NHB5-012 5.0-7.0
CS-NHB7-013 7.0-9.0
CS-NHB9-014 9.0-12.0

ZrO2 and Y2O3 Composite Zirconia Beads
Item No. Diameter (mm)
CS-NAZ6-001 0.6-0.8
CS-NAZ8-002 0.8-1.0
CS-NAZ10-003 1.0-1.2
CS-NAZ12-004 1.2-1.4
CS-NAZ14-005 1.4-1.6
CS-NAZ16-006 1.6-1.8
CS-NAZ18-007 1.8-2.0
CS-NAZ20-008 2.0-2.2
CS-NAZ22-009 2.2-2.5
CS-NAZ25-010 2.5-2.8
CS-NAZ28-011 2.8-3.2
CS-NAZ32-012 3.2-3.5


Tags : zirconia beads ceramic bead zirconia balls zirconia cylinder grinding media zirconia grinding cylinder
