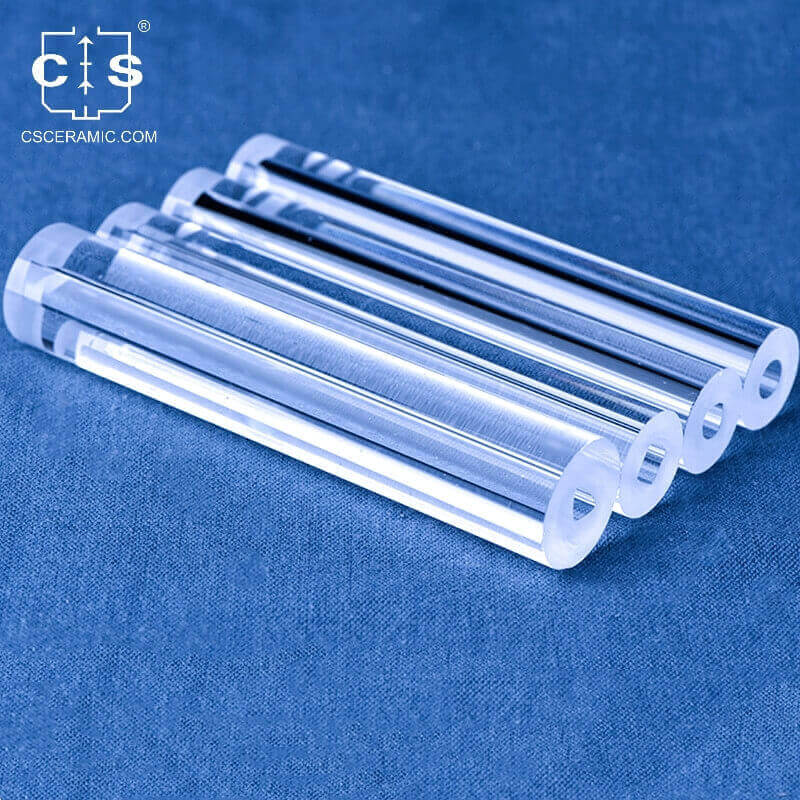

Read Moreitem no. :
CS-QTZ-G2001Color :
TransparentMaterial : Quartz glass
Purity Available : 99.98%
Shape : Both open
1. Enhanced light transmission: Quartz glass tubes are known for their outstanding light transmission properties.
2. Improved heat resistance: They are highly resistant to heat and can withstand high temperatures without getting damaged.
3. Versatile applications: They are versatile in use, making them ideal for a wide range of applications such as furnace tubes, UV sterilization lamps, and laboratory glassware.
4. Superior chemical resistance: Quartz glass is highly resistant to chemical attacks from acids, alkalis, and organic solvents, which makes it ideal for use in chemical laboratories and industrial settings.
5. Low thermal expansion: Quartz glass has a low coefficient of thermal expansion, which means it does not expand or contract much when exposed to temperature changes. This property makes it ideal for use in applications that require high accuracy, such as scientific instruments and metrology equipment.
6. High durability: They have a high degree of durability, which means they can withstand harsh environmental conditions and wear and tear without getting damaged easily.
7. Easy to clean and maintain: They are easy to clean and maintain, suitable for use in applications that require frequent cleaning, such as laboratory glassware and medical equipment.
1. Quartz glass tubes are transparent cylindrical vessels made from high purity quartz material.
2. Due to excellent optical properties, quartz glass tubes are also used in lighting technology applications. They are used to create various types of lamps.
3. In addition to their physical properties, they are also highly durable and resistant to mechanical stress.
4. They are easy to clean and maintain, making them a popular choice for use in cleanroom environments.

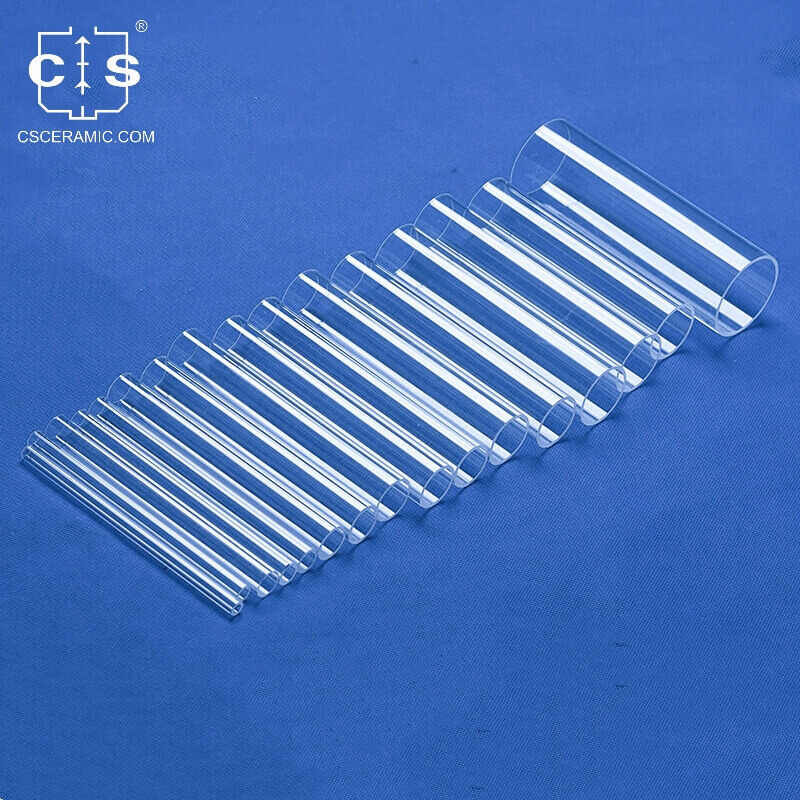

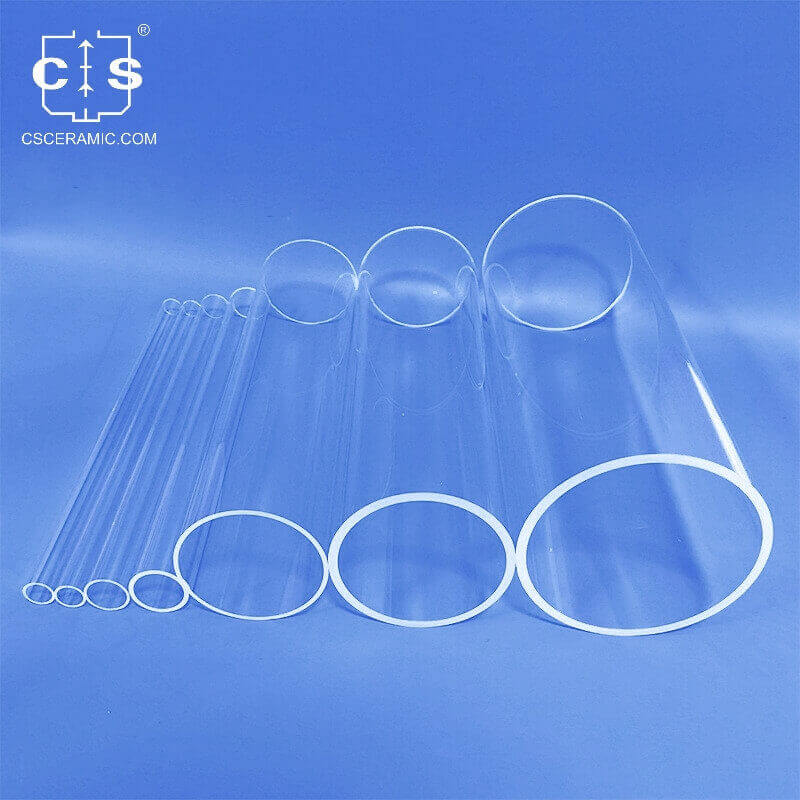

Quartz glass tubes with both ends open | |||||||||
Item NO. |
Outer
diameter
(mm)
|
Length
(mm)
|
Wall
thickness
(mm)
|
Purity | Item NO. |
Outer
diameter
(mm)
|
Length
(mm)
|
Wall
thickness
(mm)
|
Purity |
CS-QTZ-G2001 | 0.8 | 20-2000 | 0.3 | 99.98% | CS-QTZ-G2020 | 50 | 700 | 3 | 99.98% |
CS-QTZ-G2002 | 1.5 | 20-2000 | 0.5 | 99.98% | CS-QTZ-G2021 | 50 | 800 | 3 | 99.98% |
CS-QTZ-G2003 | 2.4 | 20-2000 | 0.4 | 99.98% | CS-QTZ-G2022 | 50 | 1000 | 3 | 99.98% |
CS-QTZ-G2004 | 3 | 20-2000 | 0.8 | 99.98% | CS-QTZ-G2023 | 50 | 600 | 4 | 99.98% |
CS-QTZ-G2005 | 3 | 20-2000 | 0.09 | 99.98% | CS-QTZ-G2024 | 50 | 1000 | 4 | 99.98% |
CS-QTZ-G2006 | 3.6 | 20-2000 | 0.6 | 99.98% | CS-QTZ-G2025 | 60 | 800 | 3 | 99.98% |
CS-QTZ-G2007 | 3.65 | 20-2000 | 0.65 | 99.98% | CS-QTZ-G2026 | 60 | 1000 | 3 | 99.98% |
CS-QTZ-G2008 | 4.35 | 20-2000 | 1 | 99.98% | CS-QTZ-G2027 | 60 | 1400 | 3 | 99.98% |
CS-QTZ-G2009 | 6 | 20-2000 | 1 | 99.98% | CS-QTZ-G2028 | 60 | 1000 | 4 | 99.98% |
CS-QTZ-G2010 | 10 | 20-2000 | 2.2 | 99.98% | CS-QTZ-G2029 | 60 | 1000 | 5 | 99.98% |
CS-QTZ-G2011 | 15 | 20-2000 | 5 | 99.98% | CS-QTZ-G2030 | 80 | 1000 | 3 | 99.98% |
CS-QTZ-G2012 | 20 | 20-2000 | 8 | 99.98% | CS-QTZ-G2031 | 80 | 1200 | 3 | 99.98% |
CS-QTZ-G2013 | 27 | 20-2000 | 6 | 99.98% | CS-QTZ-G2032 | 80 | 1000 | 4 | 99.98% |
CS-QTZ-G2014 | 32 | 20-2000 | 4 | 99.98% | CS-QTZ-G2033 | 80 | 1000 | 5 | 99.98% |
CS-QTZ-G2015 | 40 | 800 | 3 | 99.98% | CS-QTZ-G2034 | 100 | 1000 | 3 | 99.98% |
CS-QTZ-G2016 | 40 | 1000 | 3 | 99.98% | CS-QTZ-G2035 | 100 | 1200 | 3 | 99.98% |
CS-QTZ-G2017 | 50 | 450 | 3 | 99.98% | CS-QTZ-G2036 | 100 | 1000 | 4 | 99.98% |
CS-QTZ-G2018 | 50 | 500 | 3 | 99.98% | CS-QTZ-G2037 | 100 | 1000 | 5 | 99.98% |
CS-QTZ-G2019 | 50 | 600 | 3 | 99.98% | CS-QTZ-G2038 | 1.5-450 | 20-2000 | 0.09-10 | 99.98% |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Chemical composition: | SiO2 99.98% |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732℃ |
Working temperature: | 1100℃ |
Max temperature can reach in a short time: | 1450℃ |
Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
Visible light transmittance: | above 93% |
UV spectral region transmittance: | 80% |
Resistance value: | 10000 times than ordinary glass |
Annealing point: | 1215℃ |
Softening point: | 1730℃ |
1. Laboratory equipmen: Quartz glass tubes with both ends open can be used as equipment for laboratory experiments, especially those that require high temperatures and pressure. They are ideal for heating or cooling samples, as they can withstand extreme temperature changes without breaking.
2. Industrial heating: They can be used in industrial heating applications.
3. Lighting: They can be used in lighting fixtures, including halogen lamps, incandescent lamps, and high-intensity discharge lamps. The tube provides a protective environment for the filament or arc, allowing it to burn brighter and last longer.
4. Medical applications: They can be used in medical applications, such as in surgical instruments, analytical instruments, and diagnostics.
5. Semiconductor industry: Used in the semiconductor industry to provide a controlled environment for the growth and processing of semiconductors. They protect the semiconductor from contamination and provide a high-purity environment.
6. Chemical processing: Used in chemical processing to transport and contain high-purity chemicals.
7. Environmental monitoring: They can be used in environmental monitoring applications, such as gas analysis and air sampling. They are transparent and inert, allowing for accurate measurements of gaseous pollutants and other environmental contaminants.
8. Aerospace industry: Quartz glass tubes with both ends open can be used in the aerospace industry for high-temperature applications such as rocket engines and missile guidance systems.
Q1. What information should we supply to get a quote?
Please offer the specification of quartz glass tube, such as shape, dimension, quantity, application etc.

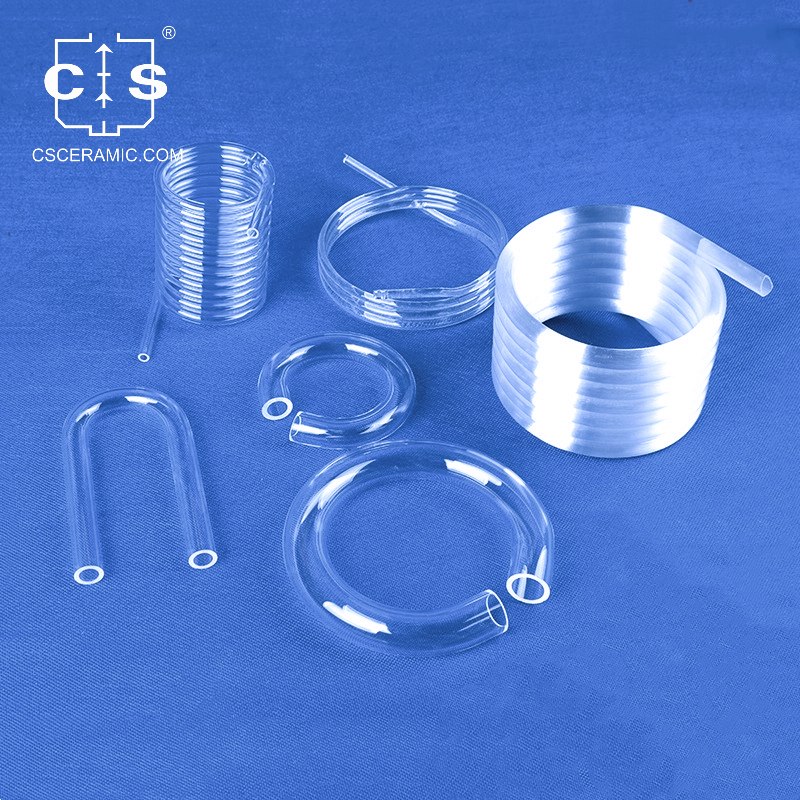

Q2. Can quartz glass tubes be customized?
Yes, quartz glass tubes can be customized to meet specific application requirements, including size, shape, thickness, and optical properties.
Q3. Are quartz glass tubes easy to clean?
Yes, quartz glass tubes are easy to clean, and can withstand most cleaning agents, making them ideal for use in industries where hygiene is crucial, such as food and beverage processing.
Q4. What is the difference between quartz glass tubes and borosilicate glass tubes?
Quartz glass tubes have higher purity, higher temperature resistance, and better optical properties compared to borosilicate glass tubes, which are more affordable and have better mechanical strength.
Q5. What is the lead time for quartz glass tube orders?
The lead time for quartz glass tube orders may vary depending on the size, quantity, and customization requirements, but can typically range from a few days to several weeks.
1. Rinse the tubes with warm water to remove any loose debris.
2. Soak the tubes in a solution of equal parts water and vinegar for 30 minutes to break down any mineral buildup.
3. After soaking, rinse the tubes thoroughly with distilled water to remove any remaining vinegar solution.
4. Wipe the tubes dry using a lint-free cloth, making sure not to scratch the surface.
5. For stubborn stains or buildup, use a specialized quartz glass cleaner and a soft-bristled brush to gently scrub the affected areas.
6. Rinse the tubes again with distilled water to remove any remaining cleaning agent.
7. Finish by air-drying the tubes or drying them with a clean, dry cloth.
1. Make sure that there are no smudges or fingerprints on the tube as they can hide any defects.
2. Inspect the tube for any bubbles,cracks or imperfections within the quartz material. These can weaken the structural integrity of the tube and make it more prone to cracking or breaking.
3. Measurement of the length, width, and thickness of the tube to check for accuracy.
4. If you notice any discoloration on the tube, it could indicate impurities in the quartz material. This can weaken the tube and reduce its durability.
5. Hold the tube against a light source and inspect it for transparency. Transparent quartz glass should allow light to pass through it easily with little to no distortion.
6. Verification of the material and chemical composition of the tube.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
