UV Quartz Cuvettes
UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance

UV Quartz Cuvettes for Spectrophotometry Exceptional 200nm-2500nm Transmittance

CSCERAMIC's Quartz Spectrophotometer Cells exhibit exceptional transmittance from 200nm to 2500nm and robust chemical resistance, perfect for accurate absorption & fluorescence spectroscopic measurements.
  • item no. :

    CS-BSM-001
  • Material : Quartz glass

  • description

Properties of UV Quartz Cuvettes


  1. Exceptional Transmittance:
    Our High-Quality UV Quartz Cuvettes for Spectrophotometry exhibit unmatched transmittance across the full spectrum range, from ultraviolet to near-infrared (200nm-2500nm). This ensures highly accurate measurements for both absorption and fluorescence spectroscopy, making them ideal for demanding scientific and research applications.

  2. Chemical Resistance:
    Built with robust chemical inertness, our cuvettes are resistant to a wide range of common solvents and chemicals. This eliminates the risk of test tube degradation, ensuring the reproducibility and reliability of your experimental results.

  3. Versatile Design Options:
    To cater to diverse experimental needs, we offer two styles of cuvettes: double-sided transparent and four-sided transparent. The double-sided design is perfect for absorption spectrum measurements, while the four-sided transparent cuvettes are ideal for fluorescence spectrum analysis. With these options, you can tailor your cuvette selection to the specific requirements of your research or application.




Applications of UV Quartz Cuvettes


  1. Spectral Analysis:
    CSCERAMIC's Quartz Spectrophotometer Cells are ideal for conducting reliable and accurate fluorescence and absorbance research in the ultraviolet, visible, and near-infrared regions. They ensure precise spectral analysis, making them an indispensable tool for scientists and researchers in various fields.

  2. Materials Research:
    In materials science, our cuvettes are widely used to evaluate the optical properties of different materials over a broad spectral range. This allows researchers to gain valuable insights into the material's behavior and performance, guiding the development of new and improved materials.

  3. Environmental Monitoring:
    CSCERAMIC's cuvettes play a crucial role in environmental monitoring by enabling scientists to analyze the chemical composition of environmental samples. They are essential for monitoring water quality, air quality, and other critical environmental parameters, helping to protect our planet and ensure the health and safety of communities.

  4. Biomedical Applications:
    In the biomedical field, our cuvettes are used for accurate measurement of the optical properties of biological samples in drug development and biomolecular analysis. They provide critical data that supports research and development efforts, ultimately contributing to advancements in healthcare and medical treatments.

  5. Quality Control in Industrial Production:
    CSCERAMIC's cuvettes are also indispensable in industrial production for monitoring the consistency of product batches. They ensure that product quality meets stringent standards, enhancing consumer satisfaction and maintaining the reputation of manufacturers.



Size Chart of UV Quartz Cuvettes

Please provide drawing and parameter requirements for customization.


Item no. Description Capacity Path Length LxWxH Wavelength Range

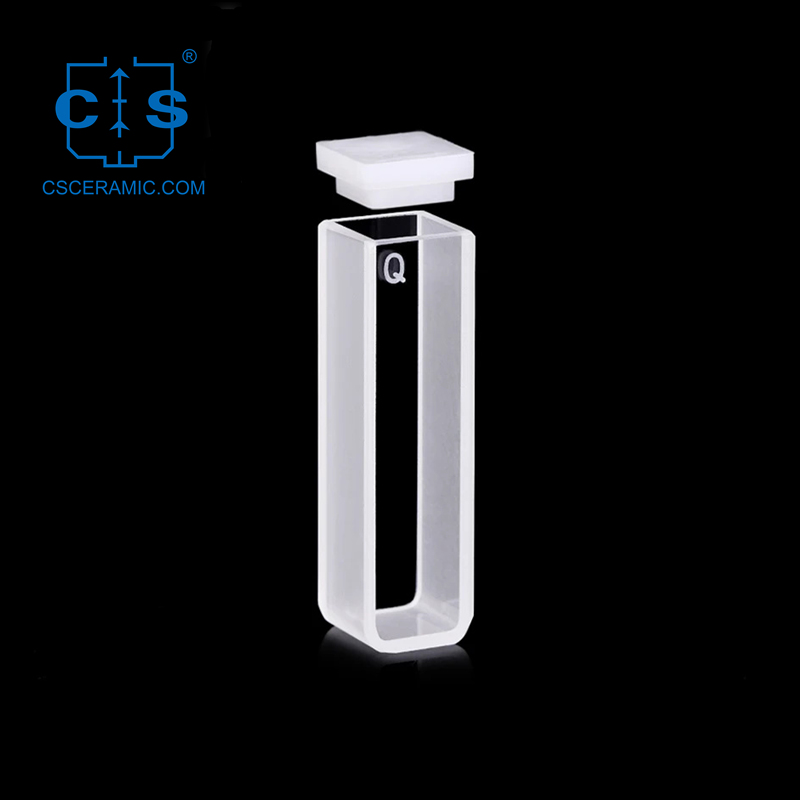

CS-BSM-001 1pcs Quartz cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x55mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-002 40mm Quartz cuvette cell (large area photopermeability) 14ml 10mm 12.5x42.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-003 30mm Quartz cuvette cell (large area photopermeability) 10.5ml 10mm 12.5x32.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-004 2 PCS quartz cuvette cells with lid 50mm pCSh length JGS1 for spectrophotometer lab 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range

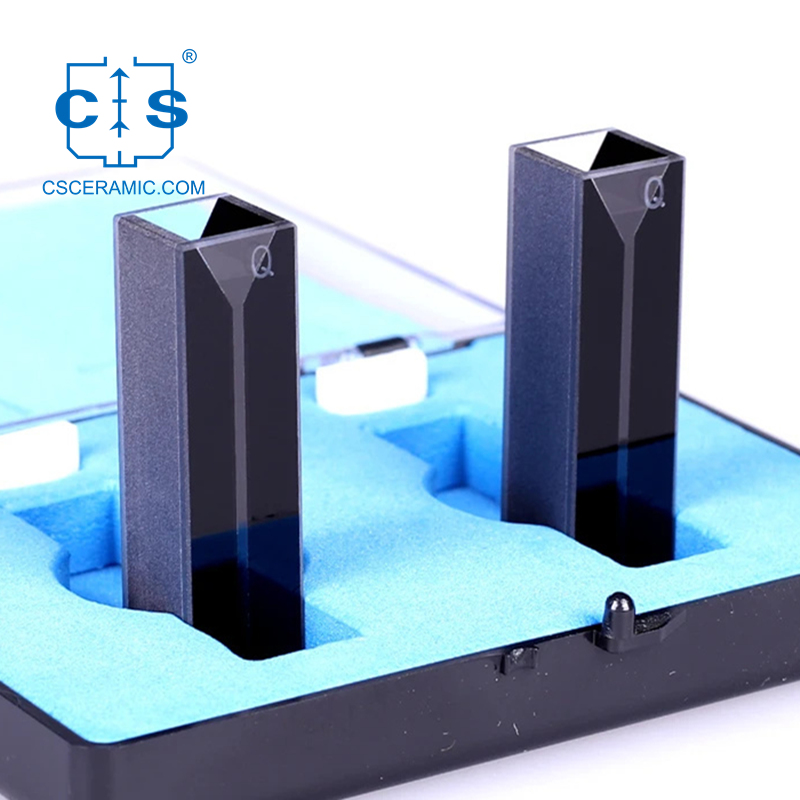

CS-BSM-005 2PCS 1ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 3mm Inside Width 1.05ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-006 quartz cuvette with lid(100mm) 35ml 100mm 12.5x102.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-007 50mm Quartz cuvette cell (large area photopermeability) 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-008 1pcs quartz cuvette with lid(50mm)/quartz cell 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-009 Micro quartz cuvette with lid(560ul) 560ul 4mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-010 2pcs Standard quartz cuvette with lid corrosion resisting 10mm pcsh length without glue 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm


Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-011 1PCS Standard quartz cuvette(0.5mm)/quartz cell/Spectrophotometers No mCSching lid 170ul 0.5mm 12.5x3x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range

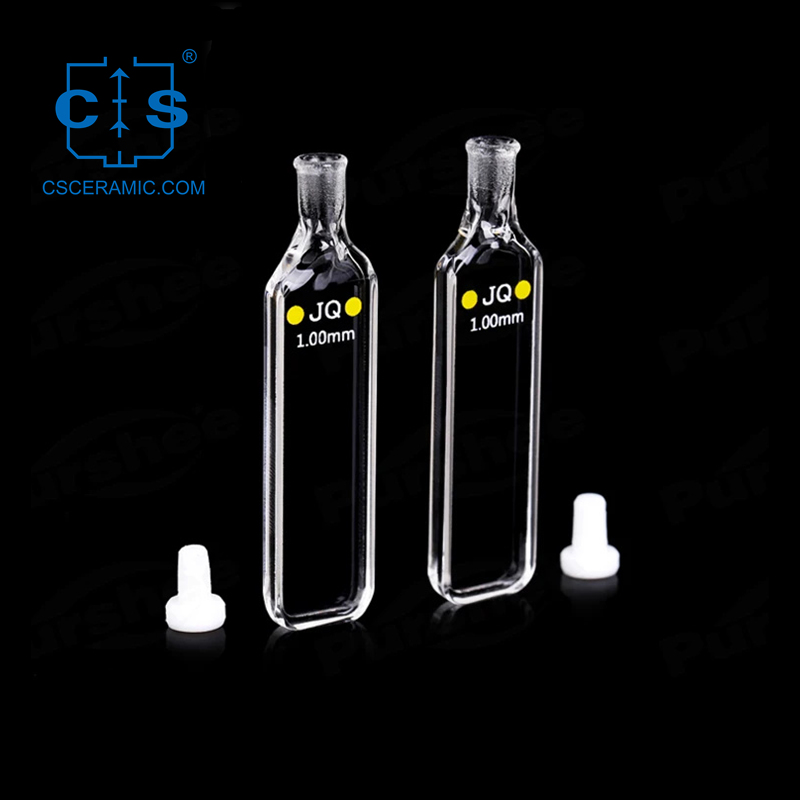

CS-BSM-011-1 1mm quartz fluorescent colorimetric dish 350ul 1mm / 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range

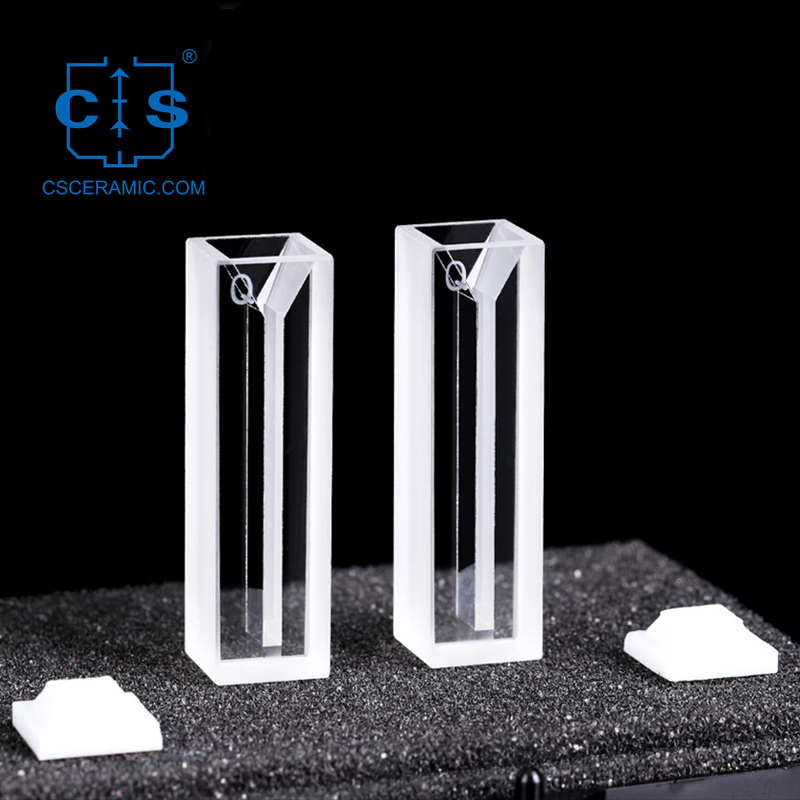

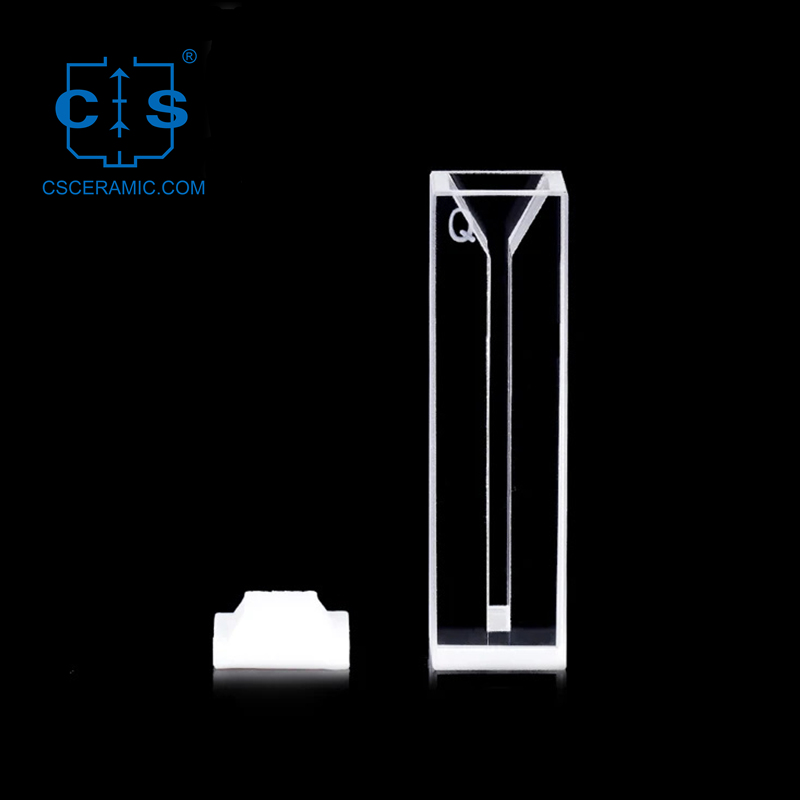

CS-BSM-012 1pcs Micro quartz cuvette with lid(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-013 2PCS 350ul Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 1mm Inside Width 0.35ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description CapacityPat h Length LxWxH Wavelength Range
CS-BSM-014 1pcs Micro quartz cuvette with lid(350ul) 350ul 10mm 12.5*12.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-015 2 PCS quartz cuvette cells with lid 10mm path length JGS1 for spectrophotometer lab 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-016 1pcs Micro quartz cuvette with lid(1050ul) 1050ul 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-017 1pcs quartz cuvette with lid(2mm)/quartz cell/Spectrophotometers no glue 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-018 1pcs Micro quartz cuvette with lid(1400ul) 1400ul 10mm 12.5*12.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-019 Standard quartz cell with lid and round bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-020 Quartz flow cell/six-way light colorimetric dish 125ml 50mm 54x54x54mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-021 1PCS 350ul Quartz fluorescence cuvette cell with PTFE stopper(1mm) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm

Item no. Description CapacityPat h Length LxWxH Wavelength Range
CS-BSM-022 0.5mm path length Optical UV flow quartz cuvette cell with two tubes 1pcs 150ul 0.5mm 12.5x3x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-023 1PCS 700ul Quartz fluorescence cuvette cell with PTFE stopper(2mm) 700ul 2mm 12.5x4.5x45mm 200nm-2500nm

Item no. Description CapacityPat h Length LxWxH Wavelength Range
CS-BSM-024 Quartz cuvette cell with screw cap(40mm) 14ml 40mm 12.5x42.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-025 1pcs 70ul Quartz quartz cuvette (path length 0.2mm) 70ul 0.2mm 12.5x2.7x45 mm 200nm-2500nm

Item no. Description CapacityPat h Length LxWxH Wavelength Range
CS-BSM-026 Quartz cuvette cell with screw cap(1mm) 0.35ml 1mm 12.5x3.5x55mm 200nm-2500nm

Item no. Description CapacityPat h Length LxWxH Wavelength Range
CS-BSM-027 Quartz cuvette cell with screw cap(2mm) 700ul 2mm 12.5*4.5*55mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-028 Quartz cuvette cell with PTFE stopper(350ul) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-029 3.5ml Malvern quartz cuvette (10mm) 350ul 10mm 12x12x45 mm 190nm-2500nm

Item no. Description Clear Windows Path Length LxWxH Wavelength Range
CS-BSM-030 Quartz cuvette(Can be customized)Custom-made specificCSions 2 2mm/0.5mm 35x5x42mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-031 1pcs Quartz cuvette cell with screw cap(2mm) 700ul 2mm 12.5x4.5x55mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
at-BSM-032 Quartz cuvette cell with PTFE stopper(700ul) 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-033 2 PCS quartz cuvette cells with lid 100mm pCSh length JGS1 for spectrophotometer lab 35ml 100mm 12.5x102.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-034 14.5ml Quartz Reflectance Cuvette Cell φ16mm 14.5ml 16mm 16x100mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-035 10mm Quartz band tube cuvette cell 3.5ml 10mm 12.5x12.5x45x95mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-035-1 10mm quartz cuvette (400ul) 400ul / 12*12*58*138mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-036 Quartz cuvette(special requirement) 7ml 5mm 45x7x45mm 200nm-2500nm


Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-037 Micro quartz fluorescence cuvette with lid(50-200ul) 50ul/100ul/200ul 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-038 16ml Chromatic Aberration Cuvette(10mm) 16ml 10mm 32x14x62.5mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-039 1PCS quartz cuvette (80mm) 28ml 80mm 12.5x82.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-040 20mm Quartz Cuvette Cell (large area photopermeability) 7ml 10mm 12.5x22.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-041 Quartz cuvette for measuring reflected light(64mm) 85ml 64mm 64x38mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-042 Micro quartz cuvette cell with stopper(700ul) 700ul 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-043 Quartz cuvette(special requirement) 250ul 5mm 7x7x15mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-044 1PCS quartz cuvette (60mm) 21ml 60mm 12.5x62.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-045 Standard quartz cell with lid and leve bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-046 40ml quartz reflection  cuvette φ35mm 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-047 100ul Protein determination cuvette cell 100ul 10mm 12.5x12.5x25mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-048 20ml Quartz Reflectance Cuvette φ44mm 20ml / φ44x20mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-049 2PCS 1.4ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 4mm Inside Width 1.4ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-050 2PCS 1.75ml Micro JGS1 Quartz Cuvette Cell With Black Walls And Lid 5mm Inside Width 1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-051 16ml Quartz reflectance cuvette cell φ29mm 16ml / φ29x38mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-052 2 PCS quartz cuvette cells with lid 20mm pCSh length JGS1 for spectrophotometer lab 7ml 20mm 12.5x22.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-053 Micro quartz cuvette(Can be customized) 100ul 10mm 12.5x12.5x8mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-054 Quartz cuvette for measuring reflected light(250ul) 250ul / φ7x15mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-055 Quartz cuvette for measuring reflected light(15mm) 4.5ml 15mm φ15x35mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-055-1 Quartz cuvette for measuring reflected light(3ml) 3ml / φ15x35mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-055-2 Quartz cuvette for measuring reflected light(0.7ml) 0.7ml / φ17*5mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-055-3 Quartz cuvette for measuring reflected light(customization) customizCSion / φ12*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-055-4 Quartz cuvette for measuring reflected light(φ30mm) 14ml / φ30*30mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-056 Standard quartz cell with lid and leve bottom(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-057 10mm Quartz Scale Cuvette Cell 3.5ml Customization 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-058 1pcs quartz cuvette with lid/quartz cell 350ul 1mm 12.5*3.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-059 2 PCS quartz cuvette cells with lid 5mm pCSh length JGS1 for spectrophotometer lab 1.75ml 5mm 12.5x7.5x45 mm 200nm-2500nm

Item no. Description Clear Windows Path Length LxWxH Wavelength Range
CS-BSM-060 Quartz cuvette(special requirement) 2 10mm 12.5x12.5x44mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-061 Standard quartz cuvette with lid/721 4ml 10mm 13.5x14.5x43mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-062 1pcs quartz cuvette with lid(3mm)/quartz cell 1.05ml 3mm 12.5*5.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-063 1pcs quartz cuvette with lid(20mm) 7ml 20mm 12.5x22.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-064 1pcs quartz cuvette with lid(5mm)/quartz cell/Spectrophotometers no glue 1.75ml 5mm 12.5*7.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-065 2PCS quartz cuvette (90mm)/quartz cell 31.5ml 90mm 12.5x92.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-066 2PCS quartz cuvette (70mm)/quartz cell 24.5ml 70mm 12.5x72.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-067 2PCS quartz cuvette (60mm)/quartz cell 21ml 60mm 12.5x62.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-068 2PCS quartz cuvette (80mm)/quartz cell 28ml 80mm 12.5x82.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-069 1PCS quartz cuvette (90mm)/quartz cell 31.5ml 90mm 12.5x92.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-070 1Pat 350ul Quartz Fluorescent Cuvette Cell (path length 1mm) 350ul 1mm 12.5x3.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-071 1PCS quartz cuvette (70mm)/quartz cell 24.5ml 70mm 12.5x72.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-072 1pcs quartz cuvette with lid(40mm)/quartz cell 14ml 40mm 12.5x42.5x45 mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-073 1pcs quartz cuvette with lid(30mm)/quartz cell 10.5ml 30mm 12.5*32.5*45mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-074 Quartz cuvette for automatic biochemical analyzer(6mm) 0.54ml 6mm 7x8x27mm 200nm-2500nm

Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-075 1pcs Micro quartz cuvette with lid(1750ul) 1750ul 10mm 12.5x12.5x45mm 200nm-2500nm




























REQUEST A FREE QUOTE

If you have questions or suggestions,please leave us a message,

related products
REQUEST A FREE QUOTE

If you have questions or suggestions,please leave us a message,

  • CS PINTEREST
  • CS LINKEDIN
  • CS YOUTUBE
  • CS Facebook

Copyright © 2000-2025 CS Ceramic Co.,Ltd.All Rights Reserved.



the professional team to service !

chat now

live chat

    Leave a message and we'll get back to you via email. Normal live chat hours are Mon-Fri 9a-5p (EST)
