Read Moreitem no. :
CS-QTZ-G001Material : Quartz glass
Purity Available : 99.98%
Shape : Rod
Advantages of quartz rod:
1. High Temperature Resistance: Quartz glass rods can withstand a high temperature without cracking or melting. Long term use at 1100 ℃, short term use at 1450 ℃.
2. UV Transparency: Quartz glass is UV transparent, making it an ideal material for use in applications that require UV transmission.
3. Chemical Resistance: It is resistant to most chemical solvents and acids, making it ideal for use in chemical and biological laboratories.
4. Low Thermal Expansion: It has a very low coefficient of thermal expansion, making it ideal for use in applications that require dimensional stability at high temperatures.
5. Clarity: It is clear and free of any impurities, which means that it is ideal for use in applications that require high optical clarity.
6. High Mechanical Strength: It has a high degree of mechanical strength, which makes it ideal for use in applications that require high load-bearing capacity.
7. Electrical Properties: Quartz glass is an excellent electrical insulator, making it ideal for use in electrical and electronic applications.
8. Durability: It is highly durable and have a long service life, making it an ideal choice for applications that require long-term reliability.
Descriptions of quartz rod:
1. Quartz glass rods are made of high-purity silica and are known for their exceptional transparency and purity.
2. They are highly durable, have exceptional optical clarity, and can withstand harsh environments.
3. The unique properties of quartz glass rods make them an essential material in many industrial and scientific applications.
4. Quartz glass rods are available in various sizes and dimensions, making them versatile and flexible to use.

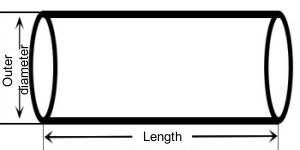

Size details of quartz rod:
Quartz glass rod | |||
Item NO. |
Outer diameter
(mm)
|
Length (mm) | Purity |
CS-QTZ-G001 | 1.8 | 30 | 99.98% |
CS-QTZ-G002 | 2 | 50 | 99.98% |
CS-QTZ-G003 | 2.5 | 200 | 99.98% |
CS-QTZ-G004 | 3 | 300 | 99.98% |
CS-QTZ-G005 | 4.5 | 150 | 99.98% |
CS-QTZ-G006 | 5 | 600 | 99.98% |
CS-QTZ-G007 | 6 | 700 | 99.98% |
CS-QTZ-G008 | 7 | 400 | 99.98% |
CS-QTZ-G009 | 8 | 635 | 99.98% |
CS-QTZ-G010 | 9 | 720 | 99.98% |
CS-QTZ-G011 | 10 | 55 | 99.98% |
CS-QTZ-G012 | 20 | 102 | 99.98% |
CS-QTZ-G013 | 30 | 50-1400 | 99.98% |
CS-QTZ-G014 | 40 | 50-1400 | 99.98% |
CS-QTZ-G015 | 50 | 50-1400 | 99.98% |
CS-QTZ-G016 | 60 | 50-1400 | 99.98% |
CS-QTZ-G017 | 1.8-350 | 20-2000 | 99.98% |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Parameters of quartz glass:
Chemical composition: | SiO2 99.98% |
Density: | 2.2(g/cm3) |
Degree of hardness moh' scale: | 6.6 |
Melting point: | 1732℃ |
Working temperature: | 1100℃ |
Max temperature can reach in a short time: | 1450℃ |
Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
Visible light transmittance: | above 93% |
UV spectral region transmittance: | 80% |
Resistance value: | 10000 times than ordinary glass |
Annealing point: | 1215℃ |
Softening point: | 1730℃ |
Applications of quartz rod:
1. Medical Instruments: Used to fabricate medical instruments such as pipettes, syringes, and microfluidic devices for precision procedures. The high purity and optical clarity of quartz glass make it an ideal material for these applications.
2. Fiber Optic Cables: Quartz glass rods can be drawn into thin fibers and used to manufacture fiber optic cables for telecommunications, data transmission, and imaging applications. Quartz glass has low attenuation and high transmission rates, making it an excellent material for transmitting light signals over long distances.
3. Semiconductor Industry: Used to manufacture semiconductor components such as diffusion tubes, wafer boats, and process tubes.
4. Lighting: Used for manufacturing high intensity discharge (HID) lamps, such as metal halide and high-pressure sodium lamps. Quartz glass is an excellent material for lamp envelopes because it can withstand high temperatures and thermal shock.
5. UV Light Sterilization: Used to manufacture UV lamps for sterilization applications. UV light inactivates pathogens and viruses, making it a valuable tool for disinfection and sterilization in healthcare, food processing, and water treatment industries.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of quartz glass rod, such as shape, dimension, quantity, application etc.
Q2. What is the difference between quartz glass rod and other types of glass?
Quartz glass rod has a higher purity and better performance in high-temperature and high-pressure environments than other types of glass.
Q3. Can quartz glass rod be recycled?
Yes, quartz glass rod can be recycled. It is a sustainable material as it does not generate toxic gases during its production or disposal.
Q4. How to maintain quartz glass rod?
Regularly clean and store the rod in a safe place where it won't be knocked over or damaged. Avoid exposing it to extreme temperatures.
How to clean quartz rod:
1. First, remove any loose debris or dirt from the quartz glass rod using a soft brush or cloth.
2. Fill a clean basin or sink with warm water and add a few drops of mild dish soap or cleaning solution designed for quartz glass.
3. Submerge the quartz glass rod in the solution and gently scrub it with a soft brush or cloth.
4. Rinse the rod thoroughly with clean water, ensuring that all soap residue is removed.
5. Dry the quartz glass rod using a soft, lint-free cloth or paper towel. Avoid using abrasive materials that could scratch the surface of the glass.
6. Store the cleaned quartz glass rod in a protective case or container to prevent damage or contamination until you are ready to use it again.
Quality testing standards:
1. Make sure that there are no smudges or fingerprints on the rods as they can hide any defects.
2. Inspect the rod for any bubbles,cracks or imperfections within the quartz material. These can weaken the structural integrity of the rod and make it more prone to cracking or breaking.
3. Measurement of the length, width, and thickness of the rod to check for accuracy.
4. If you notice any discoloration on the rod, it could indicate impurities in the quartz material. This can weaken the tube and reduce its durability.
5. Hold the rod against a light source and inspect it for transparency. Transparent quartz glass should allow light to pass through it easily with little to no distortion.
6. Verification of the material and chemical composition of the rod.
Packing way:
Why Choose us?
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
