Quartz Sealable Lab Cuvettes
Sealable Quartz Cuvettes for Fluorescence Analysis Sealable Quartz Cuvettes for Fluorescence Analysis Sealable Quartz Cuvettes for Fluorescence Analysis Sealable Quartz Cuvettes for Fluorescence Analysis Sealable Quartz Cuvettes for Fluorescence Analysis

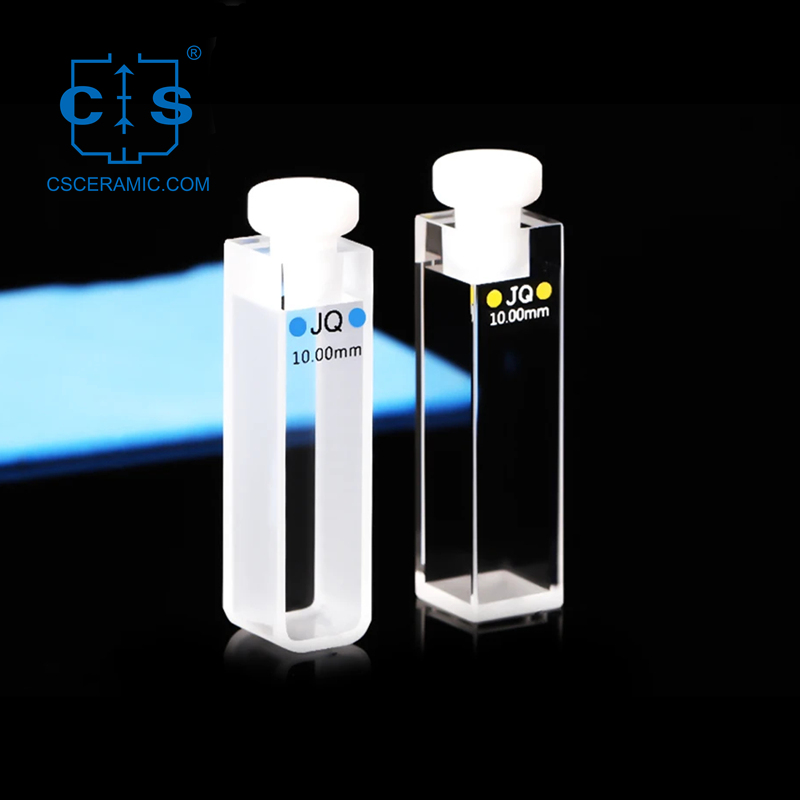

Sealable Quartz Cuvettes for Fluorescence Analysis

High-precision quartz cuvettes, sealable for fluorescence analysis, withstand high temp & chemicals, enhancing experiment accuracy & repeatability.
  • item no. :

    CS-BSM-5001
  • Material : Quartz glass

  • description

Properties of Sealable Quartz Cuvettes


  1. Exceptional Light Transmission:
    Our quartz cuvettes boast high light transmission across a broad spectrum, ranging from 0.12 to 4.5 microns, with no absorption peaks. This ensures accurate fluorescence signal transmission, significantly enhancing experiment sensitivity, and making them ideal for precise fluorescence analysis.

  2. Outstanding Chemical Resistance:
    Crafted from robust quartz, these cuvettes demonstrate exceptional tolerance to a wide range of chemicals, including 6mol/L hydrochloric acid, 6mol/L sodium hydroxide, 98% alcohol, carbon tetrachloride, and benzene. They remain leak-free after 24-hour immersion in these media, making them perfect for diverse and demanding chemical experimental environments.

  3. Tight Seal Design:
    Featuring a secure, sealable design, these cuvettes effectively isolate external light and gas interference, guaranteeing the reliability of experimental results. This feature is particularly advantageous when working with volatile solutions, ensuring accurate and repeatable data.


Applications of Sealable Quartz Cuvettes


  1. Advanced Fluorescence Analysis:
    Leveraging their stable fluorescence signal, our sealable quartz cuvette cells are indispensable in fluorescence spectrum analysis. They enable precise determination of sample fluorescence characteristics, making them widely adopted in biomedicine, environmental monitoring, and more. Their reliability ensures accurate results, critical for informed decision-making in these fields.

  2. Chemical Reaction Monitoring:
    With exceptional chemical stability and light transmission, these cuvettes are perfect for monitoring a variety of chemical reactions. From solution preparation to reaction rate determination, they provide robust support for chemical research, offering insights into reaction dynamics and mechanisms.

  3. Spectral Analysis in Drug Development:
    In the pharmaceutical industry, our sub-micro quartz cuvette cells facilitate quantitative analysis of drug molecules. They support new drug discovery and optimization processes, enabling researchers to assess the spectral properties of compounds, crucial for drug development success.

  4. Precision Environmental Monitoring:
    Our quartz cuvette cells excel in ultraviolet and visible light analysis, covering a broad wavelength range down to 210nm. They are ideal for analyzing nucleic acids, proteins, and other biological macromolecules, as well as other experiments demanding high-precision spectral analysis. Their versatility makes them a vital tool in environmental monitoring and beyond.



Size Chart of Sealable Quartz Cuvettes

Please provide drawing and parameter requirements for customization.




Item no. Description Capacity Path Length LxWxH Wavelength Range Temp.
CS-BSM-5001 3.5ml Quartz fluorometer flow cuvette(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm 600℃/1200℃




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5002 1pcs Quartz fluorescence cuvette cell with screw cap(10mm) for lab 3.5ml 10mm 12.5x12.5x60mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5003 1pcs Quartz cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5004 1pcs Standard quartz fluorescence cuvette cell with stopper(10mm) corrosion resisting without glue 3.5ml 10mm
(4 polished sides)
12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5005 1PCS 10mm quartz closed fluorescent cuvette airtight 1cm paired UV quartz band plug 3.5ml 10mm
(4 polished sides)
12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5006 1PCS 10mm quartz closed cuvette airtight 1cm paired UV quartz band plug two pass light 3.5ml 10mm
(2 polished sides)
12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5007 Quartz cell with stopper(10mm)/3.5ml 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5008 Quartz cell with stopper(10mm)/Trace colorimetric dish/350ul 350ul 10mm 12.5x12.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5009 Quartz cell with stopper(10mm)/700ul/slit 2mm/fluorescence 700ul 10mm 12.5x12.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5010 Quartz cuvette cell with screw cap(10/32mm)/11ml/six way light 11ml 10/30mm
(6 polished sides)
12.5x32.5x45mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5011 Quartz cuvette cell with screw cap(10mm)/Four way light/700ul/Slit 2mm 700ul 10mm
(4 polished sides)
slit 2mm
12.5x12.5x52mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5012 Quartz spiral cuvette/10mm/spiral cell/ Four way light 3.5ml 10mm 12.5*12.5*60mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5012-1 Quartz fluorescence cuvette cell with screw cap/ Five way light 3.5ml 10mm 12.5*12.5*60mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5013 Quartz micro fluorescent cuvette/spiral groove/UV seal/four-way light 350ul-1.75ml 10mm 12.5*12.5*53mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5014 Quartz cuvette cell with screw cap(10mm)/350ul/400ul/600ul/Slit 1/2/3mm 350ul/400ul/600ul 10mm
(slit 1/2/3mm)
12.5x12.5x45mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5015 Quartz cell with screw cap(20mm)/Quartz screw bottle/17ml 17ml 20mm 24*24*62mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5016 Quartz trace fluorescence cell with stopper(10mm)/1.05ml/ Slit 3mm 1.05ml 20mm 12.5x12.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5017 1PCS 350ul Quartz fluorescence cuvette cell with PTFE stopper(1mm) 350ul 1mm 12.5x3.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5018 Quartz closed cuvette airtight/25mm/8.8ml/two pass light 8.8ml 25mm 12.5*27.5*45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5019 1PCS 700ul Quartz fluorescence cuvette cell with PTFE stopper(2mm) 700ul 2mm 12.5x4.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5019-1 Quartz fluorescence closed cuvette cell 1050ul 3mm 12.5x5.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5020 350ul-1750ul quartz fluorescent closed colorimetric dish/micro four-way light/ultraviolet acid and alkali resistance 350ul-1750ul 10mm
slit 1/2/3/4/5mm
12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5020-1 350ul-1750ul glass micron cuvette with stopper 350ul-1750ul 10mm 12.5x12.5x45mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5021 Quartz fluorescence cuvette cell with screw cap(10mm) 3.5ml 10mm 12.5x12.5x58mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5022 350ul Quartz Sealed Cuvette Cell (Path Length 1mm) 350ul 1mm 26x20x5mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5023 50mm Quartz sealed cuvette cell (17.5ml) 17.5ml 50mm 12.5x52.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5024 1.75ml Quartz Fluorescent Micro sealed cuvette cell 1750ul 5mm/10mm 12.5x12.5x45mm /




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5025 Quartz fluorescence cuvette cell with screw cap(10mm) for lab/3.5ml 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5026 1PCS 5mm quartz closed fluorescent cuvette airtight paired UV quartz band plug 1.75ml 5mm
(4 polished sides)
7.5x12.5x55mm 200nm-2500nm





Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5027 Quartz cuvette cell with screw cap(3mm)/1.05ml/Two-way light 1050ul 3mm
(2 light ways)
12.5x5.5x53mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5028 Quartz cuvette cell with PTFE stopper(700ul) 700ul 2mm 12.5x4.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5029 Micro quartz fluorescence cuvette cell with stopper(700ul) 0.7ml 10mm/2mm 12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5029-1 Micro quartz cuvette cell closed with stopper(350ul) 350ul 10mm 12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5030 5mm quartz thread colorimetric dish/UV spiral spiral spiral quartz bottle 1.75ml 5mm 12.5*7.5*55mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5031 Quartz cell with screw cap(5mm) 1.75ml 5mm 12.5*7.5*55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5031-1 Quartz cell with screw cap(1mm) 0.35ml 1mm 12.5*3.5*55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5031-2 Micro quartz fluorescence cuvette cell(10mm) 350ul-1.75ml 10mm
slit 1/2/3/4/5mm
12.5*12..5*53mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5032 Quartz fluorescence cell with stopper /Tape notch(10mm)/3.5ml 350ul 10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5033 1PCS 10mm quartz closed cuvette airtight 1cm paired UV quartz band plug two pass light 3.5ml 10mm
(2 polished sides)
12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5034 Quartz closed ultramicro cuvette colorimeter/two-pass light/acid, alkali and organic resistance 350ul-1.75ml 10mm
(2 polished sides)
12.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5035 Quartz sealed flow cell cuvette 1.3ml 10mm 12.5x12.5x22mm /



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5036 Quartz cuvette cell with screw cap(10mm)/Four way light/1.75ml/Slit 5mm 1.75ml 10mm
(4 polished sides)
slit 5mm
12.5x12.5x52mm /



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5037 Quartz thread trace colorimetric dish/350ul-1.75ml/Two way light/Fully fution technology 350ul/700ul/1.05ml/1.4ml/1.75ml 10mm 12.5*12.5*53mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5038 Quartz sealed fluorescent cuvette with double channel 3.5ml 10mm 12.5*12.5*62mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5039 Infrared quartz fluorescent closed cuvette with thread cap 3.5ml 10mm 12.5*12.5*57mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-5040 Quartz cuvette with thread cap 110ul 1mm 12.5*3.5*26mm 200nm-2500nm
