High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis

Categories
Hot Products

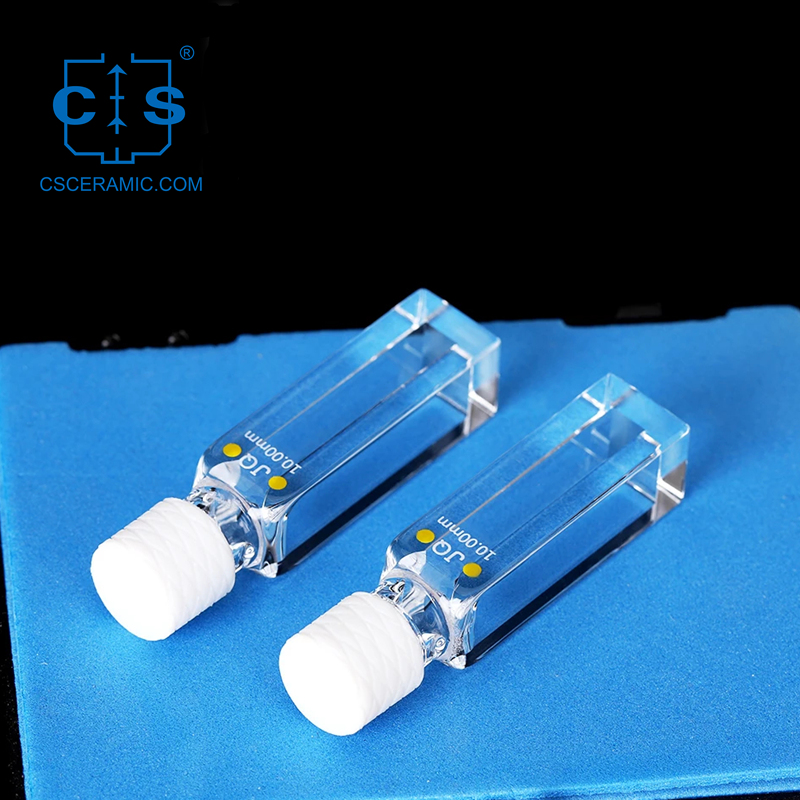

Quartz fluorescence cuvette
High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis

High Purity Quartz Fluorescence Cuvette Light Transmission for Lab Analysis

Quartz fluorescence cuvette, designed for lab fluorescence analysis, enhancing detection accuracy & sensitivity, and includes a sealed cover to prevent contamination.

  • item no. :

    CS-BSM-6001

  • Material : Quartz glass

contact now catalogue
  • description

Properties of Fluorescence Quartz Cuvettes


  • High-Transparency Quartz Material: Crafted from premium, high-purity quartz glass, boasting a light transmittance of up to 90%. This ensures efficient fluorescence signal transmission, minimizing light loss and maximizing detection sensitivity.
  • Four-Side Light Transmission Design: All four sides of our cuvette transmit light, accommodating multi-angle fluorescence detection. This design enhances the reliability and accuracy of your detection results, catering to the needs of advanced lab analysis.
  • Sealed Cover Structure: Equipped with a tight-fitting, sealed cover, our cuvette effectively prevents sample volatilization and maintains sample stability. It also safeguards against external contaminants, ensuring the precision of your experimental outcomes.



Applications of FluorescenceQuartz Cuvettes


  • Materials Science: Our cuvette is tailored for studying the fluorescence properties of polymer materials, nanomaterials, and other emerging materials. By offering key information on material behavior and characteristics, it accelerates the development of innovative and high-performance materials.
  • Food Safety: Ensuring the safety and quality of food is paramount. Our cuvette supports fluorescence detection of harmful substances, such as additives and pesticide residues, in food products. This technology helps maintain stringent food safety standards and protects consumer health.
  • Biomedical Research: Our cuvette facilitates fluorescent labeling of biological samples, including proteins and nucleic acids, enabling scientists to gain deeper insights into the structure and function of biomolecules. This technology is pivotal in advancing biomedical research and understanding complex biological processes.
  • Environmental Monitoring: In the realm of fluorescence analysis, our cuvette is essential for detecting pollutants and degradation products in water, soil, and other environmental samples. It provides crucial data support for environmental protection initiatives, aiding in the assessment and mitigation of pollution.



Size Chart of Fluorescence Quartz Cuvettes

Please provide drawing and parameter requirements for customization.



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6001 Quartz cuvette cell with screw cap/10mm/two channel/3.5ml/700ul 700ul/3.5ml 10mm 12.5x4.5x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6001-1 Quartzfluorescence  cuvette cell sealed customized 700ul/3.5ml 10mm 12.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6002 Quartz fluorescence cuvette with lid(five windows)/10mm 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6002-1 Quartzfluorescence  cuvette 2.1/3.5/5.6/7ml 3/5/8/10mm / 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6003 1pcs Standard quartz fluorescence cuvette cell with lid(10mm) four surfaces are transparent High transmittance without glue 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6004 1pcs 4.5ml glass fluorescence cell with lid(10mm) 3.5ml 10mm 12.5x12.5x45mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6004-1 Malvern glass sample cell 3.5ml 10mm 12*12*45mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6004-2 Quartz square cell with thread hole in  bottom 24ml 20mm/40mm
(4 way light) 		42*22*31mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6004-3 Glass fluorescence cell 9ml 8mm/28mm 30*45*10mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6004-4 Glass fluorescence cell customized 1.4ml 1mm/25mm 55*31*11mm 350nm-2000nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6005 Standard quartz fluorescence cell with lid(40mm) 14ml 10mm/40mm 12.5x42.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6006 20mm/30mm/40mm/50mm Quartz fluorescence reaction cell cuvette 8ml/27ml/64ml/125ml 20mm/30mm/40mm/50mm 24x24x22mm(8ml)/ 34x34x32mm(27ml)
44x44x42mm(64ml)/54x54x52mm(125ml) 		200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6006-1 Quartz fluorescence cuvette cell 8ml 20mm 24x24x22mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6006-2 Quartz fluorescence cuvette cell 125ml 50mm 54x54x54mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6007 50mm Quartz fluorescence cuvette cell 17.5ml 10/50mm 12.5x52.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6008 350ul Quartz Micro Fluorescence Sealed Cuvette 350ul 1mm/10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6009 53ml Quartz fluorescent cuvette cell 53ml 20mm/50mm 24x54x55mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6010 Quartz fluorescence cuvette with lid(Special products)1.75mlx2 1.75ml+1.75ml 10mm 12.5x12.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6011 20mm Quartz reaction cuvette cell 16ml 20mm 20x20x40mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6012 Standard quartz fluorescence cell with lid (10mm) 3.5ml 10mm 12.5x12.5x45mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6013 Standard quartz fluorescence cell with lid(30mm) 10.5ml 10mm/30mm 12.5x32.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6014 Standard quartz fluorescence cell with lid(20mm) 7ml 10mm/20mm 12.5x22.5x45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6015 1pcs Standard quartz fluorescence cell with lid(5mm) no glue 1.75ml 5mm 7.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6016 Quartz cell with stopper(10mm)/350ul/slit 1mm/fluorescence 350ul 10mm
slit 1mm 		12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6016-1 Quartz fluorescence cell sealed 3.5ml 10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6016-2 Quartz micron fluorescence cell sealed 700ul 10mm/2mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6016-3 Quartz micron fluorescence cell 1400ul 10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6016-4 Quartz micron fluorescence cell 1750ul 5mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6017 Quartz cuvette cell with screw cap(10mm)/Four way light/1.75ml/Slit 5mm 1.75ml 10mm
(4 way light)
slit 5mm 		12.5x12.5x52mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6018 Quartz micron fluorescence cell with thread cap 700ul 2mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6019 Quartz micron fluorescence cell with black wall 45ul 3*3mm
center height 15mm 		12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6020 Quartz micron fluorescence cell 2/3/4/5/10/13ul 1/1.5/2/2.5/5/6.5mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6021 Quartz funnel fluorescent cell 3.5ml 10mm 12.5x12.5x46 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6022 Quartz micron fluorescence cell with thread cap 600ul 3/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6023 Quartz fluorescence cell with 4 polished sides customized customized 10mm 40x40x83 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6024 Quartz micron fluorescence cell 1.75ml 5mm/10mm
(2 polished sides) 		12.5*12.5*75mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6025 Quartz micron fluorescence cell 110ul 4mm 6*6*10mm
interior size:
4*3.5*10mm
4*4*10mm 		200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6026 Quartz micron fluorescence cell 400ul 4mm/10mm
window size: 4*5mm 		12.5x12.5x45 mm 200nm-2500nm




Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6027 Quartz micron fluorescence cell 1050ul 3mm/10mm 12.5x12.5x45 mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6028 Quartz cuvettes 5 way light 350ul 1mm 12.5*3.5*45mm 200nm-2500nm
CS-BSM-6028-1 700ul 1mm 12.5*3.5*45mm 200nm-2500nm
CS-BSM-6028-2 1.75ml 5mm 12.5*7.5*45mm 200nm-2500nm
CS-BSM-6028-3 3.5ml 10mm 12.5*12.5*45mm 200nm-2500nm
CS-BSM-6028-4 7ml 20mm 22.5*12.5*45mm 200nm-2500nm
CS-BSM-6028-5 10.5ml 30mm 32.5*12.5*45mm 200nm-2500nm
CS-BSM-6028-6 14ml 40mm 42.5*12.5*45mm 200nm-2500nm
CS-BSM-6028-7 17.5ml 50mm 52.5*12.5*45mm 200nm-2500nm
CS-BSM-6028-8 35ml 100mm 102.5*12.5*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6029 Quartz triangle cuvette 1.75ml / 13*13*18.4*45mm 200nm-2500nm



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6030 Quartz triangle cuvette / / 40mm /



Item no. Description Capacity Path Length LxWxH Wavelength Range
CS-BSM-6031 Quartz atomic gas chamber / 1mm/3mm/6mm/10mm/18mm/customized 1mm: 45*5*2mm
3mm: 4*4mm
6mm: 8*8mm
10mm: 12*12mm
18mm: 20*20mm
customized: 45*25*2mm
Double hole air chamber:7*7*7mm 		200nm-2500nm


Tags : Quartz fluorescence cuvette Lab fluorescence cuvette High-purity fluorescence cuvette Fluorescence analysis cuvette Four-sided light transmission cuvette
