laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :

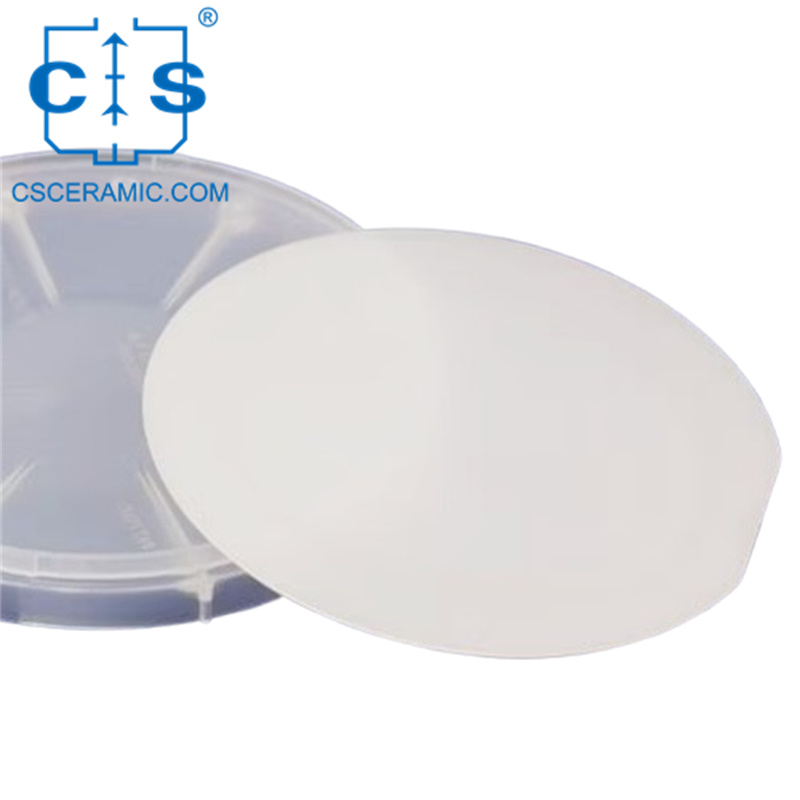

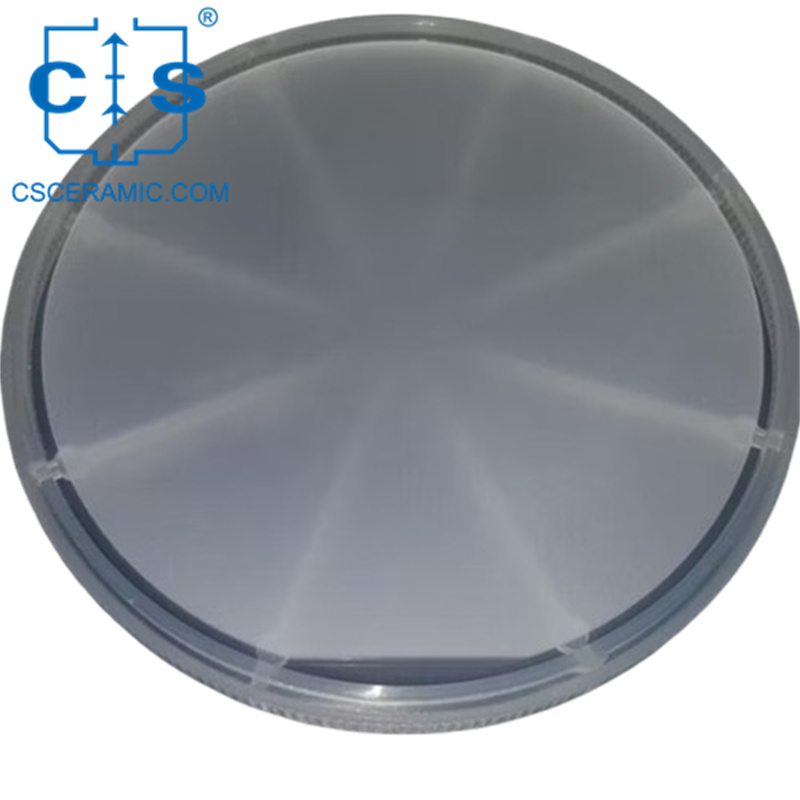

CS-BS-JP1001Material : Sapphire
Resistant to High Temperatures & Corrosion: Engineered to withstand extreme temperatures and corrosive environments, our sapphire substrate maintains its integrity and performance, even under the most challenging conditions.
Excellent Wear Resistance: With exceptional wear resistance, this substrate ensures long-lasting durability and reduces the need for frequent replacements, lowering your overall maintenance costs.
Adaptable to Harsh Working Environments: Whether you're working in high-temperature furnaces, chemical processing plants, or other demanding settings, our sapphire substrate is designed to thrive in harsh environments, providing reliable performance and consistent results.
Low Lattice Mismatch Rate: Featuring a low lattice mismatch rate, this substrate ensures optimal compatibility with various materials and devices, enhancing overall performance stability and reliability.
Stable Performance: Known for its consistent and stable performance, our sapphire substrate is the perfect choice for applications requiring precision and reliability, ensuring your operations run smoothly and efficiently.
Ideal for III-V Nitride Epitaxial Wafers: Our sapphire substrate serves as the perfect foundation for the preparation of III-V nitride epitaxial wafers, such as GaN. This makes it an ideal choice for chip manufacturing in the semiconductor industry, ensuring high-quality and reliable results.
Semiconductor Industry Applications: Perfectly suited for the semiconductor industry, our substrate supports the manufacturing of chips used in a wide range of applications, including LEDs, lasers, and high-power electronics.
Exceptional Material Properties: Sapphire is renowned for its exceptional hardness, thermal stability, and chemical resistance. These properties make our substrate highly durable and capable of withstanding the harsh conditions of semiconductor manufacturing processes.
Precision and Consistency: Our sapphire substrate offers precision and consistency in terms of thickness, flatness, and surface quality. This ensures that the epitaxial wafers produced are of the highest quality, meeting the stringent standards of the semiconductor industry.
Customizable Options: To cater to the diverse needs of our clients, we offer customizable options for our sapphire substrate. Whether you require a specific size, thickness, or surface treatment, we can tailor our substrate to meet your exact requirements.
Please provide drawing and parameter requirements for customization.
| C-Plane(0001) Sapphire Substrate | |||||
| Item NO. | Inch | Diameter(mm) | Thickness（μm） | ttv bow warp | Purity |
| CS-BS-JP1001 | 1 Inch | 25.4±0.1 | 430±25 |
ttv < 5 μm bow < 5 μm warp < 5 μm |
99.999% |
| CS-BS-JP1002 | 2 Inch | 50.8±0.1 | 430±25 |
ttv < 10 μm bow < 10 μm warp < 10 μm |
99.999% |
| CS-BS-JP1003 | 3 Inch | 76.2±0.1 | 500±25 |
ttv < 15 μm bow < 15 μm warp < 15 μm |
99.999% |
| CS-BS-JP1004 | 4 Inch | 100±0.1 | 650±25 |
ttv < 20 μm bow < 20 μm warp < 20 μm |
99.999% |
| CS-BS-JP1005 | 5 Inch | 125±0.1 | 650±25 |
ttv < 20 μm bow < 20 μm warp < 20 μm |
99.999% |
| CS-BS-JP1006 | 6 Inch | 150±0.2 | 1300±25 |
ttv < 25 μm bow < 25 μm warp < 25 μm |
99.999% |
| CS-BS-JP1007 | 8 Inch | 200±0.2 | 1300±25 |
ttv< 30 μm bow< 30 μm warp< 30 μm |
99.999% |
Sapphire Tube Thermocouple Protection Sleeve for Petrochemical & Semiconductor
The sapphire tube, mainly alumina (monocrystalline), boasts 99.995%+ purity, high hardness and excellent air tightness, widely used in petrochemicals, optics, lab equipment, & semiconductors.
Monocrystalline 99.995%+ Pure Sapphire Optical Sight Glass Window
The sapphire optical glass window, mainly aluminum oxide (monocrystalline), boasts 99.995%+ purity, is widely used in petrochemical, optical, underwater exploration, and lab equipment.
Corrosion-Resistant Yttrium Oxide Transparent Ceramic Cover for UV-IR Applications
The Yttrium Oxide Transparent Ceramic Cover is ideal for use as high-temperature windows, chemical media windows, fairings, red covers, and optical lenses.
Fire clay Assay Crucible
Laboratory consumables fire assay crucible has incomparable excellent advantages in terms of quality, performance, appearance.Customize was acceptable. Multiple uses.
Alumina Ceramic Crucible Lab Crucibles Thermal Analysis Crucible
Alumina Ceramic Crucible, Lab Crucibles with good corrosion resistance,high temperature resistance,good thermal shock, no easy to crack,high slip casting density.
Circle Alumina Rod Ceramic Rods Length 1-2500mm
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Alumina Fiber Blanket Ceramic Fiber Board
The alumina ceramic fiber board and blanket are both primarily composed of alumina, offering a range of benefits such as high strength, excellent erosion resistance, ease of processing and cutting, light weight, and outstanding thermal insulation properties.
Impurity-Free Quartz Preform for Optical Fiber Drawing
High-purity quartz preform for optical fiber drawing, impurity-free, stable performance, ensures no signal loss.
