item no. :

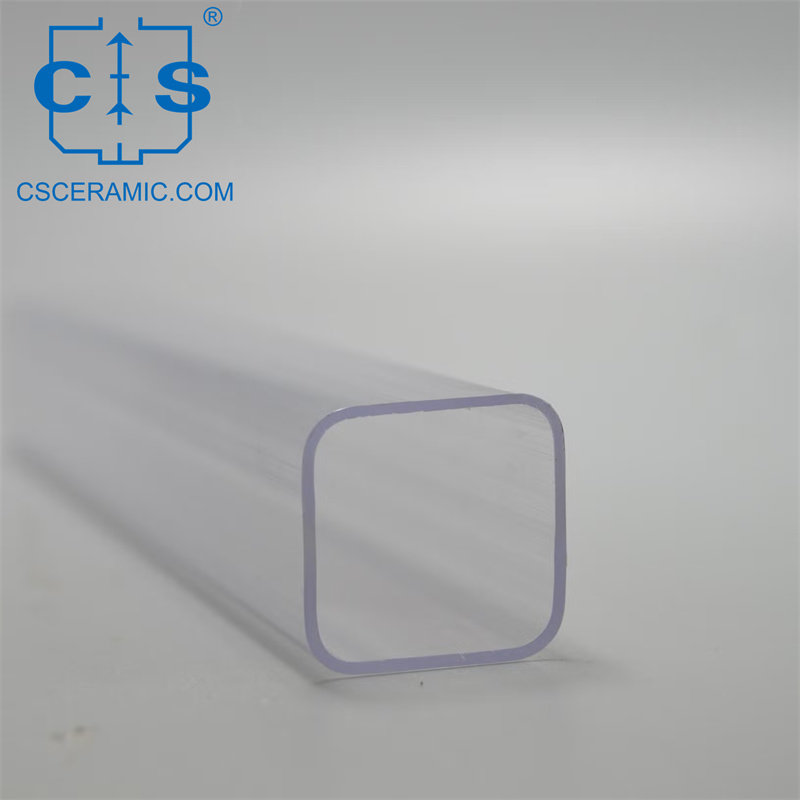

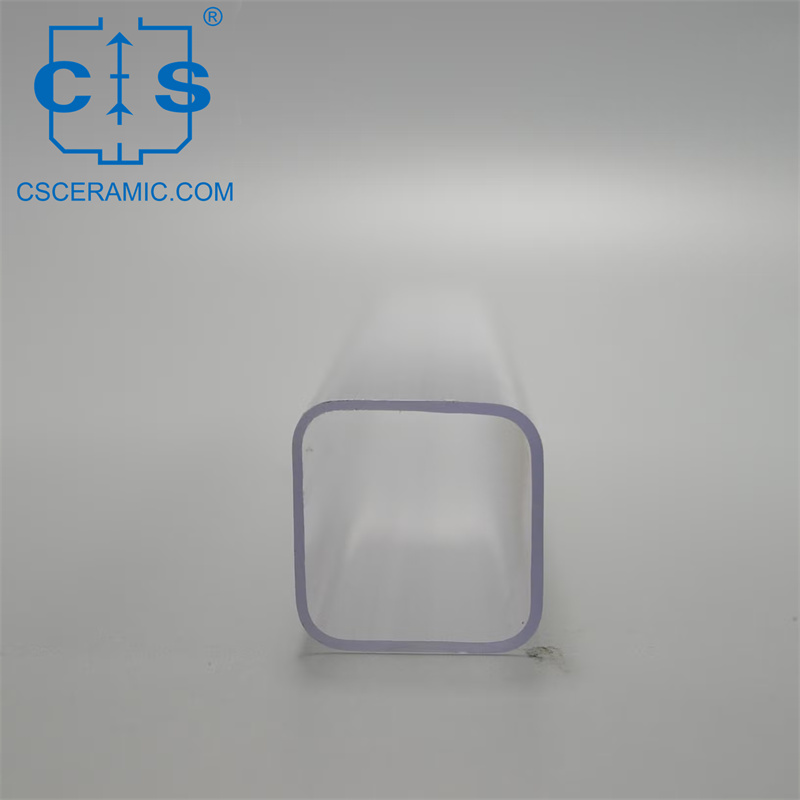

CS-QTZ-FG001Material : Quartz glass
High Temperature Resistance: Quartz transparent tube exhibits exceptional heat resistance, capable of enduring temperatures up to 1100°C for extended periods and reaching 1450°C for brief durations. Its low coefficient of thermal expansion allows it to withstand drastic temperature fluctuations without compromising performance.
Superior Light Transmission: Across the entire spectral range from ultraviolet to infrared, quartz tube offers impressive light transmission properties. With visible light transmittance exceeding 93% and ultraviolet transmittance above 80%, it ensures clarity and precision in optical applications.
Excellent Corrosion Resistance: Quartz transparent tube demonstrates robust chemical stability, resisting reaction with most acids except hydrofluoric acid. This resilience persists even at elevated temperatures, making it suitable for harsh environments.
Optical Tubes for Precision Instrumentation: Leveraging its exceptional optical performance and high light transmission efficiency, fused silica tubing is ideal for crafting a range of optical components. This includes light source tubes for lasers, mercury lamps, and tungsten iodide lamps, making it a cornerstone in the manufacturing of precision optical instruments.
Industrial Heating Solutions: Fused silica tubing's high temperature resistance and thermal stability position it as a superior choice for industrial heating applications. It is commonly used in heater protection tubes, safeguarding sensitive equipment in the chemical, semiconductor, food processing, and pharmaceutical industries from thermal damage.
Versatile Experimental Equipment: With its robust resistance to both high temperatures and corrosion, fused silica tubing finds use in a multitude of experimental setups. It serves as the backbone for chemical testing tubes, biological culture tubes, and other crucial laboratory equipment, ensuring accuracy and reliability in scientific research and development.
Please provide drawing and parameter requirements for customization.
| Quartz Square and Rectangular Tube Transparent | |||||
| Item no. |
Side Length 1 (mm) |
Side Length 2 (mm) |
Wall Thickness (mm) |
Length (mm) |
Purity (%) |
| CS-QTZ-FG001 | 20 | 20 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG002 | 30 | 30 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG003 | 40 | 40 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG004 | 50 | 50 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG005 | 75 | 65 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG006 | 80 | 70 | 3-6 | ≤1000 | 99-99.98% |
| CS-QTZ-FG007 | 100 | 100 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG008 | 200 | 200 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG009 | 300 | 300 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG010 | 400 | 400 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG011 | 500 | 500 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG012 | 600 | 600 | 3-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG013 | 700 | 700 | 7-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG014 | 800 | 800 | 7-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG015 | 900 | 900 | 7-10 | ≤1000 | 99-99.98% |
| CS-QTZ-FG016 | 1000 | 1000 | 7-10 | ≤1000 | 99-99.98% |
