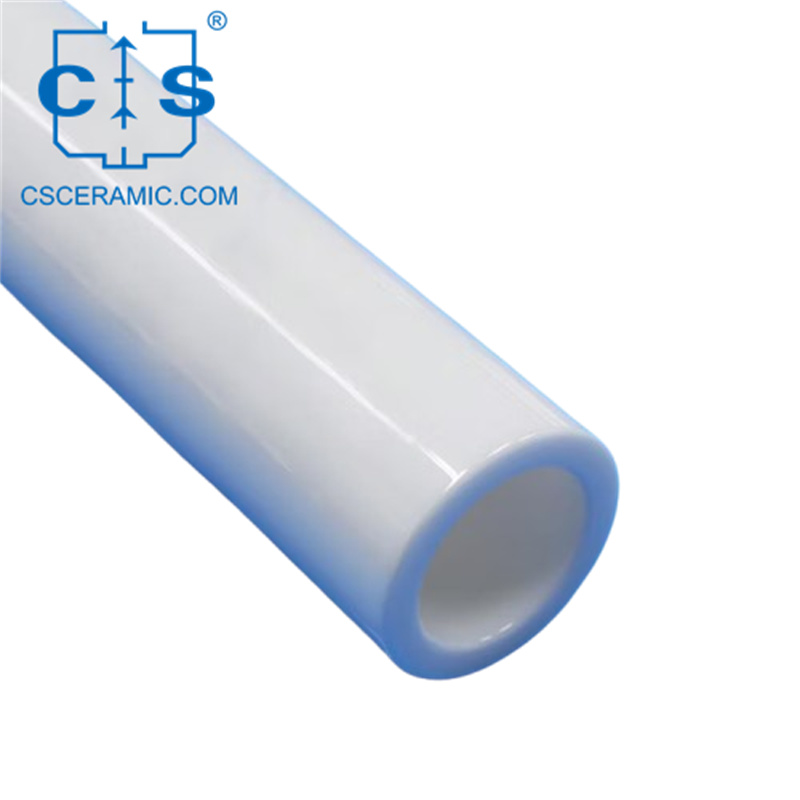

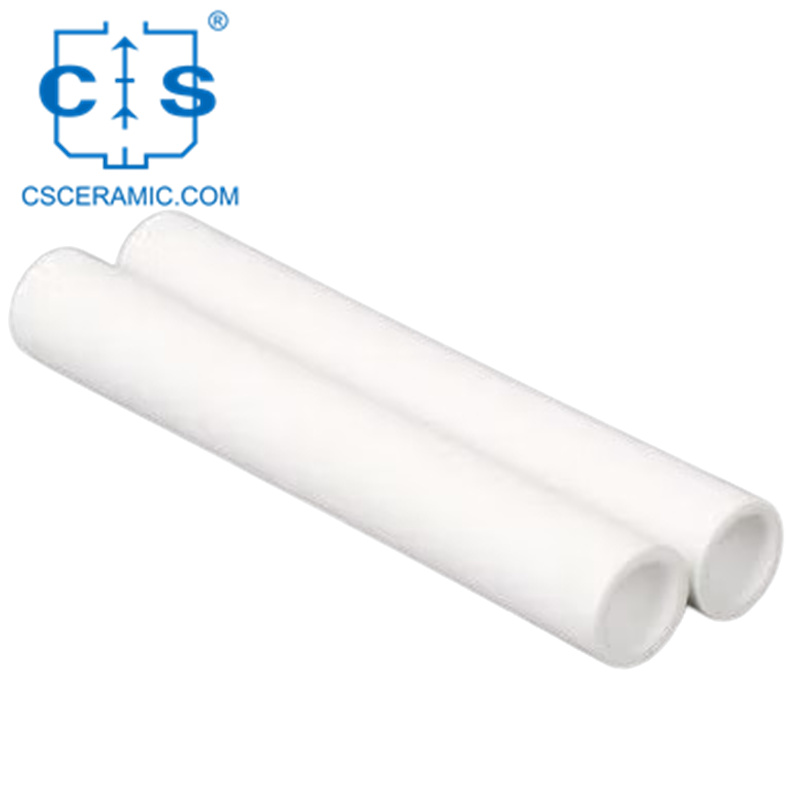

High Temp ZTA Ceramic Tube Resistant to Acids & Alkalis Zirconia Toughened Alumina Pipe

ZTA Tube, resistant to high temp & acids/alkalis, combines hardness & wear resistance with toughness, ideal for refractory, chemical and metallurgy industries.

item no. :
CS-ZRG001
Material : ZTA

contact now catalogue

description

Properties of ZTA Ceramic Tube

Enhanced Durability: ZTA ceramic tube combines high hardness and wear resistance with excellent toughness, resulting in a long service life and robust mechanical impact resistance.
Corrosion Resistance: With exceptional chemical stability, ZTA ceramic tube is resistant to various acids and alkalis, making it suitable for extreme environments.
High-Temp Performance: ZTA ceramic tube can withstand high temperatures and thermal shocks, ensuring stable performance in high-temperature applications.
Excellent Insulation: Thanks to its high resistivity, ZTA ceramic tube offers superior insulation properties, ideal for electrical insulation requirements.

Applications of ZTA Ceramic Tube

Mechanical Engineering: ZTA ceramic tube's high compressive strength, wear resistance, and stable high-temperature performance make it suitable for various mechanical parts, such as connecting tubes, piston caps, and insulating protective sleeves.
Refractory Industry: Its resistance to high temperatures, thermal conductivity, and corrosion makes ZTA ceramic tube ideal for manufacturing combustion tubes and thermocouple holding tubes.
Chemical & Metallurgical Industries: ZTA ceramic tube's corrosion resistance, chemical inertia, and smooth surface make it perfect for transporting chemical liquids and serving as filter membrane tubes.
Medical & Biological Industries: With its biological inertness, compatibility, non-toxicity, and corrosion resistance, ZTA ceramic tube is used in medical equipment like syringes and tubular filters.

Size Chart of ZTA Ceramic Tube

Please provide drawing and parameter requirements for customization.

Zirconia Toughened Alumina Tube
Item No.	Outer Dia. × Inner Dia. (mm)	Length (mm)
CS-ZRG001	0.7*0.3	L≤500mm
CS-ZRG002	0.8*0.4
CS-ZRG003	0.9*0.4
CS-ZRG004	1.0*0.5
CS-ZRG005	1.1*0.6
CS-ZRG006	1.2*0.6
CS-ZRG007	1.3*0.7
CS-ZRG008	1.4*0.8
CS-ZRG009	1.5*0.8
CS-ZRG010	2.0*1.0
CS-ZRG011	3.0*1.5
CS-ZRG012	3.0*2.0
CS-ZRG013	4.0*2.0
CS-ZRG014	4.0*3.0
CS-ZRG015	5.0*3.0
CS-ZRG016	5.0*3.5
CS-ZRG017	6.0*4.0
CS-ZRG018	7.0*4.5	L≤800mm
CS-ZRG019	8.0*4.0
CS-ZRG020	8.0*5.0
CS-ZRG021	9.0*6.0
CS-ZRG022	10.0*4.0
CS-ZRG023	10.0*6.0
CS-ZRG024	10.0*7.0
CS-ZRG025	12.0*4.0
CS-ZRG026	12.0*8.0
CS-ZRG027	14.0*4.0
CS-ZRG028	14*10
CS-ZRG029	15*11
CS-ZRG030	16*12
CS-ZRG031	18*14
CS-ZRG032	20*15
CS-ZRG033	25*19
CS-ZRG034	30*25
CS-ZRG035	40*30	L≤1000mm
CS-ZRG036	44*38
CS-ZRG037	50*40
CS-ZRG038	60*50
CS-ZRG039	70*60	L≤1500mm
CS-ZRG040	80*70
CS-ZRG041	90*80
CS-ZRG042	100*90
CS-ZRG043	110*100
CS-ZRG044	120*110
CS-ZRG045	150*140
CS-ZRG046	200*190

Tags : Zirconia Toughened Ceramic Pipe High Temperature Ceramic Tube Acid & Alkali Resistant Ceramic Pipe Wear Resistant Zirconia Ceramic Tube ZTA Ceramic Tube
