laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More

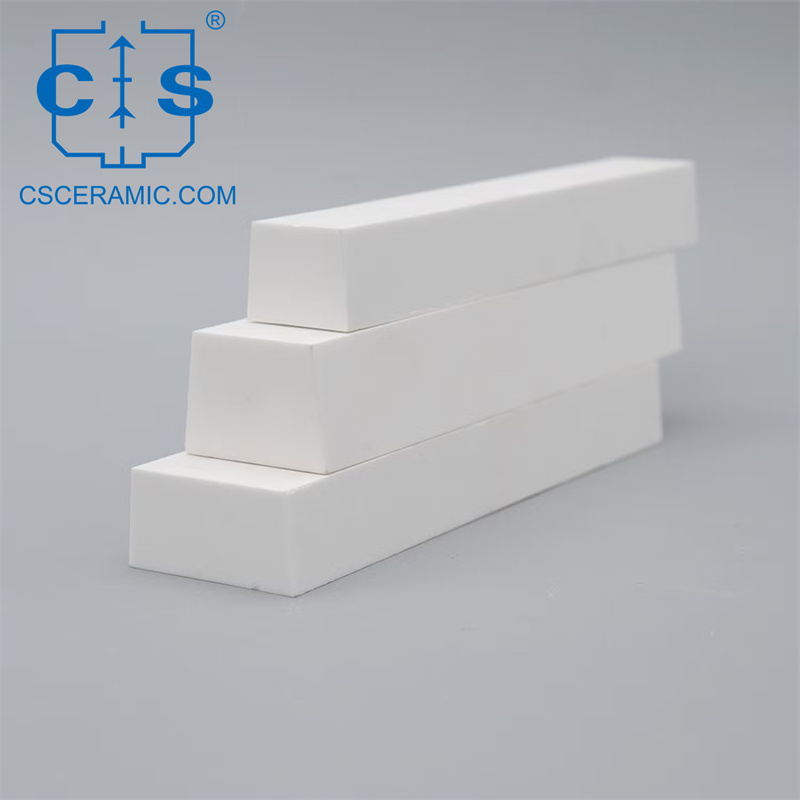

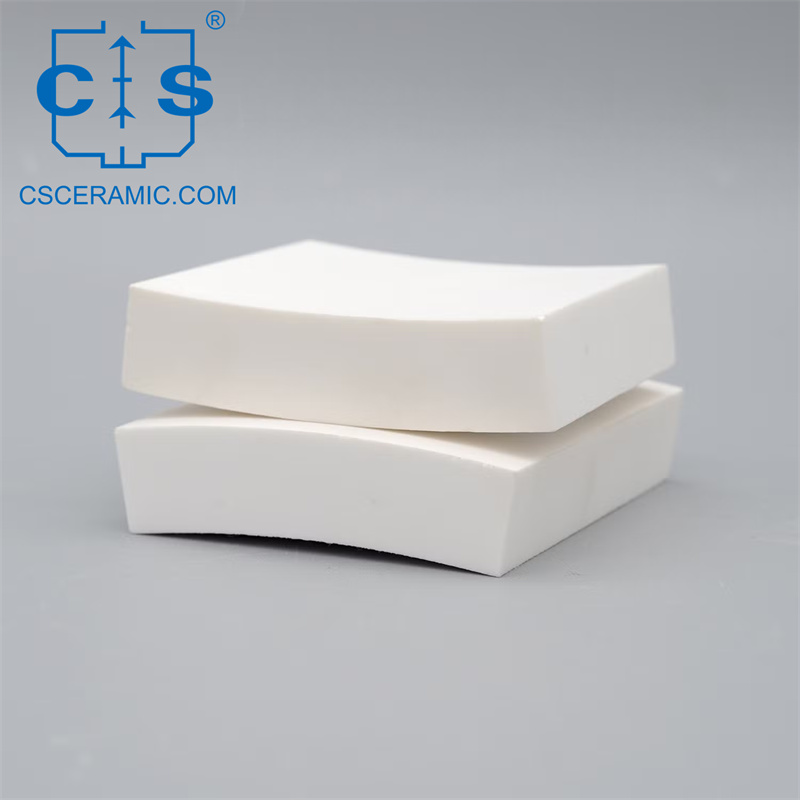

item no. :
CS-ZR-CB001Material : ZTA
Exceptional Hardness & Wear Resistance: The ZTA ceramic lining board boasts high hardness, ensuring superior wear resistance and a long service life, ideal for demanding applications.
Robust Mechanical Strength & Toughness: With high mechanical strength and excellent toughness, it resists pressure and impact, maintaining structural integrity in harsh environments.
High Temperature Resistance & Thermal Stability: The board's ability to withstand high temperatures and maintain thermal stability makes it suitable for applications in extreme heat settings.
Corrosion Resistance: Resistant to acid, alkali, and chemical corrosion, it ensures good chemical stability, safeguarding against deterioration from aggressive substances.
Superior Electrical Insulation: Featuring excellent electrical insulation properties, high breakdown voltage, and a small dielectric constant, it's reliable in electrical and electronic applications.
Metallurgy & Coal Power Industry: In these sectors, ZTA ceramic lining board's hardness, wear resistance, and high-temperature tolerance make it ideal for pipe liners in powder conveying systems, significantly extending pipeline lifespan.
Chemical Industry: Its corrosion resistance, high-temperature capability, and smooth ceramic surface reduce electrochemical reaction resistance. Applications include electrochemical production, sewage treatment, metal electrolysis, and electroplating equipment components.
Machinery Industry & High-Temperature Refractory Use: With high compressive strength, wear resistance, toughness, and high-temperature stability, ZTA ceramic lining board is used for high-temperature mechanical structure components, gaskets, seals, heat dissipation plates, and burning plates.
| Zirconia Toughened Alumina Lining Board | ||
| Item No. |
L x W (mm) |
Thickness (mm) |
| CS-ZR-CB001 | 50X25 | 5-12 |
| CS-ZR-CB002 | 50X50 | 5-20 |
| CS-ZR-CB003 | 100X100 | 6-30 |
| CS-ZR-CB004 | 120X80 | 8-30 |
| CS-ZR-CB005 | 150X100 | 6-50 |
| CS-ZR-CB006 | 100X25 | 5-15 |
| CS-ZR-CB007 | 100X50 | 6-30 |
| CS-ZR-CB008 | 100X75 | 12-50 |
| CS-ZR-CB009 | 150X50 | 6-50 |
| CS-ZR-CB010 | 70X70 | 10-25 |
| CS-ZR-CB011 | 75X50 | 6-15 |
| CS-ZR-CB012 | 120X100 | 6-25 |
| CS-ZR-CB013 | 120X50 | 6-25 |
| CS-ZR-CB014 | 100X80 | 6-25 |
| CS-ZR-CB015 | 150X75 | 6-50 |
| CS-ZR-CB016 | 27X27 | 5-18 |
| CS-ZR-CB017 | 37.5X37.5 | 5-18 |
| CS-ZR-CB018 | 39.2X39.2 | 6-18 |
| CS-ZR-CB019 | 50X30 | 5-15 |
Wear Resistant ZTA Ceramic Lining Plate for Tough Protection
ZTA Ceramic Lining Plate, crafted from alumina & zirconia, boasts high temp & corrosion resistance, wear resistance, and toughness, protecting equipment surfaces.
High Hardness ZTA Ceramic Substrate Wear Resistant ZTA Substrate
The ZTA ceramic substrate, made of alumina & zirconia, is sintered at high temp, offering hardness, wear resistance, & toughness ideal for demanding apps.
Wear & Corrosion Resistant ZTA Ceramic Lining Brick Extends Equipment Life
ZTA lining bricks, alumina-zirconia blend, high-temp resistant, wear-resistant, extend ball mill & equipment life.
ZTA Ceramic Grinding Balls Ultra-Fine Grinding Media for High Hardness Abrasives
ZTA grinding balls feature high mechanical strength, fracture toughness, wear resistance, heat & corrosion resistance, ideal for ultra-fine grinding of high hardness abrasives.
High Temp ZTA Ceramic Tube Resistant to Acids & Alkalis Zirconia Toughened Alumina Pipe
ZTA Tube, resistant to high temp & acids/alkalis, combines hardness & wear resistance with toughness, ideal for refractory, chemical and metallurgy industries.
High-Temp Zirconia Toughened Alumina ZTA Ceramic Rod & Bar for Industrial Use
ZTA Rod offers high temp, acid/alkali resistance, chemical stability, hardness, wear resistance, and toughness, crucial in mech eng, high-temp, chemical, electrical, metallurgy industries.
ZTA Ceramic Ring Wear-Proof for Mechanical Fixation
ZTA Ceramic Ring, crafted from alumina & zirconia, offers high-temp, corrosion resistance, wear-resistance, and toughness, ideal for mechanical fixation, sealing, and isolation.
LECO Consumables Glass Wool Fibers 501-081
Glass Wool Fibers are lightweight, easy to install, and offer excellent resistance to moisture, fire, and chemical damage. They are also highly durable and long-lasting, ensuring low maintenance costs.
