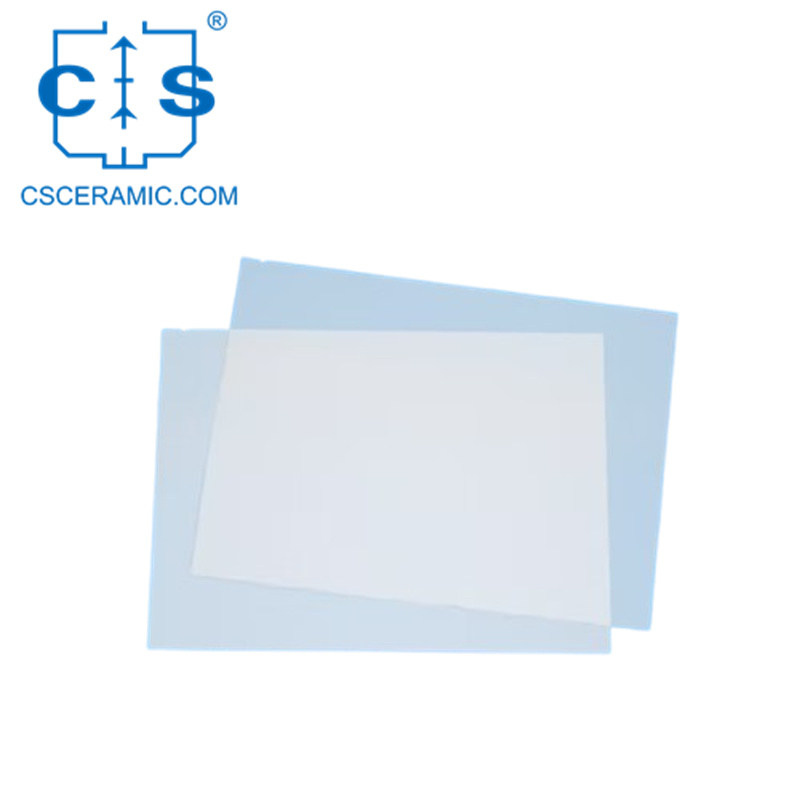

High Hardness ZTA Ceramic Substrate Wear Resistant ZTA Substrate

The ZTA ceramic substrate, made of alumina & zirconia, is sintered at high temp, offering hardness, wear resistance, & toughness ideal for demanding apps.

item no. :
CS-ZTA-CS001
Material : ZTA

contact now catalogue

description

Properties of ZTA Ceramic Substrates

Superior Strength & Toughness: The ZTA ceramic substrate boasts superior strength, more than twice that of regular alumina substrates. Its robust flexural strength and exceptional toughness minimize the risk of fracture, making it a reliable choice for demanding applications.
High-Quality Surface Finish: Featuring a smooth and even finish achieved through a homogeneous and fine microstructure, the ZTA ceramic substrate ensures excellent surface roughness. This high surface quality is crucial for applications requiring precision and performance.
Excellent Electrical Insulation: With its superior electrical insulation properties and low dielectric constant, the ZTA ceramic substrate is ideal for high-frequency electronic components. It offers reliable performance in electronic systems and devices.
High-Temperature Resistance & Thermal Shock Resistance: The ZTA ceramic substrate exhibits remarkable resistance to high temperatures and thermal shock, ensuring stable operation under harsh conditions. It is well-suited for applications requiring long-term exposure to high temperatures.

Applications of ZTA Ceramic Substrates

The versatile ZTA ceramic substrate finds extensive use in various fields, including oscillators, LED modules, power modules, ignition modules, power supply modules, and more. It is widely utilized in electronic components, electrical equipment, new energy vehicles, photoelectric sensors, and other critical areas, demonstrating its versatility and reliability.

Size Chart of ZTA Ceramic Substrates

Please provide drawing and parameter requirements for customization.

Zirconia Toughened Alumina Substrate
Item No.	Length (mm)	Width (mm)	Thickness (mm)	Purity (Al2O3+ZrO2)
CS-ZTA-CS001	10	10	0.5	74%+23.5%
CS-ZTA-CS002	10	10	1	74%+23.5%
CS-ZTA-CS003	15	11	1.5	74%+23.5%
CS-ZTA-CS004	18	13	1.5	74%+23.5%
CS-ZTA-CS005	20	20	2	74%+23.5%
CS-ZTA-CS006	20	20	2	74%+23.5%
CS-ZTA-CS007	25	25	1	74%+23.5%
CS-ZTA-CS008	30	30	0.5	74%+23.5%
CS-ZTA-CS009	30	30	1	74%+23.5%
CS-ZTA-CS010	30	30	2	74%+23.5%
CS-ZTA-CS011	35	35	1	74%+23.5%
CS-ZTA-CS012	40	40	1	74%+23.5%
CS-ZTA-CS013	40	40	3	74%+23.5%
CS-ZTA-CS014	50	30	0.5	74%+23.5%
CS-ZTA-CS015	50	50	0.5	74%+23.5%
CS-ZTA-CS016	50	50	1	74%+23.5%
CS-ZTA-CS017	50	50	1.5	74%+23.5%
CS-ZTA-CS018	50	50	2	74%+23.5%
CS-ZTA-CS019	60	60	1	74%+23.5%
CS-ZTA-CS020	65	35	0.5	74%+23.5%
CS-ZTA-CS021	65	48	1	74%+23.5%
CS-ZTA-CS022	70	70	1.2	74%+23.5%
CS-ZTA-CS023	70	70	3	74%+23.5%
CS-ZTA-CS024	76.2	76.2	1.5	74%+23.5%
CS-ZTA-CS025	80	80	3	74%+23.5%
CS-ZTA-CS026	80	80	2	74%+23.5%
CS-ZTA-CS027	80	70	1.5	74%+23.5%
CS-ZTA-CS028	84	84	0.8	74%+23.5%
CS-ZTA-CS029	100	100	0.5	74%+23.5%
CS-ZTA-CS030	100	100	1	74%+23.5%
CS-ZTA-CS031	100	100	1.2	74%+23.5%
CS-ZTA-CS032	100	100	1.5	74%+23.5%
CS-ZTA-CS033	100	100	2	74%+23.5%
CS-ZTA-CS034	100	90	1.5	74%+23.5%
CS-ZTA-CS035	100	80	1.8	74%+23.5%
CS-ZTA-CS036	100	75	2	74%+23.5%
CS-ZTA-CS037	10-400	10-400	0.5-2.5	74%+23.5%

Tags : Wear Resistant Ceramic Substrate High Hardness Ceramic Substrate Tough Ceramic Substrate Material ZTA Ceramic Substrate Alumina-Zirconia Ceramic Substrate
