laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-QTZ-D001Material : Quartz glass
Please provide drawing and parameter requirements for customization.

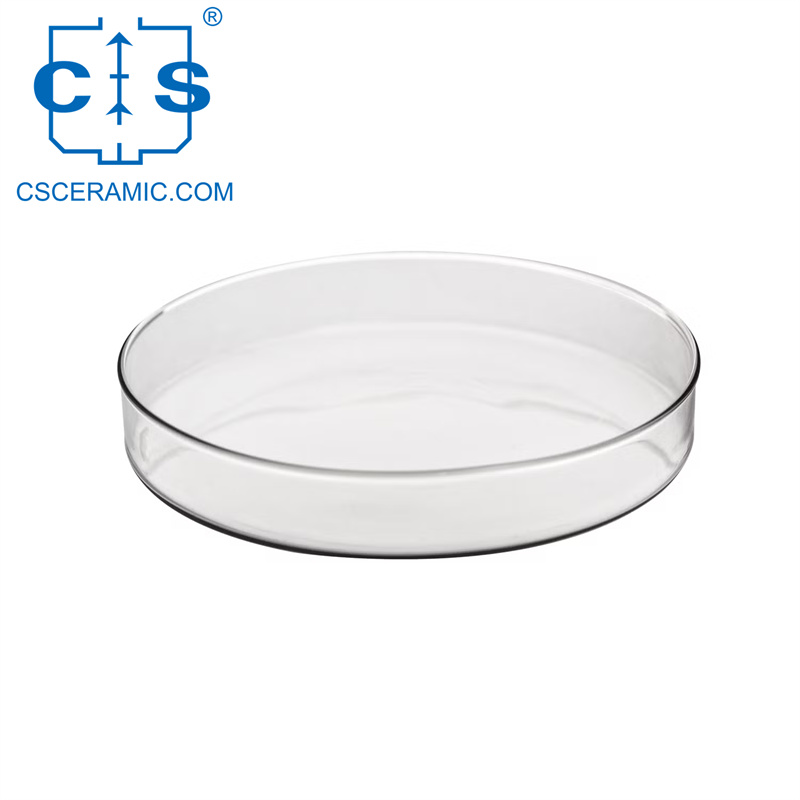

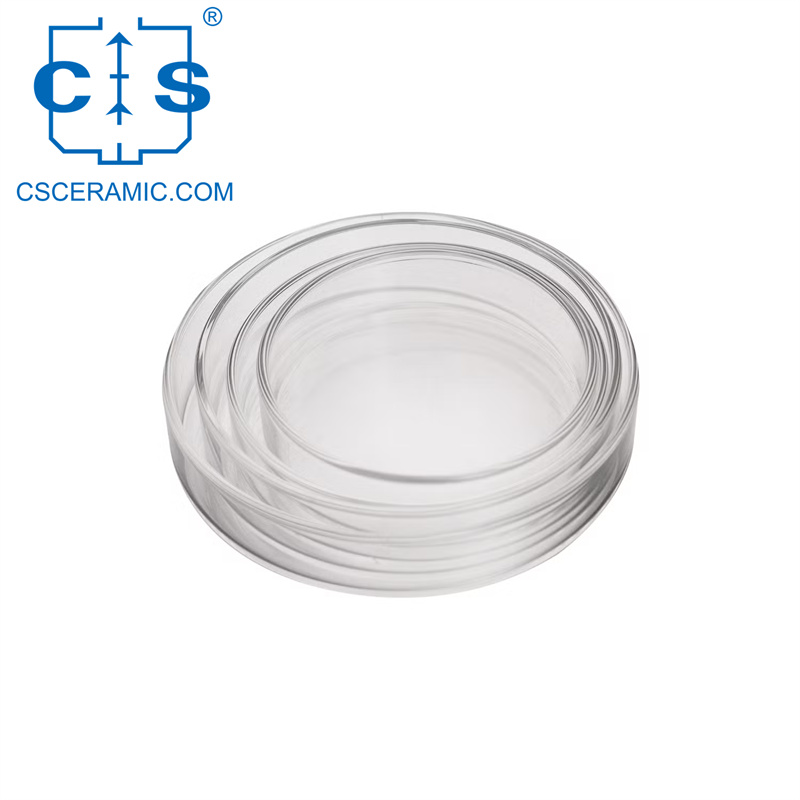

| Transparent Quartz Crucible Round | ||||
| Item no. |
Outer Diameter (mm) |
Height (mm) |
Wall Thickness (mm) |
Purity (%) |
| CS-QTZ-D001 | 8 | 4 | 1-1.8 | 99.95-99.99 |
| CS-QTZ-D002 | 10 | 5.5 | 1.5-2.5 | 99.95-99.99 |
| CS-QTZ-D003 | 15 | 7 | 2-3 | 99.95-99.99 |
| CS-QTZ-D004 | 20 | 8 | 2-4.5 | 99.95-99.99 |
| CS-QTZ-D005 | 30 | 6 | 2.5 | 99.95-99.99 |
| CS-QTZ-D006 | 50 | 15 | 3-5 | 99.95-99.99 |
| CS-QTZ-D007 | 85 | 18 | 5-7 | 99.95-99.99 |
| CS-QTZ-D008 | 100 | 20 | 5-7 | 99.95-99.99 |
| CS-QTZ-D009 | 120 | 25 | 7-10 | 99.95-99.99 |
| CS-QTZ-D010 | 180 | 30 | 7-10 | 99.95-99.99 |
| CS-QTZ-D011 | 260 | 35 | 7-10 | 99.95-99.99 |
| Transparent Quartz Crucible Rectangular | |||||
| Item no. |
Length (mm) |
Width (mm) |
Height (mm) |
Wall Thickness |
Purity (%) |
| CS-QTZ-F001 | 30 | 20 | 5 | 2 | 99.95-99.99 |
| CS-QTZ-F002 | 40 | 40 | 8 | 3 | 99.95-99.99 |
| CS-QTZ-F003 | 45 | 30 | 10 | 3.5 | 99.95-99.99 |
| CS-QTZ-F004 | 50 | 50 | 12 | 4 | 99.95-99.99 |
| CS-QTZ-F005 | 70 | 70 | 15 | 4.5 | 99.95-99.99 |
| CS-QTZ-F006 | 100 | 100 | 20 | 4.5 | 99.95-99.99 |
| CS-QTZ-F007 | 150 | 150 | 22 | 5 | 99.95-99.99 |
| CS-QTZ-F008 | 200 | 100 | 25 | 5 | 99.95-99.99 |
| CS-QTZ-F009 | 200 | 200 | 13 | 5 | 99.95-99.99 |
| CS-QTZ-F010 | 300 | 300 | 18 | 6 | 99.95-99.99 |
| CS-QTZ-F011 | 350 | 200 | 25 | 6 | 99.95-99.99 |
| CS-QTZ-F012 | 400 | 400 | 30 | 7 | 99.95-99.99 |
Thermal Shock Stable Quartz Flange for Pipe & Equipment Connections
The quartz flange, corrosion & high-temp resistant with good thermal shock tolerance, small expansion coef., & excellent chemical stability, connects pipes & equipment in harsh environments.
Optical Transmittance Quartz Etching Ring for Semiconductor Etching
The high-purity quartz etching ring, resistant to high temp & corrosion, guides gases for precise semiconductor etching, ensuring quality & efficiency.
High-Purity Quartz Wafer Boat for Semiconductor & PV Diffusion Furnaces
The high-purity quartz wafer boat, a vital component in semiconductor & PV production, loads wafers for diffusion & oxidation in furnaces.
Quartz Wafer Boat Carrier for Semiconductor & PV Cell Production
The quartz wafer boat bracket, a vital component in semiconductor & photovoltaic production, carries wafers or solar cells for diffusion & oxidation in furnaces.
Thermal Insulation Quartz Furnace Door for PV Cell Production
The quartz furnace door is widely used in PV diffusion, annealing, and oxidation furnaces for stable temperature and atmosphere control.
Quartz Source Jar Insulates Well for Solar Cell Production
The quartz furnace door, resistant to high temps, thermal shock, acids, & alkalines, ensures stable temp & atmosphere in PV diffusion, annealing, & oxidation furnaces.
High-Purity Quartz Waste Liquid Filter Bottle for Solar Cell Diffusion Process Purification
The high-purity quartz waste liquid bottle, resistant to high temp & thermal shock, offers excellent light transmission, corrosion resistance, and is ideal for filtering & precipitating solar cell diffusion waste liquid, separating solids for purification.
UV to NIR Transmission Quartz Sight Glass for Boilers, Smelting & Chemical Industries
The high-purity quartz glass mirror boasts temperature & corrosion resistance, low thermal expansion, good thermal shock resistance, and superior optical performance, making it ideal for boilers, smelting, chemical, and other industrial monitoring applications.
