Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-SNR-0001Material : Si3N4
Please provide drawing and parameter requirements.

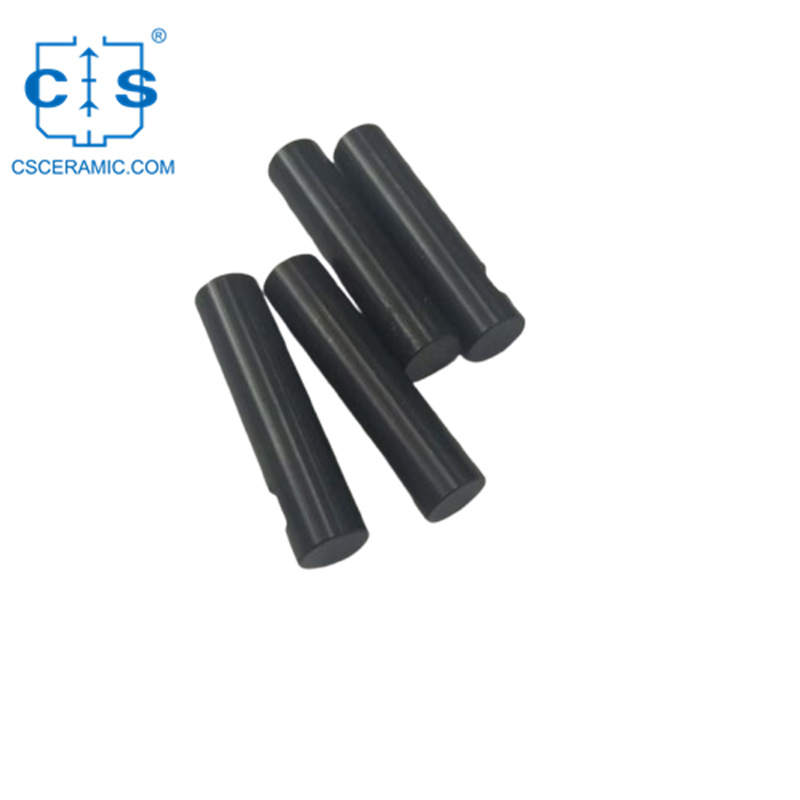

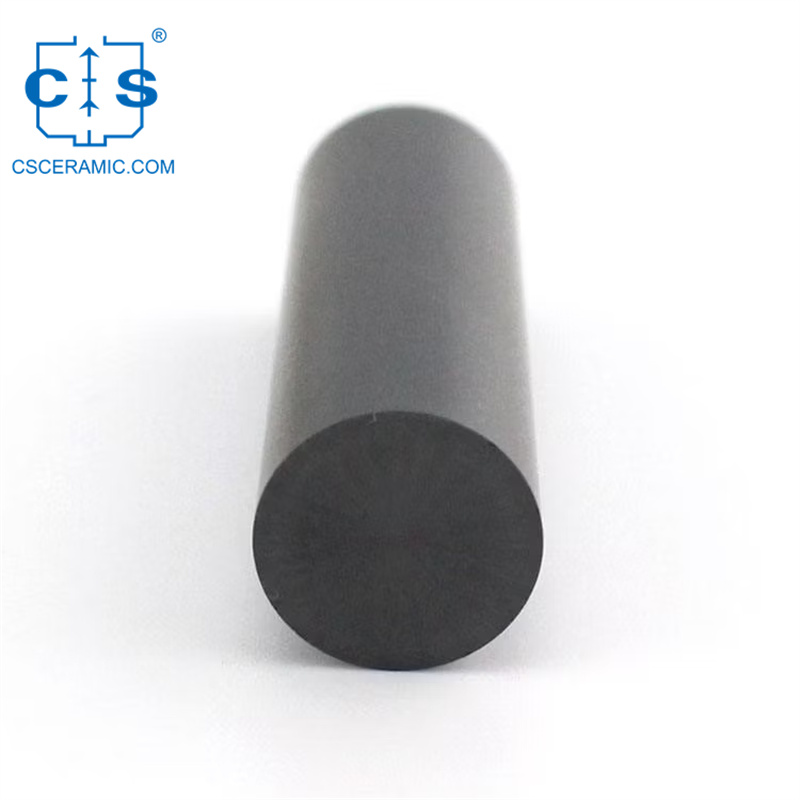

| Silicon Nitride Ceramic Rod Circular | |||
| Item NO. | Diameter | Length | Purity |
| (mm) | (mm) | (%) | |
| CS-SNR-0001 | 2 | 20 | 85-99 |
| CS-SNR-0002 | 2 | 50 | 85-99 |
| CS-SNR-0003 | 3 | 20 | 85-99 |
| CS-SNR-0004 | 3 | 50 | 85-99 |
| CS-SNR-0005 | 4 | 12 | 85-99 |
| CS-SNR-0006 | 4 | 50 | 85-99 |
| CS-SNR-0007 | 5 | 12 | 85-99 |
| CS-SNR-0008 | 6 | 12 | 85-99 |
| CS-SNR-0009 | 6 | 30 | 85-99 |
| CS-SNR-0010 | 6.75 | 22 | 85-99 |
| CS-SNR-0011 | 7.5 | 100 | 85-99 |
| CS-SNR-0012 | 8 | 30 | 85-99 |
| CS-SNR-0013 | 10 | 40 | 85-99 |
| CS-SNR-0014 | 10 | 100 | 85-99 |
| CS-SNR-0015 | 12 | 10 | 85-99 |
| CS-SNR-0016 | 12 | 40 | 85-99 |
| CS-SNR-0017 | 15 | 10 | 85-99 |
| CS-SNR-0018 | 15 | 40 | 85-99 |
| CS-SNR-0019 | 20 | 10 | 85-99 |
| CS-SNR-0020 | 20 | 40 | 85-99 |
| CS-SNR-0021 | 25 | 10 | 85-99 |
| CS-SNR-0022 | 25 | 40 | 85-99 |
| CS-SNR-0023 | 30 | 40 | 85-99 |
| CS-SNR-0024 | Feb-80 | 20-200 | 85-99 |
| Silicon Nitride Ceramic Bar Rectangular | ||||
| Item NO. | Width of Cross Section | Height of Cross Section | Length | Purity |
| (mm) | (mm) | (mm) | (%) | |
| CS-SNR-1002 | 5 | 5 | 40 | 85-99 |
| CS-SNR-1003 | 10 | 10 | 70 | 85-99 |
| CS-SNR-1004 | 35 | 22 | 60 | 85-99 |
| CS-SNR-1005 | 40 | 32 | 100 | 85-99 |
| CS-SNR-1006 | 60 | 20 | 105 | 85-99 |
| CS-SNR-1007 | 75 | 75 | 90 | 85-99 |
Silicon Nitride Ceramic Plate Si3N4
The silicon nitride exhaust hood offers high temp & corrosion resistance, good electrical insulation. It's ideal for reduction furnaces to vent gases while blocking debris.
AMB Metalized Si3N4 Ceramic Substrate for High-Power Device Packaging
The AMB silicon nitride substrate, offers electrical function, ideal for packaging high-voltage, high-power devices used in EVs, rail transit, smart grids, and aerospace.
High-Temp Silicon Nitride Ceramic Shaft Sleeve for Engines
High-temperature sintered silicon nitride ceramic shaft sleeve, used in rotating mechanical devices like engines, reduces friction, extending shaft lifespan.
High-Purity Si3N4 Ceramic Plunger for Plunger Pumps & Hydraulic Systems
High-purity silicon nitride ceramic plunger offers high strength, wear durability, self-lubrication, ideal for plunger pumps & hydraulic system components.
High-Purity Si3N4 Ceramic Semiconductor Substrate for Power Devices & ICs
The Si3N4 ceramic substrate, a new-gen semiconductor material made of high-purity powder, is widely used in power components, inverters, modules, & multi-device ICs.
HHigh-Temp Silicon Nitride Insulation Ring Si3N4 for Polysilicon Furnace
The Silicon Nitride Ceramic Insulation Ring is vital in polysilicon reduction furnaces, effectively safeguarding electrodes and polycrystalline silicon rods under high temperatures, ensuring stable and safe silicon rod production.
Heat-Resistant Silicon Nitride Seal Ring Si3N4 Sealant Ring for Gas/Liquid Leak Prevention
The Silicon Nitride sealing ring, crafted from ceramic is widely used in mechanical equipment & pipeline joints to prevent leaks.
High-Performance Si3N4 Ceramic Ball Bearing
The Silicon Nitride Bearing is a high-performance option, featuring lightweight design, ideal for harsh environments & high-speed applications.
