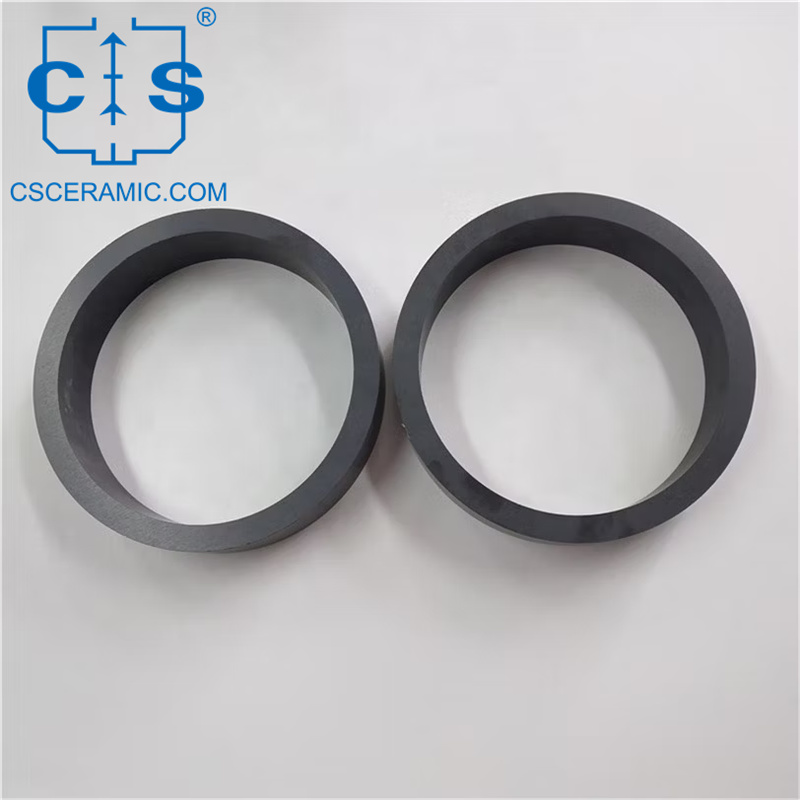

Heat-Resistant Silicon Nitride Seal Ring Si3N4 Sealant Ring for Gas/Liquid Leak Prevention

The Silicon Nitride sealing ring, crafted from ceramic is widely used in mechanical equipment & pipeline joints to prevent leaks.

item no. :
CS-DHG-MF001
Material : Si3N4

contact now catalogue

description

Properties of Silicon Nitride Seal Ring

Excellent Chemical Corrosion Resistance: Made from high-quality Silicon Nitride ceramic, our sealing rings are resistant to acids, alkalis, and other corrosive chemicals, making them suitable for a wide range of corrosive environments.
Outstanding Wear Resistance: With high hardness and excellent wear resistance, our Silicon Nitride sealing rings offer a long service life and reduce the need for frequent replacements.
Impressive High-Temperature Resistance: Our rings can withstand extreme temperatures up to 1300℃, ensuring reliable sealing performance in high-temperature applications.
Low Thermal Expansion Coefficient: The Silicon Nitride material has a small thermal expansion coefficient, allowing our sealing rings to adapt to a wide operating temperature range without compromising sealing effectiveness or causing excessive expansion stress.

Applications of Silicon Nitride Seal Ring

Chemical Equipment Sealing: Our Silicon Nitride sealing rings are designed to prevent leakage of water, oil, chemicals, or gases, and keep dust, air, and other contaminants out of your equipment. With excellent corrosion resistance, they remain unaffected by acids, alkalis, and other chemicals, making them ideal for use in a wide range of chemical processing equipment.
Mining & Engineering Machinery Sealing: Thanks to their high hardness, good wear resistance, and high compressive strength, our Si3N4 sealing rings are perfect for high-load, high-dust environments in mining and engineering machinery. They offer a long replacement cycle, reducing maintenance costs and downtime.
Metal Smelting Furnaces & High-Temperature Equipment Sealing: Our Silicon Nitride sealing rings are engineered to withstand extreme temperatures, with minimal thermal expansion and low thermal stress on equipment. This ensures the reliability and longevity of your metal smelting furnaces and other high-temperature applications.

Size Chart of Silicon Nitride Seal Ring

Please provide drawing and parameter requirements for customization.

Si₃N₄ Seal Ring
Item No.	External Diameter (mm)	Inner Diameter (mm)	Thickness (mm)
CS-DHG-MF001	10.0	5.0	2.5
CS-DHG-MF002	15.0	9.0	3.0
CS-DHG-MF003	20.0	12.9	3.5
CS-DHG-MF004	25.0	15.0	2.0
CS-DHG-MF005	28.0	20.0	2.5
CS-DHG-MF006	31.0	25.0	3.0
CS-DHG-MF007	36.5	27.0	4.5
CS-DHG-MF008	48.0	38.0	4.8
CS-DHG-MF009	50.0	39.0	5.0
CS-DHG-MF010	50.0	40.0	5.0
CS-DHG-MF011	50.0	38.5	5.5
CS-DHG-MF012	50.0	30.0	10.0
CS-DHG-MF013	51.0	40.5	5.1
CS-DHG-MF014	55.5	51.5	2.0
CS-DHG-MF015	62.0	51.0	5.5
CS-DHG-MF016	65.0	53.8	5.5
CS-DHG-MF017	68.0	57.0	5.5
CS-DHG-MF018	90.0	18.0	6.0
CS-DHG-MF019	102.0	63.0	19.4
CS-DHG-MF020	120.0	112.8	8.5
CS-DHG-MF021	1~150	0.5~140	0.25~50
