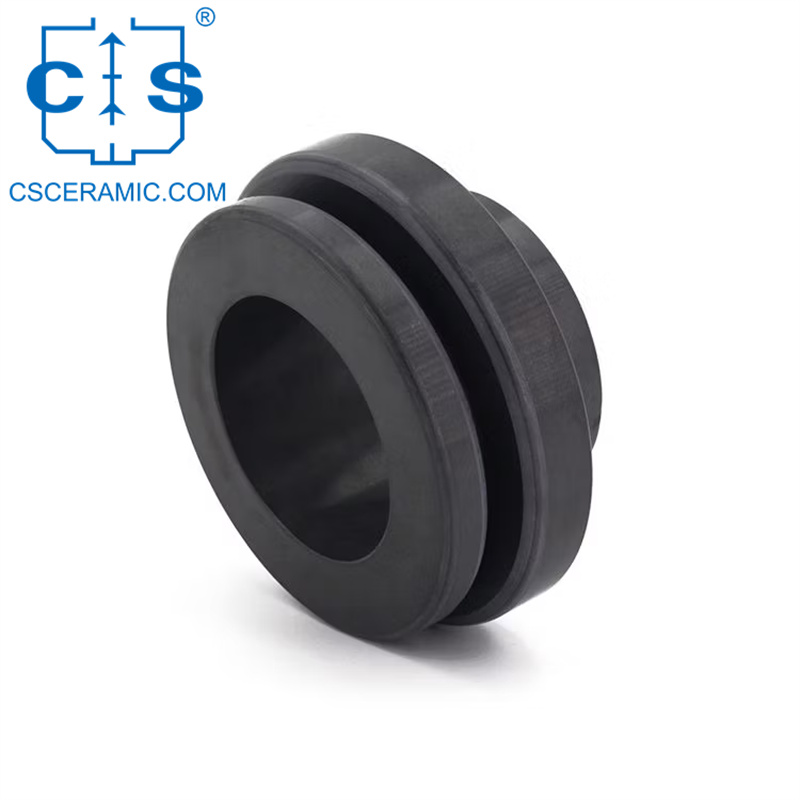

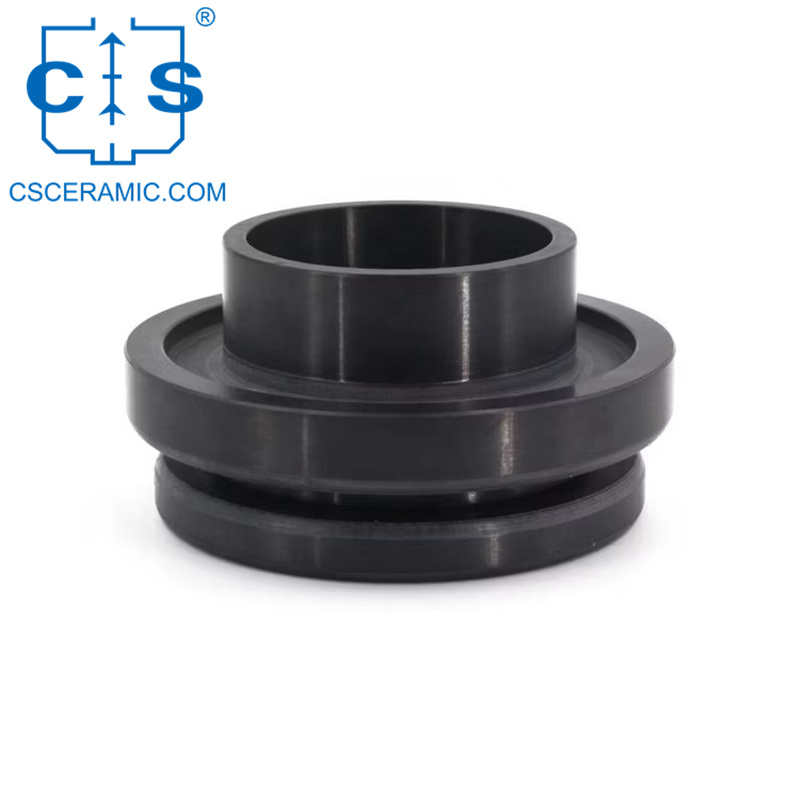

HHigh-Temp Silicon Nitride Insulation Ring Si3N4 for Polysilicon Furnace

The Silicon Nitride Ceramic Insulation Ring is vital in polysilicon reduction furnaces, effectively safeguarding electrodes and polycrystalline silicon rods under high temperatures, ensuring stable and safe silicon rod production.

item no. :
CS-SIN-JY1001
Material : Si3N4

contact now catalogue

description

Properties of Silicon Nitride Insulation Ring

Exceptional High-Temperature Resistance: Built to withstand extreme temperatures, our Silicon Nitride rings are ideal for high-performance applications.
Superior Insulation Properties: With excellent insulation, these rings ensure electrical isolation and safety in various electronic devices.
Minimal Thermal Expansion Coefficient: Featuring a low CTE (Coefficient of Thermal Expansion), our rings maintain dimensional stability and reliability in thermal cycling conditions.
Durable & Reliable: Made from high-purity Silicon Nitride, these insulation rings offer high mechanical strength and hardness, making them suitable for demanding environments.
Wide Application Range: Perfect for semiconductors, integrated circuits, power components, inverters, and multi-device systems, our rings ensure optimal performance and reliability.

Applications of Silicon Nitride Insulation Ring

Polysilicon Reduction Furnace Component: Our Silicon Nitride insulation rings are crucial in polysilicon reduction furnaces, providing essential insulation during the polysilicon production process.
Solar Photovoltaic Cell Manufacturing: These rings are also used in the production of solar photovoltaic cells, ensuring efficient energy conversion and reliability.
Semiconductor Production: Ideal for semiconductor manufacturing, our Si3N4 insulation rings offer superior electrical isolation and thermal stability, crucial for high-performance devices.
Advanced Material Properties: Made from high-purity Silicon Nitride, these rings exhibit excellent thermal conductivity, high mechanical strength, and a low coefficient of thermal expansion, making them suitable for demanding applications.
Reliability and Durability: Our Si3N4 insulation rings are designed for long-lasting performance and reliability, ensuring consistent results in various industrial settings.

Custom Design for Silicon Nitride Insulation Ring

Please provide drawing and parameter requirements for customization.

Tags : Polysilicon Furnace Insulation Rings High-Temp Insulation Rings for Silicon Production Insulation Rings for Polycrystalline Silicon Rods Silicon Nitride Insulation Rings Si3N4 Ceramic Insulation Rings
